Summary of Contents for Rongta Technology LS015

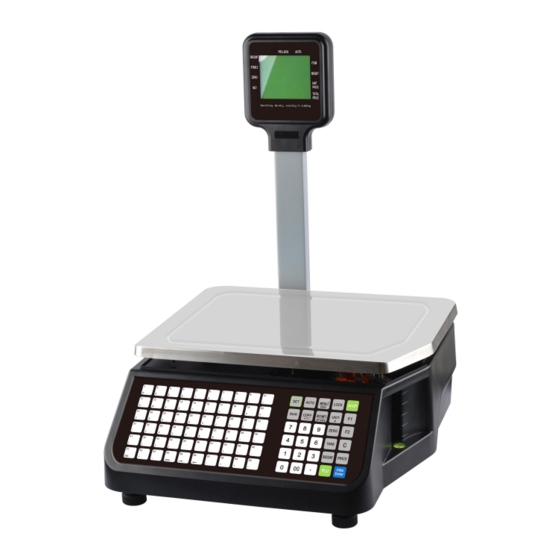

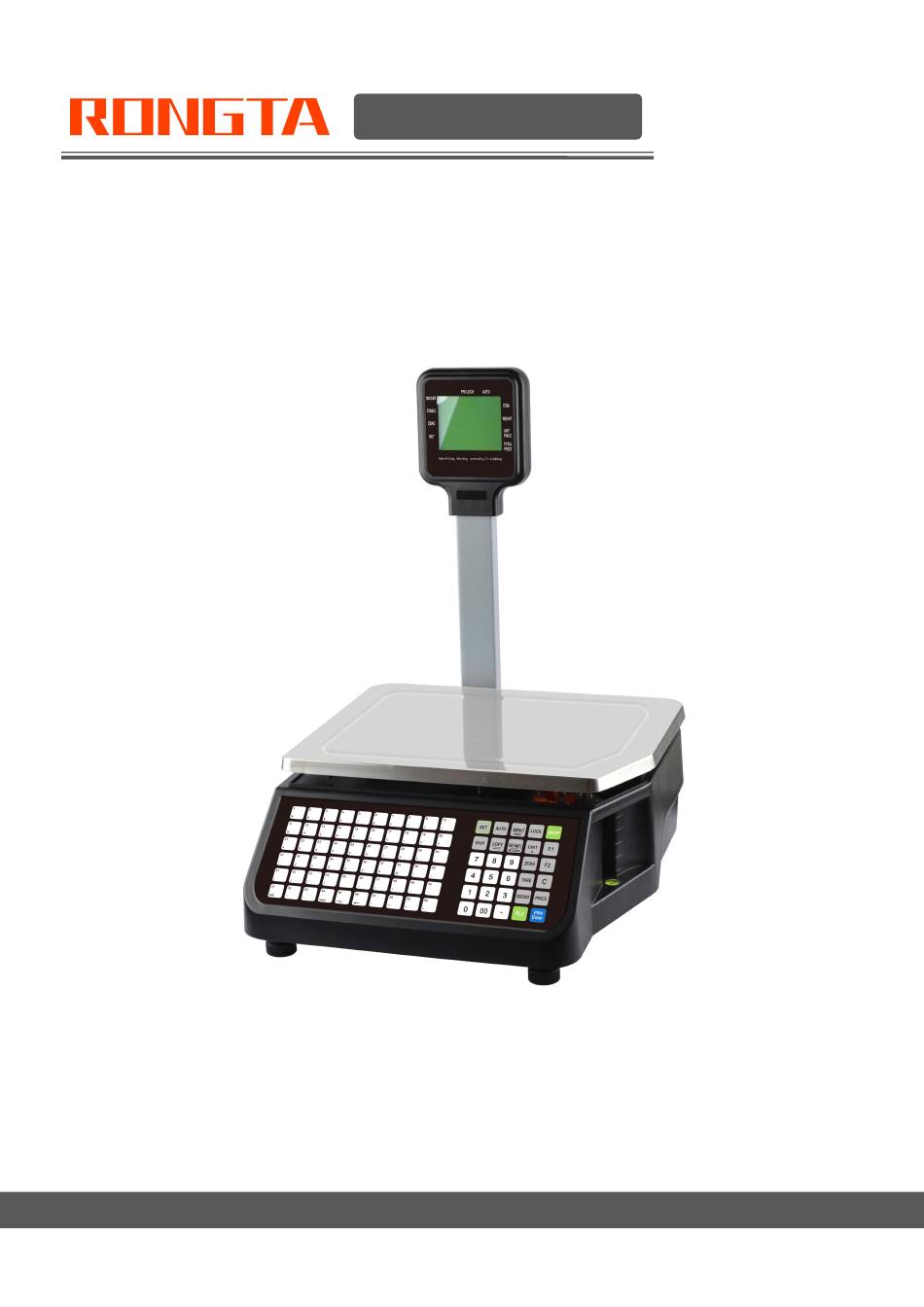

- Page 1 User Manual LS015 Barcode label scale Rongta Technology (Xiamen) Group Co., Ltd. www.rongtatech.com V1.1...
-
Page 2: Table Of Contents
Contents Introduction........................1 1. The Label scale’s specification................2 2. Features Summary....................3 2.1 Unique and powerful network..............3 2.2 Usage is easy to learn................. 3 2.3 Advanced functions and durable quality............3 3. Label scale installation steps................4 3.1 Installation......................4 3.2 The installation of the thermal label paper..........5 3.3 Keyboard......................6 3.4 Description of label paper................6 4. -
Page 3: Introduction
Introduction Thank you for choosing our Label scale LS015. In order to operate LS015 correctly, User manual is detailed in function and operation method of LS015 , which help user with doubt quickly when come up against mechanical fault . -
Page 4: The Label Scale's Specification
1. The Label scale’s specification The Weighing range and accuracy. LS015 Max weight: 15kg Min weight: 40g 0kg to 6kg * 0.002kg (e=2g) 6kg to 15kg * 0.005kg (e=5g) The accuracy grade: Resolution: Input sensitivity: greater than or equal to 50u V/D zero-point adjustment range: ±60MV... -
Page 5: Features Summary
2. Features Summary 2.1 Unique and powerful network Use the Ethernet interface technology and the data transfer rate has been improved drastically Advice: When you use the Ethernet interface, suggest using the shielded cable. 2.2 Usage is easy to learn Operate the PLU by single bond to make fast sales, and the front desk staff could use it without training. -
Page 6: Label Scale Installation Steps
3. Label scale installation steps 3.1 Installation c.Install the display b.put the air fittings a.Connect air fittings bar and put the tray inside the display bar d. Adjust the feet to make the level tool inside the little circle... -
Page 7: The Installation Of The Thermal Label Paper
3.2 The installation of the thermal label paper a. Open the dust cover. b. Open the print head e.Thread the front of new label roll d.Remove first few labels, and then through the filter plate and wrap in pick-up loading the roll clamp ,and close the printing head (As shown in the figure) Press [] button to roll the label paper... -
Page 8: Keyboard
3.3 Keyboard Press [] button to adjust label position and long press [] button to align paper. 3.4 Description of label paper The label which is used at RONGTA Label Scale is: Thermal Seam Marking Label. As shown below: Height：60mm，width：(30~60)mm，Max outside diameter: 100mm，Minimum inner diameter：40mm or 26.8mm. -
Page 9: Common Easy-To -Use Operations
5. Common easy-to -use operations 5.1 Switch on and off Hard disk switch on/turn on: After connecting power supply, switch on the power button at the bottom of the scale. After the screen shows one by one the information of edition No., IP address, self-test countdown “0 、1、2、……8”,the scale enter into sale pattern. -
Page 10: Tare Operation
button [PLU] + the corresponding hotkey. For easy operation, all the PLU can print the latest illustration. The printing function is set by PC. Method 2: general operation Example: sale green onion 2kg. The Fresh Commodity Code is 10 and the unit price is €1.50/kg Operation procedure: press the button [ZERO] (if the screen already shows zero, the action can be slipped), put 2kg goods on the scale press the button [PLU]... -
Page 11: Temporary Changing
Method 2: Example: before changing, apple's unit price is €4.00/kg, after changing, its unit price is €3.00/kg. fresh commodity code is 15. Steps: press button[PRICE] input the apple's fresh commodity code 15 press button[PRN/ENTER] input new price €3.00/kg press button[PRN/ENTER] weighing and pricing. -
Page 12: Operation Button In Common Use
automatically. If when to operate fast, recommend to proceed as following procedure. Procedure: Put item 1 on the scale tray, it will print label automatically put item 2 on and take off item 1 take the label and stick it on item 1, next label will be printed automatically put item 3 on and take off item 2 take the label and stick it on item 2, next label will be printed automatically... -
Page 13: Label Scale Setting
6.3 Label Scale Setting 1. Long press the set button, enter the settings menu 2. Select IP settings, set the IP address of the label scale (And need to be same network of routers which is the same IP address) 3. -
Page 14: System Set Up
S Save for changes. H Hotkey setting: Up to three numbers, while preserving the changes of PLU. 7.2 System set up That operation can be lock by password. The password is set in PC and can be change at anytime. ... -
Page 15: Lock
label(clicking twice (set)to set). []/[] sum all quantity of single goods’ label: print all information of all sales goods((clicking twice (set)to set)). []/[] clear all the summation data: clean up all the summation data((clicking twice (set)to set)). []/[]fine tuning of paper-out position: adjust paper's offset value: 0～16. ... -
Page 16: Troubleshooting
Click [TARE] key for 2 seconds to come into the tare setting status, system remind that enter pass code, it means that entering the pass code which is set via pc software. Restored lock Click [ON/OFF] key for 2 seconds to turn off the scale click [ON/OFF] to turn on the scale. - Page 17 b. Printer rear photwas damage.oelectric has slanting direction or is dust. c. Photoelectric pair of printer rear photoelectric is bad. Solutions: a. adjust the settings in following key order on the scale [SETTING] Enter the system setting Press hotkey[S ] Enter the select label type（0：label；1：receipt 2: label, without recycle paper roll）...
- Page 18 Fuzzy print and it is not black enough Reasons: a. printer head has not been fasten well. b. Thermal head is dirty. c. Print density is too low. Solutions: a. Re-fasten the printer head well. b. Wipe the thermal head with a soft cloth glued alcohol gently. c.
-
Page 19: The Key Issues
8.3 The key issues Keys have been ringing, display is normal Reasons: a. Line piece of key cause short circuit. b. Sharp object resist the key. Solutions: a. Change line piece of the key. b. Move the sharp object. Some keys do not ring ... -
Page 20: Communication Problem
d. The leveling mat is not leveling. Solutions: a. Exclude the interference factors. b. Replace the mainboard. c. Open the wind resistance function(set it in function set). d. Adjust the leveling mat to be leveling. e. If still not, return back the scale to our company. Unable to weigh Reasons: Bad mainboard, bad AD board or bad load cell. -
Page 21: Other Problems
Er-06： The PLU NO Sale Date Er-07： Price Can Not Be Zero Er-08： Please Exit Tare Mode Er-09： Salesman Err Er-10： Please Close Orange Handle Er-11： Wrong LF code or PLU Not Exist Er-12： Weight Not Change ... -
Page 22: The Acceleration Of Gravity Revised Table
RS-232 type is optional. 9. The acceleration of gravity revised table COUNTRY CITY G(m/sec COUNTRY CITY G(m/sec Greece Athens 9.800 Scotland Glasgow 9.816 South Africa Cape town 9.796 Spain Madrid 9.800 Netherlands Amsterdam 9.813 Singapore Singapore 9.781 Norway Oslo 9.815 Argentina Buenos Aires 9.797...
