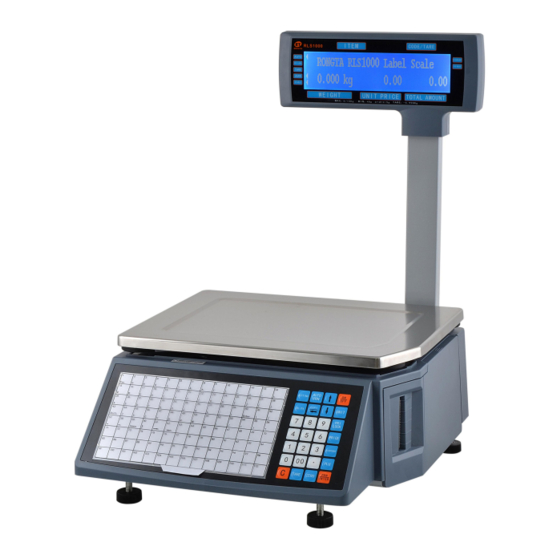

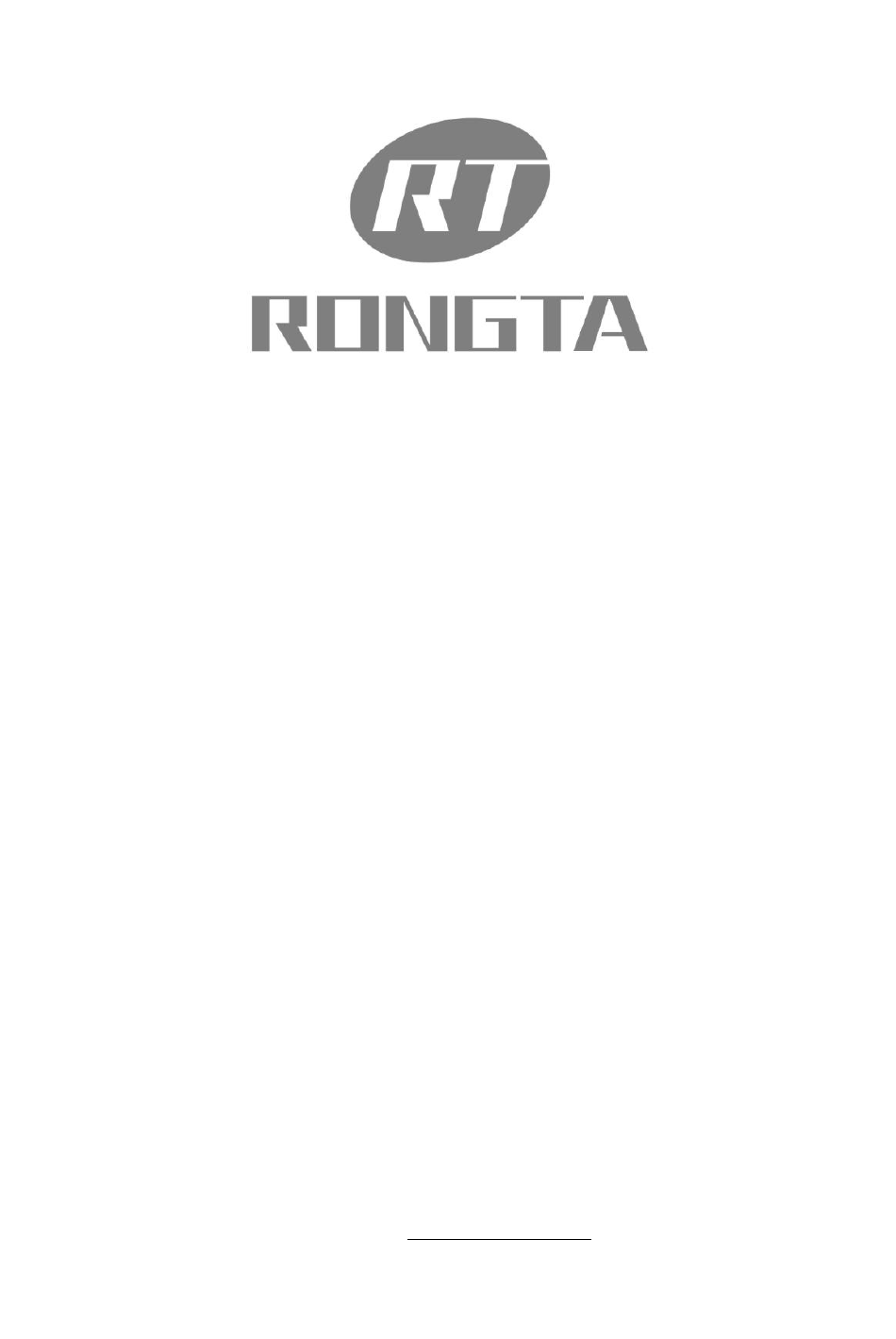

- Page 1 RLS Series User Manual XIAMEN RONGTA TECHNOLOGY CO.,LTD. Add: 3F/E Building, Gaoqi Industrial Area Gaoqi Beisan Road Dianqian Huli Xiamen, China Tel: 0592-5666129 Fax：0592-5659169 Service hot-line：400-800-0596 Website: www.rongtatech.com V1.2...
-
Page 2: Table Of Contents
Contents INTRODUCTION......................1 1. THE HANGING SCALE’S SPECIFICATION............2 2. STANDARD EQUIPMENT..................2 3. FEATURES SUMMARY..................3 3.1 Unique and powerful network................3 3.2 Usage is easy to learn..................3 3.3 Advanced functions and durable quality............3 4. HANGING SCALE INSTALLATION STEPS............4 4.1 Installation...................... -
Page 3: Introduction
Introduction Thank you for choosing our hanging scale In order to operate RLS correctly, User manual is detailed in function and operation method of RLS , which help user with doubt quickly when come up against mechanical fault . Rongta research, develop, produce and sale RLS independently, which is high-performance . Hanging scale is the best choice for user in label printing business line with fashional appearance, power function and high durable, which make hanging scale more popular in store ,fresh food supermarket ,farmers market and so on. -
Page 4: The Hanging Scale's Specification
1. The hanging scale’s specification The Weighing range and accuracy. RLS1315 RLS1330 Max weight: 6kg/15kg Max weight: 15kg/30kg Min weight: 40g Min weight: 100g 0kg to 6kg * 0.002kg (e=2g) 0kg to 15kg * 0.005kg (e=5g) 6kg to 15kg * 0.005kg (e=5g) 15kg to 30kg * 0.010kg (e=10g) Ⅲ... -
Page 5: Features Summary
3. Features Summary 3.1 Unique and powerful network Use the Ethernet interface technology and the data transfer rate has been improved drastically 3.2 Usage is easy to learn Operate the PLU by single bond to make fast sales, and the front desk staff could use it without training. 56 direct buttons and 112 hot buttons can be set up, and the common goods can be specified to hot buttons mostly. -
Page 6: Hanging Scale Installation Steps
4. Hanging Scale Installation Steps 4.1 Installation Note: rails with 'counterweight' must be mounted on the pallet The cover 1. Open the cover, and reach the power 2. Install the suspender accessories, and place the pallet plug into from the top for connection screw screw 3. -
Page 7: The Installation Of The Thermal Label Paper
4.2 The installation of the thermal label paper （1）Open the right cover （2）Contrarotate, and then open the print head (3) Pull out the stopper to install the paper roll, if the installation of a small roll of paper need to be screwed out of the paper shaft group, remove the two large paper roll shaft (4) Check the direction of label (5)Tear off the first pieces of the label paper, and... -
Page 8: Description Of Label Paper
(6) Follow the direction of arrow, making the （7）Press [↑] key to wind the paper front end of the roll paper bypass the filter board. wind the paper into the winding shaft, and then close the print head. (8) Install limit block and close the right cover 4.3 Description of label paper The label which is used at RONGTA hanging scale is: Thermal Seam Marking Label. -
Page 9: The Keyboard
4.4 The keyboard Press []、[] button to adjust label position and long press [] button to align paper. keyboard 5. Overall Appearance Front View Left View... -
Page 10: Common Easy-To -Use Operations
Right View Back View 6. Common easy-to -use operations 6.1 Switch on and off Hard disk switch on/turn on: After connecting power supply, switch on the power button at the top of the hanging scale After the screen shows one by one the information of edition No., IP address, self-test countdown “0 、1、2、……8”, the scale enter into sale pattern. -
Page 11: Weighing And Pricing
6.2 Weighing and pricing There are three methods for weighing and pricing. If the PLU information has been downloaded from PC or edited in the scale in advance, take the Method 1 and Method 2. If not, take the Method 3. 1. -
Page 12: Discount
products and then press the button [TARE] again for elimination Method 2: suitable for the tare weight known and the package and goods non-separated Example: sale one box of apple. The unit price is 6.0/kg, tare weight 1.0kg, and the apple and box weighs 2.0kg in total. -
Page 13: Select Weight Unit
/kg in keypad press [PRN/ENTER]key Method 3：temporary operation on weighing PLU Example：Cabbage’s original price is 1.00/kg, but change to 2.00/kg in night, hotkey is 13, after sales, price return to 1.00/kg, the weight of one cabbage is 2.000kg. press[NET CHECK /SET AMT]key Steps：... -
Page 14: Function Setting
Price change: Press any hotkey press button [PRICE] and input price. Discount: Enter the discount rate (e.g.: enter 80 for 80% discount) and press button [DISCOUNT] to calculate Enter hotkey of the goods put good on the scale and start printing Fresh Commodity code printing: put the goods on scale press button [PLU] and enter the Fresh Code ... -
Page 15: System Set Up
H Hotkey setting: Up to three numbers, while preserving the changes of PLU. 7.2 System set up That operation can be lock by password. The password is set in PC and can be change at anytime. Step 1: press [set] key and hold on 3s to enter system setting status. Step 2: press []/[] or direct number key accordingly to select item. -
Page 16: Lock
[]/[]fine tuning of paper-out position: adjust paper's offset value: 0～16. Z zero print: whether to start zero print price tag. []/[] printing self test page or not: printing self test page or not []/[] auto printing: setting default auto printing when it open or not. ... -
Page 17: Troubleshooting
Troubleshooting 8.1 Scales crash Boot up without any response Reasons: a. bad contact between the power plug and socket. b. the power cord is disconnected c. Filtering group Fuse is disconnected. d. Transformer is broken. e. Motherboard is broken. Solutions: use millimeter to check them one by one, use method of exclusion to find the solution. - Page 18 （0：label；1：receipt 2: label, without recycle paper roll） Press [PRN/ENTER] It’s also available to adjust software on computer. Open hanging scale RLS1000, set paper type to “Label” in set function, the pass the setting to error scale. b. Check whether printer rear photoelectric has slanting direction or is dust. c.
- Page 19 b. Thermal head is dirty c. Print density is too low. Solutions: a. Re-fasten the printer head well. b. Wipe the thermal head with a soft cloth glued alcohol gently c. Increase print density Print a label with half clear and half fuzzy or even blank. ...
-
Page 20: The Key Issues
Chinese and English fonts. 8.3 The key issues Keys have been ringing, display is normal Reasons: a. Line piece of key cause short circuit b. Sharp object resist the key. Solutions: a. Change line piece of the key b. Move the sharp object. Some keys do not ring ... -
Page 21: Communication Problem
Reasons: Bad mainboard, bad AD board or bad load cell. Solutions: a. Replace the mainboard b. Check the AD board is OK, or not, return back to our company if this problem could not be solved 8.5 Communication problem Unable to communicate Reasons: a. - Page 22 a. paper installation is not correct, cause paper jam. b. paper receiving shaft jammed. c. there is stuff between small gear and big gear. Solutions: a. reinstall paper correctly b. reinstall paper receiving shaft c. check gear, remove stuff. Press PLU hotkey sometimes don't print, but the keyboard response ●...
-
Page 23: The Acceleration Of Gravity Revised Table
9. The acceleration of gravity revised table COUNTRY CITY G(m/sec COUNTRY CITY G(m/sec GReece Athens 9.800 Scotland Glasgow 9.816 South Africa Cape town 9.796 Spain Madrid 9.800 Netherlands Amsterdam 9.813 Singapore Singapore 9.781 Norway Oslo 9.815 Argentina Buenos Aires 9.797 New Zealand Auckland,NZ 9.799...
