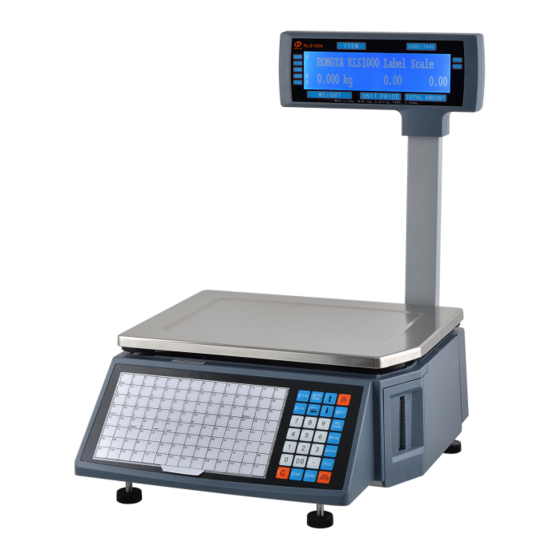

  • Page 1 16-039A4 Barcode Label Scale RLS Series User Manual XIAMEN RONGTA TECHNOLOGY CO.,LTD. Add: 3F/E Building, Gaoqi Industrial Area Gaoqi Beisan Road Dianqian Huli Xiamen, China Tel: 0592-5666129 Fax:0592-5659169 Service hot-line:400-800-0596 Website: www.rongtatech.com V1.3...
  • Page 2: Table Of Contents

    Contents INTRODUCTION......................1 1. THE LABEL SCALE’S SPECIFICATION............... 2 2. FEATURES SUMMARY..................3 2.1 Unique and powerful network................3 2.2 Usage is easy to learn..................3 2.3 Advanced functions and durable quality............3 3. LABEL SCALE INSTALLATION STEPS..............4 3.1 Installation......................4 3.2 The installation of the thermal label paper............5 3.3 Keyboard......................
  • Page 3 8.6 Display problem..................... 19 8.7 Error code....................... 19 8.8 Other problems....................20 9. THE ACCELERATION OF GRAVITY REVISED TABLE OF CITIES IN AMERICA........................21...
  • Page 4: Introduction

    Introduction Thank you for choosing our Label scale RLS. In order to operate RLS correctly, User manual is detailed in function and operation method of RLS , which help user with doubt quickly when come up against mechanical fault . Rongta research, develop, produce and sale RLS independently, which is high-performance barcode label scale.
  • Page 5: The Label Scale's Specification

    1. The Label scale’s specification The Weighing range and accuracy.  RLS1000/RLS1000A/RLS1000B/RLS1000C RLS1200/RLS1200A/RLS1200B/RLS1200C /RLS1000D /RLS1200D Max weight:30lb Max weight:60lb 0 lb to 15 lb*0.005 lb (e = 0.005lb) 0 lb to 30 lb*0.01 lb (e = 0.01lb) 15 lb to 30 lb*0.01 lb (e = 0.01lb) 30 lb to 60 lb*0.02 lb (e = 0.02lb) The accuracy grade: ...
  • Page 6: Features Summary

    2. Features Summary 2.1 Unique and powerful network Use the Ethernet interface technology and the data transfer rate has been improved drastically 2.2 Usage is easy to learn Operate the PLU by single bond to make fast sales, and the front desk staff could use it without training. 112 direct buttons and 224 hot buttons can be set up, and the common goods can be specified to hot buttons mostly.
  • Page 7: Label Scale Installation Steps

    3. Label scale installation steps 3.1 Installation c. Install the dispaly b. put the air fittings Connect air fittings bar and put the tray inside the display bar Take up the tray the level tool under the tray. Adjust the feet to make the level tool inside the little circle...
  • Page 8: The Installation Of The Thermal Label Paper

    3.2 The installation of the thermal label paper b. Take out the printer a. Open the side panel d. Remove first few labels, and then c. Open the print head loading the roll Thread the front of new label roll through the Press [] button to roll the label paper filter plate and wrap in pick-up clamp ,and close the printing head (As shown in the figure)
  • Page 9: Keyboard

    3.3 Keyboard Press []、[] button to adjust label position and long press [] button to align paper. RLS1000/RLS1000A/RLS1200/RLS1200A/RLS1000C/RLS1200C/RLS1000D/RLS1200D keyboard RLS1000B/RLS1200B keyboard 3.4 Description of label paper The label which is used at RONGTA Label Scale is: Thermal Seam Marking Label. As shown below: Height:...
  • Page 10: Overall Appearance

    4. Overall Appearance a. Host b. Tray c. Display group(A liquid crystal display, display bar, the four screws) d. Thermal label paper e. One fuses f. User manual g. Serial cable h. Power cable i. CD RLS1000A/RLS1200A RLS1000/RLS1200 physical appearance: 437 372 541mm physical appearance: 437 ...
  • Page 11: Common Easy-To -Use Operations

    5. Common easy-to -use operations 5.1 Switch on and off Hard disk switch on/turn on: After connecting power supply, switch on the power button at the bottom of the scale. After the screen shows one by one the information of edition No., IP address, self-test countdown “0 、1、 2、……8”,...
  • Page 12: Peeling/Tare Operation

    Method 2: general operation Example: sale green onion 2lb. The Fresh Commodity Code is 10 and the unit price is ¥1.50/lb press the button [ZERO] (if the screen already shows zero, the action can be slipped), Operation procedure: put 2lb goods on the scale press the button [PLU] input the LF code 10 Press the button [PLU].
  • Page 13: One-Time Price Change

    Example: Before changing price, apple's price was $4.0 / lb. After price change, apple's price is $3.0 / lb, and fresh code is 15. Procedure: Press button [PRICE] enter apple code 15 code on the keypad enter new price $3.0 / lb press button [PRN/ENTER] start weighing 5.5.2 One-time price change...
  • Page 14: Price Label Printing

    [PRN/ENTER]) Method 2 for more than one commodity Type the Unit price of single commodity in the numeric keypad , Press [NET CHECK /SET AMT] Press [UNIT/X] type the corresponding commodity code in the numeric keypad (PS : In the non-auto printing status , you need to press the key [PRN/ENTER] ) 5.8 Price label printing...
  • Page 15: Wireless Label Scale Setting Instruction

    set it. Note: when wrong operation cause system crash, need to restart the scale. 6. Wireless Label Scale Setting Instruction 6.1 Network connection mode Computer WIFI Label Scale Router Ethernet wired 6.2 Router set up 1. Set the SSID name of the router (No more than 15 characters) 2.
  • Page 16: System Set Up

    U charge unit: Use button [] [] to select g or lb.  F Expiration: enter expiration date between 0~365.  T Tare: Input tare weight within maximum.  B Bar Code Type: Select the barcode type from 0-99.  D department code: Enter the department code within 0-99.
  • Page 17: Lock

    []/[] display items in weight field: set 0:weight, 1;quantity.  Q print delete line mark: set 0: print, 1: not.  []/[] select barcode width: 0: wide, 1: narrow.  E The supplementary of default information 1 :0 means not default information1. ...
  • Page 18: Troubleshooting

    Click [ON/OFF] key for 2 seconds to turn off the scale click [ON/OFF] to turn on the scale. Troubleshooting 8.1 Scales crash Boot up without any response  Reasons: a. bad contact between the power plug and socket. b. the power cord is disconnected c.
  • Page 19 a. adjust the settings in following key order on the scale [SETTING] Enter the system setting Press hotkey[S ] Enter the select label type ( 0: label;1:receipt 2: label, without recycle paper roll) Press [PRN/ENTER] It’s also available to adjust software on computer. Open label scale RLS1000, set paper type to “Label”...
  • Page 20: The Key Issues

    a. printer head has not been fasten well. b. Thermal head is dirty c. Print density is too low. Solutions: a. Re-fasten the printer head well. b. Wipe the thermal head with a soft cloth glued alcohol gently c. Increase print density Print a label with half clear and half fuzzy or even blank.
  • Page 21: Weigh Problem

    b. Sharp object resist the key. Solutions: a. Change line piece of the key b. Move the sharp object. Some keys do not ring  Reasons: a. Ribbon cable of the key hasn’t been inserted properly. b. The conductive rubber of the key circuit board hasn’t been assemble properly. c.
  • Page 22: Communication Problem

    Solutions: a. Replace the mainboard b. Check the AD board is OK, or not, return back to our company if this problem could not be solved 8.5 Communication problem Unable to communicate Reasons: a. Communication ports are set up incorrectly b.
  • Page 23: Other Problems

     Er-15: Take Out Label  Er-16: PLU is not Defined on Hotkey 8.8 Other problems Print paper difficultly, paper roll fixed.  Reasons:Maybe the mismatch between paper roll and shaft, or the wrong installation of shaft. Solutions:It is better to return this printer to factory for reinstallation. “KaKa”...
  • Page 24: The Acceleration Of Gravity Revised Table Of Cities In America

    9. The acceleration of gravity revised table of cities in America Acceleration of gravity Area A/D revised Honolulu Miami Houston New Orleans Dallas Atlanta Los Angeles SAN jose San Francisco Washington, DC Kansas city Baltimore Denver Philadelphia Pittsburgh New York Stanford Cleveland Chicago...
