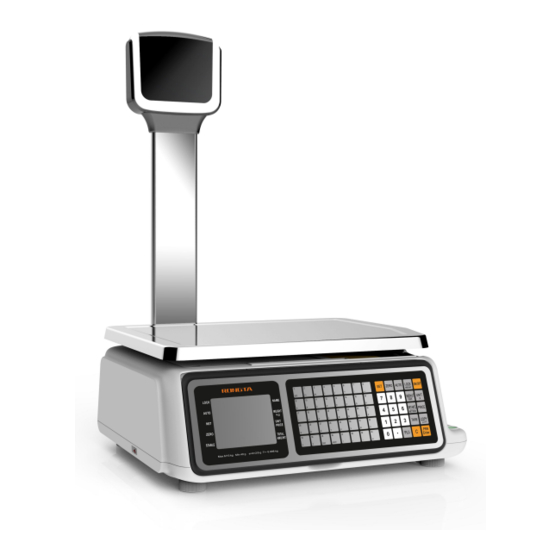

- Page 1 User Manual RLS1515 / RLS1530 Barcode label scale Rongta Technology (Xiamen) Group Co., Ltd. www.rongtatech.com V1.0...
-
Page 2: Table Of Contents
Contents Introduction........................1 1. The Label scale’s specification................2 2. Features Summary....................3 2.1 Unique and powerful network..............3 2.2 Usage is easy to learn..................3 2.3 Advanced functions and durable quality............3 3. Label scale installation steps.................4 3.1 Installation...................... 4 3.2 The installation of the thermal label paper..........5 3.3 Keyboard...................... -
Page 3: Introduction
Introduction Thank you for choosing our Label scale RLS. In order to operate RLS correctly, User manual is detailed in function and operation method of RLS , which help user with doubt quickly when come up against mechanical fault . Rongta research, develop, produce and sale RLS independently, which is high-performance barcode label scale. -
Page 4: The Label Scale's Specification
1. The Label scale’s specification The Weighing range and accuracy. RLS1515 Max weight:15kg Min weight: 40g 0kg to 6kg * 0.002kg (e=2g) 6kg to 15kg * 0.005kg (e=5g) RLS1530 Max weight: 30kg Min weight: 100g 0kg to 15kg * 0.005kg (e=5g) 15kg to 30kg * 0.010kg (e=10g) -
Page 5: Features Summary
2. Features Summary 2.1 Unique and powerful network Use the Ethernet interface technology and the data transfer rate has been improved drastically Advice: When you use the Ethernet interface, suggest using the shielded cable. 2.2 Usage is easy to learn Operate the PLU by single bond to make fast sales, and the front desk staff could use it without training. -
Page 6: Label Scale Installation Steps
3. Label scale installation steps 3.1 Installation b. Put the air fittings c. Install the display a. Connect air fittings inside the display bar bar and put the tray d.Observe the level bubble at the right side e. Adjust the feet to make the level printing paper exit of main body. -
Page 7: The Installation Of The Thermal Label Paper
3.2 The installation of the thermal label paper a.Open the dust cover and remove Load the paper roll. the paper stop block. d. Tear off the first few pieces of label c. Open the print head module. paper and send the paper across the rubber roller set. -
Page 8: Keyboard
3.3 Keyboard Press [] button to adjust label position and long press [] button to align paper. 3.4 Description of label paper The label which is used at RONGTA Label Scale is: Thermal Seam Marking Label. As shown below: Height：60mm，width：(30~60)mm，Max outside diameter: 100mm，Minimum inner diameter：40mm or 26.8mm. -
Page 9: Common Easy-To -Use Operations
5. Common easy-to -use operations 5.1 Switch on and off Hard disk switch on/turn on: After connecting power supply, switch on the power button at the bottom of the scale. After the screen shows one by one the information of edition No., IP address, self-test countdown “0 、1、2、……8”,the scale enter into sale pattern. -
Page 10: Tare Operation
button [PLU] + the corresponding hotkey. For easy operation, all the PLU can print the latest illustration. The printing function is set by PC. Method 2: general operation Example: sale green onion 2kg. The Fresh Commodity Code is 10 and the unit price is €1.50/kg Operation procedure: press the button [ZERO] (if the screen already shows zero, the action can be slipped), put 2kg goods on the scale press the button [PLU]... -
Page 11: Temporary Changing
Method 2: Example: before changing, apple's unit price is €4.00/kg, after changing, its unit price is €3.00/kg. fresh commodity code is 15. Steps: press button[PRICE] input the apple's fresh commodity code 15 press button[PRN/ENTER] input new price €3.00/kg press button[PRN/ENTER] weighing and pricing. -
Page 12: Price Tag Printing
5.8 Price Tag Printing This operation is suitable for price tag printing. Operation steps: Put the item on the scale Select item or enter the price and print a label Press [copy] and press the number key (1-9) to print 1-9 pieces of price tags. /Press [copy] and press the [00] to produce 1000 copies of the price tag. -
Page 13: Wireless Label Scale Setting Instruction
6. Wireless Label Scale Setting Instruction 6.1 Network connection mode Computer WIFI Label Scale Router Wireless connection Ethernet wired connection 6.2 Router set up 1. Set the SSID name of the router (No more than 15 characters) 2. set the type of router’s authentication, encryption algorithm, password, Encryption type set as : WPA2-PSK Encryption algorithm set as: AES Password: no more than 15 characters... -
Page 14: Function Setting
7. Function setting This function can be locked with a password. Password can be set and reset through PC. 7.1 Input settings of single item Step One: press button [PLU] until screen shows "single item edit" to enter the edit mode. Step Two: Type 6 digits of fresh commodity code and press button [PRN/ENTER] to confirm. - Page 15 A paper position fine-tuning: press [ ]/[ ] to select -8~+8 , total 17 offset, adjust to most suitable starting position. []/[] Label style selection: D0 or D1 tag with / style []/[]. T date adjusting；set current date and time. ...
-
Page 16: Lock
immediately. []/[]clean up all data: set if clean up all the data. []/[]reset to factory settings: set if reset Scale to factory settings. []/[]set Wifi: set the Wifi SSID, Wifi password mode and wifi's password. []/[]ABOUT: check this device's model and version numbers. ... -
Page 17: Troubleshooting
Troubleshooting 8.1 Scales crash Boot up without any response Reasons: a. bad contact between the power plug and socket. b. the power cord is disconnected. c. Filtering group Fuse is disconnected. d. Transformer is broken. e. Motherboard is broken. Solutions: use millimeter to check them one by one, use method of exclusion to find the solution. - Page 18 a. adjust the settings in following key order on the scale [SETTING] Enter the system setting Press hotkey[S ] Enter the select label type（0：label；1：receipt 2: label, without recycle paper roll） Press [PRN/ENTER] It’s also available to adjust software on computer. Open label scale , set paper type to “Label”...
-
Page 19: The Key Issues
Solutions: a. Re-fasten the printer head well. b. Wipe the thermal head with a soft cloth glued alcohol gently. c. Increase print density. Print a label with half clear and half fuzzy or even blank. Reasons: a. printer head has not been fasten well. b. -
Page 20: Weigh Problem
b. Move the sharp object. Some keys do not ring Reasons: a. The ribbon cable connected between the key board and the mother board is not plugged b. The Mylar button FPC ribbon cable is not plugged in. c. The key is damaged. Solutions: a. -
Page 21: Communication Problem
Solutions: a. Replace the mainboard. b. Check the AD board is OK, or not, return back to our company if this problem could not be solved. 8.5 Communication problem Unable to communicate Reasons: a. Communication ports are set up incorrectly. b. -
Page 22: Other Problems
Er-14： -------(Weight Over) Er-15： Take Out Label Er-16： PLU is not Defined on Hotkey 8.8 Other problems Print paper difficultly, paper roll fixed. Reasons：Maybe the mismatch between paper roll and shaft, or the wrong installation of shaft. Solutions：It is better to return this printer to factory for reinstallation. -
Page 23: The Acceleration Of Gravity Revised Table
9. The acceleration of gravity revised table COUNTRY CITY G(m/sec COUNTRY CITY G(m/sec Greece Athens 9.800 Scotland Glasgow 9.816 South Africa Cape town 9.796 Spain Madrid 9.800 Netherlands Amsterdam 9.813 Singapore Singapore 9.781 Norway Oslo 9.815 Argentina Buenos Aires 9.797 New Zealand Auckland,NZ 9.799...
