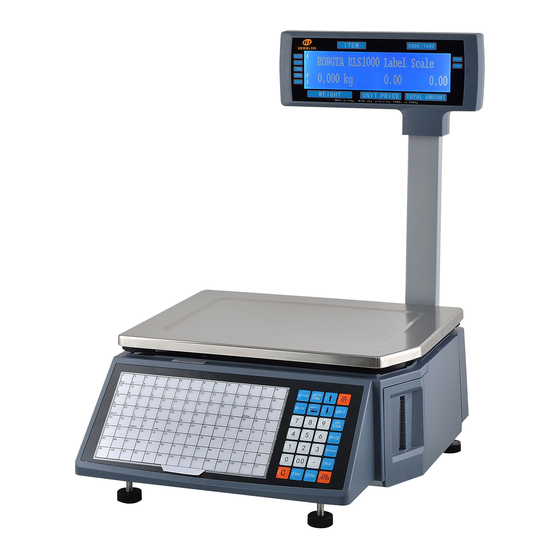

Barcode label scale
Hide thumbs Also See for RLS1000:
Table of Contents

Advertisement

Quick Links

Barcode Label Scale
RLS1000 Software User Manual
xiamen rongta technology Co.,LTD
ADD：
Building,Gaoqi Industrial Area,No.195 Gaoqi Beisan
Road,Dianqian,Huli,Xiamen,China.361006
TEL：0592-5666129
FAX：0592-5659169
service hotline:400-800-0596
website：www.rongtatech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RLS1000 and is the answer not in the manual?

Questions and answers

Srimurugathas Sujeen
March 19, 2025

Connection failed

0
1 comments:
Mr. Anderson
March 19, 2025

The troubleshooting steps for a connection failure with the Rongta Technology RLS1000 are:

1. Check Communication Ports – Ensure the communication ports are set up correctly.
2. Verify Serial Number and IP Address – Confirm that the scale and RLS1000 have the correct serial number and matching IP addresses.
3. Inspect Network Connection – Check if the network cable is damaged and ensure the network port is securely inserted.
4. Replace Hardware if Needed – If the issue persists, replace the mainboard or power board to confirm the error.

These steps help identify and resolve communication issues with the RLS1000.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Rongta Technology RLS1000

Summary of Contents for Rongta Technology RLS1000

  • Page 1 Barcode Label Scale RLS1000 Software User Manual xiamen rongta technology Co.,LTD ADD： Building,Gaoqi Industrial Area,No.195 Gaoqi Beisan Road,Dianqian,Huli,Xiamen,China.361006 TEL：0592-5666129 FAX：0592-5659169 service hotline:400-800-0596 website：www.rongtatech.com...

  • Page 2: Table Of Contents

    Create label....................10 Create PLU data................... 13 Connection manual....................20 RLS1000 suite interface overview............... 20 RLS1000 based on TCP / IP protocol interface specification...... 21 Label scale and background handshake flowchart........23 Data packet format..................23 Message mechanism interaction for RLS1000..........25 AppendixⅠ. TXP(TXU) file..................27 AppendixⅡ.

  • Page 3: Software User Manual

    1 Software user manual 1.1 Software installation Firstly, put the CD into PC driver. Then, open the document, double click the installation package with the logo ,and then appear following image: Image 1.0： Image 1.0 Select the language to use during the installation, click the “OK” , and then appear following image: Image 1.1：...
  • Page 4 Click “next” to select default installation path of program Files of C drive, or select “browse” to choose self-definition installation path. Such as installed to G drive, and then appear Image 1.2: Image 1.2 Click “next”, and then appear Image 1.3: Image 1.3...
  • Page 5 Click “Next”, then appear Image 1.4: Image 1.4 Click “Next”, then appear Image 1.5: Image 1.5 click “Install” to continue next step, then start to install. the interface after finishing installation is as below:...

  • Page 6: Use Rls1000

    Image 1.6 After finishing, can choose to operate RLS1000 or not. 1.2 Use RLS1000 RLS1000 Main function：  a. Download program b. Download Character Font c. Download PLU d. Download Label e. Download hotkey f. Download function parameter Creat Connection ...

  • Page 7: Image

    ( F )File new connection open existed connection save build new file to save additional funciton set,as picture parameter option function parameter set ,as picture set function change RLS1000 chartlet set font Chenc the lf code Print lf code exit RLS 1000...

  • Page 8: Image

    parameter option foundation set page explanation： work directory： set default directory（influence area I）。 System decimal position：0，1，2。Set PLU decimal digit of PLU manger. Auto download hotkey：download；Don’t download Auto download discount data: Don’t download; download Image [parameter option]weighing unit page ...

  • Page 9: Image

    explanation： self-definition; The unit defined is corresponding with the unit in PLU manager. Image (parameter)label scale font page  explanation： Set the font of downloading to label scale Image (parameter option)product name update time ...
  • Page 10 RLS1000 to download and update PLU(set G,H area first) Image[Setting] (part 1)  common functions： paper type：0: label；1: receipt；2: no-rewinder。 barcode type：0~99(refer to barcode type table)。 date format：0:DDMMYY;1:MMDDYY;2:YYMMDD(D，date；M，month；Y， year)。 decimal position：0，1，2； set price decimal digit。 rounding： set round carry digit。...
  • Page 11 Image[Setting](part 2)  Directions: Advanced function block: Printing density: Retain Paper fine tuning: adjust print location deviation －８～＋８ Horizontal-shift:Retain AD (full weight calibration):Retain Back steps:Retain Printing speed:0~7. 0 represents the fastest printing speed, while 7 represents the slowest printing speed. Printing performance is better in slow printing speed, but lifespan of print head is shorter.

  • Page 12: Create Label

    You can view the appropriate files once double click files’ name in area of E，F，G， H，I. Please do not use functions where there marks “retain”. It means these functions are not allowed setting up or just for factory use. 1.3 Create label Open RTLabel.exe StartProgramRLS1000RTlable Or start from RLS1000 program menuLabel editor...
  • Page 13 After starting, the program automatically transfers to the default label, as below: If you want to create a new label, operate as below: filesnew-built, then a tip box appears Input paper width of label in millimeters, maximum width is 56mm. Then click OK button, another tip box appears.
  • Page 14 print out. If tail information is not blank (that is to say tail information is being setting), then the setting content will be printed out while printing label. A B C D E F G H I J K L M N A，Barcode B，Nane C，Unit Price D，Weight E，Total price F，...

  • Page 15: Create Plu Data

    Create PLU data Open PLU manager StartProgramRLS1000RTPLU Or start from RLS1000 program menu PLU manager 一、PLU table basic fields are explained as follows: Hotkey→input hotkey（1-112*2） PLU Name→input PLU name within 36 characters Fresh Commodity Code→input number within 6-figure which means Fresh Commodity...
  • Page 16 Multi Label →Select label type, can choose variety of label type at the same time. unable to modify the unit price on the label scales. D0, D1: set the two user-defined labels in Label Editor. Discount →Input the discount rate. Range of discount （ -10~125 ） ： -1~-10 for model1~model 10 in discount schedule models.
  • Page 17 Choose the beginning of PLU manager.  figure [preferences 1] Auto download hotkey ask me first. (When downloading, a prompt frame will appear.) Always yes. (When downloading there is not prompt frame appear.) No, thanks, Don’t download hotkey hotkey sheet type Pls choose 112*2 figure [Preferences] ...
  • Page 18 Explanation: PLU print-out page setting figure [page setting2] Explanation: choose to print the content of PLU file figure [Page setting3] Explanation PLU print-out header and footer setting Figure [Page setting]...
  • Page 19 Explanation Press Options to select Printer and Paper: There are two levels of Fresh Commodity Codes on each hotkey. Two lines up and down. Note: when use the second level on the hotkey table, the hotkey of 113-224 is below the horizontal line.
  • Page 20 PLU manager Normal setting when edit PLU files Insert and Delet Sort by name Sort by LFCode Sort by item No. choose single PLU file choose single column (eg. Hotkey cloumn choose all the files fill the same content in the single column clear the selected image.
  • Page 21 Figure [edit message] Explanation: our hardware can support 197 kind of message( pls contact us if you need more capacity.) After editing the file, click save to automatic generation *MSG file. Note: Edit the message in MSG file, open the PLU can automatically transfer to it. Message code is corresponding to the column;...

  • Page 22: Connection Manual

    PLU several times. 4,update PLU and upload laundry list: RLS1000 upload scale’s laundry list first, then perform update PLU operation. Second: Mainly activation tasks as below:...

  • Page 23: Rls1000 Based On Tcp / Ip Protocol Interface Specification

    1, sharing mode of working directory: RLS1000 can specify the working directory, namely PLU file data storage path ( it could be a network image) , RLS1000 set PLU file for each scale relative to the working directory. For example, management system will generated PLU date in a directory.
  • Page 24 PLU and upload running account command at the schedule set time everyday. 5. After all the configurations are correctly set, RLS1000 label scale at the daily schedule set time will automatically execute “update PLU and upload running account” command to transfer sales running account of the selected scale to background computer and then get the lastest PLU data from background computer to distribute to every selected scale.

  • Page 25: Label Scale And Background Handshake Flowchart

    Label scale and background handshake flowchart 2.4 Data packet format: A data packet consists of there domains: 1. Packet length 4Byte 2. Command 4Byte 3. Data Length unlimited For example: Start command: 00080201 Packet Length: 0008 Command: 0201 Information: None Response Command: 0022010202100000010000 Packet Length: 0022...
  • Page 26 Checking command table: you can see the response command data domain consisted of contains three domains: Command Code: 0210 indicates a response to 0210 Fresh code: 000001 Error code: 0000 indicates on error. Command table: RLS1000->background Code Description Type Remark 0201 Start command...

  • Page 27: Message Mechanism Interaction For Rls1000

    Hereinafter, it’s using example of Delphi, and reference for other developing environment. Activate RLS1000 Use WinExec function WinExec('XX\bin\RLS1000.exe DEMO.L32', SW_SHOWNORMAL); Thereinto：XX is the installing catalogue, DEMO.L32 is the RLS1000 file for customer using. Completely covered way Send “Download plu” demand to RLS1000 program (send F9). Handle:=FindWindow('TRLS1000Form',0);...
  • Page 28 For supermarket manage system, use below structure to intercept this message: First, the register message RLS1000Message:=RegisterWindowMessage('RLS1000'); Inject processing to the message case RLS1000Message: begin …...

  • Page 29: Appendixⅰ. Txp(Txu) File

    AppendixⅠ. TXP(TXU) file TXP(TXU) is a PLU text file within RLS1000 software. They are totally same file format for different purpose with different extensions. TXP file contains all PLU information and supply cover and download for RLS1000. TXU file contain PLU edit information (add, modify and delete), and supply PLU updating for RLS1000.

  • Page 30: Appendixⅱ. Barcode Coding Table

    AppendixⅡ. Barcode coding table Bar code depart Item no. Total price weight Check sum type ment 00~09: Ean13code, the first two code are department code: DD(2) IIIIIIIIII(10) DD(2) IIIIII(6) PPPP(4) DD(2) IIIII(5) PPPPP(5) DD(2) IIII(4) PPPPPP(6) DD(2) III(3) PPPPPPP(7) DD(2) IIIIII(6) W.WWW(4) DD(2)
  • Page 31 type 39，46~49：18code DD(2) IIIIII(6) PPPPP(5) WWWWW(5) DD(2) IIIIII(6) PPPPP(5) WWWWW(5) DD(2) IIIIII(6) PPPPP(5) WWWWW(5) DD(2) IIIIII(6) PPPPP(5) WWWWW(5) DD(2) IIIIII(6) PPPPP(5) WWWWW(5) 50~55: 8code IIIIIII(7) D(1) IIIIII(6) DD(2) IIIII(5) IIIIIIII(8) D(1) IIIIIII(7) DD(2) IIIIII(6) Bar code type depart LFcode Batch code rebate weight ment...
  • Page 32 90~95: 18code, the first two code are department code: DD(2) IIIIII(6) WW.WWW UUUU(4) DD(2) IIIIII(6) WWWW.W UUUU(4) Bar code departm Item no. Quantity/weigh Total price Unit price Check sum type DD(2) IIIIII(6) WWWWW UUUU(4) D(1) IIIIII(6) PPP.PP(5) UUU.UU(5) DD(2) IIIII(5) WWW.WW PPP.PP(5) DD(2)

  • Page 33: Appendixⅲ. Fresh Commodities Batch Management

    Appendix Ⅲ . Fresh commodities batch management The advantages of fresh batch management: Tracking fresh commodities of each batch, check stock of each batch alone, use different discount based on different storage time within quality guarantee period, warned while commodities is about to expire(metamorphism and even corruption), it is convenient to find out expired batch and deal with timely.
  • Page 34 batch management is 2, and with batch management is 3 （2）because the position and length of LFcode in two kinds of 18 code is same, decode LFcode first, then distinguish batch commodity or not according to LFcode Using method: Call PLU, screen will display to input batch No., input four digits code, put on weight, OK.

  • Page 35: Appendixⅳ. Revised Table Of Gravity Acceleration In China's Major Cities

    Appendix Ⅳ . Revised table of gravity acceleration in China’s major cities A/D revised A/D revised Region value of gravity Region value of gravity acceleration acceleration Mohe Benghu Hailar Nanjing Qiqihar Pukou Jiamusi Tongguan Harbin Shanghai Hohhot Hefei Mudanjiang Xian Changchun Wuhu Jilin...
