Please read this manual carefully, before the product installation and use.

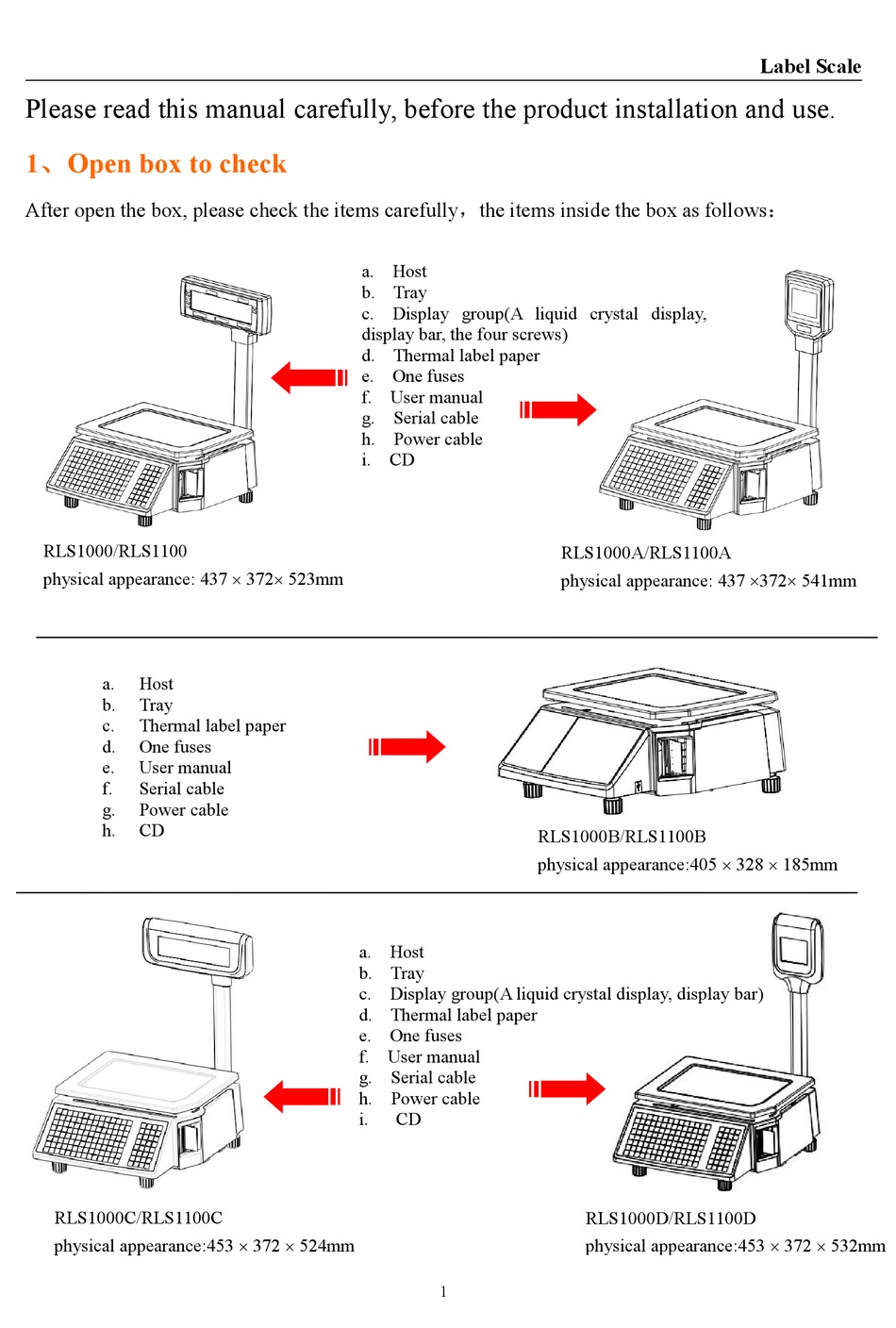

1、Open box to check
After open the box, please check the items carefully，the items inside the box as follows：

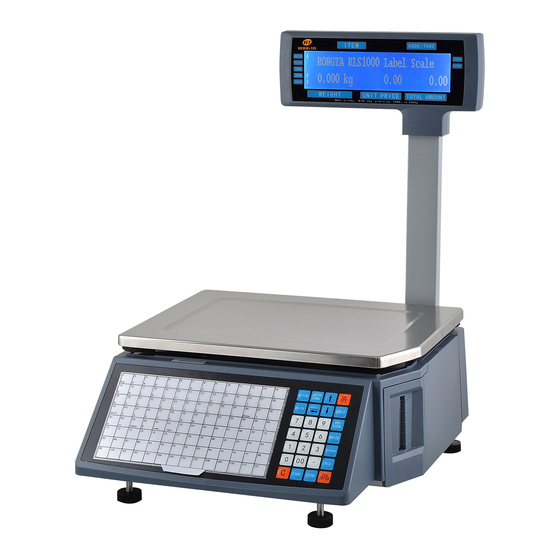

RLS1000/RLS1100
physical appearance: 437 372 523mm
a.
Host
b.
Tray
c.
Thermal label paper
d.
One fuses
e.
User manual
f.
Serial cable
g.
Power cable
h.
CD
RLS1000C/RLS1100C
physical appearance:453 372 524mm
a. Host
b. Tray
c. Display group(A liquid crystal display,
display bar, the four screws)
d. Thermal label paper
e. One fuses
f. User manual
g. Serial cable
h. Power cable
i. CD
a. Host
b. Tray
c. Display group(A liquid crystal display, display bar)
d. Thermal label paper
e. One fuses
f. User manual
g. Serial cable
h. Power cable
i.
CD
1
RLS1000A/RLS1100A
physical appearance: 437 372 541mm
RLS1000B/RLS1100B
physical appearance:405 328 185mm
RLS1000D/RLS1100D
physical appearance:453 372 532mm
Label Scale
Advertisement
Related Manuals for Rongta Technology RLS1000
Summary of Contents for Rongta Technology RLS1000
- Page 1 Thermal label paper e. One fuses f. User manual g. Serial cable h. Power cable i. CD RLS1000/RLS1100 RLS1000A/RLS1100A physical appearance: 437 372 523mm physical appearance: 437 372 541mm Host Tray Thermal label paper...
-
Page 2: Installation
Label Scale 2、Installation a. Connect air fittings b. put the air fittings c. Install the dispaly inside the display bar bar and put the tray Take up the tray the level tool under the tray. 面 Adjust the feet to make the level tool inside the little circle... - Page 3 Label Scale 3、The installation of the thermal label paper a. Open the side panel b. Take out the printer d. Remove first few labels, and then loading the roll c. Open the print head e. Thread the front of new label roll through the filter f.
- Page 4 Label Scale NOTE: Press []、[] button to adjust label position and long press [] button to align paper, there are old and new keyboards as below: RLS1000/RLS1000A/RLS1100/RLS1100A/RLS1000C/RLS1100C/RLS1000D/RLS1100D keyboard RLS1000B/RLS1100B keyboard 4、Description of label paper The label which is used at Label Scale is: Thermal Seam Marking Label. As shown below: Height：60mm，width：(30~60)mm，Max outside diameter: 100mm，Minimun inner diameter：...
- Page 5 Label Scale 5、The Label scale’s specification The Weighing range and accuracy. RLS1000/RLS1000A/RLS1000B/RLS1000C/RLS1000D Max weight: 6kg/15kg Min weight: 40g 0kg to 6kg * 0.002kg (e=2g) 6kg to 15kg * 0.005kg (e=5g) RLS1100/RLS1100A/RLS1100B/RLS1100C/RLS1100D Max weight: 15kg/30kg Min weight: 100g 0kg to 15kg * 0.005kg (e=5g) 15kg to 30kg * 0.010kg (e=10g)
-
Page 6: Simple Operation
Label Scale 6、Simple Operation Auto Print: Switch to automatic print, otherwise need to press button [PRN / ENTER] to print Charge unit: Press button [UNIT] 2 seconds to switch charge unit $/Kg or $/g. Price Locking: Press button [PRI LOCK] to continuously print label of same product (product name will not disappear). - Page 7 Label Scale Reasons: Setting label type error. Usually the label type computer download is D so label type of label scale printing should be set D Or the printed label is blank. Solutions: a. adjust the settings in following key order (on the scale) [SETTING] Press hotkey[ L ] Enter the system setting...
- Page 8 Label Scale 7.3. The key issues Keys have been ringing, display is normal Reasons: a. Line piece of key cause short circuit b. Sharp object resist the key. Solutions: a. Change line piece of the key b. Move the sharp object. ...
- Page 9 Label Scale 7.5. Communication Problem Unable to communicate Reasons: a. Communication ports are set up incorrectly b. The incorrect serial number of scale, or the incorrect IP address. c. The incorrect connection of interface, or problem on Ethernet cable. d. The error on power board or mainboard. Solutions: a.
- Page 10 Label Scale There is two communication ports in label printing scale, they are RS232 and TCP/IP(Ethernet), RS-232 type is optional.
