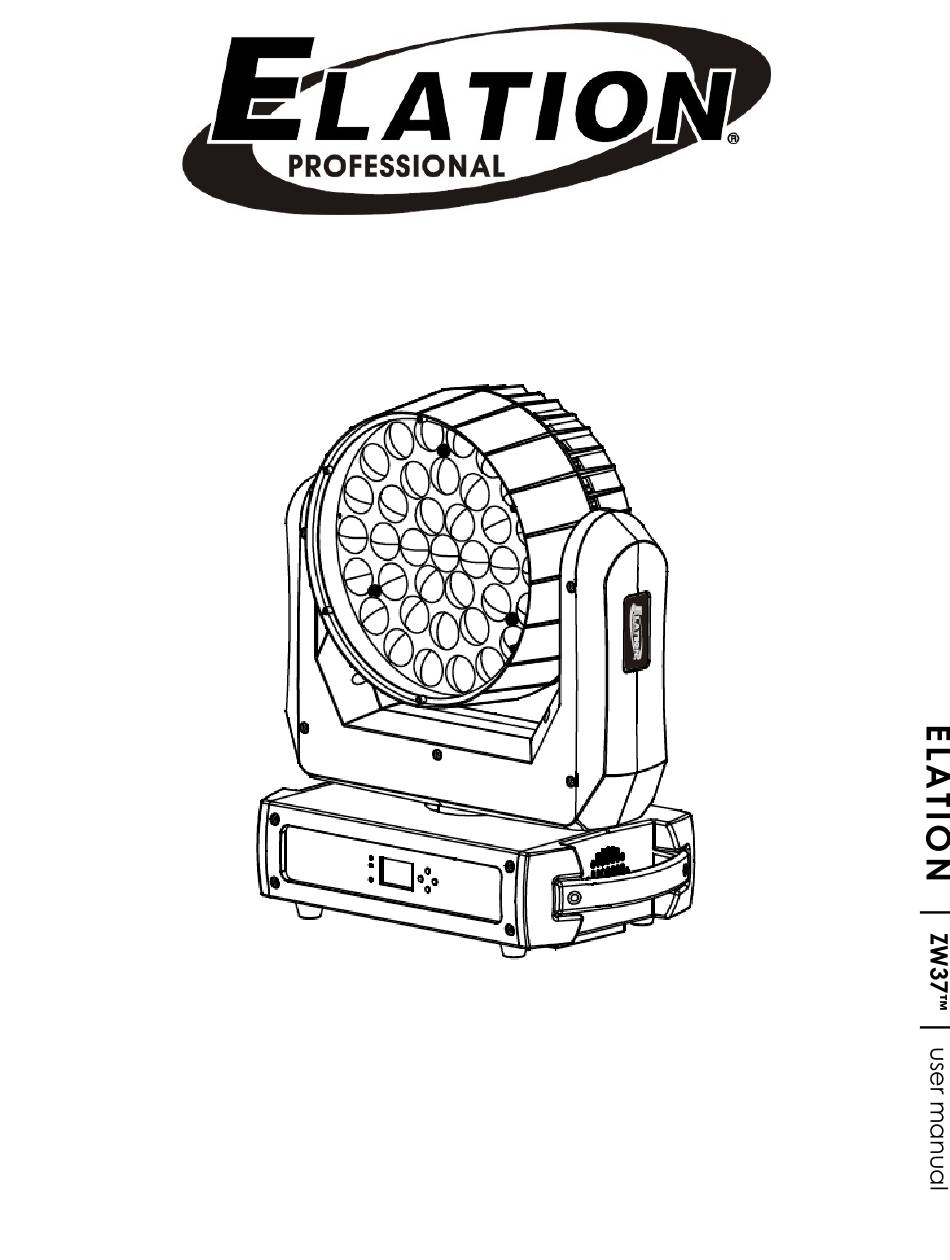

- Page 1 ZW37™ user manual ...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.
-
Page 3: Table Of Contents
. e l a t i o n l i g h t i n g . c o m C O N T E N T S General Information Warranty Safety Instructions General Guidelines Control and Connections Fixture Installation Fixture Menu DMX Channel Functions And Values Cleaning and Maintenance Technical Specifications Optional Accessories ZW37™ User Manual... -
Page 4: General Information
Please do not discard the shipping carton in the trash. Please recycle whenever possible. BOX CONTENTS (1) Omega Brackets (1) powerCON Cable ZW37™ User Manual... - Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
-
Page 6: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 7: Safety Instructions
Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. If the power cord is damaged, replace it immediately with a new one of similar power rating. ZW37™ User Manual... -
Page 8: General Guidelines
Use the original packaging and materials to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before replacing or serving. ZW37™ User Manual... -
Page 9: Control And Connections
C O N T R O L A N D C O N N E C T I O N S LCD Menu Function Display LED Indicators MENU, UP, DOWN, ENTER Buttons 3pin and 5pin DMX IN 3pin and 5pin DMX OUT powerCON IN powerCON OUT Fuse ZW37™ User Manual... -
Page 10: Fixture Installation
Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable. Never stand directly below the device when mounting, removing or servicing. POWER LINKING Max number of units that can be power linked is 3 units @120V and 6 units @230V. ZW37™ User Manual... - Page 11 Fixture is fully operational in the specific mounting positions as illustrated below. S A F E T Y C A B L E ALWAYS USE A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT DROP IF THE CLAMP FAILS. ZW37™ User Manual...
- Page 12 The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above. Be sure to only use the designated rigging point for the safety cable and never secure a safety cable to a carrying handle. ZW37™ User Manual...
-
Page 13: Fixture Menu
ENTER button to activate that field and use the UP and DOWN buttons to adjust the field. Pressing the ENTER button once more will confirm your setting. You may exit the main menu at any time without making any adjustments by pressing the MENU button. ZW37™ User Manual... - Page 14 . e l a t i o n l i g h t i n g . c o m ELATION© ZW37™ | S Y S T E M M E N U Features subject to change without any prior written notice.
- Page 15 . e l a t i o n l i g h t i n g . c o m ELATION© ZW37™ | S Y S T E M M E N U Features subject to change without any prior written notice.
- Page 16 (Pan, Tilt, Zoom). Once the desired new home position has been set, press the ENTER button to save the new position. To exit the OFFSET MENU press and hold the MENU button for at least 1 second. ZW37™ User Manual...
-
Page 17: Dmx Channel Functions And Values
Green (0-100%) GREEN FINE [ALL LEDS] 0-256 Green FINE (0-100%) BLUE [ALL LEDS] 0-255 Blue (0-100%) BLUE FINE [ALL LEDS] 0-256 Blue FINE (0-100%) WHITE [ALL LEDS] 0-255 White (0-100%) WHITE FINE [ALL LEDS] 0-256 White FINE (0-100%) ZW37™ User Manual... - Page 18 COLOR 20 81-84 COLOR 21 85-88 COLOR 22 89-92 COLOR 23 93-96 COLOR 24 97-100 COLOR 25 101-104 COLOR 26 105-108 COLOR 27 109-112 COLOR 28 113-116 COLOR 29 117-120 COLOR 30 121-124 COLOR 31 125-128 COLOR 32 ZW37™ User Manual...
- Page 19 COLOR 52 209-212 COLOR 53 213-216 COLOR 54 217-220 COLOR 55 221-224 COLOR 56 225-228 COLOR 57 229-232 COLOR 58 233-236 COLOR 59 237-240 COLOR 60 241-244 COLOR 61 245-248 COLOR 62 249-252 COLOR 63 253-255 COLOR 64 ZW37™ User Manual...
- Page 20 COLOR 21 166-173 COLOR 22 174-180 COLOR 23 181-188 COLOR 24 189-195 COLOR 25 196-203 COLOR 26 204-210 COLOR 27 211-217 COLOR 28 218-225 COLOR 29 226-232 COLOR 30 233-240 COLOR 31 241-247 COLOR 32 248-255 COLOR 33 ZW37™ User Manual...
-
Page 21: Cleaning And Maintenance
COLOR 21 166-173 COLOR 22 174-180 COLOR 23 181-188 COLOR 24 189-195 COLOR 25 196-203 COLOR 26 204-210 COLOR 27 211-217 COLOR 28 218-225 COLOR 29 226-232 COLOR 30 233-240 COLOR 31 241-247 COLOR 32 248-255 COLOR 33 ZW37™ User Manual... -
Page 22: Technical Specifications
COLOR 21 166-173 COLOR 22 174-180 COLOR 23 181-188 COLOR 24 189-195 COLOR 25 196-203 COLOR 26 204-210 COLOR 27 211-217 COLOR 28 218-225 COLOR 29 226-232 COLOR 30 233-240 COLOR 31 241-247 COLOR 32 248-255 COLOR 33 ZW37™ User Manual... - Page 23 OPEN 110-124 Random Strobe 125-129 OPEN 130-144 Random Opening Pulse 145-149 OPEN 150-164 Random Closing Pulse 165-169 OPEN 170-184 Burst Pulse 185-189 OPEN 190-204 Random Burst Pulse 205-209 OPEN 210-224 Pulsing 225-229 OPEN 230-244 Burst 245-255 OPEN ZW37™ User Manual...
- Page 24 100-199 Blackout When RGBW Values Change = OFF (DEFAULT)* 200-209 Reset ALL 210-255 NO FUNCTION *NOTE: Blackout settings SAVED from any DMX mode. L E D G R O U P S [ 1 - 3 ] ZW37™ User Manual...
-
Page 25: Optional Accessories
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. - Page 26 715W Max Power Consumption -4°F (-20°C) to 104°F (40°C) APPROVALS / RATINGS CE | RoHs | IP20 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ZW37™ User Manual...
- Page 27 . e l a t i o n l i g h t i n g . c o m PHOTOMETRIC DATA Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ZW37™ User Manual...
- Page 28 . e l a t i o n l i g h t i n g . c o m DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ZW37™ User Manual...
- Page 29 ITEM TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp PLC3 3’ (1m) PowerCON PRO Link Cable AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable Additional Cable Lengths Available ZW37™ User Manual...
