PEERLESS WSP824 Installation And Assembly

Installation and Assembly:

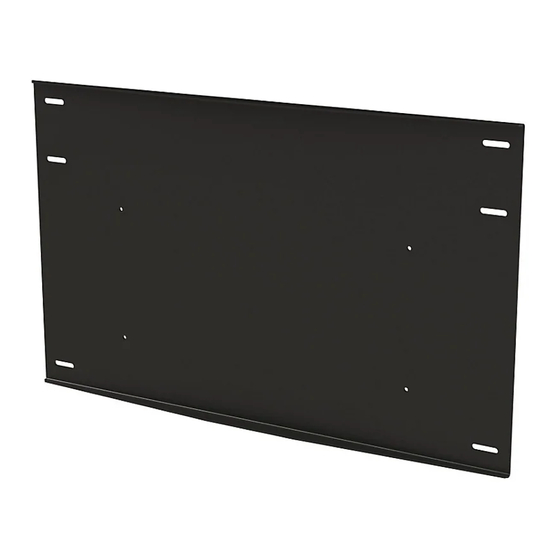

Metal Stud Wall Plate for FPS-1000 or SP850
IMPORTANT! Read entire instruction sheet before you start installation and assembly.
Parts List
Description
A 24" wall plate
B
1/4-20 x 1/2 phillips head screw
C 1/4" flat washer
D 1/4-20 x 2.5 phillips head screw
E toggler
B

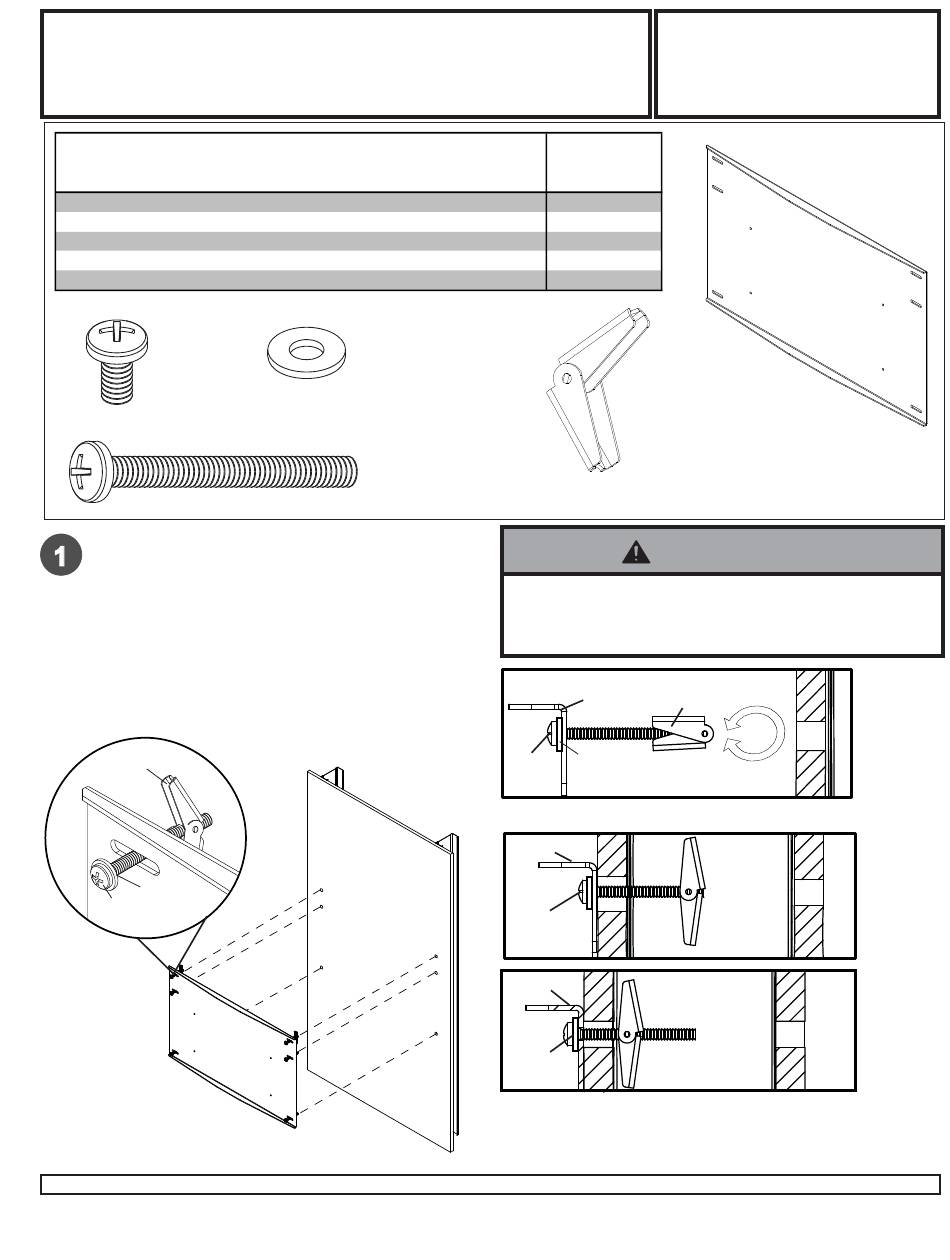

Use a stud finder to locate stud centers. Use wall
plate (A) as a template to mark stud centers
through slots. Drill 3/4" (19 mm) dia. holes through
drywall and studs. Insert togglers (E) as shown
below. Six 1/4-20 x 2.5" phillips screws (D) and six
washers (C) are provided. Place screws (D) through
wall plate (A). Partially fasten the toggler (E) to the
back of the screw. Pivot ends of toggler (E) 90°.
E
C
D
A
