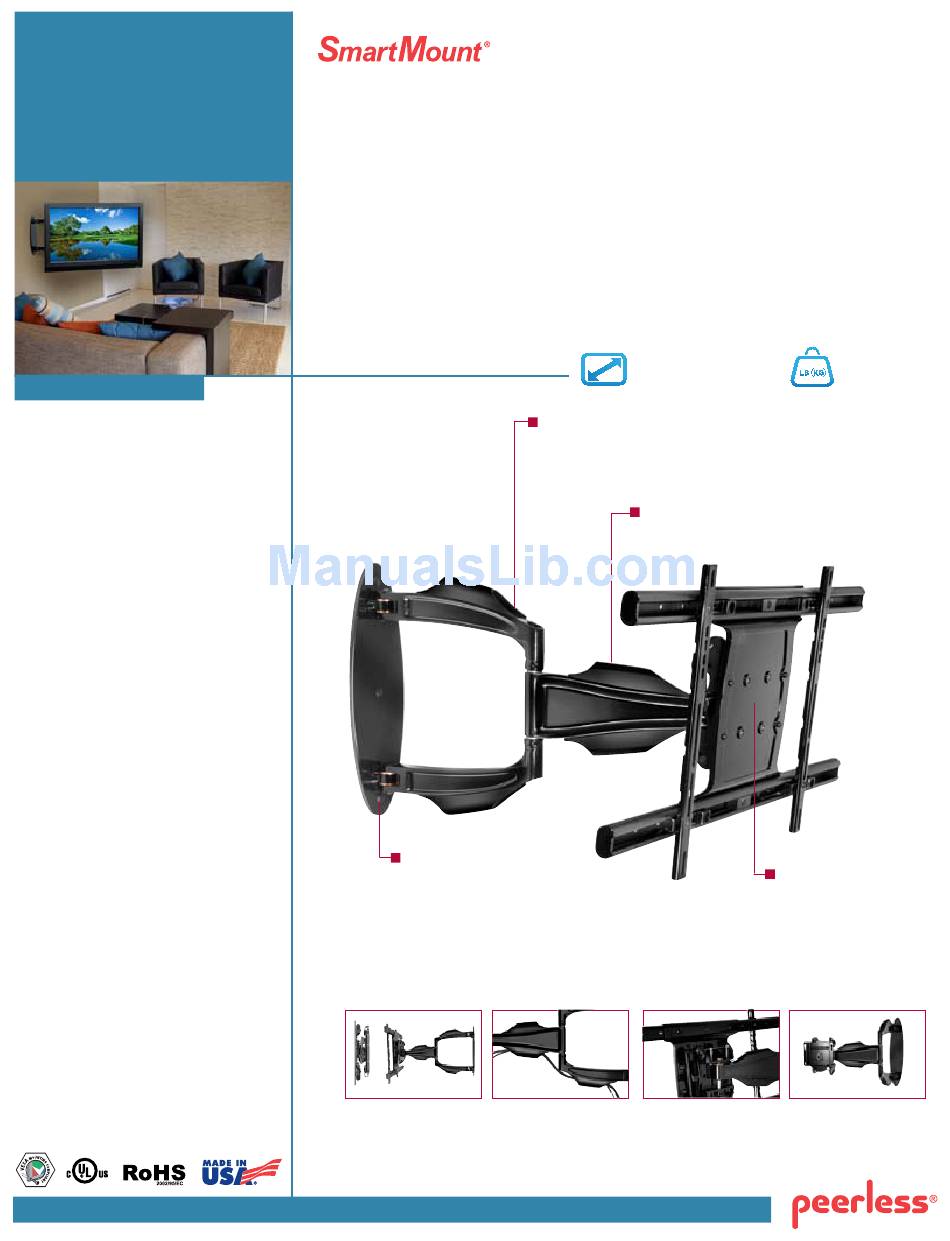

PEERLESS Smartmount SA752PU Manual

SA752PU
SA752P
FeAtureS
Universal model SA752PU

provides compatibility for
32" to 52" (81-132cm) flat
panel screens with mounting
patterns up to 27" x 17.29"
(686 x 439mm)
Dedicated model SA752P

requires screen adapter to
be purchased separately
Screen can be held as close

to the wall as 4.43" (113mm)
or be extended as far as
27.43" (697mm)
Integrated cable

management contains,
protects and conceals cables
for a clean clutter-free look
One-touch tilt allows for

+15°/-5° without the use of
tools for easy viewing angle
adjustment
Multi-link construction allows

for a full 180° range of motion
Screen can be swiveled

a full 90°
±5° of roll allows for post

installation leveling
Screen can be rotated

from portrait to landscape
without removing the screen
for easy orientation changes
1" (25mm) vertical

adjustment for screen
position fine tuning
Articulating Wall Arm
For 32" to 52" Flat Panel Screens
From any angle, this wall arm mount reflects remarkable form and function. Extending the flat panel
screen up to 27.43" (697mm) from the wall and allowing for a full 180° of side-to-side motion for
perfect view positioning of screens up to 52". Fine-tuning of the installation is simple with its side-to-
side screen leveling and 1" (25mm) of vertical adjustment features that help achieve perfection.
This articulating arm also provides screen centering on the wall plate and integrates a desirable
cable management system, centering the flat panel on the wall when retracted and organizing
and protecting the cables. Designed and built in the USA, this mount maintains the same brilliant
look as the entire SmartMount
remArKAbLe Form
New design, cable
covers, and fastener
covers complete a
professional installation
Arm retracts to just 4.43"
(113mm) and extends up to
27.43"(697mm) from wall
CLICK: www.peerlessmounts.com
700 Series line of Articulating and Pivot Wall Arm Mounts.
®
Screen size: 32"-52" (81-132cm)
CLeAn APPLICAtIon
Built in cable management
system keeps cables
organized and protected
VIewIng FLeXIbILIty
Arm extends up to 27.43"
(697mm) from wall
1" (25mm) clearance per 1" (25mm) of vertical
channel for clean and
simple cable management post-installation fine tuning
CALL: 800.865.2112 FAX: 708.865.2941
Max load: 90lb (41kg)
SA752PU Shown
PoSt InStALLAtIon
LeVeLIng
±5 degrees of roll eases
mounting frustration
SA752P dedicated model
adjustment for requires additional adapter
plate for mounting screen
