EW-02
Owner's Manual
www.ewheelsdealers.com
(888) 305-0881 Customer Service
0
(888) 571-2845 Service

Advertisement

loading
Need help?

Need help?

Do you have a question about the EW-02 and is the answer not in the manual?

Questions and answers

Related Manuals for E-Wheels EW-02

Summary of Contents for E-Wheels EW-02

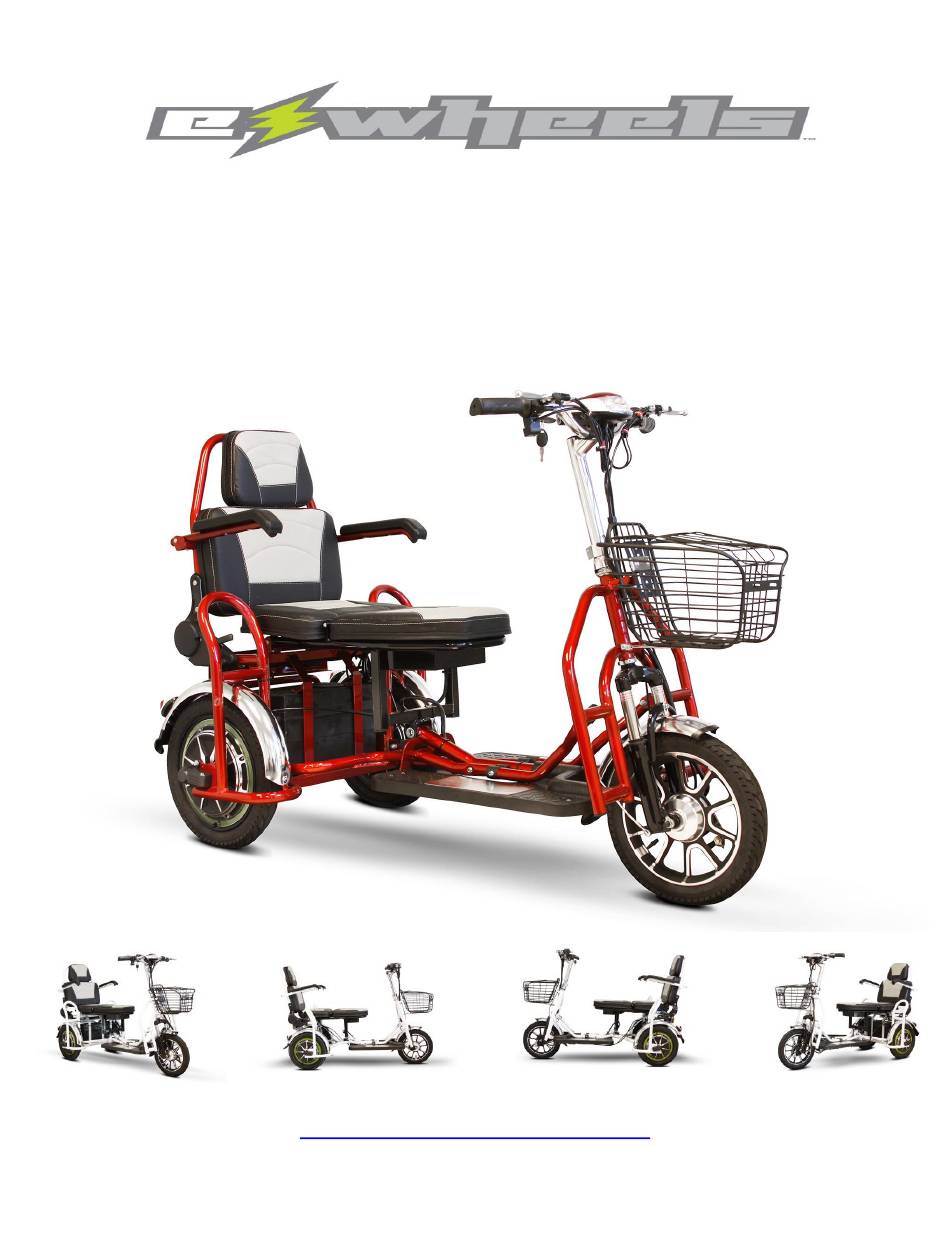

  • Page 1 EW-02 Owner’s Manual www.ewheelsdealers.com (888) 305-0881 Customer Service (888) 571-2845 Service...

  • Page 2: Table Of Contents

    Table of Contents Page 2 - Feature Guide Page 3 - Product Specifications Page 4 - Operation of Scooter Page 6 - Folding Page 7 - Charging and Battery Information Page 8 - Ramps and Curbs Page 8 - General Page 8 - Use While Under Influence Page 9 - Safety Requirements Page 10 - Warranty...
  • Page 3 Optional Folding Back Seat Headset Rear Seat Folding Lever Throttle Front Basket Rear Valve Stem Folding Point Front Valve Stem Battery Box Front Fork Suspension...
  • Page 4 Technical Specifications Model EW-02 Weight Capacity 500Lbs Speed: Up to 15mph Distance: 43 miles per charge (distance varies on terrain, riders weight, road surface, etc.) Front Seat: Type Flat rider seat with optional back rest Front seat: Size 14 “x 12“x 10” (LxWxH) Front Seat: 21”...

  • Page 5: Operation Of Scooter

    Operation of Scooter: 1. Turning on the power Insert key into ignition and turn clockwise to turn the scooter on. Turn the key again to activate the headlight. Turn the key counter- clockwise to power off when stopped. 2. Speed Control The black twist grip throttle controls acceleration.
  • Page 6 4. Forward / Reverse The forward/reverse switch is located on the right side of the handlebar controls. Press the “R” button in to activate reverse. Push again to de-activate 5. Turn Signals The turn signal button is located on the left handlebar assembly.

  • Page 7: Folding

    8. Battery Box Removal Start by unplugging the battery box power cable. Twist the hinged door securing knob to the left to remove. Once remove, the door can be folded downwards towards the ground. The battery box can be removed and charged separately from the machine with the provided smart charger Folding:...
  • Page 8 Charging Instructions: The smart charger included with your scooter will shut off when the scooter is fully charged. When the light on the charger is red, the scooter is still charging. When the light turns green, this means the scooter is fully charged.

  • Page 9: Ramps And Curbs

    Ramps and Curbs: 1. Check that the ramp surface is roughened to prevent slipping. Never drive across a slope or turn sharply on a slope. 2. When driving up curbs, always check the height of the curb to ensure that it does not exceed 4” height.

  • Page 10: Safety Requirements

    Safety Requirements: Driving Surface The EW-02 has the best stability and performs the best under the normal driving conditions (dry, level ground with concrete or asphalt). Extra care must be taken when riding on other surfaces (grass, gravel, etc.). DO NOT exceed the specified climbing angle. Do not operate the scooter before you have fully read and understood the manual.

  • Page 11: Warranty

     Always use required safety equipment while operating.  Do not modify or change the electrical system and frame. Doing so will void the warranty. Warranty: For valid warranty claims E-Wheels will, at their discretion, replace/repair/refund items mutually agreed to be defective. E-Wheels warranty as following: 1.
