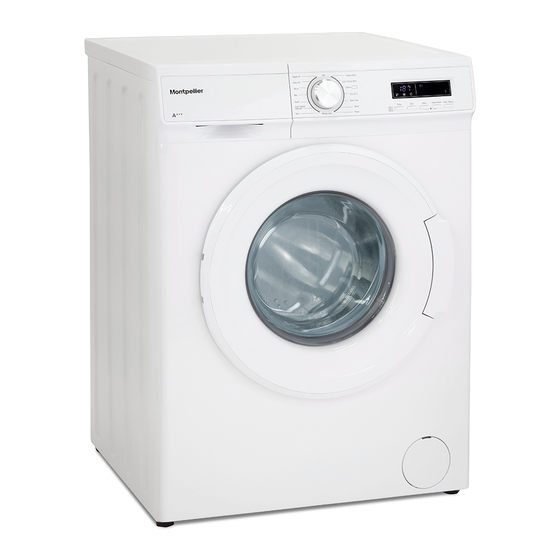

Freestanding washing machine - 8kg - 1400rpm, white

Advertisement

Quick Links

THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Freestanding Washing Machine
MW8410P - 8kg - 1400rpm
White
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MW8410P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for montpellier MW8410P

  • Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Freestanding Washing Machine MW8410P - 8kg - 1400rpm White Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
  • Page 2 Welcome Thank you for choosing this Montpellier Washing Machine Our Washing Machines have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Washing Machine to ensure you get the most from your purchase.
  • Page 3 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...
  • Page 4: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS ....................1 1.1. General Safety Warnings ....................1 1.2. During Use ........................4 1.3. Packaging and Environment..................6 1.4. Savings Information .......................6 2. TECHNICAL SPECIFICATIONS ..................7 2.1. General Appearance......................7 2.2. Technical Specifications ....................7 3. INSTALLATION .........................8 3.1. Removing the Transit Bolts....................8 3.2.
  • Page 5: Safety Instructions

    1. SAFETY INSTRUCTIONS Operating voltage / frequency (V/Hz) (220-240) V~/50Hz Total current (A) Water pressure (Mpa) Maximum 1 Mpa / Minimum 0.1Mpa Total power (W) 2200 Maximum washing capacity (dry laundry) (kg) • Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.
  • Page 6: General Safety Warnings

    Read this user manual carefully. Your machine is for domestic use only. Using it for commercial purposes will cause your warranty to be cancelled. 1.1. General Safety Warnings • The necessary ambient temperature for operation of your Washing Machine is 15-25 °C. •...
  • Page 7 as a result of quality checks during production. This will not affect the operation of your Washing Machine. • The packaging of the machine could be hazardous to children. Do not allow children to play with the packaging or small parts from the Washing Machine. •...
  • Page 8 injuries. RISK OF BURNS Do not touch the drain hose or any discharged water while your Washing Machine is running. The high temperatures involved pose a burn risk. RISK OF DEATH FROM ELECTRICAL CURRENT • Do not connect your Washing Machine to the mains electricity supply using an extension lead.
  • Page 9 corrosion. Never use paint removing materials in your machine. • Never use products that contain solvents in your machine. • Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins. Risk of fire and explosion Risk of falling and injury •...
  • Page 10: During Use

    1.2. During Use • Keep pets away from your machine. • Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.
  • Page 11: Packaging And Environment

    NOTE: Specifications for the machine may vary depending on the product purchased. 1.3. Packaging & Environment Removal of packaging materials Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable.
  • Page 12: Technical Specifications

    2. TECHNICAL SPECIFICATIONS 2.2. Technical Specifications Operating (220-240 ) V~/50Hz Voltage / V~/50Hz frequency (V/Hz) Total current Maximum: Water 1 Mpa pressure Minimum : (Mpa) 0.1 Mpa Total 2200 power (W) Maximum dry laundry capacity (kg) Spinning revolution 1400 (rev / min) Number of Programmes 2.1.
  • Page 13: Installation

    3. INSTALLATION 3.2. Adjusting the Feet / Adjusting Adjustable Stays 3.1. Removing the Transit Bolts 1. Do not install your machine on a surface (such as carpet) that would prevent ventilation at the base. • To ensure silent and vibration-free operation of your machine, install it on a firm surface.
  • Page 14: Water Inlet Hose Connection

    • The mains cord of your washing or double water inlet connection (hot machine is equipped with an earthed and cold) depending on the machine plug. This plug should always be specifications. The white capped hose inserted to an earthed socket of 10 should be connected to cold water inlet amps.
  • Page 15: Water Discharge Connection

    using the supplied new fill hose. Old hoses 4.1. Detergent Drawer must not be reused. 3.5. Water Discharge Connection Connect the water drain hose to a • standpipe or to the outlet elbow of a household sink, using additional equipment. Never attempt to extend the water drain •...
  • Page 16: Sections

    4.2. Sections 4.3. Program Dial Main wash detergent compartment: This compartment is for liquid or powder detergents or limescale remover. The fluid detergent level plate will be supplied inside To select the desired programme, turn • your machine. (*) the programme dial either clockwise or Fabric conditioner, starch, detergent anti-clockwise until the marker on the compartment:...
  • Page 17: Using Your Washing Machine

    wash, rinsing, spinning). occur due to foreign materials damaging your machine are not covered by the The display panel shows “End” when the warranty. selected programme is complete. The 4. Close zips and fasten any hooks and display panel also indicates if a fault has eyes.
  • Page 18: Adding Detergent To The Machine

    amount of detergent to use. NOTE: Take care not to exceed the In areas of hard water, more detergent • maximum load of the drum as this will give will be required. poor wash results and cause creasing. Refer to the washing programme tables for The amount of the detergent required •...
  • Page 19: Additional Functions

    regardless of the programme you When you select a programme the selected. This means that the selected maximum temperature for that programme programme will take less time to complete is automatically selected. To adjust the and will use less water and energy. temperature, press the water temperature adjustment button until the desired (*) Model Dependant...
  • Page 20 3. Delay Timer To select this function, press the Antiallergic button when the symbol is displayed. Delay 5. Easy Ironing(*) Timer Auxiliary function button 3 or 4 Easy ironing Press the Delay button once. • • “1 h” will appear on the display. Using this function will result in your laundry symbol will flash on the •...
  • Page 21: Cancelling The Programme

    8. Rapid Wash(*) 10. Child Lock Auxiliary function button 3 or 4 Rapid wash You can wash your laundry in a shorter time, The Child Lock function allows you to lock using less energy and water by selecting the buttons so that the wash cycle you have this additional function.
  • Page 22: Programme End

    5.9. Programme End Wash Rinse Spin Your machine will stop by itself as soon as the programme you have selected finishes. “END” will flash on the electronic • display. You can open the machine’s door and • remove the laundry. Leave the door of your machine open •...
  • Page 23: Programme Table

    6. PROGRAMME TABLE Programme Laundry type / Descriptions Very dirty, cotton and flax textiles. (Underwear, linen, COTTON 90° 90° tablecloth, towel (maximum 4,0 kg), bedclothes, etc.) Dirty cotton and flax textiles. (Underwear, linen, Pre-Wash Cotton 60° 1&2 tablecloth, towel (maximum 4,0 kg), bedclothes, etc.) COTTON ECO Dirty cotton and flax textiles.
  • Page 24: Cleaning And Maintenance

    7. CLEANING AND 7.2. Water Inlet Filters Water inlet filters prevent dirt and foreign MAINTENANCE materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive 7.1. Warning sufficient water, although your water supply is on and the tap is open.
  • Page 25: Pump Filter

    7.3. Pump Filter meet the holes on the front panel side. 6. Close the filter cover. WARNING: The water in the pump may be hot, wait until it has cooled down carrying out any cleaning or maintenance. (*) Specifications may vary depending on the machine purchased.
  • Page 26: Flush Stopper / Body / Drum

    8. FLUSH STOPPER / BODY / DRUM 1. Flush stopper Remove the detergent drawer and disassemble the flush stopper. Clean thoroughly to completely remove any softener residue. Refit the flush stopper after cleaning and check that it is seated properly. 2.
  • Page 27: Troubleshooting

    9. TROUBLESHOOTING Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should: Unplug your machine from the mains power supply. •...
  • Page 28: Automatic Fault Warnings And What To Do

    FAULT POSSIBLE CAUSE TROUBLESHOOTING Increase the amount of detergent following Hard water. the manufacturer’s instructions. Unsatisfactory washing result. Your laundry is too tightly Check that your laundry is spread out. packed together in the drum. As soon as the machine is The end of water drain hose is too Check that the drain hose is at a suitable height.
  • Page 29: Describing The Energy Label And Saving Energy

    11. DESCRIBING THE ENERGY Use programmes of shorter duration for lightly soiled laundry and daily LABEL AND SAVING ENERGY washes. Carry out cleaning and maintenance at regular intervals. 1. Brand 2. Model 3. Energy Class 4. Energy Consumption 5. Noise Value While Washing 6.
  • Page 30 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
  • Page 31 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
