4. Hold the controller in place, and insert the screws
through the mounting clips and into the holes (or
anchors). Carefully tighten all of the screws.
Important: Do not overtighten the mounting screws.
Overtightening the screws may damage
the mounting clips.
Table 1: IOM47 Physical Features Callouts and Descriptions
Callout Physical Feature Description
1 Binary Output (BO) Source Power Selection Jumper Pin Blocks, 3 – BO Jumper Pin Blocks. (See
2 Device Address DIP Switch Block. (See
3 Mounting Clip (One of Three)
4 Configurable Output (CO) Terminal Blocks, 4 – Configurable Outputs. (See
5 Analog Output (AO) Terminal Block, 2 – Analog Outputs. (See
IOM4711 Input/Output Module Installation Instructions

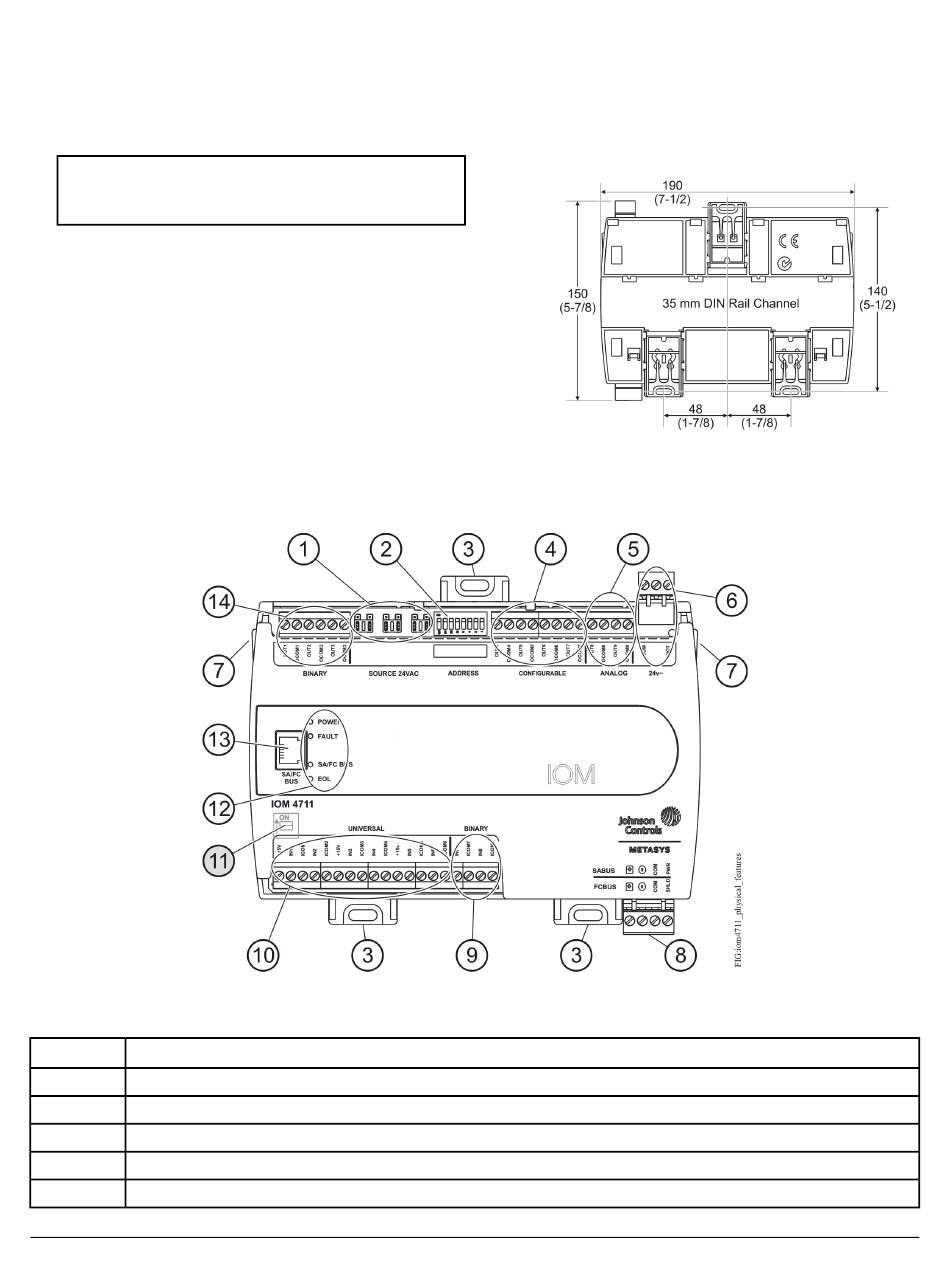

Figure 3: IOM47 Physical Features
Setting the Device
Figure 2: Back of Controller Showing Extended
Mounting Clips, DIN Rail Channel, and
Mounting Dimensions, mm (in.)
Addresses.)
Table 3.)
Table 3.)
Table 3.)
3
