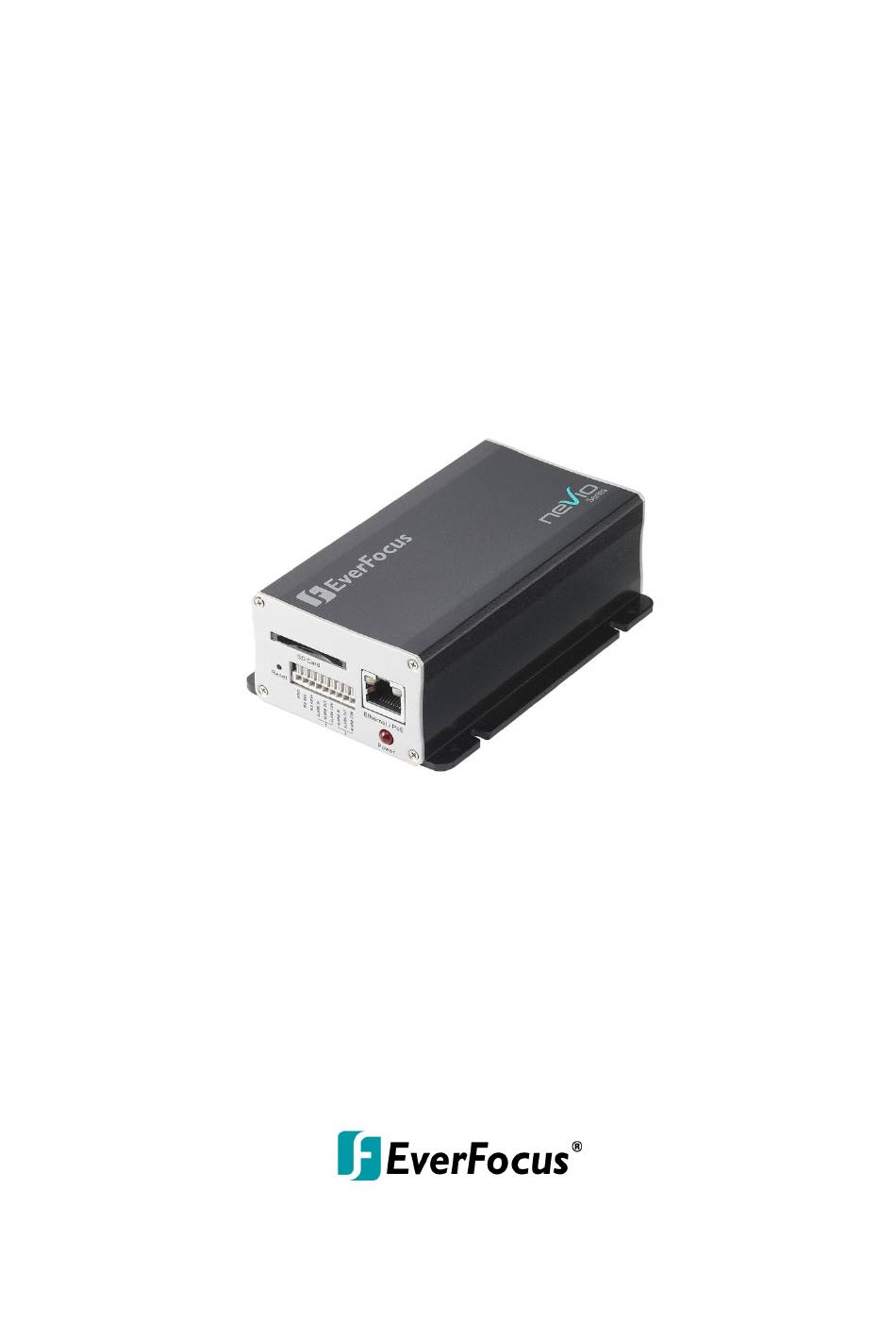

- Page 1 EVS200A/EVS200AW User’s Manual Copyright © EverFocus Electronics Corp, Release: Sept. 2009 Rev.0...
- Page 2 - Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this equipment, not expressly approved by EverFocus or parties authorized by EverFocus could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the...
- Page 3 EVS200A/EVS200AW EVS200A/EVS200AW complies with CE and FCC. About this document All the safety and operating instructions should be read and followed before the unit is operated. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products.
- Page 4 Sun Microsystems, Inc. in the United States and other countries. Support If the unit ever needs repair service, the customer should contact the nearest EverFocus Electronics Corp. Service Center for return authorization and shipping instruction. About AC Adaptor...
-
Page 5: Table Of Contents
EVS200A/EVS200AW TABLE OF CONTENTS 1. INTRODUCTION....................6 2. FEATURES ......................6 3. ACCESSING THE CAMERA MENU ..............7 4. SETTING........................10 4.1 S ......................10 YSTEM 4.1.1 Information ....................10 4.1.2 Log ......................11 4.2 U ......................12 ONFIG 4.3 N ......................14 ETWORK 4.3.1 Network.......................14 4.3.2 DDNS......................16 4.3.3 Bandwidth ....................17 4.3.4 SMTP/FTP ....................18 4.3.5 Network Alarm (reserved for PowerCon)...........20... -
Page 6: Introduction
EVS200A/EVS200AW 1. INTRODUCTION The EVS200A/EVS200AW features H.264, MPEG-4 and MJPEG video signals, at up to 30fps, per channel, over IP networks. The video signals can be received and displayed with a standard web browser or Nevio Express management software. The EVS200A/EVS200AW provides Dual Streaming. It is able to generate in total 4 independently configurable H.264, MPEG4 or MJEPG video streams (2 per input). -
Page 7: Accessing The Camera Menu
EVS200A/EVS200AW Ultra-compact size for space-saving applications 3. ACCESSING THE CAMERA MENU Step 1.Start an Internet Explorer browser. Step 2. Enter the IP address or host name of the camera in the Location/Address field of your Internet Explorer browser. (Please refer to EVS200A/EVS200AW Installation Guide for how to find the IP address) Step 3. - Page 8 EVS200A/EVS200AW 1. Press button to display the "Live" page. Double click on the image to show a full screen display, double click again or press ESC to return normal display. 2. Press Playback button to start playback. 3. Press button to enter Setting page. In Setting page, there are 8 sections: [System Info], [User Config], [Network], [Video], [Audio], [User], [Event] and [System].
- Page 9 EVS200A/EVS200AW image file is saved can be specified in Setting -> User’s Config. Please refer to “4.2 User Config” for further information. Note: Record segment is limited to 1 min. If you need to do long time recording, please set schedule recording. For more details about schedule recording, please see “4.7 Event”.
-
Page 10: Setting
EVS200A/EVS200AW about Motion setup. 4. SETTING Click this button to display the setup menu. 4.1 System Info System information and system log check of the setup menu can be performed on this page. The “System Info” page has 2 tabs: [Information] tab and the [Log] tab. 4.1.1 Information System Information: Firmware version, MAC address, Video Type, Model number. -
Page 11: Log
EVS200A/EVS200AW 4.1.2 Log System Log: Date/Time: displaying date and time of the log. Log message: all information and event message, including login, user’s IP, reboot, firmware upgrade, load factory default, configuration reset and event detected. System will keep the newest 256 records. -
Page 12: User Config
EVS200A/EVS200AW Press button to export system log into “.txt” file and select the location where the exported log file will be saved to. 4.2 User Config Live view configuration is to be set by user. Each login user can make his/her own settings for the following items: Text Setting Check the box for text of Machine name, Date/Time or Frame Rate to be... - Page 13 EVS200A/EVS200AW change. Date/Time Format Used in Text Select Date/Time Format from the following options: Time Format: 24 Hours or 12 Hours. Press Apply to apply the setting changes or Reset to reset without saving the change. Recording/Snapshot Export Setting Enable Event Recording to PC: Allow event video recorded to users' PC if any events have been set to record to PC.
-
Page 14: Network
EVS200A/EVS200AW English. To add a new language which is not listed in the original configuration, press the Browse button to locate the new language file (.evb) and then click the Load button. Note: Upload a new language file will reboot system automatically. Please reconnect IP camera after reboot. - Page 15 EVS200A/EVS200AW the network administrator or your Internet service provider. • IP Type • IP address • Subnet mask • Gateway (when using the gateway server/router) • Primary DNS, Secondary DNS (when using DNS) IP Type DHCP: Configure the DHCP server not to assign the same IP addresses used for the other network cameras and PCs whose IP address is unique.
-
Page 16: Ddns
EVS200A/EVS200AW If your ISP provides you an IP address secondary DNS, please set it here. Username Enter User name of the account (used only for PPPoE). Password Enter Password of the account (used only for PPPoE). Press Apply to apply the setting changes or Reset to reset without saving the change. -
Page 17: Bandwidth
EVS200A/EVS200AW ○ www.no-ip.com Enable: Check the box to enable DDNS setting. Service ISP: If you choose EverFocus DDNS server, you can obtain a free account name from EverFocus ”www.everfocusddns.com”. Enter an IP Cam Account Name: .everfocusddns.com Press button to register or update DDNS account. -
Page 18: Smtp/Ftp
EVS200A/EVS200AW Max. Client Limit: enter a value here to restrict the number of clients accessing the camera. This is useful if you need to save on bandwidth. Up to 32 clients is allowed to see live video simultaneously. Subsequent viewers will see a blank image. - Page 19 EVS200A/EVS200AW User name: Input the login user ID if the SMTP server requires Authentication. Password: Input the password if the SMTP server requires authentication. Receiver Address: Input the e-mail address for receiving e-mail message when the EVENT is enabled and triggered. Please use “;” to separate address. Sender Address: Input sender’s e-mail address, so that receiver can recognize the sender when an event message is sent out.
-
Page 20: Network Alarm (Reserved For Powercon)
EVS200A/EVS200AW 4.3.5 Network Alarm (reserved for PowerCon) Set Network Alarm This function is reserved for PowerCon software, for the detail setting please refer to PowerCon network alarm protocol. -
Page 21: Wireless (Evs200Aw)
EVS200A/EVS200AW 4.3.6 Wireless Wireless Setting Enable Wireless (Default: disable) SSID: Name of the wireless network the camera is configured for. The field accepts up to 32 alphanumeric characters. (Default: default) Network Type: Infrastructure or Ad-Hoc (Default: Infrastructure) “Infrastructure” Make the Network Camera connect to the WLAN via an Access Point. -
Page 22: Video
EVS200A/EVS200AW “Shared” – allows communication only with other devices with identical WEP settings. Key Length: 64 or 128 bits (Default: 64 bits) Key Format: HEX or ASCII (Default: HEX) Network Key: Entering a key in either hexadecimal or ASCII format. Confirm Key: double confirm network key. -
Page 23: Multi Streaming
EVS200A/EVS200AW 4.4.1 Multi Streaming Stream Setting The system can output 4 video streams simultaneously. For each of them, user can set compression format, resolution, quality and frame rate individually. Stream 1 is always enabled for live view. Check “Enable” box to enable other streams. Format: Select encode format from H.264, MPEG4 and MJPEG. - Page 24 EVS200A/EVS200AW Note: Total frame rate cannot exceed 60 fps. System performance may be influenced if user enables 4 video streams simultaneously. Press Apply to apply the setting changes or Reset to reset without saving the change. Video Recording Setting User can set video recording by selecting one of the enabled video streamings. This will allow user to view live images as well as to record video of the other video streaming.
-
Page 25: Camera
EVS200A/EVS200AW 4.4.2 Video - Display Setting Select a channel: add channel selection. Channel title: add channel title. PTZ function: select PTZ function ON or OFF Brightness/ Contrast/Hue: add the adjustment to brightness, contrast and hue Note: 1. There is no Apply button, whenever the above three picture parameters are adjusted, the values will be set to the channel 2. -
Page 26: User
EVS200A/EVS200AW Audio Check Enable Audio box to enable audio function. Audio Input: Audio from an internal microphone or a line source can be connected to the Audio connector of EVS200A/EVS200AW. The audio source can be selected from Internal Microphone, External Audio Input L and External Audio Input R. Audio Input volume: Adjust the Audio Input Volume for the audio input devices connected to the camera if there are problems with the sound input being too low or high. -
Page 27: Event
EVS200A/EVS200AW User Information Maximum 10 users can be set for using the IP camera. The user information displays the authorized users and access levels: • Supervisor/Administrator –a supervisor/administrator has unrestricted access to the Setting menu and can determine the registration of all other users. However, administrator is not allowed to change supervisor’s account and password. -
Page 28: Event
EVS200A/EVS200AW to be performed. The event type is the set of conditions that specifies how and when which actions will be performed. This table describes how to setup action types and event type. Event Type Manual Motion Schedule Action Type Alarm Input Trigger Detection... - Page 29 EVS200A/EVS200AW Press button to add an event condition. To modify the event list, click on the event and it will be highlighted. Press button to modify the setting. To remove an event from event list, click on the event and it will be highlighted. Press button to remove the event.
- Page 30 EVS200A/EVS200AW This example describes how to set the camera to upload images to FTP when someone press Manual trigger button: 1. Click button in Event page. 2. Enter an event name for the event, e.g. Event 1 3. Select “Manual Trigger” as event type. 4.
-
Page 31: Motion
EVS200A/EVS200AW 4.7.2 Motion Motion Detection First, select the channel for motion detection setting. User can define the motion area to be detected by left clicking the mouse to draw lines. Every click is an end point of the line. When the detection area is formed, double click the mouse to have all the lines connected. - Page 32 EVS200A/EVS200AW Alarm Output Setting Contact Type: Normal Close, Normal Open Duration Time: Select duration time of alarm output from 5 sec, 10 sec, 20 sec, 30 sec, 60 sec, 2 min, 3 min and 5 min. Press Apply to apply the setting changes or Reset to reset without saving the change.
-
Page 33: Time Mask
EVS200A/EVS200AW Re-trigger Filter: Set a re-trigger filter time, if another event is triggered during this time, this triggered event will be ignored. Press Apply to apply the setting changes or Reset to reset without saving the change. 4.7.4 Time Mask Time Mask Setting Time mask setting allows you to schedule event actions. -
Page 34: System
EVS200A/EVS200AW Click from time mask setting. Enter Mask name, e.g. Weekend. Check “Sun” & “Sat” boxes. Select “Start time” and “End time” or “Full day”. Press Apply to apply the setting changes or Reset to reset without saving the change. 4.8 SYSTEM Date/Time, Daylight Saving, SD card and Maintenance settings can be performed on this page. - Page 35 EVS200A/EVS200AW in the status display area. Press Apply to apply the setting changes or Reset to reset without saving the change. Set Time Zone Time Zone: Select a time zone according to the location where the camera is in use. Set Date/Time Manually Date: Click the calendar and pick the date.
-
Page 36: Daylight Saving
EVS200A/EVS200AW 4.8.2 Daylight Saving Set Daylight Saving Check Enable Daylight Saving checkbox to enable daylight saving. Set the start time to daylight saving time. Set the start week of daylight saving time: 1 / Last Set the start date of daylight saving time: Sunday / Monday / Tuesday / Wednesday / Thursday / Friday / Saturday Set the start month of daylight saving time: January / February / March / April / May / June / July / August / September / October / November / December. -
Page 37: Sd Card
EVS200A/EVS200AW “End” time when daylight saving ends. Press Apply to apply the setting changes or Reset to reset without saving the change. 4.8.3 SD Card Setup SD Card Notification: Notification will be made via e-mail when the remaining space of the SD memory card reached the value selected from the following. - Page 38 EVS200A/EVS200AW record event video to SD card. Overwrite: Select ON for overwriting data when SD card memory is full. Select OFF for not overwriting SD card data. Press Apply to apply the setting changes or Reset to reset without saving the change.
- Page 39 EVS200A/EVS200AW 4.8.4 Serial Communication Add Serial Communication setting. -Channel 1 ID: This entry is used to assign channel 1 camera own ID code. -Channel 2 ID: This entry is used to assign channel 2 camera own ID code. -Baud Rate: This field is to set the speed at which is used to transmit instruction or information through the RS485 port on the camera.
-
Page 40: Maintenance
EVS200A/EVS200AW 4.8.5 Maintenance Maintenance Server Reboot: The unit is rebooted without changing any of the settings. Use this method by pressing Reboot button if the unit is not behaving as expected. Restore: The unit is restarted and most current settings are reset to the factory default values by pressing Restore button. - Page 41 EVS200A/EVS200AW the Load button. The settings will be restored to the previous configuration. Upgrade Firmware Upgrade the EVS200A/EVS200AW with the latest firmware. Press Browse button to search firmware file. Press Upgrade button to upgrade the firmware. Note 1: Do not disconnect power to the unit during the upgrade. The unit reboots automatically after the upgrade has completed.
-
Page 42: Specifications
EVS200A/EVS200AW 5. SPECIFICATIONS VIDEO STREAMING Video Compression H.264/MPEG-4/M-JPEG Video Resolution 4CIF, VGA, CIF, QVGA, QCIF Video Quality 8 levels adjustable Frame Rate Up to 30fps 1 BNC composite, 1 V p-p / 75 Video Source NTSC/PAL auto-sense AUDIO Compression Method IMA ADPCM (Pulse Code Modulation) Operation Mode 2 way audio... - Page 43 2-6 Nakase.Mihama-ku. www.everfocus.com Chiba city 261-7118, Japan TEL: 81-43-212-8188 FAX: 81-43-297-0081 www.everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed und hergestellt mit qualitativ and manufactured with high quality hochwertigen Materialien und materials and components which can Komponenten, die recycelt und wieder be recycled and reused.
