Summary of Contents for EverFocus EverPlex 4BQ

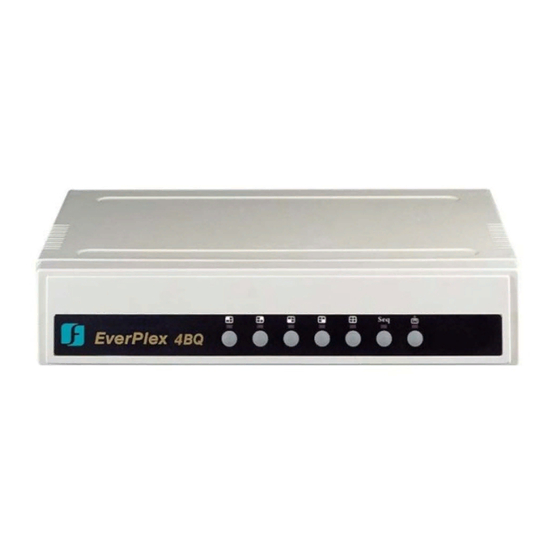

- Page 1 lex 4BQ USER'S MANUAL Real time B/W quad processor High resolution picture quality 4 Alarm input with buzzer...
- Page 2 Meanwhile, please be advised that every steps of operation must follow the instruction of this manual to keep EverPlex 4BQ working under the best condition. Please notice that EverFocus will not be charged any claims or...
-
Page 3: Table Of Contents
Safety Warning ...1 Introduction...2 Specification...3 Chapter I Front Panel Keypads...4 1. Full Screen ...4 2. Quad Display ...4 3. Sequential Seitching ...4 4. VCR Playback………..4 Chapter II Back Panel Function...5 1. BNC Connectors...5 1.1 Video In...5 1.2 Video Out ...5 1.3 Monitor ...5 1.4 VCR out ...5 1.5 VCR In... -
Page 4: Safety Warning
To prevent fire or shock hazard, do not expose this equipment to the environment of high humidity and dust. Do not use it in an unprotected outdoor installation or any area classified as a wet area. Installation environment: The temperature should be kept between 0 For safety sake, do not disseminate the unit or put it on an unstable base. -
Page 5: Introduction
This B/W Quad processor represents the best choice for 4 cameras monitoring and recording. 4 channel auto sequential switching with real time quad display, superior high resolution, and the most practical features in one convenient unit. The most unbeatable B/W Quad processor for the security surveillance. Main Features: Connect up to 4 cameras with loop through Real-time quad display... -
Page 6: Specification
Video input: Video output: Refresh Rate: VCR Playback: Alarm input: Buzzer: Alarm output: Dimension: Power source: Power consumption: Operating temperature: 0°C to +50 °C Specification Up to 4 cameras inputs and 1 VCR input 1 monitor output and 1 quad output for VCR 1Vp-p/75 ohm 15~30 fields/sec. -
Page 7: Chapter I Front Panel Keypads
Chapter I Front Panel Keypads 1. Front Panel Keypads 1.1 Full Screen Press any key of corresponding quadrant, the required channel will be displayed as full screen on the monitor. Press 1.2 Quad Display Press , the 4 camera input will be displayed in quad format on the main monitor. 1.3 Sequential Switching Press Seq key to enter the auto sequential switching mode. -
Page 8: Chapter Ii Back Panel Function
Chapter II Back Panel Function 1. BNC Connectors 1.1 Video In Connect camera video output to the corresponding video in connector by a 75 ohm coaxial cable. 1.2 Video Out Connect the other devices to these connectors. They are used to loop through camera’s video to other devices. -
Page 9: Alarm Time
4. Alarm Time Adjust the alarm holding time from 1 to 20 seconds. 5. Switch Time Adjust the auto sequential switching time from 1 to 10 seconds. 6. VCR Level The gain control regulator is used to adjust the brightness level of the VCR output. 7. -
Page 10: Alarm Out
8.1 Alarm out There are two ways to do the alarm out connection: 8.1.1 Normally Open Connection (use pin # 1 and # 9) Alarm out 8.1.2 Normally Closed Connection (use pin # 1 and # 2) Alarm out 4 Channel B/W Quad 4 Channel B/W Quad RELAY RELAY... -
Page 11: Alarm In
8.2 Alarm in There are 4 alarm sensors in for 4 channels, all these alarm inputs are Normally Open and shorted to ground means an alarm happens. SENSOR 4 SENSOR 3 SENSOR 2 SENSOR 1 There are four alarm inputs for each camera. Please connect the alarm input in the same sequence as the cameras input. - Page 12 EverFocus Electronics Corp. Head Office: 10F-6, No.79 Sec. 1 Shin-Tai Wu Road, Hsi-Chi, Taipei, Taiwan TEL: 886-2-26982334 FAX: 886-2-26982380 USA Office: 145 Vista Ave. Suite 108 Pasadena, CA. 91107 TEL: 1-626-844-8888 FAX: 1-626-844-8838 Toll free: 1-888-383-6287 or 1-888-EV-FOCUS Hong Kong Office: Room 0, 10/F., Block 3, Camelpaint Building,...
