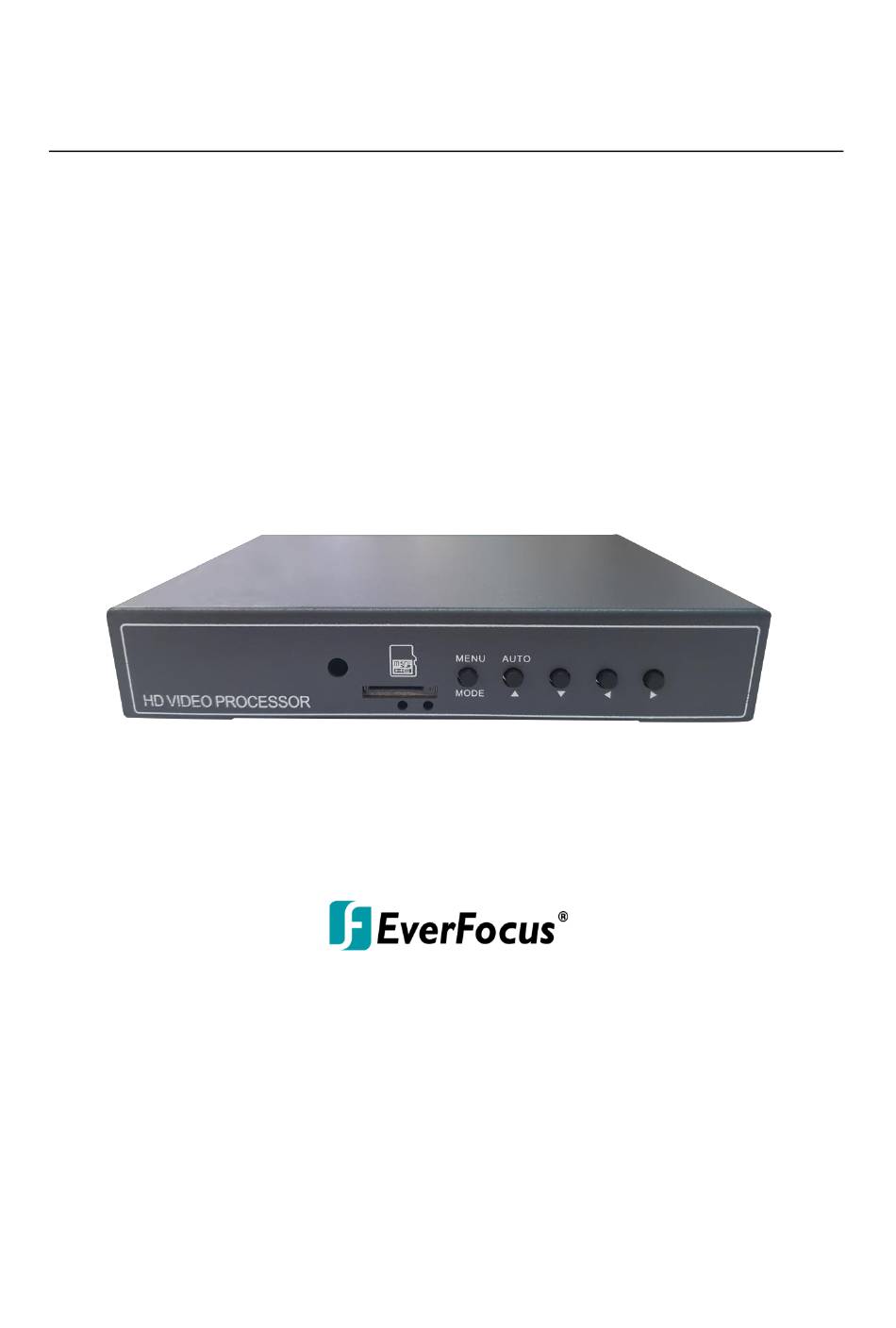

- Page 1 EP4CQ FHD 4-Channel Full HD Quad Video Processor User’s Manual Copyright © EverFocus Electronics Corp, Release Date: May 2019...
- Page 2 CONTENT INTRODUCTION ............... 1 MAIN FEATURES .............. 1 2.1 Packing List ............... 2 REAR PANEL / CONNECTION ........... 2 FRONT PANEL ..............3 FRONT PANEL OPERATION ..........4 IR REMOTE CONTROL ............4 RECORD MANAGEMENT ..........4 SPECIFICATION ..............5...
- Page 3 EP4CQ-FHD 1. INTRODUCTION EverFocus EP4CQ-FHD is able to support up to 4 analog HD cameras, allowing users to use different display modes: quad split, full screen, POP (Picture on Picture), and auto sequence for monitoring based on their preference. The VGA output resolution support 1920x1080 1440x900 1366x768 1280x720 1280x1024 1024x768 (Other resolution can be customized).
- Page 4 EP4CQ-FHD 2.1 Packing List • • EP4CQ x 1 Power Cord x 1 • • Remote Controller x 1 Power Adaptor x 1 3. REAR PANEL / CONNECTION EP4CQ-FHD No Connector Description Connects to the DC 12 V / 1A power using a 1 DC 12V power adapter.

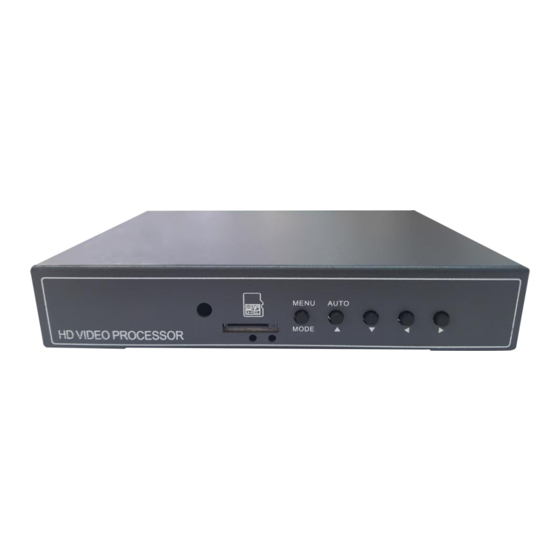

- Page 5 EP4CQ-FHD 4. FRONT PANEL Keys Function Description Support Max 256G micro SD card. (Loop TF Card Slot Record) Long-press to enter / exit the OSD menu; Menu Short-press to enter to the setup menu. Long-press to enter / exit the auto sequence Auto mode.
- Page 6 EP4CQ-FHD 5. FRONT PANEL OPERATION Press the MODE key to switch display modes, you can select the display mode in the menu according to your needs, and the MODE button that is not selected will not be displayed. 6. IR REMOTE CONTROL Remote Function Description Panel...
- Page 7 EP4CQ-FHD • Storage Device: Micro SD Card • Compression Format: H.264 • Recording Resolution: 1920x1080 8. SPECIFICATION Item Specification Video Output 1 VGA+1 CVBS (RCA) Video Input 4 CH (AHD 1080P/ AHD 720P/ 960H/ CVBS) VGA: 1024x768 ~ 1920x1080 Display CVBS NTSC: 720x480 (60Hz) CVBS PAL: 720x576 (50Hz) Timer...
- Page 8 TEL: +1 626 844 8888 FAX: +1 626 844 8838 www.everfocus.com sales@everfocus.com Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed and und hergestellt mit qualitativ manufactured with high quality materials hochwertigen Materialien und and components which can be recycled Komponenten, die recycelt und wieder and reused.
