Page 1: Installation Guide

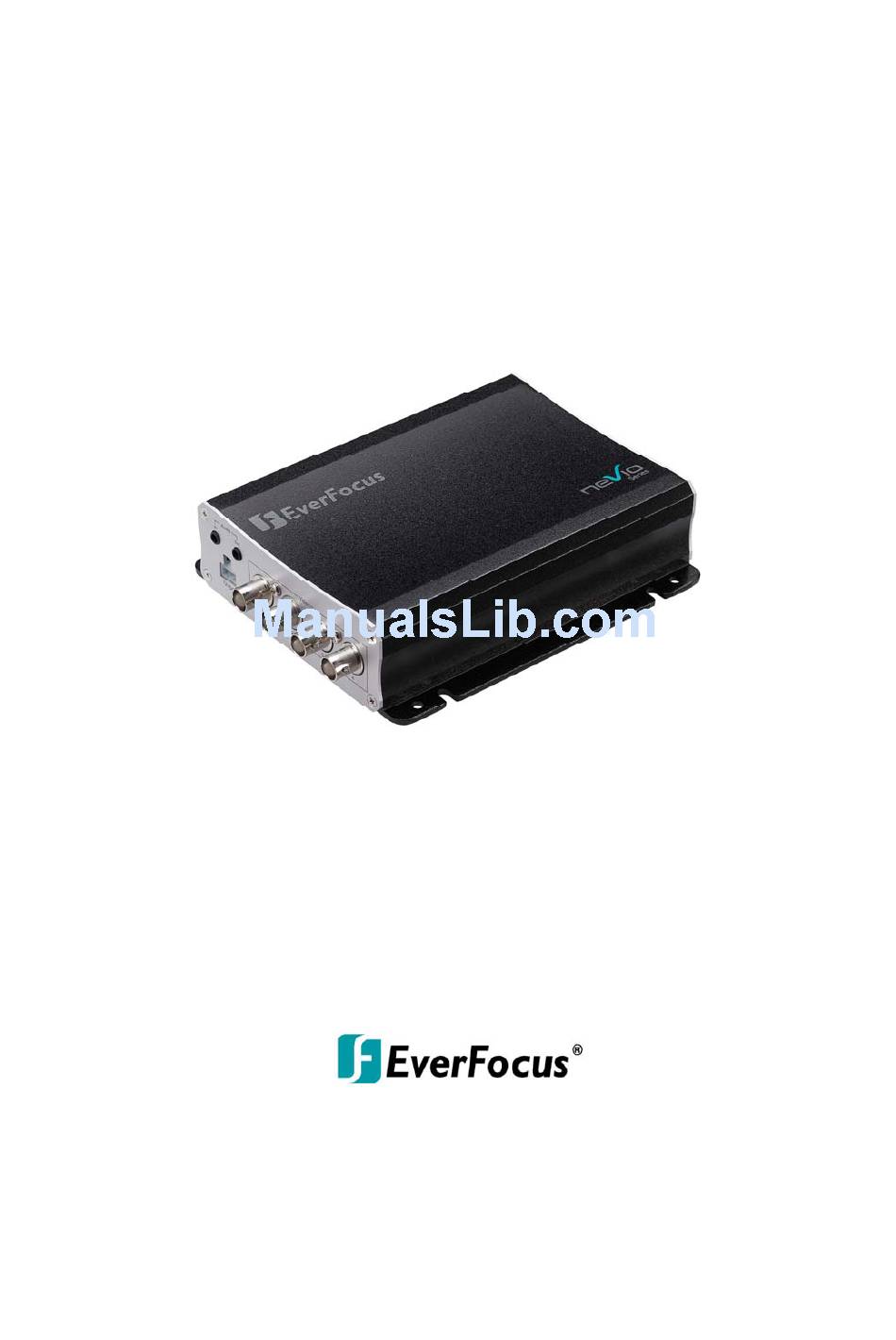

EVS410 Installation Guide Copyright © EverFocus Electronics Corp, Release: Apr. 2011 Rev.0... -
Page 2: Installation Steps
EVS410 This installation guide provides instructions for basic wiring of the EVS410 video encoder. For all other aspects of using this product, please refer to the EVS410 User’s Manual, which is available on the CD included in this package. Installation steps 1. -
Page 3: Minimum Computer Requirements
EVS410 Minimum Computer Requirements -CPU: Intel Core2 Duo 2 GHz or higher -Memory: 1 GB RAM or more Additional HD space depends on required local storage of video files, 100 Mbps network card -Screen Resolution: 1024 x 768 pixels or higher, 32-bit pixel color resolution -Operating system: Microsoft Windows XP, Windows Vista(32bit), Windows 7(32bit) -Software: DirectX9,0c, Internet Explorer 6.0 or higher... -
Page 4: Front And Rear Panels
Please insert the keen-edged device to the hole for 5 seconds. ○ Power: Power LED when power is ON. ○ Alarm Out: Connect alarm devices to alarm output port of EVS410. ○ RS485: Connect a PTZ to RS-485 port of EVS410. ○... - Page 5 Audio Out: Connect an audio output signal to other audio device. ○ Video In (1~4): Analog video input from Camera 1~4. Note: Please connect Video In 1 before turn the device ON, then EVS410 will detect video format automatically. ○...
-
Page 6: Network Configuration
EVS410 2. Network Configuration This section illustrates connecting different types of network topologies to video encoder. a. Router or LAN connection This is the most common connection that allows multiple users on and off site to see IP cameras/video encoders on a LAN/WAN through a router. The video encoder must be assigned an IP address compatible with the LAN. - Page 7 EVS410 Pinout of straight patch cable c. One to one connection from PC to video encoder You can connect directly without switch. However, only the PC connecting to device can view the video encoder; it will be necessary to manually assign compatible IP addresses to both devices;...
-
Page 8: Assign Ip Address
Please install the IP utility software from the CD before you go through the following process. Please note the following procedures are an example according to EVS410 default values. These values may vary with your network system. Please consult your ISP or network administrators for the proper settings for your network environment. - Page 9 EVS410 3. In order to manually configure the IP settings or upgrade firmware or save/load configuration, YOU MUST CLICK “Login/Multi Login”. If selecting more than 1 device that has same user name/password, you will be able to login several devices.
- Page 10 EVS410 . To upgrade firmware, select the device with highlight bar to do firmware upgrade. The window pops up after clicking the “Firmware Update” button. Select and Open the firmware file (.evb) to execute firmware update.
- Page 11 EVS410 After opening the firmware file, the progress is running. Once updating firmware is completed, the device will reboot. Click “Search devices” again, the firmware versio will change to the new one. If system is rebooting, IP utility cannot find the device.
- Page 12 EVS410 7. To copy / paste IP Settings, right click the selected device which has been login, press “Copy” or “Paste” to copy/paste IP settings included IP type, Subnet Mask, Gateway Address, DNS1 Address, DNS2 Address and Port. 8. To view a device, select it with highlight bar and click “Connect to selected IP” and...
- Page 13 EVS410 9. You will be asked to enter User ID and Password first in order to access the video encoder. Note: Default user name is “user1” and default password is “11111111”. 0. After login, the browser window will display the LIVE VIEW page of the video encoder.
- Page 14 EverFocus USA - California: EverFocus USA - New York: 1801 Highland Avenue, Unit A, D uarte, CA 91010, USA 415 Oser Avenue, Unit S, Haup pauge, NY 11788, USA TEL: +1 626 844 8888 TEL: +1 631 436 5070...
