WARNINGS

• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT
BREAKER OR FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes
and regulations.
• If you are unsure about any part of these instructions, consult an electrician.

Product Description

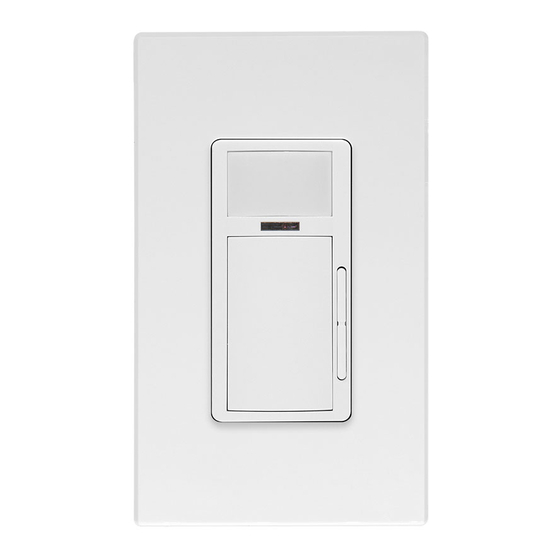

Leviton Cat. No. ODP10-I1, Wall Switch and Dimming Occupancy Sensor, is
designed to easily switch and dim incandescent and dimmable LED or CFL bulbs
while monitoring a room for occupancy using Passive Infrared (PIR) detection
technology. A specialized lens divides the field of view into sensor zones. When a
person passes into or out of a sensor zone, the sensor detects motion and switches
the lights ON. Lighting levels can be manually adjusted using the dimming bar next to
the switch. The lights will remain ON as long as there is an occupant moving through
the sensor zones. ODP10-I1 can also be programmed to vacancy mode (Manual
ON/Auto OFF) for installations where Manual ON switching is required for Title 24
applications. The ODP10-I1 provides a 180° field of view with a maximum coverage
area of approximately 1100 square feet. The maximum sensing distance in front of
the sensor is 30-40 feet, and 15-20 feet on either size. A "minor motion" zone detects
small body movements and allows the lights to stay ON even though a person
may not be moving or walking around the room. The remainder of the field of view,
the "major motion" zone, exhibits a lesser degree of sensitivity and requires larger
movements. Simple configuration can also be applied using push button setup for
several popular preconfigured options. ODP10-I1 is also equipped with a photocell
for daylighting which is programmable using the Leviton Smart Sensor App.

Before Installation

• Install into any single gang device wallbox.
• Supports multi-gang installations.
• Installation wire must be rated at least 90°C.
• Ivory, light almond, black, red, and gray faceplates are available with a color
change kit (sold separately).
• Decora wallplate not included.
®
FOR OPTIMAL PERFORMANCE:
The ODP10-I1 sensor lens establishes dozens of zones of detection. The sensor
is sensitive to the heat emitted by the human body. In order to trigger the sensor,
the source of heat must move from one zone of detection to another. The device is
most effective in sensing motion across its field-of-view, and less effective sensing
motion towards or away from its field-of-view. Keep this in mind when selecting
the installation location. Note that occupancy sensors respond to rapid changes in
temperature, so care should be taken not to mount the device near a climate control
source (i.e. radiators, air exchanges, and air conditioners). Hot or cold drafts will look
like body motion to the device and will trigger it if the unit is mounted too close. It is
recommended to mount the Occupancy Sensor at least 6 feet away from a climate
control source. In addition, it is also recommended NOT to mount the Occupancy
Sensor directly under a large light source. Large wattage bulbs (greater than 100W
incandescent) give off a lot of heat and switching the bulb causes a temperature
change that can be detected by the device. Mount the Occupancy Sensor at least
6 feet away from large bulbs. If it necessary to mount the device closer, lower the
wattage of the bulb directly overhead.

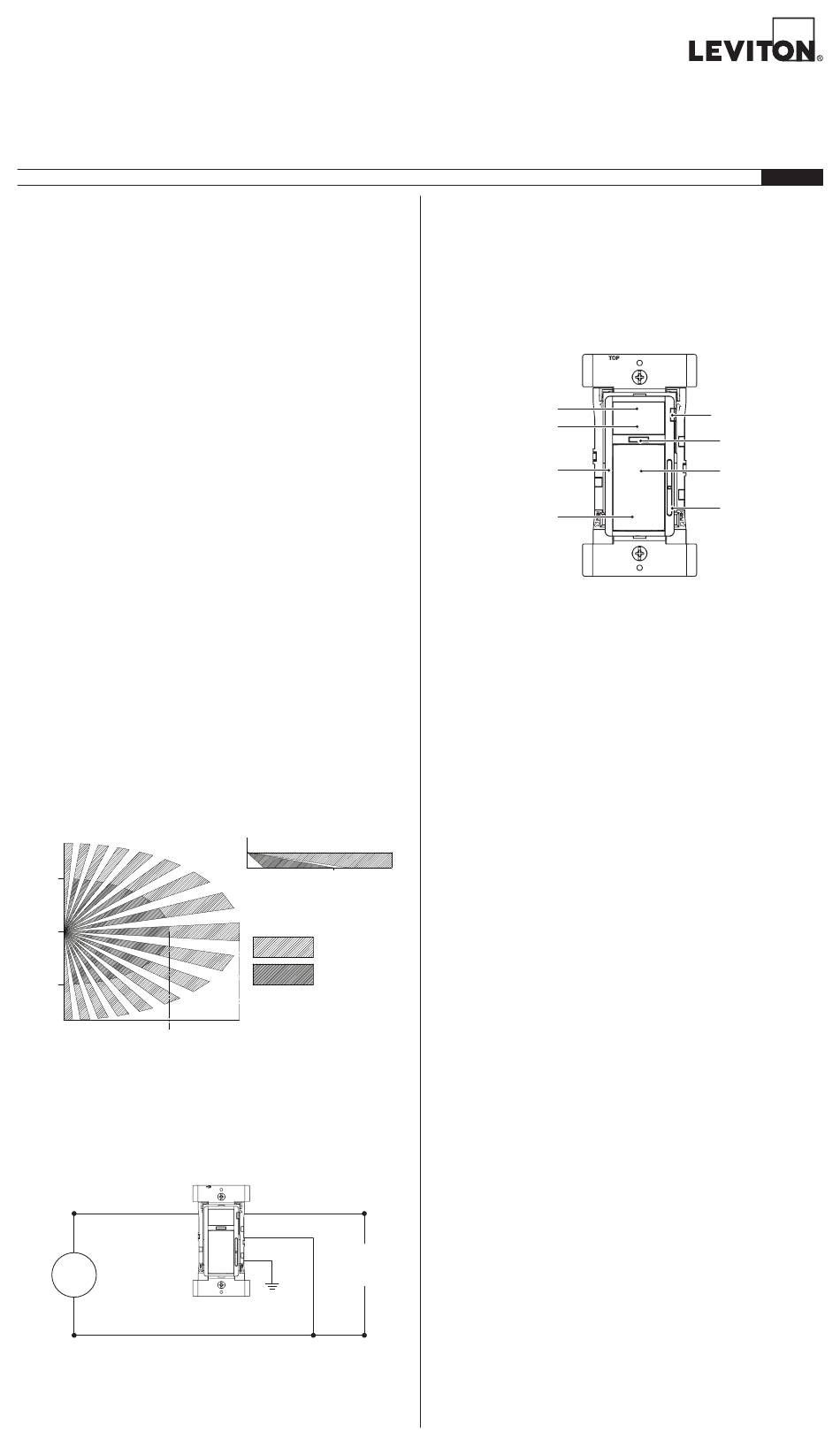

Horizontal Beam Diagram
15-20 ft
4.6-6.1 m
10 ft
3 m
0
10 ft
3 m
15-20 ft
4.6-6.1 m
20 ft
6.1 m
Installation
WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at circuit
breaker or fuse and test that power is off before wiring!
1.
Strip wires 0.75 in and connect as per wiring diagram. Ensure wires are firmly
attached and there is no exposed copper.
Blue
Black
Dimming
Lighting
Load
White
2.
Gently place the wires and your device into the wall box and attach with
screws provided.
3.
If desired, change switch color. (Sold separately.)
4.
Restore power and test ON/OFF operation. Locator light should be ON when
switch is in the OFF state.
Smart Wallbox Sensors: Phase Cut Dimming
Cat. Nos. ODP10-I1W and ODP10-I1I

INSTALLATION INSTRUCTIONS

Vertical Beam Diagram
40-48 in
1.02-1.23 m
20 ft
6.1 m
Major motion coverage
1100 ft^2 (102m^2)
Minor motion coverage
400 ft^2 (37.2m^2)
30-40 ft
9.1-12.2m
Hot (Black)
White
Line
120 VAC,
60Hz
Green
Ground
Neutral (White)
CAUTION
• For indoor applications only.
SAVE THESE INSTRUCTIONS.
5.
Install Decora wallplate (not included).
®
6.
ODP10-I1 is designed to work and be fully functional right out of the box, settings
can be adjusted using the Leviton Smart Sensor App or simple push
button programming.
7.
Using the Leviton Smart Sensor App or push button programming, you can
now configure the sensor to your preferred settings. (Leviton Smart Sensor
App, downloadable from Google Play™ or the Apple App Store
Bluetooth™ enabled Android™ or iOS Device). Operating mode, sensor
sensitivity, and sensor timeout can be quickly adjusted. For more advanced
settings such as daylighting and nightlight configuration, the Leviton Smart
Sensor App will need to be used for setup and adjustments.
Motion Indicator Light
PIR Lens and
Nightlight
Dimming Level
Indicator
Programming:
can be performed
by pressing button
(per install instructions)

Operation

PUSH-BUTTON: ODP10-I1 has a push button switch that will toggle the lights ON
or OFF. When mode is set to Auto ON / Auto OFF, the lights will automatically turn
ON when occupancy is detected and will turn OFF automatically after occupancy is
no longer detected and the timeout has expired. If mode is set to Manual ON / Auto
OFF, the lights will only turn ON when the push button switch is pressed; the lights
will turn OFF automatically after occupancy is no longer detected and the timeout
has expired. If the lights are ON, the lights can be turned OFF when the button is
pressed. The lights will stay OFF (regardless of motion detected) until the timeout
expires. After the timeout expires, the lights will turn ON when the next motion is
detected. This is useful for slide or film presentations.
DIMMING BAR: The lights can manually be dimmed up or down by pressing the
dimming bar. To dim the lights down, press DOWN on the dimming bar and press UP
to increase the brightness.
NOTES:
• The Motion Indicator light will blink RED for 1 second each time motion is detected.
• In Manual ON mode, the button must be pressed to turn the lights ON. In the
absence of motion, the unit will time out and turn the lights OFF.

Configuration and Programming

30-40 ft
1.
9.1-12.2m The ODP10-I1 Sensor is designed to work out of the box in default settings.
Changes to these settings and additional product configuration can be performed
using the Leviton Smart Sensor App, downloadable from Google Play or the
Apple Store, using any Bluetooth enabled Android or iOS Device.
a. To pair to device using the Leviton Smart Sensor App:
i. Press and hold the ON/OFF button for 2-5 seconds; when the light behind
the PIR lens blinks BLUE, release the button.
ii. Open the Leviton Smart Sensor App and connect to the device.
iii. The device can also be found by scanning for nearby devices; devices can
be identified in the app to confirm you are connected to the right sensor.
b. Use the Leviton Smart Sensor App to:
i. Set operating mode to Auto ON/Auto OFF (default) or Manual ON/Auto OFF.
ii. Adjust the sensitivity of the sensor to increase or decrease Field of
view coverage area pending the room size (100% for larger spaces
approaching 1100 sq ft).
iii. Adjust timeouts (amount of time lights/load will turn OFF after occupancy is
no longer detected).
iv. Activate the night light and its operating mode; selection of custom night light color.
v. Dimming configuration including partial ON and partial OFF levels and timeouts.
vi. Add daylighting and select target levels for daylighting.
vii. Set a security code to lock configuration.
viii. See Leviton Smart Sensor App for additional settings and other
programming options.
2.
If the installer does not have access to a Bluetooth enabled Android or iOS
Device, popular preset product configuration can also be made using simple push
button commands:
a. Push the sensor button for 10-15 seconds (note: after 5 seconds, light behind
PIR lens will blink BLUE and then alternate between BLUE and RED) and
release when the PIR lens light is GREEN and the Locator Light is blinking
GREEN. Push the button again to move to the next automatic setting using the
table below as a guide.
b. When at the desired setting, press and hold the ON/OFF button again for
5 seconds (until the GREEN LOCATOR light turns ON), when the button is
released, the light will flash the number of times as the setting selected; the
sensor is now saved in that configuration.
NOTES:
• Use the number of light blinks to determine which user mode the sensor is set to. If
pressed more than 8 times, it will cycle back to the start of the list.
• Auto ON/Auto OFF (10 min timeout and 1 button press) is the DEFAULT MODE.
DI-000-ODP10-02A-X1
ENGLISH
, using any
®
Air Gap Switch
Photocell and
Locator Light
ON/OFF
Button
Dimming Bar
