Getting Started Guide
TAMPER-RESISTANT
OUTLET
Cat. No. ZW15R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZW15R and is the answer not in the manual?

Questions and answers

Summary of Contents for Leviton ZW15R

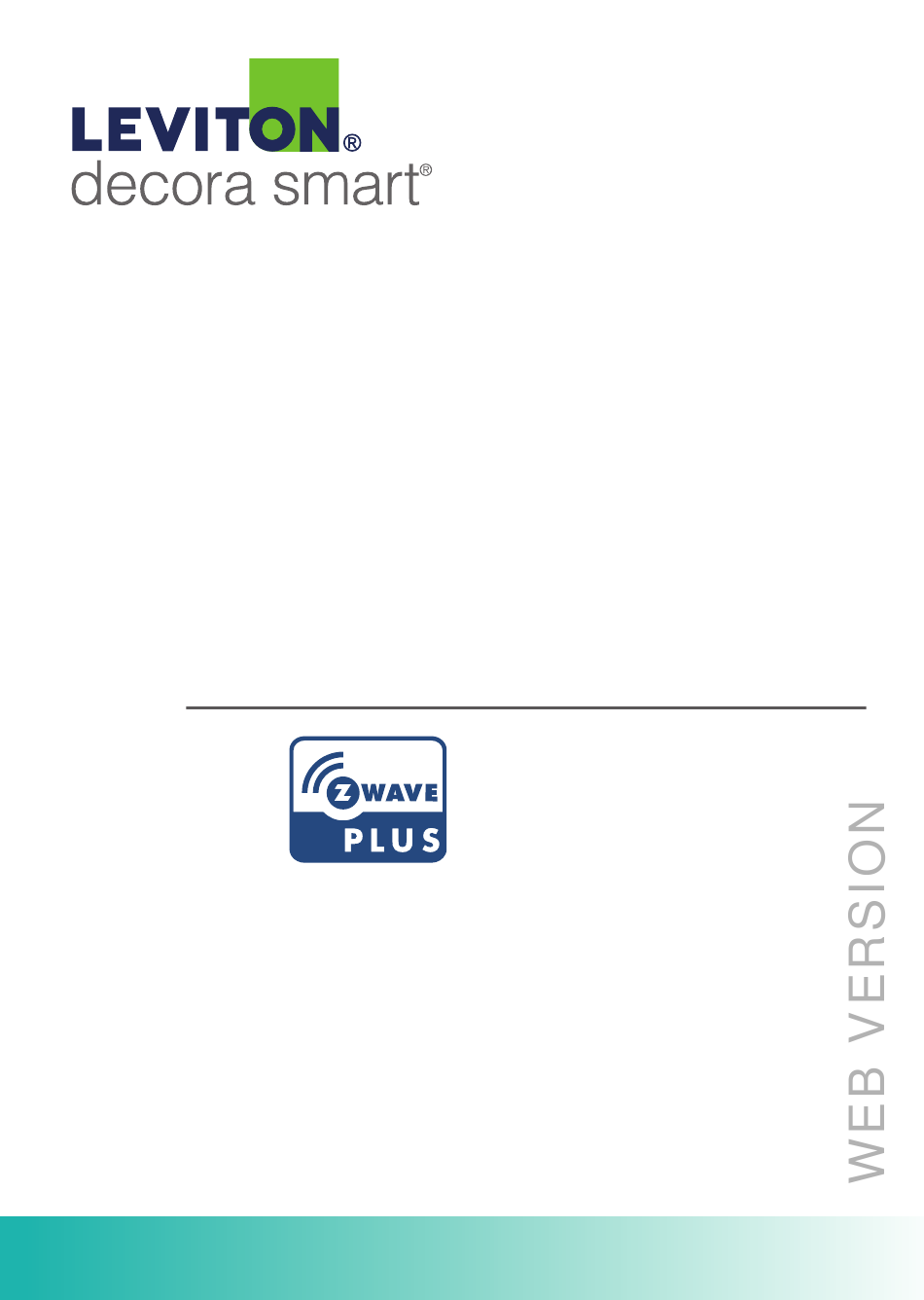

  • Page 1 Getting Started Guide TAMPER-RESISTANT OUTLET Cat. No. ZW15R...
  • Page 3 Welcome to the Decora Smart™ family of Z-Wave enabled devices ® See the complete line of Z-Wave enabled dimmers, switches, outlets, fan speed controllers and plug-ins at leviton.com/decorasmart.
  • Page 4 An integrated vanishing status light provides simple indications of your outlet's status as well as assistance joining the network and setting up your outlet. We are here to help CALL CHAT 1-800-824-3005 (USA) www.leviton.com/contactus 1-800-405-5320 (Canada) EMAIL ONLINE dssupport@leviton.com decorasmartsupport.leviton.com...
  • Page 5 What you need to make it work: To install and use your Z-Wave enabled outlet. A Z-Wave compatible hub. A Z-Wave mesh network to join within 30 feet of installation location. An available interior wallbox with a hot, neutral, and ground wire. LINE WARNING: Do not use with aluminum wire.

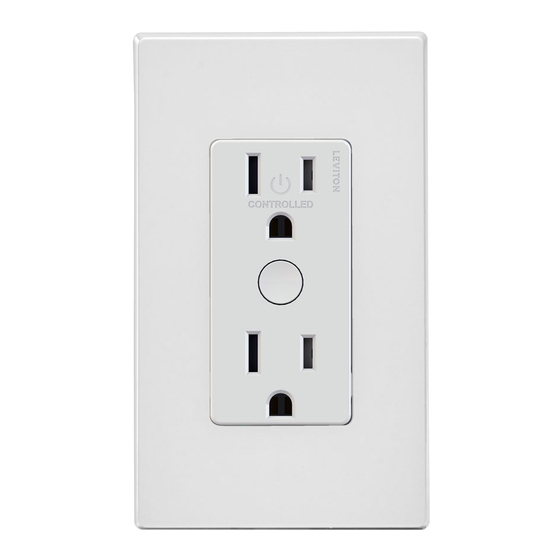

  • Page 6 Features Controlled Outlet Press the button or use an app command to turn the outlet on/off. Tamper-Resistant Built-in shutters help prevent the insertion of unintended foreign objects. Integrated Button Provides manual control as well as setup and configuration. Status Light Illuminates when the outlet is off.
  • Page 7: Installation

    Installation For additional support use the support options in the My Leviton app or contact technical services (page 4). NOTE: Z-Wave is a mesh network. Ensure your device is installed within 30 feet of the hub or another Z-Wave enabled device.
  • Page 8 Test and install Gently push wires into wall box. Do not overtighten wallbox screws. Install wallplate base and snap on Decora wallplate. Restore power. Congratulations! Your Z-Wave enabled outlet is ready to control your fixture.
  • Page 9 SmartStart Your Decora Smart branded outlet is compatible with SmartStart SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code found on the top of the outlet or the back of the box with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on and in the network vicinity.
  • Page 10 Add your outlet to a hub Leviton Decora Smart branded Z-Wave enabled products support two methods of inclusion. When using a Z-Wave Plus certified controller choose Network Wide Inclusion or SmartStart. If network wide inclusion does not discover your device, try classic inclusion.
  • Page 11: Factory Default

    Exclusion From A Z-Wave Network When removing an outlet from a Z-Wave network, it is best practice to use the exclusion command found in the Z-Wave controller. To enter programming mode, hold the button for 7 seconds. The status light will turn amber. Release and the status light will blink. Follow Z-Wave controller directions to enter exclusion mode.
  • Page 12 Customization Status light setup Leviton Decora Smart branded Z-Wave enabled devices have a status light. The functionality of this light can be changed. Status Mode: Light on when the load is on. The status light shows the current state of the load: To enter programming mode, hold the button for 7 seconds.
  • Page 13: Advanced Options

    Advanced Options Leviton Decora Smart branded products are configurable over the Z-Wave network. Compatible Z-Wave controllers can add support for additional advanced options. Consult your Z-Wave controller manufacturer for compatibility with advanced feature support. Status LED Configuration • Parameter No: 7, Length: 1 Byte •...
  • Page 14: Safety First

    Safety First WARNING: TO AVOID FIRE, PERSONAL INJURY OR DEATH DO NOT USE for the control of high power heating appliances such as portable heaters. There can be unexpected consequences if not used with care. For example, an empty coffee pot can be remotely turned on. If that should happen, your coffee pot could be damaged from overheating.
  • Page 15: Limited 2 Year Warranty

    FCC SUPPLIER’S DECLARATION OF CONFORMITY: Model ZW15R – outlet is manufactured by Leviton Manufacturing Co., Inc., 201 N. Service Rd., Melville, NY 11747. www.leviton.com. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 16 EMAIL dssupport@leviton.com Leviton Manufacturing Co., Inc. 201 North Service Road, Melville, NY 11747 Telephone: 1-800-824-3005 Visit Leviton’s website at www.leviton.com © 2020 Leviton Manufacturing Co., Inc. All rights reserved. Specifications subject to change at any time without notice. DG-000-ZW15R-02A...
