Leviton OSC20-MOW Manual
  1. Manuals
  2. Brands
  3. Leviton Manuals
  4. Accessories
  5. OSC20-MOW
  6. Manual

Leviton OSC20-MOW Manual

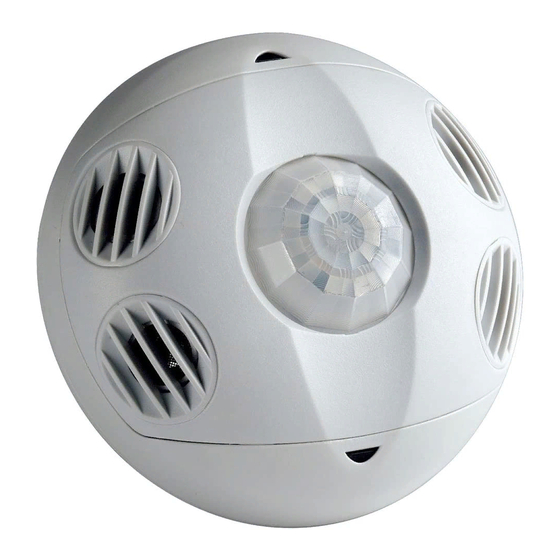

Occupancy sensor multi-technology ceiling sensor
Hide thumbs

Advertisement

Quick Links

Download this manual
Occ Sensor Layout
City, State
REV:
#
PROJECT NUMBER:

Advertisement

loading
Need help?

Need help?

Do you have a question about the OSC20-MOW and is the answer not in the manual?

Questions and answers

Jeff mattson
February 17, 2025

OSC20Mow timing out too quickly, sensor has 2 rows of 4 dip switches, all are in the off position, what functions does each switch change ? Want to extend time delay

0
1 comments:
Mr. Anderson
May 14, 2025

The dip switches on the Leviton OSC20-MOW sensor control these functions:

- Manual Mode: Enable or disable auto-adapting (Switch A3).
- Walk-Through Mode: Enable or disable walk-through (Switch A4).
- Override to ON or OFF: Force lights ON or OFF (Switches B1 and B2).
- Test Mode: Enter or exit test mode (Switch B3).
- LED Display: Enable or disable LEDs (Switch B4).

The time delay can be extended by adjusting the timer (Black) knob on the sensor. Additionally, the sensor has self-adapting features that automatically increase the timer based on room conditions and occupancy patterns.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Leviton OSC20-MOW

Summary of Contents for Leviton OSC20-MOW

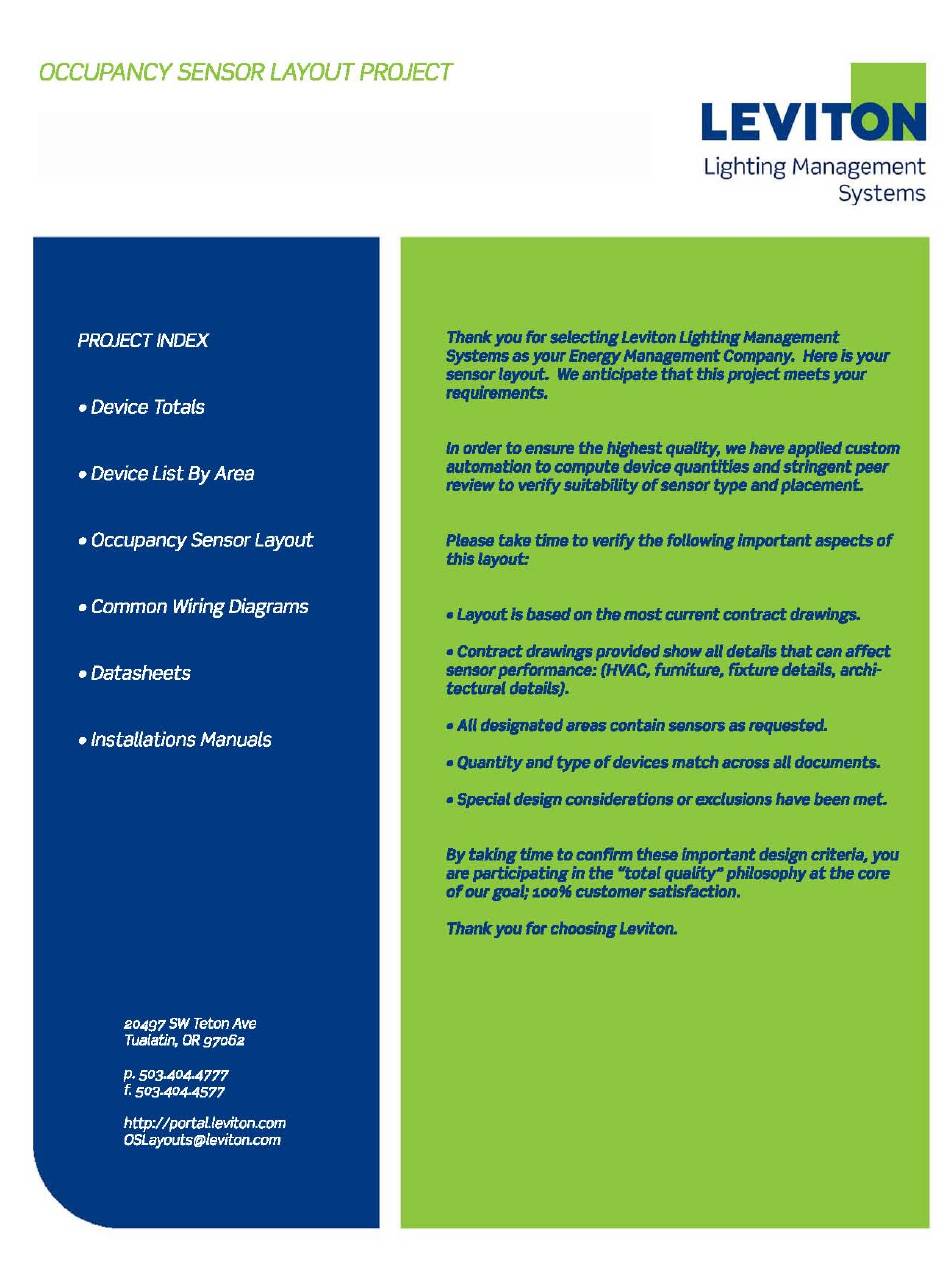

  • Page 1 Occ Sensor Layout City, State REV: PROJECT NUMBER:...
  • Page 2 Project Name Occupancy Sensor Layout List of Materials MODEL No. DESCRIPTION MODEL No. DESCRIPTION ODC0S-I CEILING MOUNTED SELF POWERED PIR 530 SQ FT OSC04-I0W CEILING MOUNTED PIR, 450 SQ FT OSC05-M0W CEILING MOUNTED MULTI-TECHNOLOGY, 500 SQ FT OSC05-U0W CEILING MOUNTED ULTRASONIC, 500 SQ FT OSC10-M0W CEILING MOUNTED MULTI-TECHNOLOGY, 1000 SQ FT OSC10-U0W...
  • Page 3 LEVITON OCCUPANCY SENSORS OSLayout_2863-e301a_301b.dwg ROOM DEVICE OSC20-M0W OSC20-M0W OSC20-M0W OSC20-M0W OSC20-M0W OSC20-M0W OSC20-M0W OSC20-M0W OSC20-M0W OSC20-M0W OSC20-M0W OSC20-M0W OSC20-M0W OSC20-M0W OSC20-M0W OSC20-M0W OSC20-M0W OSC05-M0W OSC05-M0W OSC05-M0W OSC05-M0W OSC05-M0W OSC05-M0W OSC05-M0W OSC05-M0W OSC05-M0W OSC05-M0W OSC05-M0W OSC05-M0W OSC05-M0W OSC05-M0W OSC05-M0W OSC05-M0W OSC05-M0W...
  • Page 4 OSC15-I0W OSC15-I0W OSC05-M0W OSC05-M0W OSC20-M0W OSC20-M0W OSC20-M0W OSC15-I0W OSC15-I0W OSC15-I0W OSC15-I0W OSC15-I0W OSC15-I0W OSC15-I0W OSC15-I0W OSC15-I0W OSC15-I0W OSC15-I0W OSC15-I0W OSC15-I0W OSC15-I0W OSC05-M0W OSC05-M0W POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0...
  • Page 5 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK OSP20-0D0 POWERPACK...
  • Page 6 19210A OSC05-M0W OSC05-M0W 19217 OSC05-M0W 19218 OSC05-M0W 19217 OSC05-M0W 19218 OSC05-M0W 19218 OSC10-U0W 19217 OSC10-U0W 19215A OSC05-M0W 19215B OSC05-M0W 19215 OSC20-M0W 19208 OSC20-M0W 19216 OSC20-M0W 19202 OSC15-I0W 19202 OSC15-I0W 19202 OSC15-I0W 19202 OSC15-I0W 19202 OSC15-I0W 19202 OSC15-I0W 19202 OSC15-I0W 19219 OSC15-I0W 19219 OSC15-I0W...

  • Page 7: Power Pack

    19221 POWERPACK OSP20-0D0 19220 POWERPACK OSP20-0D0 19222 POWERPACK OSP20-0D0 19224 POWERPACK OSP20-0D0 19213A POWERPACK OSP20-0D0 19211A POWERPACK OSP20-0D0 19209A POWERPACK OSP20-0D0 19207B POWERPACK OSP20-0D0 19221A POWERPACK OSP20-0D0 19220A POWERPACK OSP20-0D0 19212A POWERPACK OSP20-0D0 19214A POWERPACK OSP20-0D0 19226A POWERPACK OSP20-0D0 19227A POWERPACK OSP20-0D0 19224A POWERPACK OSP20-0D0...
  • Page 8 SCALE: " = 1'...
  • Page 9 19-207A MEDIA SPECIALIST OFFICE 19-213A 19-209A 19-203A 19-211 STOR. STOR. STOR. CLASSROOM 19-207 19-205 READING ROOM/ SCIENCE DEMO STACKS CLASSROOM 19-211A 19-205A 19-203 19-213 19-209 STOR. STOR. SCIENCE DEMO CLASSROOM CLASSROOM 19-207B CLASSROOM STOR. 19-202F MECH. 19-202H 19-202A MECH. MECH. 19-202 19-202 19-208...
  • Page 15 Condition Example Adaptive Reaction Leviton multi-technology sensors combine the benefits Timer Left In Test Mode - The An installer accidentally leaves The sensor automatically resets the timer of both infrared and ultrasonic technologies for unrivaled sensor remains in an 6 sec.

  • Page 16: Product Specifications

    SIDE VIEW Warranty: 5 years. SPECIFICATION SUBMITTAL 22.5 22.5 JOB NAME: CATALOG NUMBERS: JOB NUMBER: Leviton Mfg. Co., Inc. 59-25 Little Neck Pkwy • Little Neck, NY 11362-2591 • Tech Line: 1-800-824-3005 • Fax: 1-800-832-9538 Visit our Website at: www.leviton.com...
  • Page 17 NOTE: Sensor activates upon infrared detection. Place sensors to provide infrared coverage at room entrances. SPECIFICATION SUBMITTAL JOB NAME: CATALOG NUMBERS: JOB NUMBER: Leviton Mfg. Co., Inc. 59-25 Little Neck Pkwy • Little Neck, NY 11362-2591 • Tech Line: 1-800-824-3005 • Fax: 1-800-832-9538 Visit our Website at: www.leviton.com...

  • Page 18: Automatic Adjustments

    Gray Occupancy Sensor lead to the Blue Power pack lead–Do not use the Blue Occupancy Sensor lead for the photocell function. SPECIFICATION SUBMITTAL JOB NAME: CATALOG NUMBERS: JOB NUMBER: Leviton Mfg. Co., Inc. 59-25 Little Neck Pkwy • Little Neck, NY 11362-2591 • Tech Line: 1-800-824-3005 • Fax: 1-800-832-9538 Visit our Website at: www.leviton.com G-6987B/C4-tp...
  • Page 19 SPECIFICATION SUBMITTAL JOB NAME: CATALOG NUMBERS: JOB NUMBER: Leviton Mfg. Co., Inc. 59-25 Little Neck Pkwy • Little Neck, NY 11362-2591 • Tech Line: 1-800-824-3005 • Fax: 1-800-832-9538 Visit our Website at: www.leviton.com...
  • Page 20 OSC10-U0W Field of View OSC20-U0W Field of View SPECIFICATION SUBMITTAL JOB NAME: CATALOG NUMBERS: JOB NUMBER: Leviton Mfg. Co., Inc. 59-25 Little Neck Pkwy • Little Neck, NY 11362-2591 • Tech Line: 1-800-824-3005 • Fax: 1-800-832-9538 Visit our Website at: www.leviton.com G-6987/C4-tp...

  • Page 21: General Operation

    • IMMUNITY TO AIR CURRENTS GENERAL OPERATION The OSCxx-IOW Infrared Ceiling Sensor is a low voltage occupancy detector that works in conjunction with the Leviton OSPxx power pack to control lighting. The detector’s main function is to turn the FEATURES lights on or maintain the lights on while movement is detected Small Size: Installed sensor appears almost invisible.
  • Page 22 120/277/347 + occupancy) VAC60Hz Neutral (White) SPECIFICATION SUBMITTAL JOB NAME: CATALOG NUMBERS: JOB NUMBER: Leviton Mfg. Co., Inc. 59-25 Little Neck Pkwy • Little Neck, NY 11362-2591 • Tech Line: 1-800-824-3005 • Fax: 1-800-832-9538 Visit our Website at: www.leviton.com G-6987A/C4-tp...
  • Page 23 OSPxx Series relay for most models, this compact power pack will provide Power Pack Sensor the low voltage power and the line voltage control for Leviton NC-Brown occupancy sensors. The OSP Power Pack Series is also used to Common-Green supply power to the OSA, the add-a-relay model.
  • Page 24 SPECIFICATIONS Power Pack Capacity Formula Construction: Leviton power packs can be used to provide power to one or more Case -- High impact, UL rated plastic. Relay -- Class B (130°C) occupancy sensors. Since current consumptions of occupancy sensors insulating material. Silver alloy contacts Switching power supply—...
  • Page 25 Multi-Technology Ceiling Mounted Occupancy Sensor Cat. No. OSCØ5-M, OSC1Ø-M, OSC2Ø-M To be used with 24VDC OSP xx Series and CN100 Power Pack Class II Low-Voltage Wiring INSTALLATION INSTRUCTIONS PK-93586-10-00-0A WARNINGS AND CAUTIONS: CATALOG ITEMS • To be installed and/or used in accordance with appropriate electrical codes and regulations. Current Operating Suggested...
  • Page 26 Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed liability for labor for removal of this product or reinstallation.
  • Page 27 FOLD SCHEME 17.0¨ Cat. No. LEVITON INSTRUCTION SHEET/MANUAL 11.0¨ SPECIFICATIONS PK-93586-10-00-0A Black Helvetica 50 Lb. offset Paper size: 17" X 11" Overall size: 2.83" X 3.67" Cat. No. Final fold size: DOCUMENTATION 12/30/04 Cat. No. Fold Line Panel Line #'s =...
  • Page 28 Ultrasonic Ceiling Mounted Occupancy Sensor Cat. No. OSCØ5-U, OSC1Ø-U, OSC2Ø-U To be used with 24VDC OSP xx Series and CN100 Power Pack Class II Low-Voltage Wiring INSTALLATION INSTRUCTIONS PK-93585-10-00-0A WARNINGS AND CAUTIONS: CATALOG ITEMS • To be installed and/or used in accordance with appropriate electrical codes and regulations. Current Operating Suggested...
  • Page 29 Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed liability for labor for removal of this product or reinstallation.
  • Page 30 FOLD SCHEME 17.0¨ Cat. No. LEVITON INSTRUCTION SHEET/MANUAL 11.0¨ SPECIFICATIONS PK-93585-10-00-0A-X1 Black Helvetica 50 Lb. offset Paper size: 17" X 11" Overall size: 2.83" X 3.67" Cat. No. Final fold size: DOCUMENTATION 12/30/04 Cat. No. Fold Line Panel Line #'s =...
  • Page 31 Infrared Ceiling Mounted Occupancy Sensor Cat. No. OSCØ4-I and OSC15-I To be used with 24VDC OSP xx Series and CN100 Power Pack Class II Low-Voltage Wiring INSTALLATION INSTRUCTIONS PK-93583-10-00-0A WARNINGS AND CAUTIONS: CATALOG ITEMS • To be installed and/or used in accordance with appropriate electrical codes and regulations. Current Suggested FCC COMPLIANCE STATEMENT:...
  • Page 32 Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed liability for labor for removal of this product or reinstallation.
  • Page 33 FOLD SCHEME 17.0¨ Cat. No. LEVITON INSTRUCTION SHEET/MANUAL 11.0¨ SPECIFICATIONS PK-93583-10-00-0A Black Helvetica 50 Lb. offset Paper size: 17" X 11" Overall size: 2.83" X 3.67" Final fold size: Cat. No. DOCUMENTATION 12/30/04 Cat. No. Fold Line Panel Line #'s =...
  • Page 34 Leviton is free of defects in materials and many sensors to the primary power pack as possible (see current capacity section below), by connecting the...
  • Page 35 OPERATION Wiring Diagram 1: Multiple Sensors, Single Power Pack Wiring Diagram 3: Multiple Sensor, Multiple Power Packs Close Relay: When the attached occupancy sensor detects motion, it will apply +24V to the Occupancy wire OSPxx Series causing the relay to close. This includes the HVAC relay on equipped models. Power Pack Sensor Open Relay: When the attached occupancy sensor does not detect motion the relay will open.
  • Page 36 FOLD SCHEME 14.0¨ Front Panel Black PK-93960-10-00-2C 8.5¨ Helvetica 50 Lb. offset 14" X 8.5" 2.8" X 4.25" DOCUMEN 07/07/04 Front Panel Front Panel Cat. No. Fold Line Cat. No. #'s = Fold Sequence...
