Leviton IPP0R Installation Instructions

DI-000-IPP0R-02A
WARNINGS AND CAUTIONS:
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• Controlling a load in excess of the specified ratings will damage the unit and pose risk of fire, electric
shock, personal injury or death. Check your load ratings to determine suitability for your application.
• Do not install this unit to control a receptacle.
Tools needed to install your Remote:
Slotted/Phillips Screwdriver Electrical Tape
Pliers Pencil
Cutters Ruler

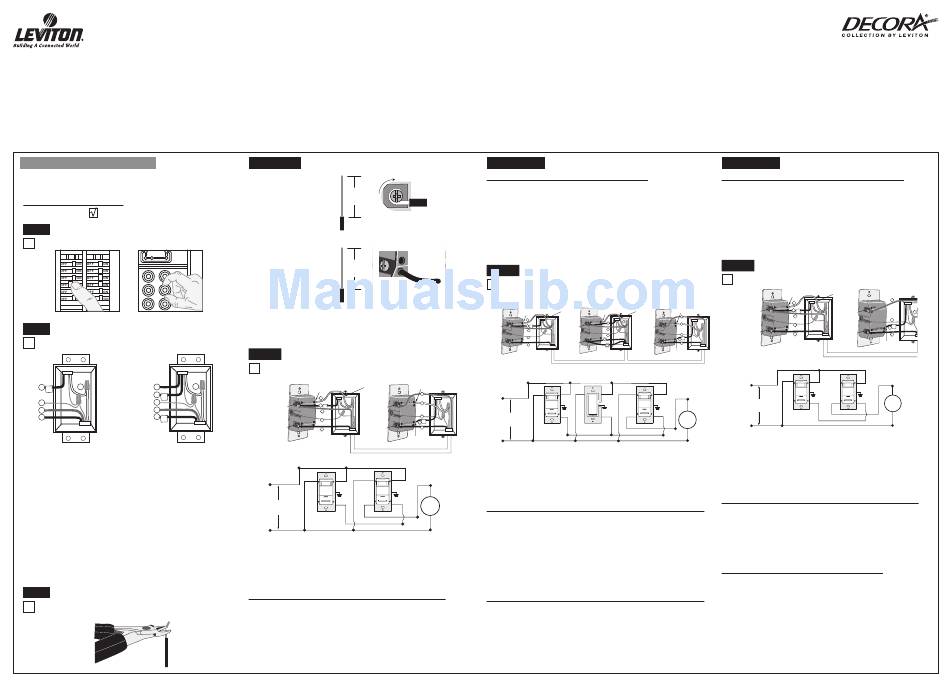

INSTALLING YOUR REMOTE
NOTE: Use check boxes when Steps are completed.
WARNING:
Step 1 TO AvOID FIRE, SHOCk, OR DEATH; TURN OFF
POWER at circuit breaker or fuse and test that power is off before wiring!
Identifying your wiring application (most common):
Step 2
NOTE: If the wiring in the wall box does not resemble any of these
configurations, consult a qualified electrician.
2 1
1
2
3 4
5
4
6
5
3-Way 4-Way
1. Line or Load (See important 1. First Traveler – note color
instruction below) 2. Second Traveler – tagged
2. Neutral 3. Neutral
3. Ground 4. Ground
4. First Traveler – note color 5. Third Traveler – note color
5. Second Traveler – note color 6. Fourth Traveler – tagged
NOTE: For matching remote NOTE: For matching remote
w/LEDs installation, the First w/LEDs installation, the First
Traveler becomes Line Hot. Traveler becomes Line Hot.
IMPORTANT:
For 3-Way applications, note that one of the screw terminals from the old switch
being removed will usually be a different color (Black) or labeled Common. Tag that
wire with electrical tape and identify as the common (Line or Load) in both the sensor
wall box and remote wall box.
For 4-Way applications, note that the old switch being removed will have 4 screws
plus a ground screw. Tag the two same color insulated wires with electrical tape.
Preparing and connecting wires:
Step 3
This remote can be wired using side wire terminal screws or through
backwire openings. Choose appropriate wire stripping specifications
accordingly.
Cut
(if necessary)
Decora
Compatible with incandescent lamps, electronic and magnetic low-voltage ballasts, electronic and magnetic ballasts, and fans.
Step 3 cont'd
Strip Gage (measure bare
wire here or use gage on
back of the sensor remote)
5/8"
(1.6 cm)
Side Wire Connection
Side wire terminals accept
#14 AWG solid copper wire only.
Strip Gage (measure bare
wire here or use gage on
back of the sensor remote)
5/8"
(1.6 cm)
Back Wire (either hole may be used)
Back wire openings use #14-12 AWG
solid copper wire only.
• Make sure that the ends of the wires from the wall box are straight (cut if necessary).
• Remove insulation from each wire in the wall box as shown.
3-Way Wiring with Sensor Remote for Controls with Neutral
Step 4a
Connection Application:
NOTE: IPP15 sensor is depicted as control device.
IPP0R Remote
Terminal
3 Additional
Screw marked
Neutral Wire
White (WH)
2
Terminal
Terminal
Screw marked 1
Screw marked
Black (BK)
Black (BK)
4
3
Terminal Terminal
Screw marked
Screw marked
Yellow/Red 5
Yellow/Red
(YL/RD)
(YL/RD)
IPP0R Remote Control
WH BK WH
Hot (Black)
Green
Ground
Line YL/RD RD
120VAC, 60Hz
Neutral (White)
NOTE: The control must be installed in a wall box that has a Load connection. The
sensor remote must be installed in a wall box with a Line Hot connection and a Neutral
connection. A Neutral wire to the sensor remote needs to be added as shown.
If you are unsure about any part of these instructions, consult a qualified electrician.
NOTE: Maximum wire length from control to all installed remotes cannot exceed
300 ft (90 m).
WIRING SENSOR REMOTE (wall box with Line Hot connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw on sensor remote.
• Line Hot (common) wall box wire identified (tagged) when removing old switch and
First Traveler to terminal screw marked "BK" on control.
• Second Traveler wall box wire from control to sensor remote terminal screw marked
"YL/RD" (note wire color). This traveler from the sensor remote must go to terminal
screw marked "YL/RD" on the control.
• Line Neutral wall box to sensor remote terminal screw marked "WH".
3-Way or More Applications (Multi-Location)

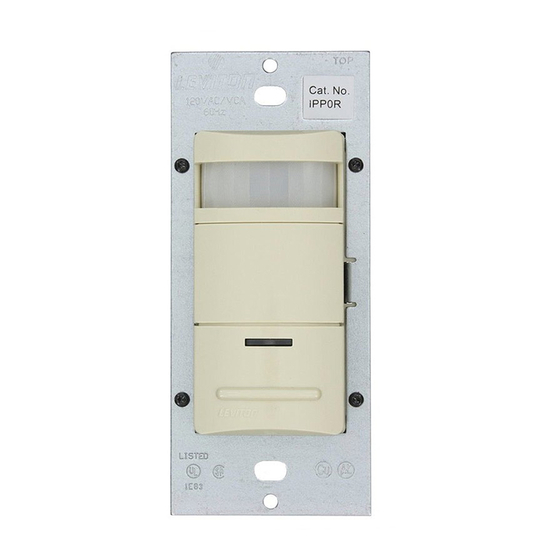

® Manual-ON Occupancy Sensor Remote
California Title 24 2005 Compliant
Cat. No. IPP0R
120VAC, 60Hz
No Minimum Load Required
INSTALLATION INSTRUCTIONS
WARNINGS AND CAUTIONS:
• The Manual-On Occupancy Sensor Remote is intended to replace a standard light switch.
• Do not touch the surface of the lens. Clean outer surface with a damp cloth only.
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
Step 4a cont'd
WIRING CONTROL (wall box with Load connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw on control.
• Load wall box wire identified (tagged) when removing old switch to terminal screw
marked "RD" on control.
• First Traveler Line Hot to terminal screw marked "BK" on control.
• Remove Red insulating label from terminal screw marked "YL/RD" on control.
• Second Traveler wall box wire (note color as above) to terminal screw marked
"YL/RD" on control. This traveler from the control must go to the terminal screw on
the sensor remote marked "YL/RD".
• Line neutral wall box wire to terminal screw marked "WH" on control.
4-Way Wiring with Sensor Remote for Controls with Neutral
Step 4b
Connection Application:
NOTE: IPP15 sensor is depicted as control device.
IPP0R Remote
(3-Way Wall box from Step 2)
Terminal
Screw marked
White (WH)
2
Terminal
Screw marked 1 Screw marked
Black (BK)
4
3
Terminal
Screw marked Screw marked
Yellow/Red 5
(YL/RD)
Control IPP0R Remote
Terminal
Screw marked
White (WH)
WH
4 Hot (Black)
2
Line
3
120VAC, 60Hz
1
5
Terminal
Screw marked
Red (RD) Neutral (White)
NOTE: The control must be installed in a wall box that has a Load connection. The
sensor remote must be installed in a wall box with a Line Hot connection and a Neutral
connection. A Neutral wire to the sensor remote needs to be added as shown.
BK
If you are unsure about any part of these instructions, consult a qualified electrician.
Green
Ground NOTE: Maximum wire length from control to all installed remotes cannot exceed
Black
300 ft (90 m).
YL/RD
LOAD
WIRING SENSOR REMOTE (4-Way wall box with Line Hot connection):
Connect wires per WIRING DIAGRAM as follows:
White
• Green or bare copper wire in wall box to Green terminal screw on sensor remote.
• First Traveler and Third Traveler wall box wire to remote terminal screw marked "BK"
in 4-way box, and to terminal screw marked "BK" of the remaining remote in 3-way
box.
• Second Traveler (tagged) and Fourth Traveler (tagged) wall box wire from control
in 3-way box to sensor remote terminal screw marked "YL/RD" in 4-way box and to
terminal screw marked "YL/RD" of the remaining remote in 3-way box (note wire
colors). This traveler from the remotes must go to the terminal screw marked
"YL/RD" on the control.
• Line Neutral wall box wire to remote terminal screw marked "WH".
WIRING SENSOR REMOTE (3-Way wall box with Line Hot connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot (common) wall box wire identified (tagged) when removing old switch and
First Traveler wall box wire to control terminal screw marked "BK".
• Second Traveler wall box wire from control to remote terminal screw marked "YL/RD"
(note wire color as above). This traveler from the remote must go to the terminal
screw marked "YL/RD" on the control.
• Line Neutral wall box wire to remote terminal screw marked "WH".
Step 4b cont'd
WIRING CONTROL (3-Way wall box with Load connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw on control.
• Load wall box wire identified (tagged) when removing old switch to terminal
screw marked "RD" on control.
• First Traveler Line Hot to terminal screw marked "BK" on control.
• Remove Red insulating label from terminal screw marked "YL/RD" on control.
• Second Traveler wall box wire (note color as above) to terminal screw marked
"YL/RD" on control. This traveler from the control must go to the terminal screw
on the remote marked "YL/RD".
• Line Neutral wall box wire to terminal screw marked "WH" on control.
Step 4c
VZ0SR Remote Control
(4-Way Box from Step 2) (3-Way Wall Box from Step 2)
Terminal Terminal
Screw marked Screw marked
Additional Additional Screw marked
Neutral Wire White (WH) Neutral Wire White (WH)
4
3
Terminal 1
Terminal 2
Screw marked
Black (BK)
5 Black (BK)
Screw marked
3
4
2 1
Terminal Terminal
Screw marked 5
Yellow/Red 6 Yellow/Red
(YL/RD)
(YL/RD)
Terminal
Screw marked
Red (RD)
VZ0SR Remote Control
BK WH BK WH BK
Green Green Green
Ground Ground Ground
Black
YL/RD YL/RD RD YL/RD
LOAD
White
NOTE: The control must be installed in a wall box that has a Load connection.
The sensor remote must be installed in a wall box with a Line Hot connection and
a Neutral connection. A Neutral wire to the sensor remote needs to be added as
shown.
If you are unsure about any part of these instructions, consult a qualified
electrician.
NOTE: Maximum wire length from control to all installed remotes cannot
exceed 300 ft.
WIRING SENSOR REMOTE (wall box with Line Hot connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw on sensor remote.
• Line Hot (common) wall box wire identified (tagged) when removing old switch
and First Traveler to terminal screw marked "BK" on control.
• Second Traveler wall box wire from control to sensor remote terminal screw
marked "YL/RD" (note wire color). This traveler from the remote must go to the
terminal screw on the control marked "YL/RD".
• Line Neutral wall box to sensor remote terminal screw marked "WH".
WIRING CONTROL (wall box with Load connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw on control.
• Load wall box wire identified (tagged) when removing old switch to terminal
screw marked "RD" on control.
• First Traveler Line Hot to terminal screw marked "BK" on control.
• Remove Red insulating label from terminal screw marked "YL/RD" on control.
• Second Traveler wall box wire (note color as above) to terminal screw marked
"YL/RD" on control. This traveler from the control must go to the terminal screw
on the sensor remote marked "YL/RD".
3-Way Wiring with Sensor Remote Application:
NOTE: IPP15 sensor is depicted as control device.
IPP0R Remote Control
Terminal Additional
Screw marked
Neutral Wire
White (WH)
4
2
Terminal
Terminal
1
Screw marked
2
Black (Bk)
Black (Bk)
4
3
3
1
Terminal Terminal
Screw marked
Yellow/Red 5 5
Yellow/Red
(YL/RD)
(YL/RD)
Terminal
Screw marked
Red (RD)
IPP0R Remote Control
WH
Bk
Hot (Black) Bk
Green Green
Ground Ground Black
YL/RD RD YL/RD
Line
LOAD
120vAC, 60Hz
White
Neutral (White)
