WARNINGS
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR
FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
Product Description

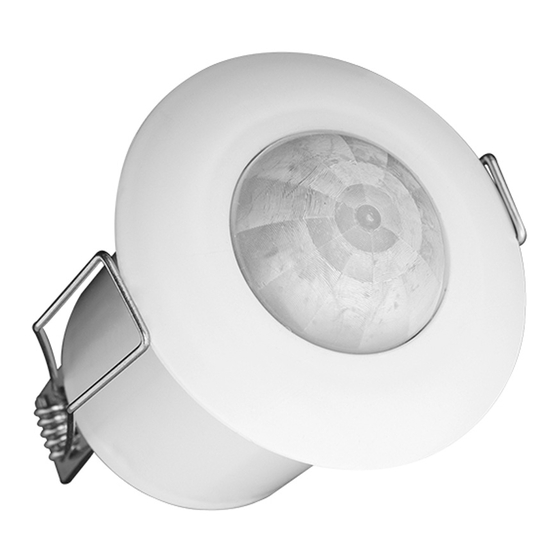

This GreenMax DRC Sensor is a direct network connected device which
can detect both Occupancy and Light level within its specified range. It
reports data using LumaCAN™ Sensor messages over the network, for
receipt by any Sapphire or GreenMAX DRC Room Controller.
Before Installation
• Requires installation into 2" (52mm) mounting hole.
• Requires 4" (102mm) vertical clearance
• Surface diameter is 2.5" (64mm)
• When installation requires conduit for class 2 LumaCAN wiring, drill 2"
opening into side of junction box, and, install j-box above ceiling directly
above sensor.
• LumaCAN Wiring requires Category rated cable for Power & Data. Use
Category 6 or better cable with quality RJ-45 connections. Wire per
TIA-568B standards
• For compliance with Chicago Plenum requirements, installation in metal
box above ceiling is required. See the 4th bullet point above.
• All LumaCAN wire segments must be tested and validated prior to
power-up of the system.
• The end of each LumaCAN network must be terminated for proper data
flow. A termination plug is pre-installed into one of the RJ-45 receptacles
for this purpose. If this is the end of the network, only one of the RJ-45
receptacle will be used. Leave the termination plug in the unused RJ-45
receptacle. If this is in the middle of the network, both RJ-45 receptacles
will be required. Remove and discard the termination plug. If you have
lost your termination plug, you may turn on the "TERM" Switch ("E" in
diagram below) to terminate. DO NOT have the termination plug and the
termination switch active as this will cause network not to operate.
Reference
A. LumaCAN Connections
B. Power indicator light
- Normal Operation: SOLID [ON]
C. LumaCAN Communication indicator light
- Normal Operation: blinks when tx/rx LumaCAN
communication is occuring
D. Addressing DIP Switches
E. Termination Switch: [ON] to Terminate (not used.) Activating
Termination Switch when using plug will over-terminate the
network and cause loss of data.
F. P1 Universe Programming DIP switch
G. P2 Channel Programming DIP Switch
H. Occupancy Sensor, Light Level Sensor & Occupancy
indicator light
- Occupancy: blinks RED when detected. When sensor does
not have an address assigned, it repeats two rapid blinks,
followed by a pause.
Installation
WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER at
circuit breaker or fuse and test that power is off before wiring!
1.
Drill a 2" (52mm) mounting hole
2.
Push network wires through hole and connect to sensor.
If end of line, the sensor must be terminated by setting the Termination switch to [ON].

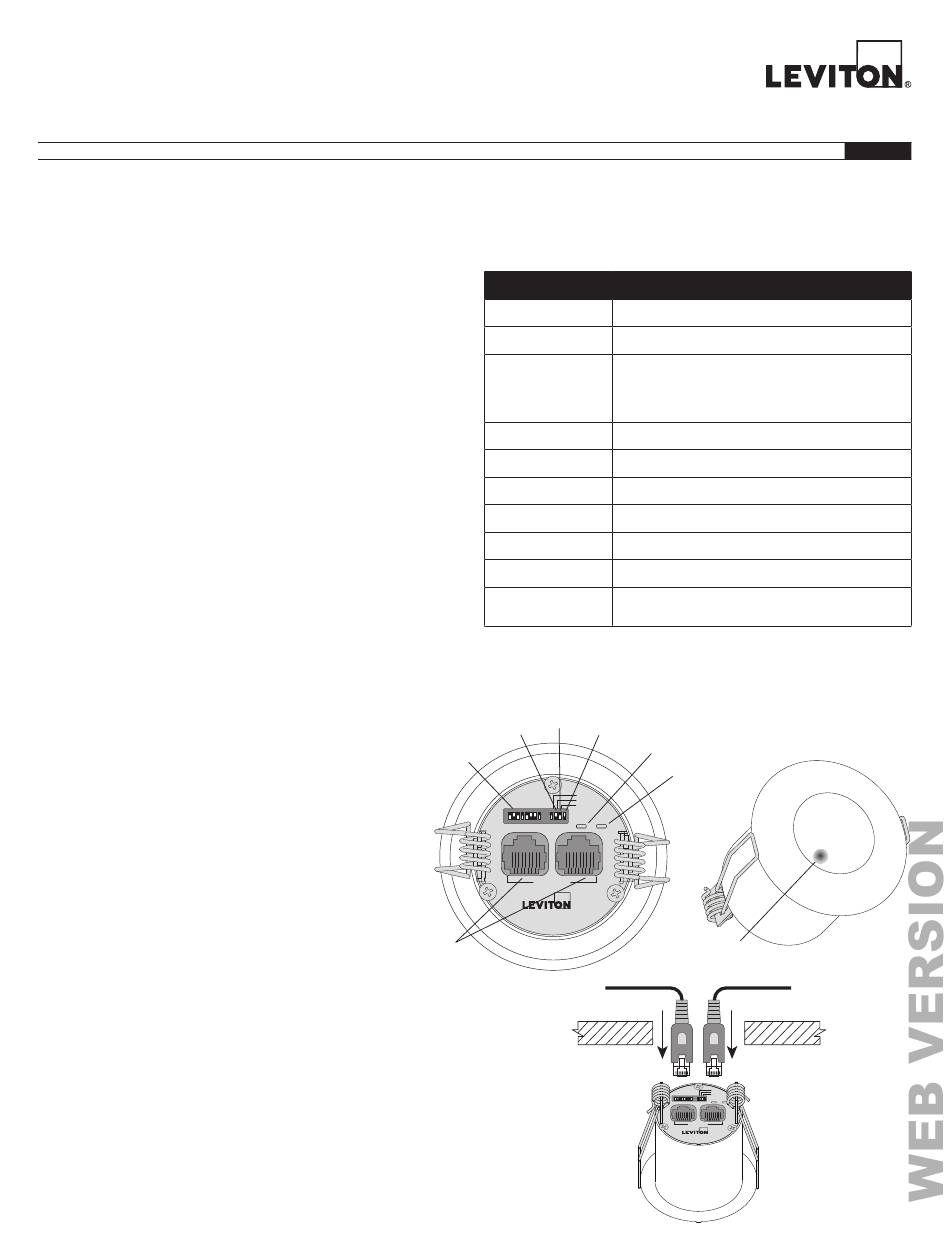

GreenMax
®
DRC Sensor
Cat. No. OSR05-ICW
INSTALLATION INSTRUCTIONS
SPECIFICATIONS
Input Voltage
IP Rating
Network Connections
Operating Temperature 0-55°C, 0-85% relative humidity
Storage Temperature
Certifications
Sensor Range
Sensor Technology
Warmup Time
Patents
F
D
ADDR
1 2 3 4 5 6 7 8
ON
LumaCAN
A
CAUTIONS
• ESD Sensitive Device: Use Safe handling
procedures when installing.
• For indoor applications only.
• Save these instructions.
+12-24VDC, 70-35mA
IP32
(2) RJ-45 Cat 6 or better for connection to LumaCAN
network 1600' Max Length per Daisy-Chain Segment.
Home-Run topology supported when using repeaters
Network length may be extended when using repeaters
-10-85°C
FCC Class B
450sqft
PIR
15 seconds
Patents covering this product, if any, can be found on
leviton.com/patents
G
E
B
C
P1
P2
TERM
PWR
COM
H
P1
ADDR
P2
1 2 3 4 5 6 7 8
TERM
PWR
COM
ON
LumaCAN
DI-000-OSR05-04B
