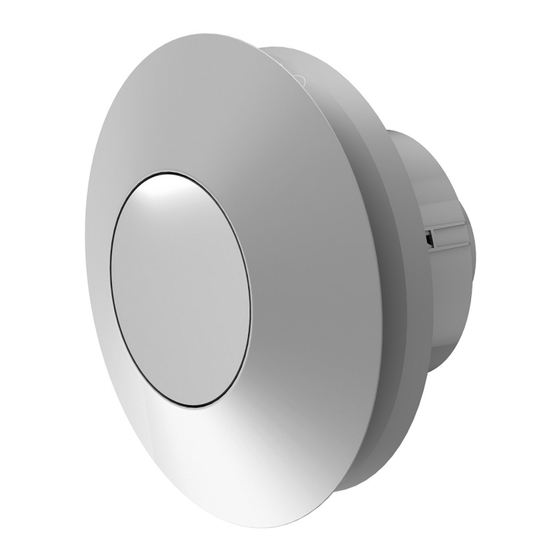

Zehnder Unity ZCV3si
Installation and Operating Instructions
The Unity ZCV3si is a continuously
running extract fan, designed to offer a
simplistic approach to meet Building
Regulations and provide an energy
efficient domestic ventilation solution to
improve indoor air quality in dwellings.
Please read instructions before
commencing the installation.
Please make these instructions
available for the user.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Zehnder Rittling Unity ZCV3si
Summary of Contents for Zehnder Rittling Unity ZCV3si
- Page 1 Zehnder Unity ZCV3si Installation and Operating Instructions The Unity ZCV3si is a continuously running extract fan, designed to offer a simplistic approach to meet Building Regulations and provide an energy efficient domestic ventilation solution to improve indoor air quality in dwellings.
-
Page 2: Weee Statement
Overview The Unity ZCV3si is a continuously running fan that revolves around ‘one product’, which has been designed to be flexible in application and to meet the performance requirements of all ‘wet’ rooms within a dwelling. Your Unity ZCV3si may have the following features activated: Intelligent sensing via the Smart Timer and Humidity technology (fully automatic integral delay / over-run timer and humidity functions) which monitor the homeowners’... -
Page 3: Installation Preparation
Electrical installation must only be carried out by a qualified Electrician and in accordance with local regulations. The Unity ZCV3si fan is supplied with a 100mm nominal spigot for connection of ducts for installation - 100mm diameter rigid duct should be used to provide the best... -
Page 4: Installation
Installation Installation STEP 1 Connect ducting to the spigot on the back of the Unity ZCV3si Note: If using flexible ducting, ensure this is pulled taut (to a min. 90% stretch capacity) between fan and termination STEP 2 Loosen retaining screw until... -
Page 5: Electrical Installation Preparation
Installation STEP 3 Secure via cable clamp Wire the fan Note: This part must be fitted to comply with safety standards Secure using outer 4 fixing points on a smooth flat surface, using No. 8 screws provided Electrical Installation Preparation Installation or disconnection must be carried out by a qualified Electrician and all wiring must conform to local regulations. - Page 6 Installation STEP 4 Turn power off and locate main body cover via the arrow & unlock position, rotate clockwise to ‘lock position’ Tighten retaining screw until main body cover cannot be opened. Turn power on and follow respective commissioning on pages 7 & 8 Unlock position Lock position STEP 5...
- Page 7 Commissioning your Unity ZCV3si … via the fan Upon first power up, your Unity ZCV3si will commence a diagnostic check, whereby the capacitive touch buttons will flash. You should hear a range of beeps, 1 long beep followed by between 2-4 short beeps (depending on how the unit has been configured).
- Page 8 Upon confirmation of required set up via the APP, your Unity ZCV3si will start to go through its initialisation sequences for the respective flow rate commissioning. Refit the ‘outer cover’ onto your fan (see Step 5 on...
- Page 9 Commissioning To master reset and recommission your Unity ZCV3si Resetting your Unity ZCV3si must be carried out by a qualified electrician or competent person. Whist the fan is running, remove both the outer cover and main body cover of the fan (see installation section page 4).
-
Page 10: Servicing & Maintenance
Service / Maintenance must be carried out by a trained / competent person. The Unity ZCV3si fan contains a unique backward curved mixed flow impellor that has been designed to reduce build-up of dirt. The fan motor has sealed for life bearings, which do not require lubrication. -
Page 11: Troubleshooting
User Information Troubleshooting Question Answer The fan is very quiet when the room’s light is off, but it is still I don’t think that my fan is working extracting and working to provide you with enhanced comfort If in doubt, remove the front cover to expose the fan. If the fan impellor is not rotating then contact your local installer. - Page 12 All information is believed correct at time of going to press. All dimensions referred to are in millimetres unless otherwise shown. E&OE. All goods are sold according to Zehnder Group Sales International Standard Conditions of Sale which are available on request. See website for warranty period details. Zehnder Group Sales International reserves the right to change specifications and prices without prior notice.
