Summary of Contents for Zehnder Rittling Adaptive ZLE100TA

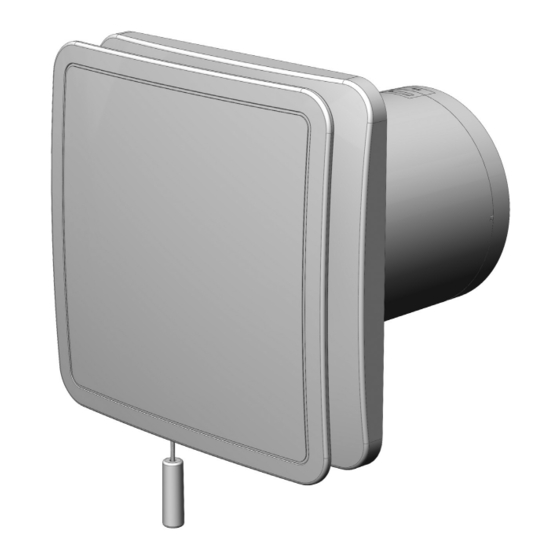

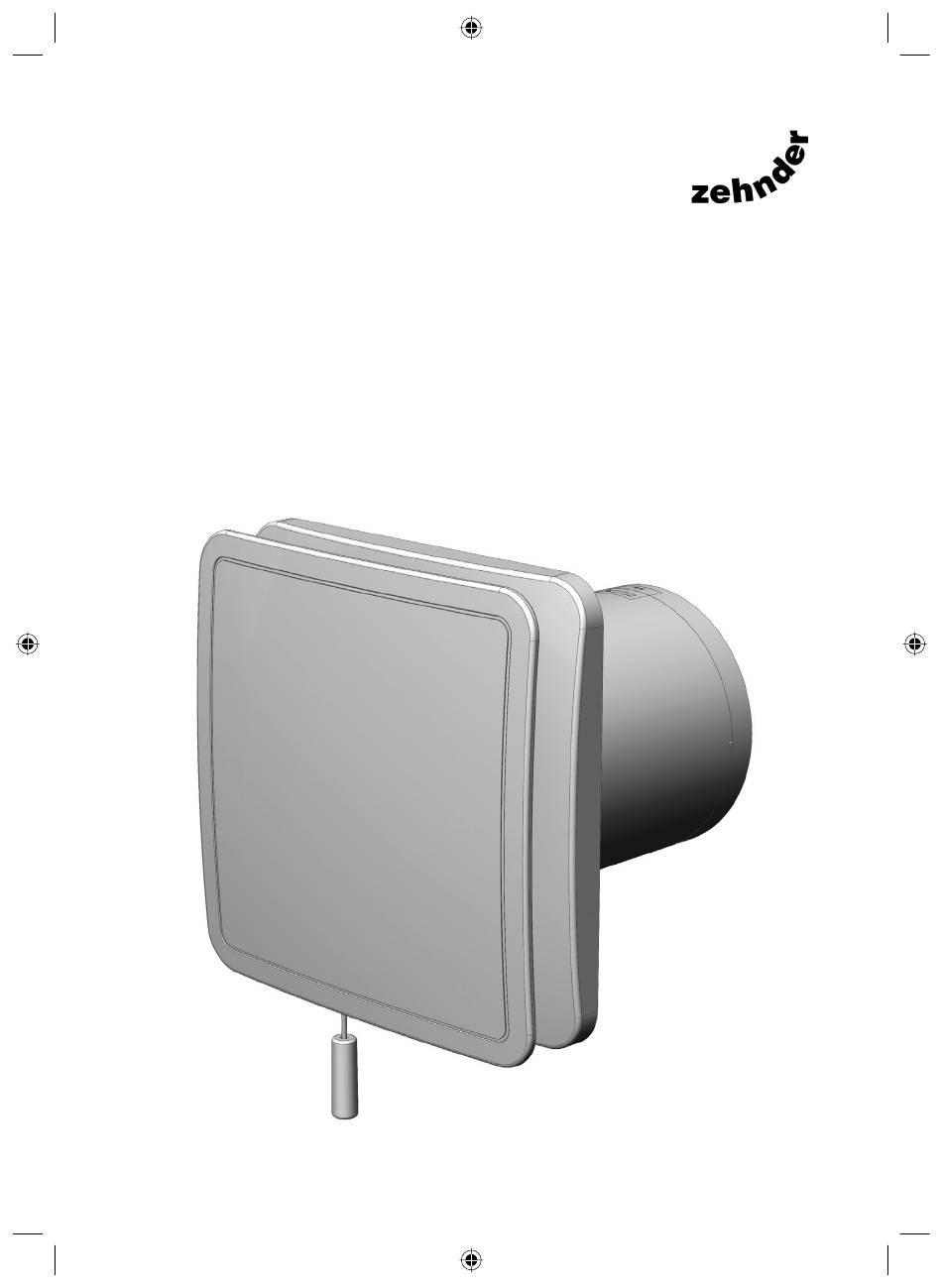

- Page 1 Zehnder Adaptive ZLE100TA, ZLE100HTA For Bathrooms and Toilets Installation Instructions 05.10.1041.indd 1 05.10.1041.indd 1 5/3/14 13:46:53 5/3/14 13:46:53...
- Page 2 05.10.1041.indd 2 05.10.1041.indd 2 5/3/14 13:46:54 5/3/14 13:46:54...
-
Page 3: Table Of Contents
Contents Page General Preparation Overview Wall Mounting Ceiling Mounting Wiring Appliance Commissioning/Setup Servicing/Maintenance 05.10.1041.indd 3 05.10.1041.indd 3 5/3/14 13:46:54 5/3/14 13:46:54... -
Page 4: General Preparation
General Preparation - read all instructions before commencing 1.1.0 Warning: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 5: Overview
Overview 2.1.0 Zehnder’s adaptive fan range has been designed to offer a simplistic approach to meet local indoor air quality in dwellings. The fan may incorporate fully automated integral controls which monitors the homeowners’ environment. 2.1.1 Smart Timer monitors the length of time that there is an occupant present within a wet room (via the ‘switch-live’) that the ‘switch live’... -
Page 6: Wall Mounting
Wall Mounting - Using ZED1A wall duct and ZEG1 external grille 3.1.0 Rotate discreet front cover to the left and pull off. Loosen retaining screws at the bottom of the internal grille and lift off. 3.1.1 Cut the duct to width of the plasterboard (A) LE 100 Ø... -
Page 7: Ceiling Mounting
Ceiling Mounting 4.1.0 Rotate discreet front cover to the left and pull off. Loosen retaining screws at the bottom of the internal grille and lift off. 4.1.1 Cut an opening through the ceiling for the fan and electric cable. Ø 12 for cable Ø... -
Page 8: Wiring Appliance
Wiring Appliance WARNING: 5.1.0 electrician and all wiring must conform to IEE or local Wiring Regulations. The appliance must be isolated from the mains supply before removing the electronics cover. 5.1.1 Strip cable to correct lengths as shown. 5.1.2 Insert cable through cable entry point, and then secure cable 100mm 100mm 115mm... - Page 9 WARNING: Isolate electricity supply before starting work. 7.1.0 electrician in accordance with IEE or local regulations. 7.1.1 The 230V fan is double insulated and does not require an earth. 7.1.2 An double-pole switch having a minimum contact separation of 3mm must be used to provide isolation.
-
Page 10: Commissioning/Setup
Commissioning / Set-up been set to. will change to indicate speed setting. Indicative on positions to be observed. To reactivate the commission set up mode, press and hold the + and - buttons simultaneously for approximately 3 seconds until the lights go out and come back on again. Fan can now be set to required speed. -
Page 11: Servicing/Maintenance
Servicing/Maintenance Warning: Always isolate fan from mains supply before 9.1.0 cleaning. Do not use solvents to clean this fan. 9.1.1 Rotate discreet grille to the left and pull off – wash with a damp cloth and dry. 9.1.2 The fan’s impeller and internal grille may now be cleaned using a brush, cotton bud or damp cloth (do not immerse in water). - Page 12 All information is believed correct at time of going to press. E&OE. All goods are sold according to Zehnder’s Standard Conditions of Sale which are available on request. All dimensions referred to are in millimetres unless otherwise stated. © Copyright Zehnder Group UK Ltd 2014 Zehnder Group UK Ltd •...
