- Page 1 INSTALLATION & OPERATION MANUAL IPSi1200 Series PURE-SINE INVERTER An ISO9001 and AS9100 Registered Company Battery Chargers • Inverters • Power Supplies • Voltage Converters 8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 800.668.3884 (US/CANADA) www.analyticsystems.com...
- Page 2 LIFE SUPPORT — Analytic Systems does not recommend the use of the IPSi1200 Series Inverters in life support applications where failure or malfunction of the product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness.

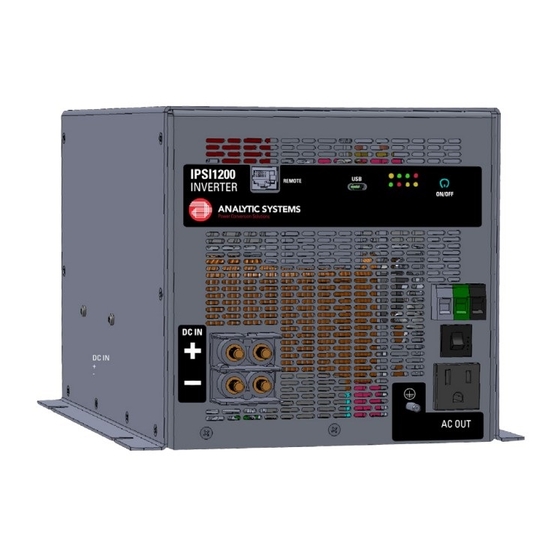

- Page 3 Introduction The IPSi1200 Series 1200 Watt ‘Pure Sine Wave’ Inverter is designed specifically for running sensitive electronic equipment. It produces pure sine wave AC power exactly the same as a regular AC outlet. The IPSi1200 Series Inverter is controlled by a sophisticated Digital Signal Processor (DSP) for optimal control and the most efficient operation possible.
- Page 4 30A hardwire connection AC In – one 30A hardwire connection (with Off-Line UPS Option) * Specifications subjects to change without notice. Designed and manufactured by: ANALYTIC SYSTEMS WARE (1993) LTD. 8128 River Way p. 604.946.9981 f. 604.946.9983 Delta, BC V4G 1K5 Canada tf.
- Page 5 INPUT CONNECTION Prepare a circuit breaker protected power source for the IPSi1200 Series Inverter, making sure the breaker is OFF. Connect the input power to the DC IN terminal blocks using AWG12 stranded wire. Connect the positive to the RED terminal and the Negative to the BLACK terminal.
- Page 6 OUTPUT CONNECTIONS One standard circuit breaker protected 15 Amp AC receptacle is provided for connection. In addition a 30 amp, 250V rated CSA/UL approved terminal block is provided for wiring to a distribution panel. This terminal block is NOT circuit breaker protected so each device wired to the distribution panel must have its own breaker.
- Page 7 There are 8 LED indicators labelled 1 through 8. Their functions are as follows: 1. Low Input Voltage: Blinks Red when the input voltage is near the lower limit for proper operation. Glows Red when the input voltage is too low for proper operation and will be accompanied by the Bypass LED glowing Red and the On/Off switch will not be glowing.
- Page 8 2. This warranty is in effect for 3 years from the date of purchase by the end user. 3. Analytic Systems will determine eligibility for warranty from the date of purchase shown on the warranty card when returned within 30 days, or...
