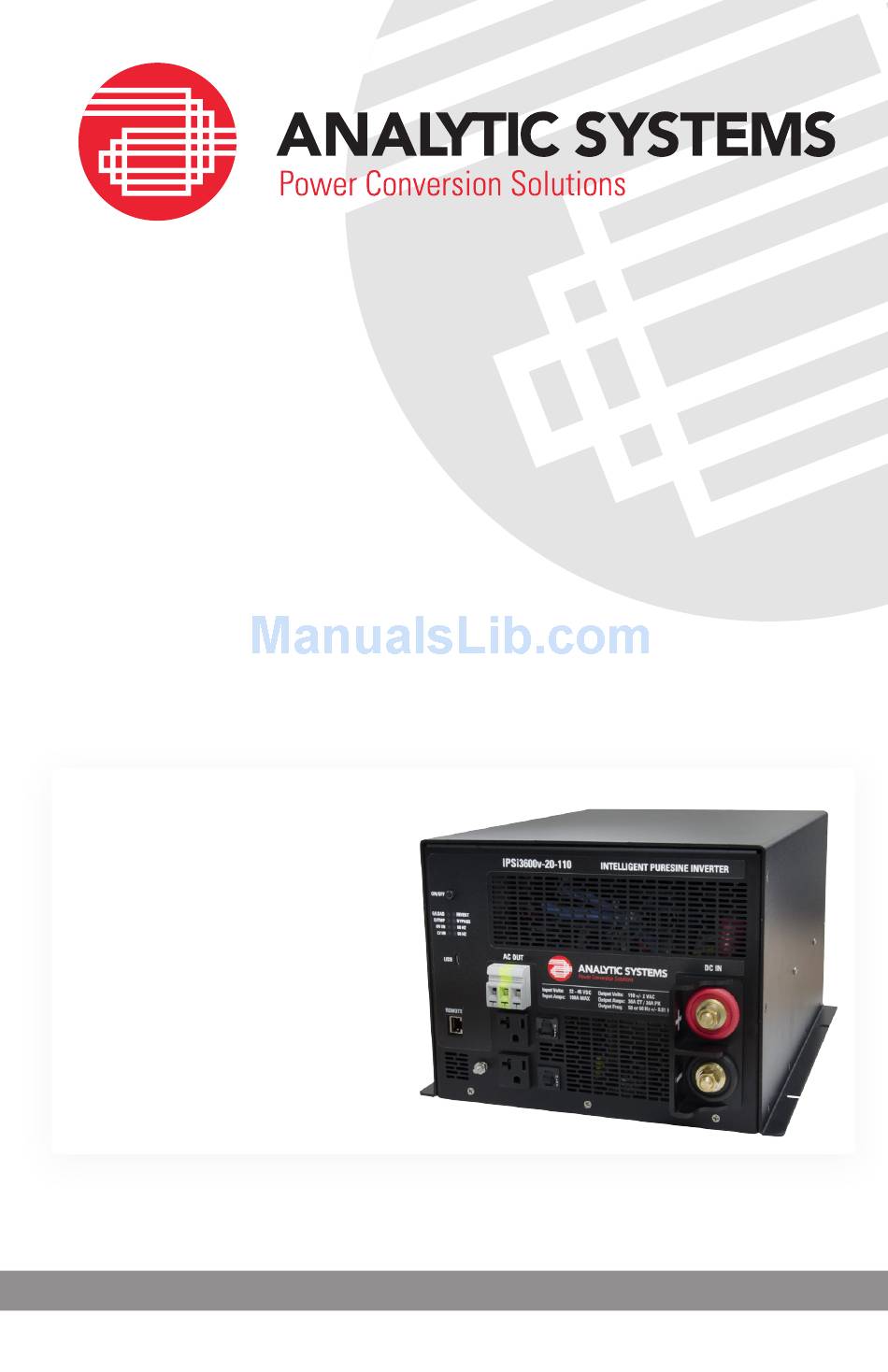

- Page 1 INSTALLATION & OPERATION MANUAL IPSi3600 PURE-SINE INVERTER An ISO9001 and AS9100 Registered Company Battery Chargers • Inverters • Power Supplies • Voltage Converters 8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 800.668.3884 (US/CANADA) www.analyticsystems.com...
- Page 2 LIFE SUPPORT — Analytic Systems does not recommend the use of the IPSi3600 Series Inverters in life support applications where failure or malfunction of the product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness.
- Page 3 Introduction The IPSi3600 Series 3600 Watt ‘Pure Sine Wave’ Inverter is designed specifically for running sensitive electronic equipment. It produces pure sine wave AC power exactly the same as a regular AC outlet. The IPSi3600 Inverter is controlled by a sophisticated Digital Signal Processor (DSP) for optimal control and the most efficient operation possible.
-
Page 4: Specifications
Specifications Electrical (Input) Nominal (ip) 24, 28, 32 or 36 VDC 48 or 72 VDC Actual (Vdc) 20 - 45 40 - 80 Input Amps (max) Electrical (Output) Output Volts Nominal 110 VAC 220 VAC Output Amps Actual (AC) 110 ± 10 VAC (user adjustable) 220 ±... - Page 5 Designed and manufactured by: ANALYTIC SYSTEMS WARE (1993) LTD. 8128 River Way p. 604.946.9981 f. 604.946.9983 Delta, BC V4G 1K5 Canada tf. 800.668.3884 US/Canada www.analyticsystems.com info@analyticsystems.com Revised February 2016 Installation MOUNTING Mount the unit in a DRY location. Mount the unit in a ventilated area. Allow at least 1 inch of clearance around the unit for adequate cooling.
-
Page 6: Output Connections
OUTPUT CONNECTIONS Two standard circuit breaker protected 20 Amp AC receptacles are provided for connection. In addition a 30 amp, 250V rated CSA/UL approved terminal block is provided for wiring to a distribution panel. This terminal block is NOT circuit breaker protected so each device wired to the distribution panel must have its own breaker. - Page 7 There are 8 LED indicators labelled 1 through 8. Their functions are as follows: 1. Low Input Voltage: Blinks Red when the input voltage is near the lower limit for proper operation. Glows Red when the input voltage is too low for proper operation and will be accompanied by the Bypass LED glowing Red and the On/Off switch will not be glowing.
-
Page 8: Limited Warranty
2. This warranty is in effect for 3 years from the date of purchase by the end user. 3. Analytic Systems will determine eligibility for warranty from the date of purchase shown on the warranty card when returned within 30 days, or...
