ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

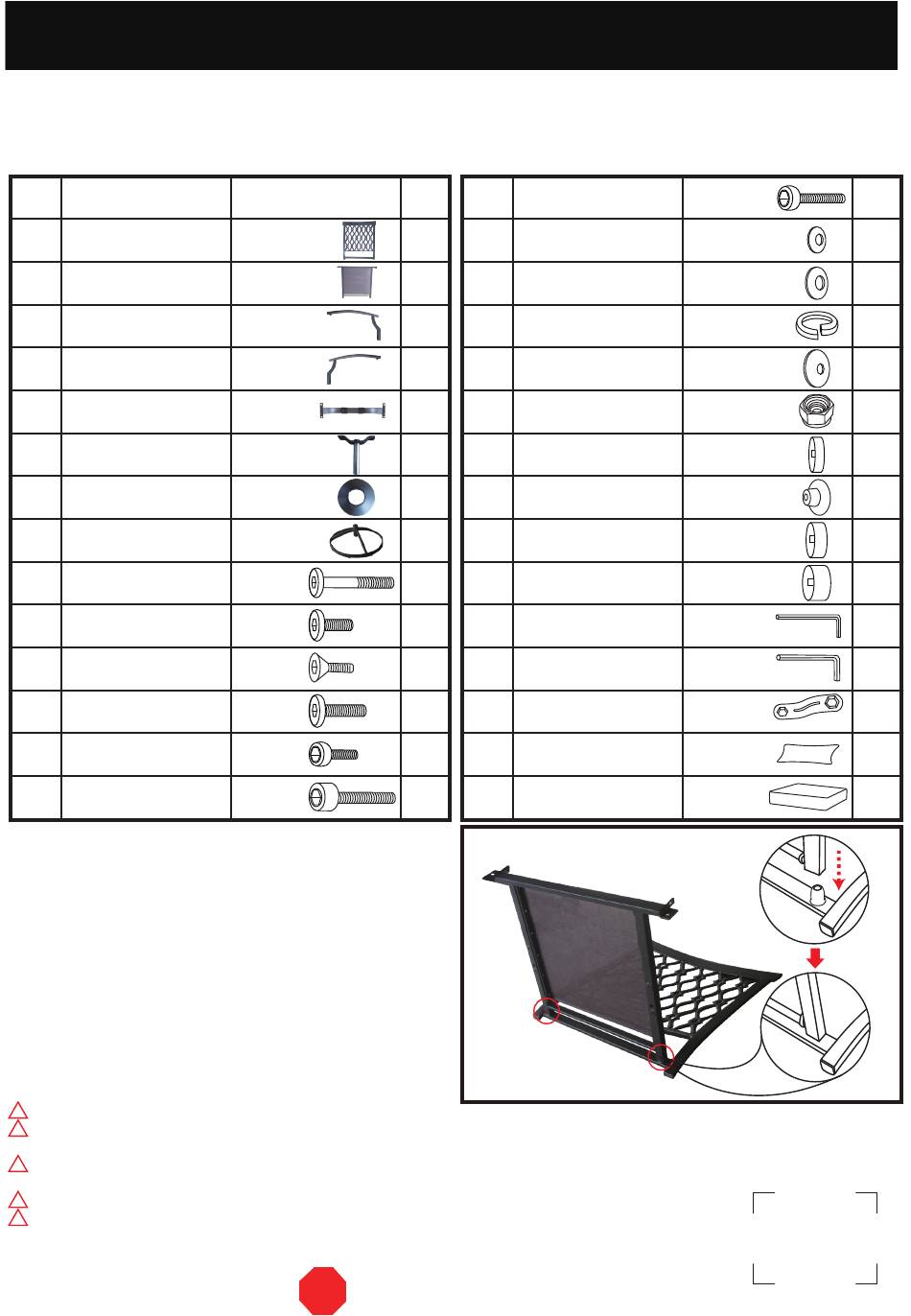

PARTS LIST
PART
MATERIAL CODE
NO.
1
RTS735G-CS03-1
2
RTS735G-CS02-1
3
RTS735G-CS01-2
4
RTS735G-CS01-3
5
RTS735G-CS14-1
6
RTS7976-CS01
7
18000744004
8
RTS735G-CS12-1
9
17C33A0755001Y4
10
17C33A0706001Y4
11
17C02A0755131Y4
12
17C33A0712001Y4
13
17C01A0706002Y4
14
17C03A0814041Y2
Attention:
Make sure that each bolt needed for all steps matches
the corresponding figure to ensure proper assembly.
Step 1:
Place the back assembly (#1) onto a non-abrasive
surface, such as a carpet. Insert the seat assembly (#2)
into the back assembly (#1). See Figure 1.
Use the correct bolts as indicated. Do not tighten any of the bolts until the swivel chair is completely assembled.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings
!
required.
Keep children away during assembly. This item contains small parts that can be swallowed by children.
!
Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
!
INTENDED FOR RESIDENTIAL USE ONLY.
RTS735G
PART
BACK ASSEMBLY
SEAT ASSEMBLY
LEFT ARM
RIGHT ARM
SUPPORT FRAME
SEAT POST
DECORATIVE
PLASTIC COVER
BASE ASSEMBLY
BOLT M6*65
BOLT M6*16
BOLT M6*14
BOLT M6*35
BOLT M6*16
BOLT M8*40
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 4
15
Q'TY
17C01A0712002Y4
1
16
17FA05040301-Y4
1
17
17FA08060601-Y4
1
18
17FC08030801-Y2
1
19
17FA05100701-Y4
1
20
17D03A040401-Y4
1
21
18000337004
1
22
18000337006
1
23
18000337002
2
24
18000319004
2
25
17KAA0101----Y4
2
26
17KAA0201----Y4
2
27
17KAB1101----Y4
4
28
61R735GJ00001BA
4
29
61R735GC00001BA
FIGURE 1
2
BOLT M6*35
WASHER d6.5*D13*1.0
WASHER d8.5*D17*1.6
WASHER d8.5*D12*2.1
WASHER d6.5*D30*2.0
JAM NUT M8*1.25
BOLT CAP
BOLT CAP M6
BOLT CAP M6
BOLT CAP M8
HEX.KEY WRENCH 4MM
HEX.KEY WRENCH 6MM
NUT WRENCH 10&13MM
PILLOW
SEAT CUSHION
2
1
1
COURTYARD CREATIONS INC.
1
10
4
4
1
4
6
2
5
4
1
1
1
1
1
Advertisement
Related Manuals for Courtyard Creations RTS735G
Summary of Contents for Courtyard Creations RTS735G
- Page 1 Children should always be under direct adult supervision while using this product. Retain these assembly instructions for future reference. Quote the following FQC NO. when contacting the service center. SERVICE CENTER TOLL FREE NO. TEL: 1-877-539-7436 FAX: 1-877-539-7439 DON’T RETURN TO STORE! STOP PAGE 1 OF 4 COURTYARD CREATIONS INC.
- Page 2 FIGURE 2 FIGURE 3 #10 BOLT M6*16 #9 BOLT M6*65 Step 2: Step 3: At the rear of the seat, fasten the seat assembly (#2) to Fasten both the left arm (#3) and the right arm (#4) to the back assembly (#1) by using bolts (#9) and washers the seat assembly (#2) by using bolts (#10) and washers (#16).
- Page 3 FIGURE 7 FIGURE 8 #14 BOLT M8*40 Step 7: Step 8: Turn the seat assembly to its upright position. Fasten Place the decorative plastic cover (#7) on the chair's the seat post (#6) to the support frame (#5) by using base assembly (#8) as above picture A shows.
- Page 4 Warranty • This product is covered by Courtyard Creations Inc. One–year limited warranty. • Proof of purchase (dated register receipt) is required for warranty claims. • It remains the customer’s responsibility for freight and packing charges to and from over service center.
