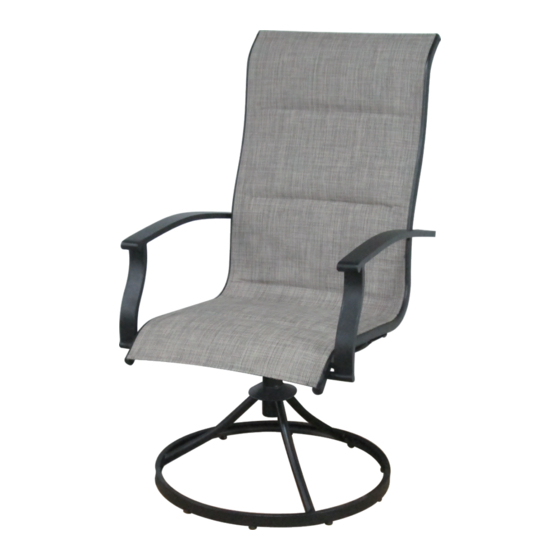

Courtyard Creations RTS889W Assembly Instructions Manual

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
PARTS LIST
PART
MATERIAL CODE
NO.
1
RTS889W-CS11-1
2
RTS889W-CS01
3
18000744004
4
RTS889W-CS12-1
5
17C03A0816041YX
6
17C40A0712001YX
Attention:
Make sure that each bolt needed for all steps matches
the corresponding figure to ensure proper assembly.
Step 1:
Place the seat assembly (#1) onto a non-abrasive
surface, such as a carpet, with its underside facing
upwards. Fasten the seat post (#2) to the brace on the
seat assembly (#1) by using bolts (#5), washers (#7 and
#9), and jam nuts (#10). See Figure 1.
Use the correct bolts as indicated. Do not tighten any of the bolts until the swivel rocker chair is completely
!
assembled.
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings
!
required.
Keep children away during assembly. This item contains small parts that can be swallowed by children.
!
Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
!
V-3
INTENDED FOR RESIDENTIAL USE ONLY.
RTS889W
PART
SEAT ASSEMBLY
SEAT POST
DECORATIVE
PLASTIC COVER
BASE ASSEMBLY
BOLT M8*45
BOLT M6*35
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DO NOT RETURN TO THE STORE!
STOP
PAGE 1 OF 3
7
Q'TY 17FA08060601-YX
1 8
17FA05100701-Y4
1 9
17EF1201-----23
1 10
17D03A040401-YX
1 11
17KAA0101----Y4
4 12
17KAA0201----Y4
1 13
17KAB1101----Y4
FIGURE 1
9
10
7
7
10
WASHER d8.5*D17*1.6
WASHER d6.5*D30*2.0
WASHER
JAM NUT M8*1.25
HEX. KEY WRENCH 4MM
HEX. KEY WRENCH 6MM
NUT WRENCH 10&13MM
5
5
7
7
9
2
1
45
#5 BOLT M8*45
COURTYARD CREATIONS INC.
8
1
2
4
1
1
1
