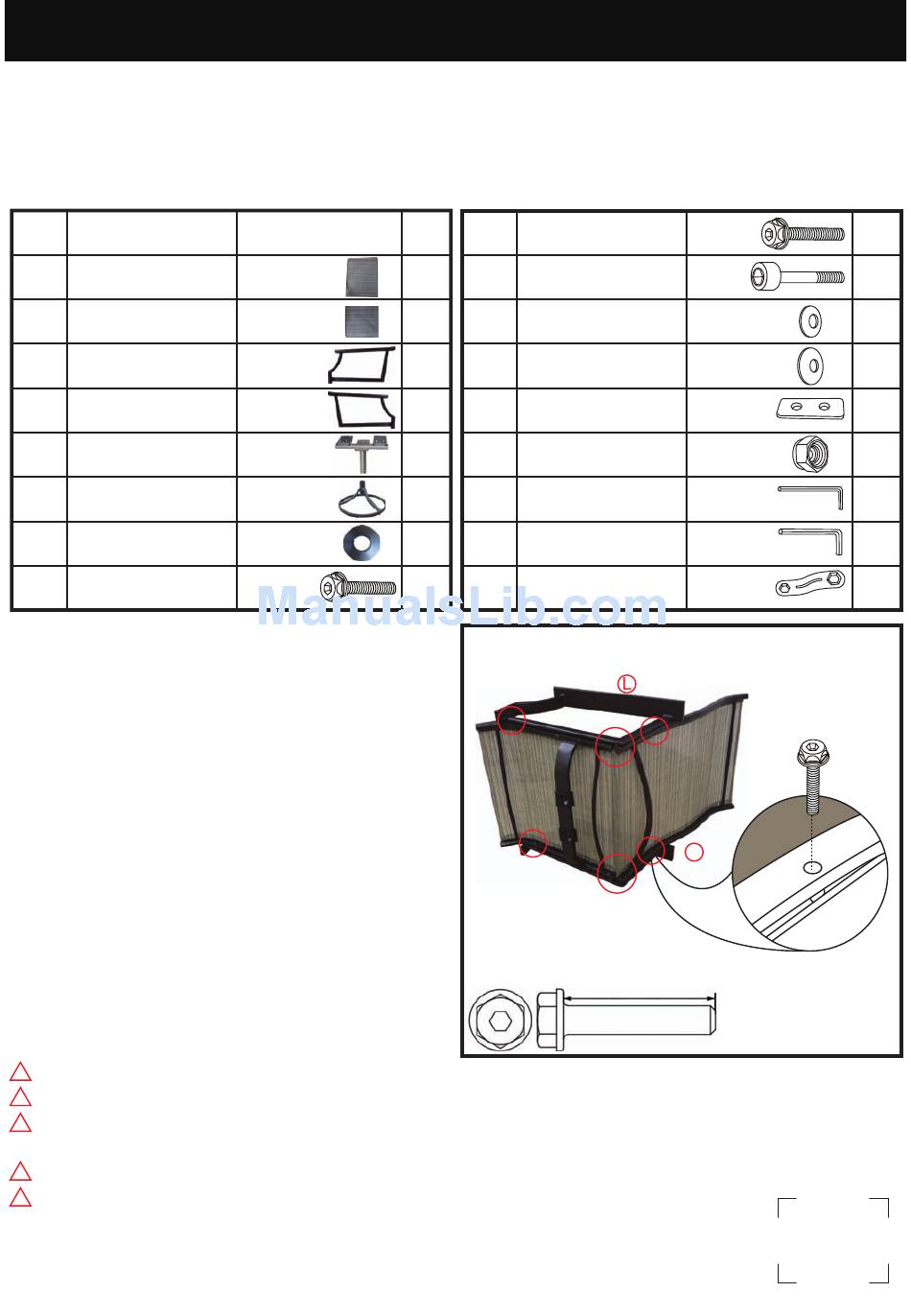

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
PARTS LIST
PART
MATERIAL CODE
NO.
1
RTS873R-CS03-1
2
RTS873R-CS02-1
3
RTS873R-CS01-2
4
RTS873R-CS01-3
5
RTS538C-CS01
6
RTS873R-CS12-1
7
18000744004
8
17C40A0710001YX
Attention:
Make sure that each bolt needed for all steps matches
the corresponding figure to ensure proper assembly.
Step 1:
Place the right arm (#4) onto a non-abrasive surface,
such as a carpet. Fasten the back assembly (#1) and
seat assembly (2) to the arms (#3 and #4) by using
bolts (#8). See Figure 1.
Note:
The labels marked "L" and "R" on the arms (#3 and #4)
should coincide with Figure 1 to ensure proper
assembly.
!
Use the correct bolts as indicated. Do not tighten any of the bolts until the swivel rocker chair is completely assembled.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings required.
!
Keep children away during assembly. This item contains small parts that can be swallowed by
children. Children should always be under direct adult supervision while using this product.
!
Retain these assembly instructions for future reference.
!
Quote the following FQC No. when contacting the service center.
E-2
INTENDED FOR RESIDENTIAL USE ONLY.
RTS873R
PART
Q'TY
BACK ASSEMBLY
SEAT ASSEMBLY
LEFT ARM
RIGHT ARM
SEAT POST
BASE ASSEMBLY
DECORATIVE
PLASTIC COVER
BOLT M6*30
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
PAGE 1 OF 3
9
17C40A0712001YX
1
10
17C03A0816041YX
1
11
17FA08060601-YX
1
12
17FA05100701-YX
1
13
17EA1203-----23
1
14
17D03A040401-YX
1
15
17KAA0101----Y4
1
16
17KAA0201----Y4
8
17
17KAB1101----Y4
FIGURE 1
2
BOLT M6*35
BOLT M8*45
WASHER d8.5*D17*1.6
WASHER d6.5*D30*2.0
WASHER
JAM NUT M8*1.25
HEX. KEY WRENCH 4MM
HEX. KEY WRENCH 6MM
NUT WRENCH 10&13MM
3
1
R
4
30
#8 BOLT M6*30
COURTYARD CREATIONS INC.
1
4
8
1
2
4
1
1
1
8
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Courtyard Creations RTS873R
Summary of Contents for Courtyard Creations RTS873R
-
Page 1: Parts List
Children should always be under direct adult supervision while using this product. Retain these assembly instructions for future reference. Quote the following FQC No. when contacting the service center. SERVICE CENTER TOLL FREE NO. TEL: 1-877-539-7436 FAX: 1-877-539-7439 COURTYARD CREATIONS INC. PAGE 1 OF 3... - Page 2 FIGURE 2 FIGURE 3 #10 BOLT M8*45 Step 2: Step 3: Turn the seat assembly to its upright position. Fasten Place the decorative plastic cover (#7) onto the chair's the seat post (#5) to the seat assembly (#2) by using base assembly (#6) as above picture shows.
- Page 3 Warranty • This product is covered by Courtyard Creations Inc.'s one–year limited warranty. • Proof of purchase (dated register receipt) is required for warranty claims. • It remains the customer’s responsibility for freight and packing charges to and from the service center.
