30'' 50,000 BTU
GAS FIRE PIT
Model #: SRGF11626
Item #: 227770

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRGF11626 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Four Seasons Courtyard SRGF11626

Summary of Contents for Four Seasons Courtyard SRGF11626

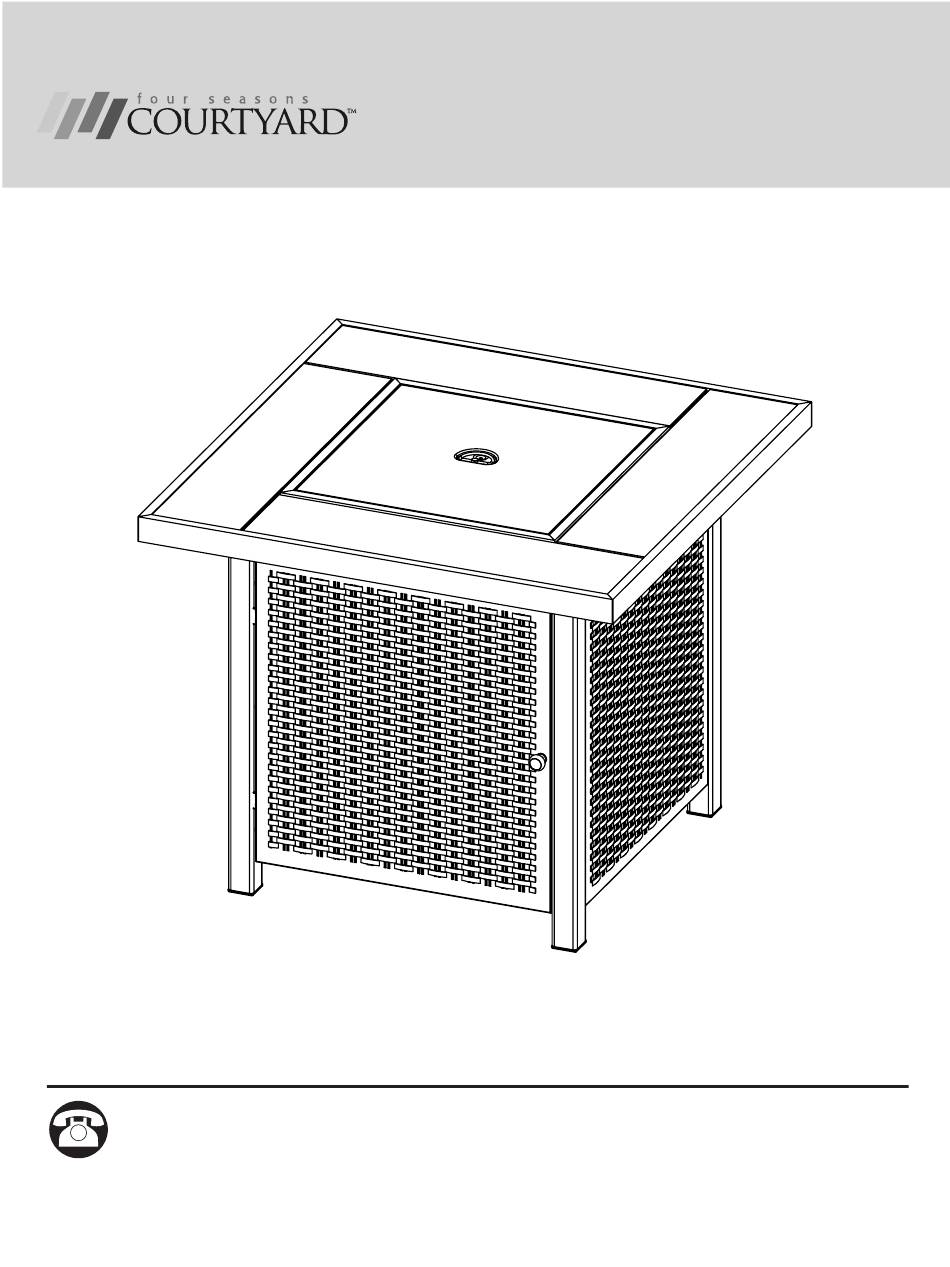

  • Page 1 30'' 50,000 BTU GAS FIRE PIT Model #: SRGF11626 Item #: 227770 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-866-814-0585, 8 a.m. - 8 p.m., EST, Monday - Friday. E-mail: customerservice@shinerichgroup.com...
  • Page 2 WARNINGS AND CAUTIONS Read the instructions before use. This appliance must be installed in accordance with such regulations as are enforced. DANGER WARNING: For Outdoor Use Only. If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Warnings and Cautions..............2, 4-5 Table of Contents...................3 Tools and Parts...................6-7 Assembly Instructions...............8-16 Installation Instructions ................17 Operation..................18-20 Locating Fire Pit For Use..............21 Maintenance and Storage...............22-23 Trouble Shooting..................24 Warranty Information................25 REMINDER BEFORE ASSEMBLY Verify that all parts are included with your gas fire pit BEFORE you begin assembly by checking the Parts and Hardware List.

  • Page 4: Warnings And Cautions

    WARNINGS AND CAUTIONS NOTE: PLEASE READ THE FOLLOWING SAFETY RULES WARNING: The installation must comform with local codes or, in the absence of local codes, with the CAN/CGA-B 149.2, Propane Installation Code. This appliance requires 20 lb (9 kg) LP gas supply cylinder. The burner must be replaced prior to the appliance being put into operation if it is evident that the burner is damaged.
  • Page 5 WARNINGS AND CAUTIONS NOTE: PLEASE READ THE FOLLOWING SAFETY RULES: Perform a leak test with a soapy solution: 1. To check gas connections. 2. After connecting a new cylinder. 3. Upon re-assembly after disassembly. This appliance is designed to operate with a standard 20 Ib propane cylinder with Approved Cylinder Connection.

  • Page 6: Tools And Parts

    PACKAGE CONTENTS TOOLS NEEDED: (NOT INCLUDED) Philips screwdriver Estimated time for assembly: 30-45 minutes.
  • Page 7 PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Door Handle Table Top Frame Cylinder Holder Side Panel Cylinder Locking Bolt Control Panel Assembly Back Left Leg Cover Lid Front Left Leg Lava Rock Cylinder Holder Pole Protect Bar Cus ion Pad Back Right Leg Front Right Leg Ceramic Tile...

  • Page 8: Assembly Instructions

    Assembly Instructions Choose a good, cleared assembly area and get a friend to help you put your gas fire pit together. Lay cardboard down to protect gas fire pit finish and assembly area. Step 1 Fig. 1 Place the Table Top Frame (A) upside down to the soft, level surface, attach control panel assembly (C) to the Table Top Frame (A) with (4) M5x12...
  • Page 9 Assembly Instructions Step 2 Fig. 2 Attach front left leg (E), back left leg (D), front right leg (H) and back right leg (G) to the Table Top Frame (A) with (12) M6x12 bolts (DD) as Fig.2. Hardware Used M6 x 12 Bolt x 12 Fig.
  • Page 10 Assembly Instructions Step 4 Fig. 4 Attach cylinder holder pole (F) to back left leg (D) and front left leg (E) with (2) M5x20 bolts (CC) as Fig. 4. Note: The side with arrow sticker assemble to front left leg (E). Hardware Used M5 x 20 Bolt Step 5...
  • Page 11 Assembly Instructions Step 6 Fig. 6 Attach side panel 3 (B) to front right leg (H) and back right leg (G) with (6) M5x12 bolts (BB) as Fig.6. Hardware Used M5 x 12 Bolt Step 7 Fig. 7 Attach another cylinder holder pole (F) to front right leg (H) and back right leg (G) with (2) M5x20 bolts (CC) Fig.
  • Page 12 Assembly Instructions Step 8 Fig. 8 Screw door handle (J) to door (I) as Fig. 8. Step 9 Fig. 9 Screw cylinder locking bolt (L) to cylinder holder (K) as Fig. 9.
  • Page 13 Assembly Instructions Step 10 Fig. 10 Attach cylinder holder (K) to cylinder hold poles (F) with (4) M6x12 bolts (DD) as Fig. 10. Hardware Used M6 x 12 Bolt...
  • Page 14 Assembly Instructions Step 11 Fig. 11 Attach the protect bar (O) to the bottom of fire bowl with (2) M5x12 bolts (BB) as Fig. 11. Hardware Used M5 x 12 Bolt Step 12 Fig. 12 Attach door (I) to front right leg (H) assembly with (4) ST4.2x9.5 bolts (EE) as Fig.
  • Page 15 Assembly Instructions Step 13 Fig. 13 Peel and stick the cushion pads (P) on the table top frame (A) as Fig.13, total 16 cushion pads. Note: Before applying the adhesive cushion pads, be sure to wipe down the metal surface and make sure it is free of any dust or debris.
  • Page 16 Assembly Instructions Step 15 Fig. 15 Put the lava rocks (N) into the burning area ,middle of tabletop. Place the cover lid (M) onto the table top when the gas fire pit not use. Note: To avoid ignition failure, do not cover the flame orifice with lava rocks.

  • Page 17: Installation Instructions

    INSTALLATION INSTRUCTIONS lava rocks (max 8.8 lb) Open the door (I) (Fig. 16) 4. Turn the cylinder locking bolt clockwise to secure the gas cylinder. (Fig. 17) Your gas fire pit has been checked at all connections at the factory for leakage. In transportation and handling some connections may have loosened.

  • Page 18: Operation

    OPERATION WARNING: DO NOT ATTEMPT TO OPERATE THE APPLIANCE UNTIL YOU HAVE READ AND UNDERSTAND ALL PRECAUTIONS. FAILURE TO DO SO CAN RESULT IN PROPERTY DAMAGE, SERIOUS INJURY, OR DEATH. WARNING!!! WARNING Do not use an open flame to check for leakage. FOR YOUR SAFETY: Do not smoke during testing.
  • Page 19 OPERATION WARNING: DO NOT ATTEMPT TO OPERATE THE APPLIANCE UNTIL YOU HAVE READ AND UNDERSTAND ALL PRECAUTIONS. FAILURE TO DO SO CAN RESULT IN PROPERTY ATION DAMAGE, SERIOUS INJURY, OR DEATH. Before Lighting The gas fire pit should be thoroughly inspected before each use, and by a qualified service person at least annually.
  • Page 20 OPERATION CAUTION: AVOID INHALING FUMES EMITTED FROM THE GAS APPLIANCE'S FIRST USE. SMOKE AND ODOR FROM THE BURNING OF OILS USED IN MANUFACTURING WILL APPEAR. BOTH SMOKE AND ODOR WILL DISSIPATE AFTER APPROXIMATELY 30 MINUTES. THE GAS APPLIANCE SHOULD NOT PRODUCE THICK BLACK SMOKE. NOTE: The burner may be noisy when initially turned on.

  • Page 21: Locating Fire Pit For Use

    LOCATING FIRE PIT FOR USE CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT ABOVE, BESIDE OR UNDER THIS APPLICANCE WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND COULD BE SERIOUSLY DAMAGED. This gas fire pit is primarily used for the heating of outdoor patios, decks, spas, pools and open working areas.

  • Page 22: Maintenance And Storage

    MAINTENANCE AND STORAGE CLEANING AND MAINTENANCE : To enjoy years of outstanding performance from your WARNING: gas fire pit, make sure you perform the following FOR YOUR SAFETY ; maintenance activities on a regular basis: DO NOT touch or move gas appliance for at least 45 minutes after use.
  • Page 23 MAINTENANCE AND STORAGE NOTE: Store the fire pit indoors during the winter if it will be subjected to Wait until the appliance is freezing temperatures. cool before covering. Disconnect and remove the cylinder from the appliance before the appliance can be stored indoors. STORAGE Turn the control knob to "OFF"...

  • Page 24: Trouble Shooting

    TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE MEASURES OBSERVED Gas odor Gas leak Check all gas connections Check gas supply pressure. Low gas pressure. Delayed ignition Clean burner parts--see manual. Clogged or dirty burner ports. "CLEANING AND MAINTENANCE" section. Incorrect burner Incorrect gas supply or pressure.

  • Page 25: Warranty Information

    Warranty Information The appliance has been manufactured under the highest standards of quality and workmanship. We warrant to the original consumer purchaser that all aspects of this product will be free of defects in material and workmanship for one year from the date of purchase. A replacement for any defective part will be supplied free of charge for installation by the consumer.
