Summary of Contents for Four Seasons Courtyard GFT-30149

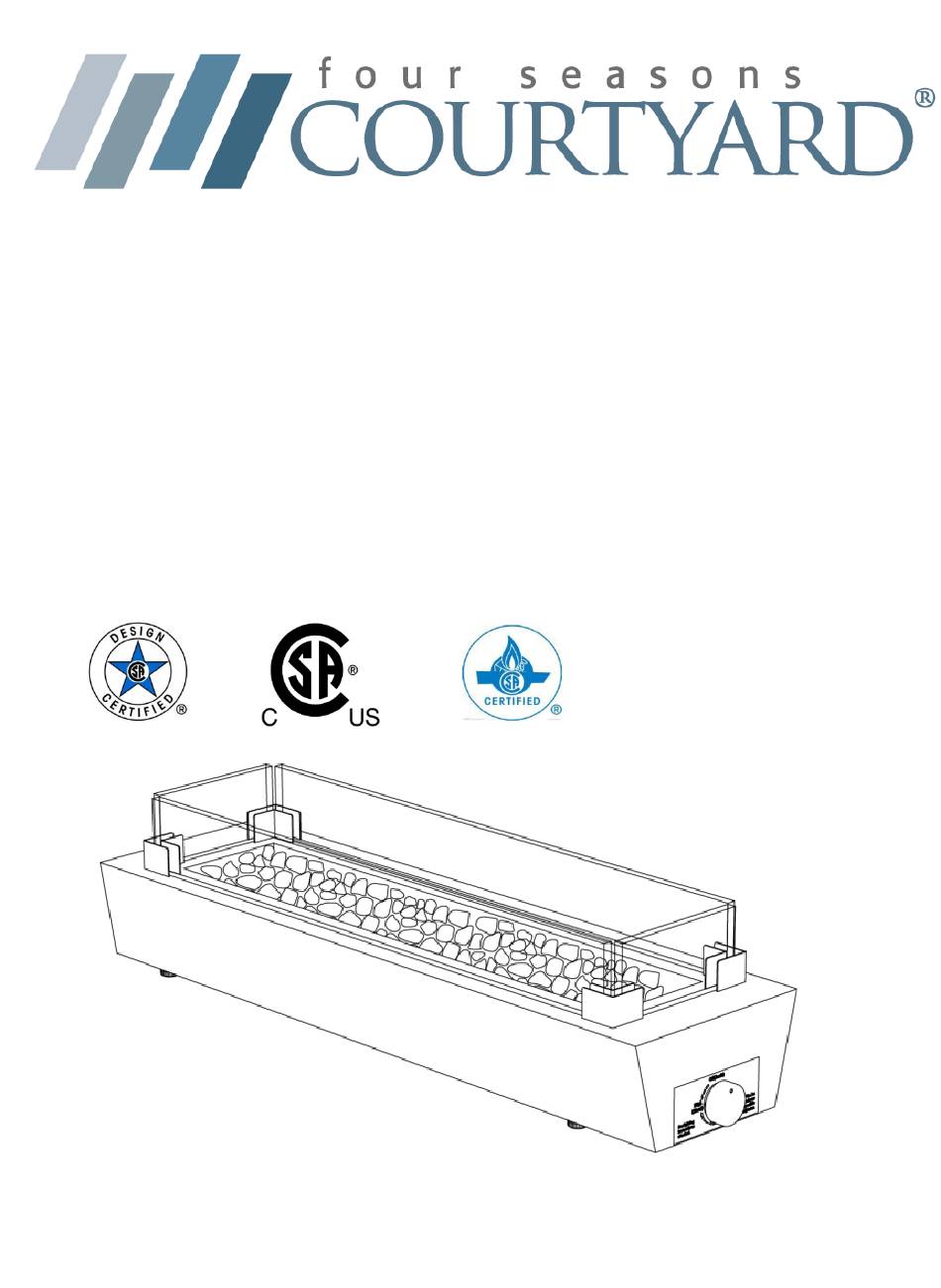

- Page 1 Assembly Instructions SKU# 258745 Product name : 24” Tabletop Fire Pit (GFT-30149)
-
Page 2: Warning For Your Safety
DANGER Table with Standard 1.1in. Umbrella Opening Required If you smell gas: Shut off gas to the appliance. • Extinguish any open flame. • If odor continues, keep away from the appliance • WARNING and immediately call your gas supplier or fire FOR YOUR SAFETY: department. - Page 3 DANGER: Failure to follow the dangers, warnings and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property. ----------------------------------------------------------------------------------------------------------------- WARNINGS: Do not insert any tool or foreign object into the valve outlet This appliance is for outdoor use only, and should NOT be used or safety relief valve.
- Page 4 Young children should be carefully supervised when they are in Never attempt to attach this outdoor fireplace to the self- the area of the appliance. contained LP gas system of a camper trailer, motor home or Do NOT hang or place clothing or other flammable material on or house.
- Page 5 Danger and warning………………………………………………………………..…..2 Table of contents………………………………………………………………………….4 Tools and parts…………………………………………………………………………….5 Assembly……………………………………………………………………………………..6 Operating instruction…………………………………………………………..……...7 Maintenance and storage… ………………………………………………..………9 Trouble shooting…………………………………………………………………….….10 Warranty information…………………………………………………………….….11...
- Page 6 Part Description Quantity Glass rock Short glass Long glass Base Regulator Base nut...
- Page 7 Step 1: Take protective cap off, place outdoor fireplace directly over the umbrella opening on your table. Secure with base nut (F) from underside. Fully tighten. CAUTION: Wear gloves during assembly. Step 2: Insert the short glass (B) and long glass (C) to the base (D).
- Page 8 Burner connections 1. Make sure the valve connections are securely fastened to the burner and the tank. 2. Visually check the connection between the burner / venturi tube and orifice. 3. Make sure the burner/ venturi tube fit over the orifice. 4.
-
Page 9: Turning Off
CAUTION: Keep outdoor gas appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids. CAUTION: Do NOT obstruct the flow of combustion and ventilation air. CAUTION: Check and clean burner/venturi tubes for insects and insect nests. A clogged tube can lead to a fire. - Page 10 CAUTION: All cleaning and maintenance should be done when outdoor fireplace is cool and with the fuel supply disconnected. CAUTION: Do NOT clean any outdoor fireplace part in a self-cleaning oven. CAUTION: Do NOT enlarge valve orifices or burner ports when cleaning the valves or burners. Notice: 1.
- Page 11 PROBLEM PROBLEM CAUSE SOLUTION Burner will not light No gas flow. Check if LP gas tank is empty A. If empty replace B. If LP with match. gas tank is not empty, refer to “ sudden drop in gas flow or reduced flame height.
- Page 12 True Value® Company Chicago, IL 60631-3505 Chicago, IL 60631-3505 ©2019 True Value Company ©2019 True Value Company Four Seasons Courtyard™ Four Seasons Courtyard® is a trademark of the es una marca comercial de True True Value Company Value Company...
