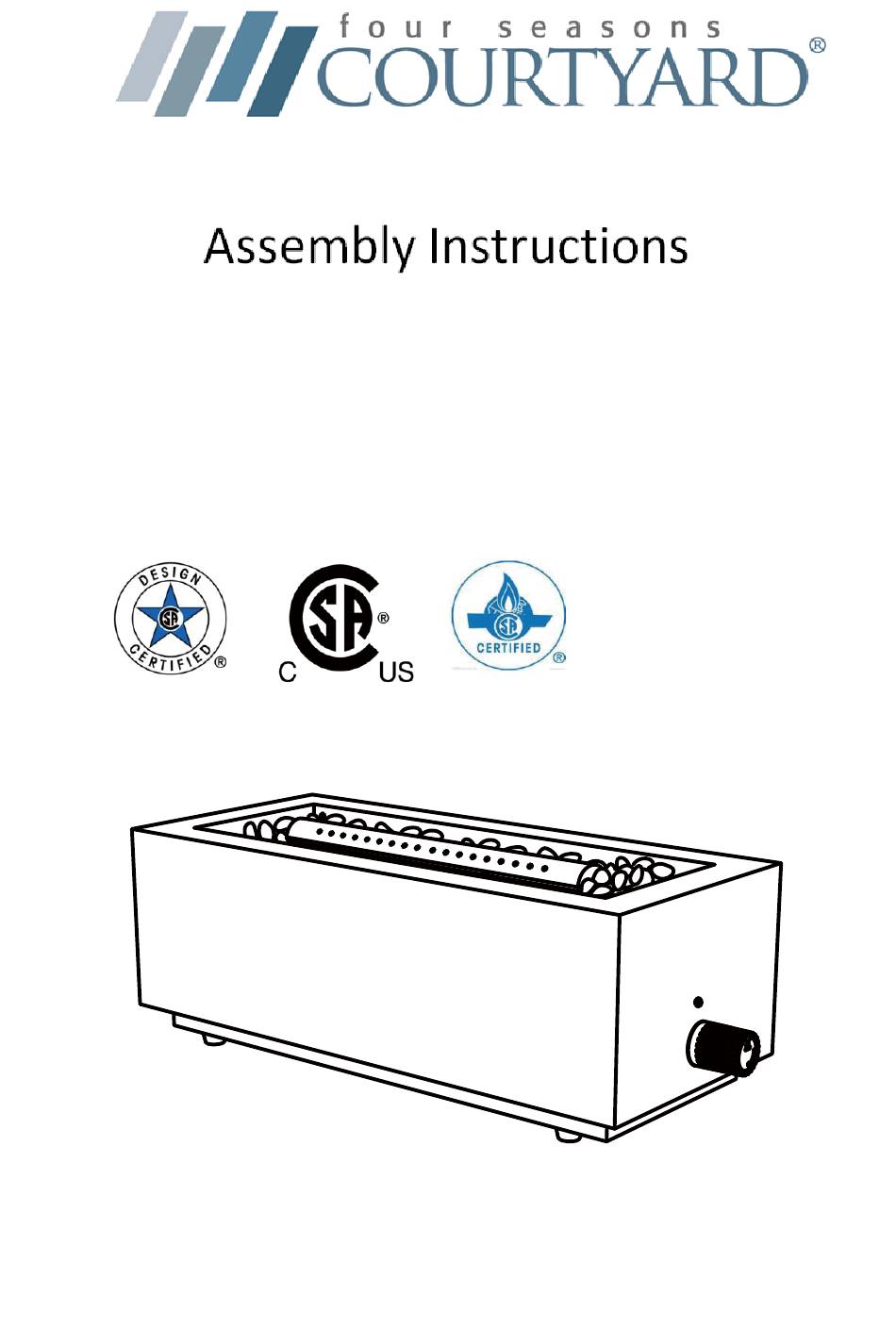

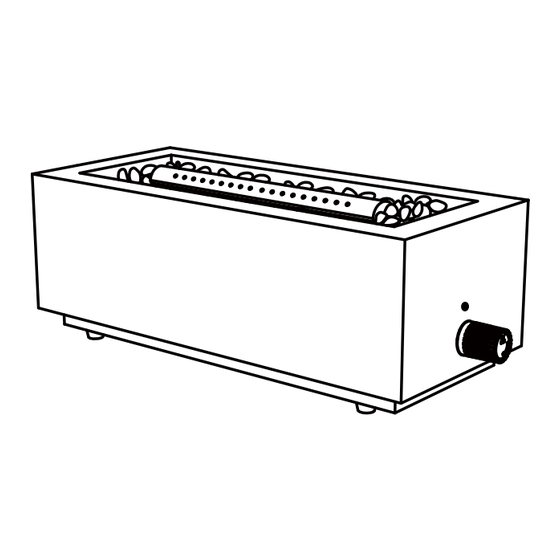

- Page 1 SKU# 258746 Product name :14" Tabletop Fire Pit (GFT-30873)
-
Page 2: Danger And Warnings
Danger and Warnings DANGER: WARNING: For Outdoor Use Only! FIRE OR EXPLOSION HAZARD Installation and service must be If you smell gas: performed by a qualified installer, • Shut off gas to the appliance. service agency, or the gas supplier •... -
Page 3: Table Of Contents
Table of Contents Danger and Warnings ..........1 Assembly..………………………………………………. 7-8 Table of Contents ............2 Operating Instructions ........... Safety Information............2-4 Maintenance..............11 Pre-Assembly...……………………...……………………. 5 Care and Cleaning ............11 Troubleshooting ............12 ..………………...……………………. 6 Package Contents Warranty................13 Safety Information Read the instruction before use. - Page 4 Safety Information (continued) WARNING: Your outdoor fireplace has been checked at all factory connections for leaks. Recheck all connections as described in the “Operating Instructions” section, as shipping can loosen connections. Check for leaks even if your unit was assembled for you by someone else. Do NOT operate if a gas leak is present.
- Page 5 Safety Information (continued) WARNING: Do NOT use in windy conditions. Never lean over this outdoor fireplace when lighting or when in use. Do NOT use this outdoor fireplace unless burner is securely in place. Keep all electrical cords away from this outdoor fireplace during use. Certain areas of this outdoor fireplace when in use will become too hot to touch.
-
Page 6: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Carefully remove all pieces from the carton and make sure that you have all parts (refer to the hardware and package contents list). If you are missing parts, please contact 855-600-9294 for further assistance. YOUR OWNER’S MANUAL Keep and store this Owner’s Manual for future reference. -
Page 7: Package Contents
Package Contents Quantity Part Description Glass Beads Base Regulator Base Nut... -
Page 8: Assembly
Assembly Assembling the base nut □ Place the Base (B) over the umbrella opening on your table and secure in place by tightening the Base Nut (D) underneath the table. CAUTION: Wear gloves during assembly. This fireplace is best suited to fit tables that are less than 1.1 inch thick. - Page 9 Assembly (continued) Assembling the LP gas tank □ Insert and rotate the gas tank (not included) clockwise into the bottom of the fireplace until they fit snugly together. CAUTION: The LP gas tank is sold separately. Use a 1lb. LP gas tank. 1 lb 453 g Disconnecting the LP gas tank...
- Page 10 Operating Check For Leaks WARNING: Before using this outdoor fireplace, make sure you have read, understand and are following all information provided in the “Safety Information” section beginning on page 2. Failure to follow those instructions can cause death, serious injury or property damage. Burner Connections 1, Make sure the valve connections are securely fastened to the burner and the tank.
-
Page 11: Operating Instructions
Operating (continued) LIGHTING CAUTION: Keep the outdoor gas appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids. CAUTION: Do NOT obstruct the flow of combustion and ventilation air. CAUTION: Check and clean burner/venturi tubes for insects and insect nests. A clogged tube can lead to a fire. -
Page 12: Maintenance
Maintenance CAUTION: All cleaning and maintenance should be done when outdoor fireplace is cool and with the fuel supply disconnected. CAUTION: Do NOT clean any outdoor fireplace part in a self-cleaning oven. CAUTION: Do NOT enlarge valve orifices or burner ports when cleaning the valves or burners. Notice: 1. -
Page 13: Troubleshooting
Troubleshooting PROBLEM PROBABLE CAUSE SOLUTION Check if the LP gas tank is empty. There is no gas flow. A. Replace if empty. B. If the tank is not empty, refer to “There is a sudden drop in gas flow or reduced flame height” problem in this table. The LP gas tank is low or empty. -
Page 14: Warranty
True Value Company Chicago, IL empresa True Value® Company 60631-3505 Chicago, IL 60631-3505 ©2019 True Value Company ©2019 True Value Company Four Seasons Courtyard™ Four Seasons Courtyard® is a trademark of the es una marca comercial de True True Value Company Value Company...
