Four Seasons Courtyard FT-1103E Assembly Instruction Manual

30" round fire pit
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

SKU#258743

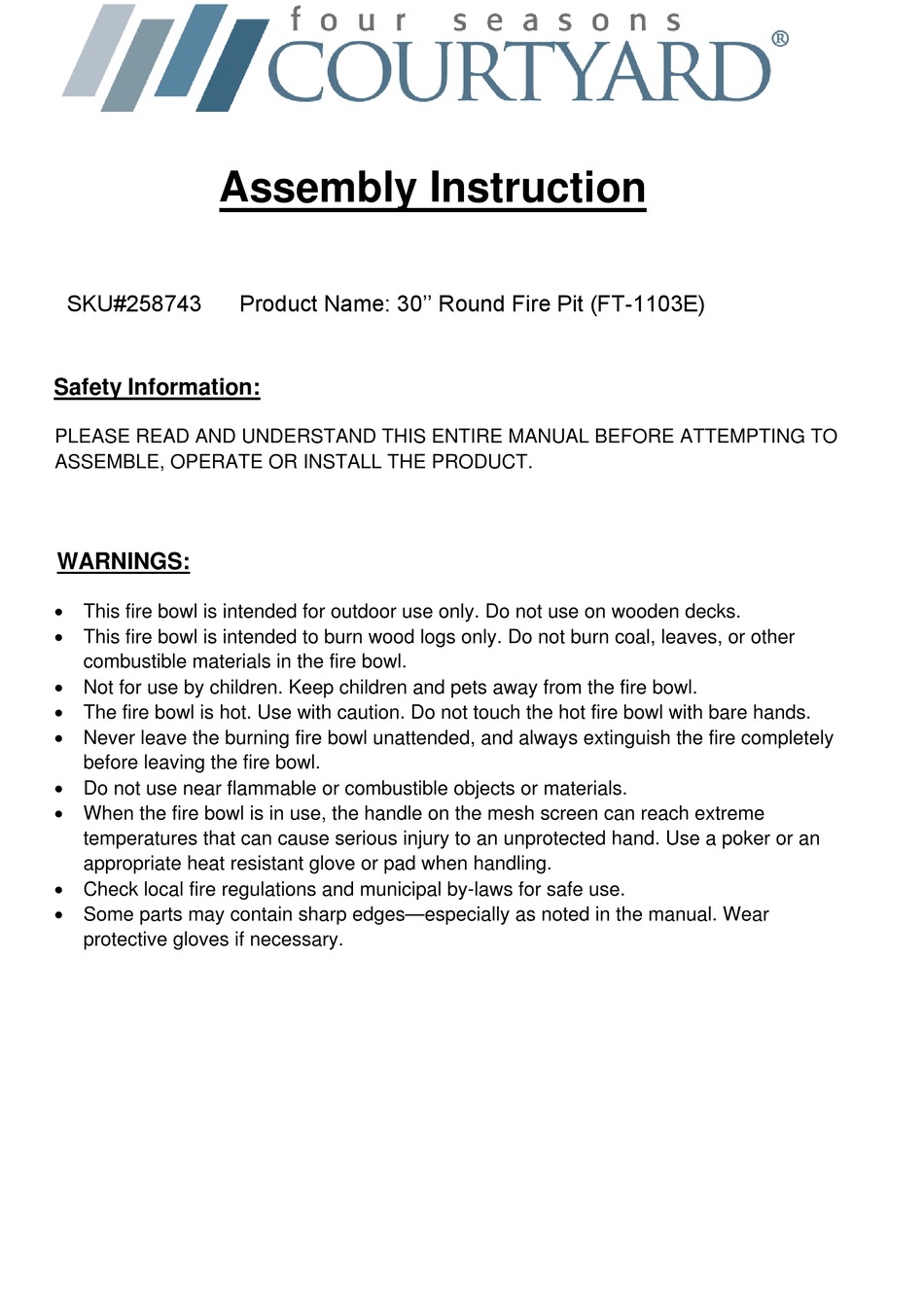

Safety Information:

PLEASE READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE ATTEMPTING TO
ASSEMBLE, OPERATE OR INSTALL THE PRODUCT.
WARNINGS:
 This fire bowl is intended for outdoor use only. Do not use on wooden decks.
 This fire bowl is intended to burn wood logs only. Do not burn coal, leaves, or other
combustible materials in the fire bowl.
 Not for use by children. Keep children and pets away from the fire bowl.
 The fire bowl is hot. Use with caution. Do not touch the hot fire bowl with bare hands.
 Never leave the burning fire bowl unattended, and always extinguish the fire completely
before leaving the fire bowl.
 Do not use near flammable or combustible objects or materials.
 When the fire bowl is in use, the handle on the mesh screen can reach extreme
temperatures that can cause serious injury to an unprotected hand. Use a poker or an
appropriate heat resistant glove or pad when handling.
 Check local fire regulations and municipal by-laws for safe use.
 Some parts may contain sharp edges—especially as noted in the manual. Wear
protective gloves if necessary.
Assembly Instruction
Product Name: 30'' Round Fire Pit (FT-1103E)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FT-1103E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Four Seasons Courtyard FT-1103E

Summary of Contents for Four Seasons Courtyard FT-1103E

  • Page 1 Assembly Instruction SKU#258743 Product Name: 30’’ Round Fire Pit (FT-1103E) Safety Information: PLEASE READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE ATTEMPTING TO ASSEMBLE, OPERATE OR INSTALL THE PRODUCT. WARNINGS:  This fire bowl is intended for outdoor use only. Do not use on wooden decks.
  • Page 2 FIRE PIT PARTS LIST PARTS Handle Mesh cover Wood grate Cover support Fire bowl Legs Upper ring Lower ring Poker HARDWARE LIST Hardware M6 x14 Bolt M6 x10 Bolt M6 x10 Bolt M6 Nut Pre-Assembly: TOOLS REQUIRED (Not included)
  • Page 3 Step By Step Assembly Instructions: Step1: Insert handle (A) into hole in Mesh cover (B) and tighten it with M6 Nut (DD) underside to secure. Step 2: Attach the legs (F) to the Upper ring (G) by using M6 x 10 mm bolts (BB) ,then tighten the bolts.
  • Page 4 Step 3: Attach the legs (F) to the Lower ring (H) by using M6 x 14 mm bolts (AA), then tighten the bolts. Step 4: Attach the Cover support(D) to the Fire bowl (E) by using M6 x 10 mm Stainless steel bolts (CC) and M6 Nut (DD), then tighten the bolts.
  • Page 5 Step 5: Put the Fire bowl(E), Wood grate(C), Mesh cover(B). Place the poker (I) near the fire pit for use anytime.
  • Page 6 Operating Instruction:  WARNING:  Before  using  this  outdoor  firepit,  make  sure  you  have  read,  understand  and  are  following  all  information  provided  in  the  important  Safeguards  presented  on  page  1.  Failure  to  Follow  those  instructions  can cause death, serious injury or property damage.  Extinguishing:   Allow fire to burn out.  Do NOT use water to extinguish as this is dangerous and can cause damage to the fire pit. Care and Cleaning:  Do not attempt to clean the fire pit until the fire is completely out and cooled.
  • Page 7 True Value® Company Chicago, IL 60631-3505 Chicago, IL 60631-3505 ©2019 True Value Company ©2019 True Value Company Four Seasons Courtyard™ Four Seasons Courtyard® is a trademark of the es una marca comercial de True True Value Company Value Company...
