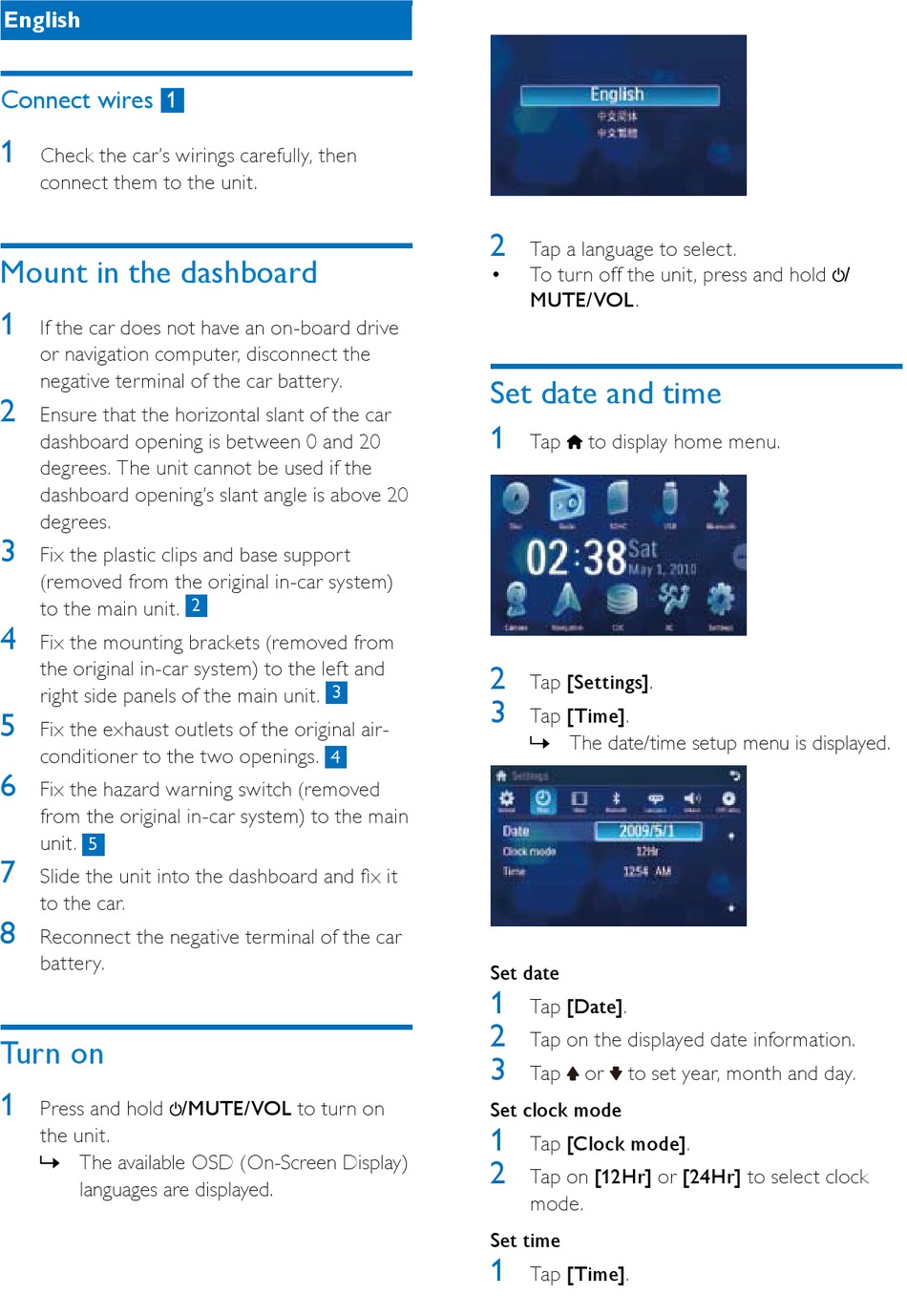

English

Connect wires

1
1
Check the car's wirings carefully, then
connect them to the unit.
Mount in the dashboard
1
If the car does not have an on-board drive
or navigation computer, disconnect the
negative terminal of the car battery.
2
Ensure that the horizontal slant of the car
dashboard opening is between 0 and 20
degrees. The unit cannot be used if the
dashboard opening's slant angle is above 20
degrees.
3
Fix the plastic clips and base support
(removed from the original in-car system)
to the main unit.
4
Fix the mounting brackets (removed from
the original in-car system) to the left and
right side panels of the main unit.
5
Fix the exhaust outlets of the original air-
conditioner to the two openings.
6
Fix the hazard warning switch (removed
from the original in-car system) to the main
unit.
5
7
Slide the unit into the dashboard and fix it
to the car.
8
Reconnect the negative terminal of the car
battery.
Turn on
1
Press and hold /MUTE/VOL to turn on
the unit.
»
The available OSD (On-Screen Display)
languages are displayed.
2
3
4
2
Tap a language to select.
•
To turn off the unit, press and hold
MUTE/VOL.

Set date and time

1
Tap
to display home menu.
2
Tap [Settings].
3
Tap [Time].
»
The date/time setup menu is displayed.
Set date
1
Tap [Date].
2
Tap on the displayed date information.
3
Tap
or
to set year, month and day.
Set clock mode
1
Tap [Clock mode].
2
Tap on [12Hr] or [24Hr] to select clock
mode.
Set time
1
Tap [Time].
/
