Contents 1 Important Safety Notice 2 Your in-car entertainment system Introduction What’s in the box Overview of the main unit 3 Get started Install the car audio Turn on Set date and time Adjust screen 4 Use map Upgrade the map 5 Listen to radio Tune to a radio station Store radio stations in memory...
DivX, Inc. and are used under license. registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Philips is under license. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
What’s in the box Check and identify the contents of your package: a Main unit b Power connector c I/O cable d Audio out cable e CMMB connector f GPS antenna g Screen cleaning cloth h Printing material (include User manual, Quick start guide)

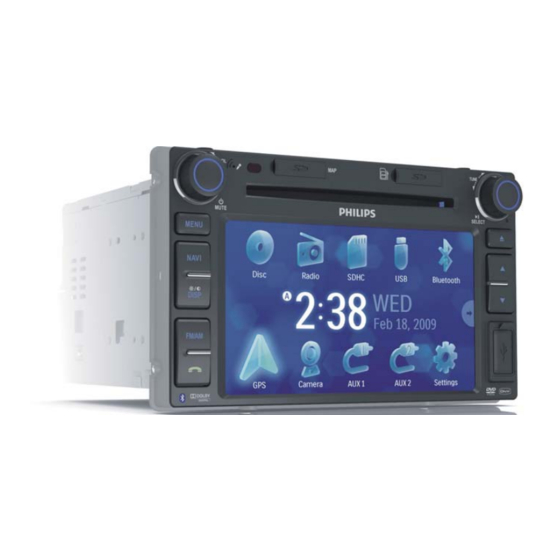

Overview of the main unit a Built-in microphone b SD card slot c Disc slot d Map card slot e TUNE/ SELECT Tune for radio station. Skip to the previous or next title, chapter, or track. Start, pause or resume play. f RESET Reset the unit when it hangs up.
These instructions are for a typical installation. However, if your car has different requirements, make the corresponding adjustment. If you have any questions regarding installation kits, consult your Philips car audio dealer. Caution This unit is designed for negative ground (earth) 12 V DC operation only.
Connect wires (see “Connect wires” section). Slide the unit into the dashboard until a click sound is heard. onto the dashboard. Reconnect the negative terminal of the car battery. Connect wires Caution Ensure that all loose leads are insulated with electrical tape.
Check the car’s wiring carefully, then do the other connections: Yellow Green Blue Turn on Caution Risk of road accidents! Never watch video or adjust settings while you drive. Press to turn on the unit. » The available OSD (On-Screen Display) languages are displayed.
Touch [Settings]. Touch [Time]. » The date/time setup menu is displayed. Set date Touch [Date]. Touch on the displayed date information. » A submenu is displayed. Touch to set year, month and day. Set clock mode Touch [Clock mode]. Touch on [12Hr] or [24Hr] to select clock mode.
4 Use map Note You may need to upgrade the map before using it (see “Upgrade the map” section) Touch the upper left corner to display home menu. Touch [Navigation]. » The navigation menu is displayed in a few seconds. Refer to the map manual (in Chinese) to operate the navigation tool.
5 Listen to radio Tune to a radio station Touch the upper left corner to display home menu. Touch [Radio]. » Band and frequency information is displayed. Touch on FM or AM to select band: FM band options: FM1, FM2, FM3 AM band options: AM1, AM2 to tune to a radio station by step.
Touch [Save]. Touch one of the channels 01 to 06 to save the select band. Store stations automatically You can search for a station with intro search, which broadcasts a 10-second preview of each detected radio station. Select band. Touch Touch [Search].
Connect USB device Note Ensure that the device contains playable content. Open the USB door. Insert the USB device to the USB socket. » Play starts automatically. Note To remove the USB device, switch to disc, radio Insert USB or SD/MMC card Note Ensure that the device contains playable content.
Search for a folder Touch to return to playlist menu. Touch folders. Touch a folder, then touch Touch to start play. Touch to return to playlist menu. Touch to display all available audio folders. Touch a folder, then touch Touch to start play.
Touch to display the 2nd menu. Touch to select: [Repeat chapter]: play the current chapter repeatedly. [Repeat title]: play all chapters in the title repeatedly. [Repeat off]: cancel repeat play. For VCD karaoke or audio CD: Touch anywhere except for the upper left corner to display menu on the screen, if necessary.
Select audio mode When you play VCDs, you can select an audio mode (R/L/Stereo). During play, touch anywhere except for the upper left corner to display menu on the screen. Touch repeatedly until the audio mode is selected. Select subtitle language For DVD or DivX discs that contain two or more subtitle languages.
7 Play with Bluetooth device You can make or receive phone calls with Bluetooth-enabled phones through the unit. You can also listen to music from a Bluetooth- enabled device. Pair the Bluetooth-enabled devices To connect your Bluetooth device to the unit, you need to pair the device to the unit.
[Missed calls] [Received calls] [Dialed calls] [Phone book] [Sim phone book] [Local phone book] Or touch to dial number directly, then touch to dial. Receive call By default, all incoming calls are received automatically. If there is incoming call, [Incoming call...] Bluetooth microphone.
Adjust Bluetooth settings You can change below Bluetooth settings: [Bluetooth]: to turn on or off “Bluetooth” function [Auto connect]: to turn on or off “Auto connect” function [Auto answer]: to turn on or off “Auto answer” function [Pairing code]: to set paring code [Phone Book Sync]: to synchronize phone book In Bluetooth menu, touch...
Touch to select an EQ. Touch to adjust below settings: [Bass]bass range: -14 to +14. [Mid]middle range: -14 to +14. [Treb]treble range: -14 to +14. [LPH] 100, 200. [MPF] 1K, 1.5K, 2.5K. [HPF] 12.5K, 15K, 17.5K. Touch to restore the above settings into default settings.
9 Adjust settings Display system setup menu Touch the upper left corner to display main menu. » The main menu is displayed. Touch [Settings]. » The settings menu is displayed. When the setup adjustment is completed, touch to return to main menu. To display the second screen of main menu, touch .
General Options Description settings [Beep] [On] Turn on the beep sound. Each time you press a button, the unit beeps. [Off] Turn off the beep sound. [WallPaper] [Blue] Turn background color to blue. [Black] Turn background color to black. [Red] Turn background color to red.
Adjust video settings Touch [Video]. Touch an option repeatedly to select: Video Options Description settings [Aspect [Full] For widescreen ratio] display. [Normal] For normal display. [Video [Auto] The correct format input] is set automatically. Select this option if you are not sure which format should be selected.
Bluetooth Options Description settings [Pairing Set code for pairing code] the unit with other Bluetooth devices. Press to exit. Adjust language settings Touch [Language]. Touch an option repeatedly to select: Language Options Description settings [OSD] [English] Select on-screen- display language. [DVD [English] Select DVD audio...
Adjust DVD rating Touch [DVD rating]. Touch an option repeatedly to select: DVD rating Options Description [Set Set password to password] restrict the play of discs. The default password is 0000. [Rating [Kid safe] Acceptable for level] children. Acceptable for general viewers.
If the fuse gets damaged immediately after it has been replaced, there may be an internal malfunction. In such case, consult your Philips dealer. 11 Product information Note Product information is subject to change without prior notice. General Power supply...
Disc player System DVD / CD audio / MP3 system Frequency response 20 Hz - 20k Hz Signal/noise ratio >75dB Total harmonic Less than 1% distortion Channel separation >55dB Video signal format NTSC only Video output 1 +/- 0.2V Tuner Frequency range - FM 87.5 - 108.0 MHz (Europe) Frequency range -...
If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.philips.com/welcome). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available.
No image Parking brake wire connection is incorrect. Check the parking wiring. Video DVD settings do not match with the DVD. Adjust video DVD settings. Video connection is improper. Check the connections. Noise in broadcasts. Signals are too weak. Select other stations with stronger signals.
13 Glossary Bite rate The max data transfer through the USB port. Bluetooth that is meant to allow mobile devices to share information and applications without the worry of cables or interface incompatibilities. Denmark. Operate at 2.4GHz. For more information, see www.bluetooth.com. MultimediaCard.
