Philips CID3688/00 User Manual

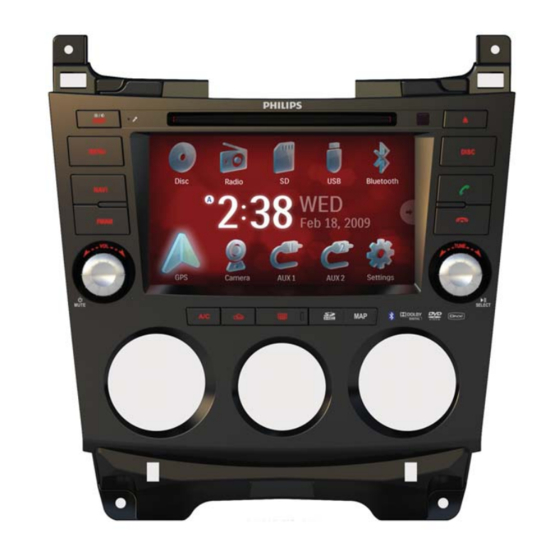

Philips car infotainment system cid3688 designed for besturn b70
Hide thumbs

Advertisement

Quick Links

Register your product and get support at
www.philips.com/welcome
CID3688
3
EN User manual
ZH-CN
35

Advertisement

loading

  Also See for Philips CID3688/00

  Related Manuals for Philips CID3688/00

  Summary of Contents for Philips CID3688/00

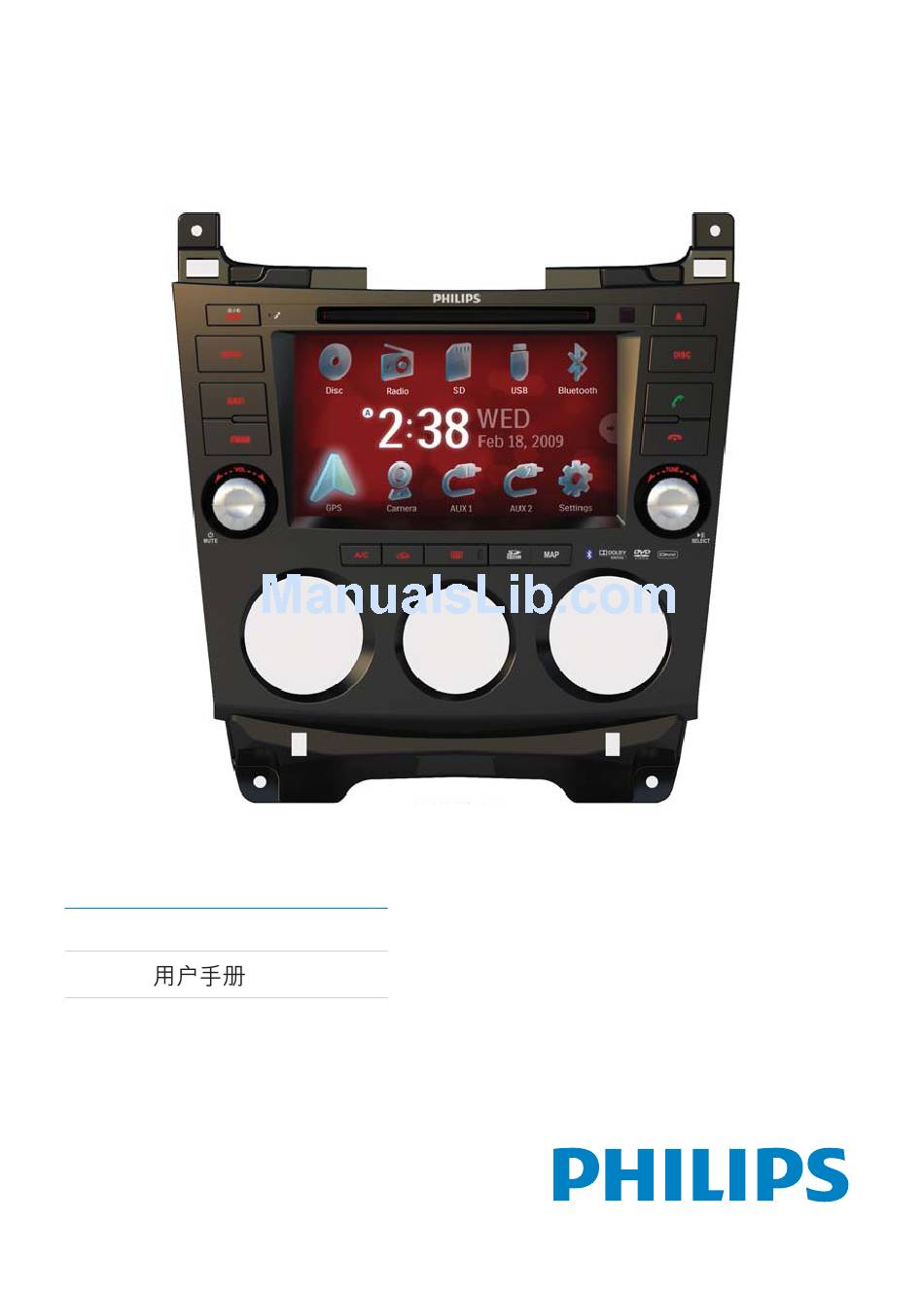

  • Page 1 Register your product and get support at www.philips.com/welcome CID3688 EN User manual ZH-CN...
  • Page 2: Table Of Contents

    Contents 1 Important Safety Notice Introduction What’s in the box Overview of the main unit 2 Get started Install the car audio Turn on Adjust screen Set date and time 3 Use map Upgrade the map 4 Listen to radio Tune to a radio station Store radio stations in memory Tune to a preset station...
  • Page 3: Important

    1 Important Safety Read and understand all instructions before you use the apparatus. If damage the warranty does not apply. Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation. This unit is designed for negative ground (earth) 12 V DC operation only.
  • Page 4: Introduction

    Please observe the local regulations regarding the disposal of old equipment. device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. 2010 © Koninklijke Philips Electronics N.V. All rights reserved.
  • Page 5: Overview Of The Main Unit

    d CMMB cable e Camera cable f GPS antenna g Mounting bolt h Rubber cap i Cleaning cloth j Printing materials (include User manual, Quick start guide, Installation guide) k QC card / Guarantee card Overview of the main unit...
  • Page 6 Eject disc. b DISC Select the disc source. (Green) Answer phone. Dial number. (Red) Terminate call. e TUNE/ SELECT Search backward/forward at different speeds. Display the EO setting interface. /MAP Open the cover and insert/remove the GPS map card. Open the cover and insert/remove the SDHC card.
  • Page 7: Get Started

    Install the car audio These instructions are for a typical installation. make the corresponding adjustment. If you have your Philips car audio dealer. Caution This unit is designed for negative ground (earth) 12 V DC operation only. Always install this unit in the car dashboard.
  • Page 8 Connector Connect to CAN BOX Red wire The +12V power terminal which is live in the accessory (ACC) position of the ignition switch If there is no accessory +12V car battery terminal that is always live. Be sure to connect the black ground (earth) lead to a metal Orange Illumination switch...
  • Page 9 Yellow Green Blue Gearbox Connect GPS antenna supplied GPS antenna to your car and the system. Connect the supplier GPS antenna to the AV system Rear display Wireless headphone Stick the other end of the GPS antenna to a metal surface of the car. Connect GPS antenna it to the radio antenna of the system for better radio signal.
  • Page 10: Turn On

    Mount in the dashboard Note Check wire connections before you mount the unit into a car. If preset radio stations are lost when the ignition the red leads crosswise to the yellow ones. If the car does not have an on-board the negative terminal of the car battery.
  • Page 11: Adjust Screen

    Adjust screen To adjust screen brightness Press DISP/ / to show the brightness bar. Tap / to adjust the value. Press DISP/ / DISP/ / . Set date and time Tap the upper left corner to display the main menu. Tap in the middle right side of the screen.
  • Page 12: Use Map

    3 Use map Note You may need to upgrade the map before using Tap the upper left corner to display the main menu. Tap [Navigation]. » The navigation menu is displayed in a few seconds. Refer to the map manual (in Chinese) to operate the navigation tool.
  • Page 13: Listen To Radio

    4 Listen to radio Tune to a radio station to display the home menu. Tap [Radio]. » Band and frequency information is displayed. Tap on FM or AM to select band: FM band options: FM1, FM2, FM3 AM band options: AM1, AM2 to tune to a radio station by step.
  • Page 14: Tune To A Preset Station

    Store stations automatically which broadcasts a 10-second preview of each detected radio station. Select band. Tap [Search]. » Auto search starts. The six strongest stations of the selected band are saved in preset channels 1-6 automatically. Tune to a preset station Tap [Radio].
  • Page 15: Connect Usb Device

    Connect USB device Note Ensure that the USB device contains playable content. Insert your USB device to the USB socket. » Play starts automatically. Remove the USB device Switch to another (non-USB) source. Remove the USB device. Insert SD/MMC card Note Ensure that the device contains playable content.
  • Page 16: Skip/Search

    Skip/search to return to playlist menu. : To display all available audio folders/track. : To display all available picture : To display all available video to select a folder/track. to start play. Search within a title/folder Direct search Tap anywhere except for the upper left necessary.
  • Page 17: Repeat A Section

    Repeat a section (repeat A-B). upper left corner to display menu on the necessary. repeatedly to mark: [Repeat A-]: the start of the section to repeat. [Repeat A-B]: the end of the section to repeat. The selected section plays repeatedly. repeatedly until [Repeat A-B off] is displayed.
  • Page 18: Zoom

    Zoom You can zoom in pictures for a close view. except for the upper left corner to display repeatedly to zoom in the picture. to pan through the enlarged picture. Select slide show duration Tap anywhere except for the upper left necessary.
  • Page 19: Make A Call

    Disconnect Bluetooth devices » (green) is displayed. The device will also be disconnected when the device is moved beyond the operational range. If you want to reconnect the device to the If you do not want to reconnect the device to >...
  • Page 20: Listen To Music From Bluetooth Device

    Switch phone call to the mobile If you do not want your passenger to hear the mobile. » The voice is transferred from the unit’s loudspeaker to the mobile phone. Listen to music from Bluetooth device If the connected Bluetooth device supports you can listen to the music stored on the device through the unit.
  • Page 21: Adjust Sound

    7 Adjust sound Adjust volume Turn /MUTE/VOL button clockwise to increase volume. Turn /MUTE/VOL button anti-clockwise to reduce volume. Mute /MUTE/VOL. VOL again. You can also tap on the screen to turn off sound. Select preset equalizer You can select preset equalizer: [User] [Techno] [Rock]...
  • Page 22: Set Dynamic Bass Boost (Dbb)

    Tap F R L R to adjust fader/balance value. [Fade] fader range: +24 to -24. (F = [Balance] balance range: -24 to +24. to exit. Set Dynamic Bass Boost (DBB) to toggle between the settings. [DBB] on: The icon is illuminated. [DBB] off (default): The gray.
  • Page 23: Adjust Sound Settings

    to highlight a setting. Tap on the option to display/select an option. General Options Description settings [Radio [USA] Select one that region] [S.Amer-1] matches your [Arabia] location. [China] [S.Amer-2] [Europe] [Korea] [OIRT] [Radio [Local] Only stations range] with strong signals can be broadcast.
  • Page 24: Adjust Video Settings

    Tap an option repeatedly to select: Sound Options Description settings [Sub [On] Turn on the subwoofer. woofer] [Off] Turn off the subwoofer. [Sub [80Hz] woofer criteria. [120Hz] [160Hz] [DBB] [On] The Dynamic Bass Boost (DBB) function is on. [Off] The DBB function is off. [DRC] [On] Makes loud sound level softer and soft sound...
  • Page 25: Adjust Bluetooth Settings

    Adjust Bluetooth settings Tap [Bluetooth]. Tap an option repeatedly to select: Bluetooth Options Description settings [Bluetooth] [On] Turn on the Bluetooth function. [Off] Turn off the Bluetooth function. [Auto [On] If the pre-paired connect] device is within the unit re-connects to pre-paired device automatically.
  • Page 26: Adjust Volume Settings

    Adjust volume settings You can set different volume for different modes. Tap [Volume]. » The volume setting sub-menu is displayed. Tap on a source. [DVD] [USB] [SDHC] [Radio] [Bluetooth] [AV-IN1] [AV-IN2] [TV] [Navigation] to assign value: 0 to 12. » volume increases automatically.
  • Page 27: Others

    9 Others Reset Press RESET with a ball-point pen or similar tool. unchanged. Remove the unit dashboard. Pull the unit out from the dashboard. Replace fuse and need to be replaced. Take out the unit from dashboard. Check the electric connection. Buy a fuse that matches the voltage of the damaged fuse (15A) Replace the fuse.
  • Page 28: Product Information

    Note If the fuse gets damaged immediately after it dealer. 10 Product information Note Product information is subject to change without prior notice. General Power supply negative ground Fuse 15 A Suitable speaker 4 - 8 impedance Maximum power 50 W x 4 channels output Continuous power 24 W x 4 channels...
  • Page 29 Tuner Frequency range - FM 87.5 - 108.0 MHz (Europe) Frequency range - 522 - 1620 KHz AM (MW) (Europe) Usable sensitivity - FM 5 uV Usable sensitivity - 50 uV AM (MW) Screen size 7 inches (16:9) Display resolution 800 x 480 dots Contrast ratio Brightness...
  • Page 30: Troubleshooting

    Never remove the casing of this apparatus. the system yourself. If you encounter problems when using this requesting service. If the problem remains (www.philips.com/welcome). When you is nearby and the model number and serial number are available. No power Car engine has not been started. Start the car engine.
  • Page 31: Glossary

    The paired mobile phone connects and disconnects constantly. The Bluetooth reception is poor. Move the mobile phone closer to the system or remove any obstacle between the mobile phone and the system. Some mobile phones may connect and disconnect constantly when you make or end calls.
  • Page 32 Secure Digital. A type of memory card with a SDHC Secure Digital High Capacity (SDHC) is a enables SD cards to reach higher capacities WMA (Windows Media Audio) part of Microsoft Windows Media technology. Includes Microsoft Digital Rights Management encoding technology.
  • Page 33 – – 2006. ZH-CN...
  • Page 34 © 2010 Koninklijke Philips Electronics N.V. All rights reserved. Document order number: CID3688_00_UM_V1.0...

This manual is also suitable for:

Cid3688
