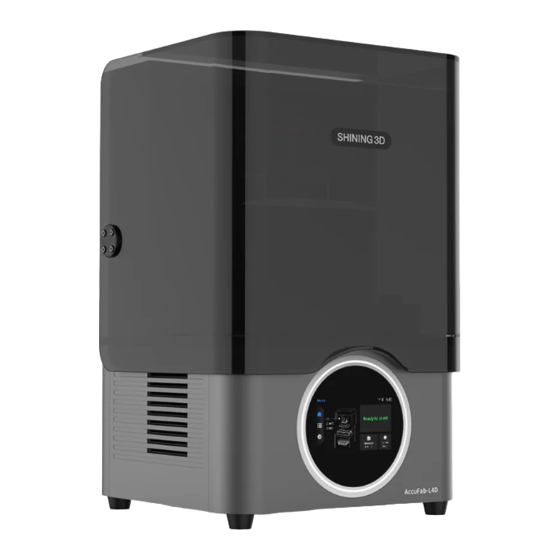

- Page 1 AccuFab-L4D User Manual V3.3.20...
- Page 2 Foreword General The user manual (hereinafter referred to as "the manual") introduces the functions, installation, operation and maintenance of the AccuFab-L4D printer (hereinafter referred to as "the printer"). AccuWare is the data preparation software for AccuFab printers. Fab Cure is the curing unit for AccuFab printers FabWare is the operating software for AccuFab printers.
- Page 3 The Manual is related to your safety, lawful rights and responsibilities. Please read it carefully before installing and using the product. Shining 3D Tech Co., Ltd. (hereinafter referred to as "the Company") owns complete intellectual property rights of the Manual. No part of the Manual may be reproduced, transmitted, distributed, adapted, compiled or translated in any form or by any means without the prior written consent of the Company.
-
Page 4: Table Of Contents
CONTENT Safety Material Contact Ultraviolet Light Ethanol Sharp Tools Electromagnetic Interference Operation Environment Site Requirements Material Storage Product Overview AccuFab L4D Accessories Printer Setup Unpacking Install the Printer Add Material FabWare Connecting to Network 5.1.1 LAN Network 5.1.2 Wireless Network FabWare Update Online Update 5.2.1... -
Page 5: Safety
The printing material of AccuFab printer is photo-polymerized resin material independently developed by SHINING 3D. The resin is stable, safe, and no substances harmful to the human body found in the test, but direct contact with skin may cause adverse irritating reactions. -
Page 6: Operation Environment
Operation Environment Site Requirements AccuFab 3D Printer Power Supply 100-240V/360W Temperature 20°C-35°C Humidity 30%-70% Dust free, Ultraviolet light avoided, Ventilated Environment Frequency Range 2400–2483.5MHz Maximum Output Power 18dBm Note: Ignoring the requirement of the environment may lead to print failure or part accuracy issue Fab Cure Post-Curing Unit Power Supply... -
Page 7: Product Overview
Product Overview AccuFab L4D Chamber door Build platform bracket Build platform Resin tank Touch screen Power port Network port Power button B-type USB port... -
Page 8: Accessories
Product Overview Accessories Spare Resin tank Quality Certification Power Cable Quick Start Guide Cleaning box USB flash drive USB cable Network cable Disposable Gloves Scraper Angular Knife Putty knife Brush Resin tank Cloth PET Card Wrench Bolt cleaner Note: Detailed information please refer to Quick Start Guide... -
Page 9: Printer Setup
Printer Setup Precaution: Do not plug in the printer before the unpacking process is complete. Or the initialization action may cause stuck of the filling materials inside printer Unpacking Take out the printer from the package. Remove the package and place the Take out accessory box from fixing printer on the table. -
Page 10: Install The Printer
Printer Setup Install the Printer Put clean resin tank into the position. Lock the buckles for platform. (There are four positioning slot) DO NOT remove the screen protector. Screen Protector Bolt the resin tank to the printer temporarily for operating, if the buckle is damaged and the replacement is not available at the moment. -
Page 11: Add Material
Printer Setup Add Material The resin material is a mixture, and it is likely to form a small amount of sediment after placing for long time. Please shake the bottle well before adding to the resin tank. Shake The Bottle Use scraper to stir resin in the tank to avoid sediment. -
Page 12: Fabware
FabWare FabWare is the operating software for the printer, which controls the printer operation and some manual settings can be done by user. The home page shows the printer status Home . Idle, printing or printer finished. Also the build environment info is displayedfor reference. -
Page 13: Connecting To Network
FabWare Connecting to Network If you want to send the print file after slicing through network. Then you need to connect the printer to the network first, to LAN network or wireless network. 5.1.1 LAN Network Connect the Ethernet cable to the network port Go to the FabWare. -
Page 14: Fabware Update
FabWare FabWare Update There are two ways of updating FabWare. Online and Offline. 5.2.1 Online Update Open About Printer. Update Software. Click Update to update the software Select Network Update. or material profile. Reboot When new FabWare versions is available, a prompted window will indicate user to update. -
Page 15: Print
Print Workflow IMPORT PRINT FILE AccuWare SETUP PRINTING POST PROCESSING AccuWare Detailed information please refer to AccuWare User Manual Resin Tank Setting The FabWare displays the current material setting for the resin tank and the layers have been printed with the current resin tank. You can click on the setting to change the setting. -
Page 16: Platform Level (Optional)
Print Platform level (Optional) Platform level is crucial to successful print.Please install the clean platform and remove the resin tank before the level process. First, place a piece of A4 paper on the LCD screen,please make sure that the A4 paper is clean and has no excessive wrinkle. -
Page 17: Clean Resin Tank(Optional)
Print Clean Resin Tank (Optional) Clean Resin tank is a function that can be used after a print failure. To clean some residue the failed print left in the resin tank. Place the resin tank cleaner in the corner. On the FabWare main interface, tap resin tank area to enter the Resin Tank Information. -
Page 18: Choose Printing File
Print Choose printing file Files can be sent to the printer with flash drive or through network. To ensure the model printing quality, keep the chamber door closed when the Printer is printing or just finished printing. Do not touch the model, resin tank, build platform or any other Printer parts. -
Page 19: Flash Drive Printing
Print 6.5.1 Local Printing to start printing process. Next After finishing printing,tap to finish. 6.5.2 Flash Drive Printing Insert the USB flash drive with sliced files into the Printer. On FabWare main interface, tap to enter the printing interface. to enter the USB flash drive. Select files to be printed. -
Page 20: Printing Status
Print Printing Status In the printing page, you can check the printing progress as well as pausing and cancelling the current printing. Name Description Print detail Tap to return to the previous step. Print layer Printed layers/Total layers. Time Time elapsed/Total time Percentage bar Printing progress Pause... -
Page 21: Post Processing
Post Processing Remove Model A few tools in the accessory box are for the cleaning of platform. Please avoid protrusion of the platform surface. As it would press the resin tank film during printing process. And may damage the film or even the screen. After the printing finishes, leave the part there for a few minutes before removing. -
Page 22: Cleaning
Post Processing Cleaning 7.2.1 Clean Model Put the printed parts into the bath of alcohol (concentration of 75% or above). And clean manually for about 30 seconds. You can use cleaning machine as well. Alcohol 75% Optional: Dry the model with high-pressure air. 7.2.2 Clean Build Platform A few tools in the accessory box are for the cleaning of platform. -
Page 23: Model Post Cure
Post Processing Post Cure It is necessary to place the green part for a post cure process. To enhance the performance and also to cure the uncured surface of the model. Models after post cure can be handled without gloves. Place the model into the curing box. - Page 24 Support Center: Aftersales service: Technical resource:...
