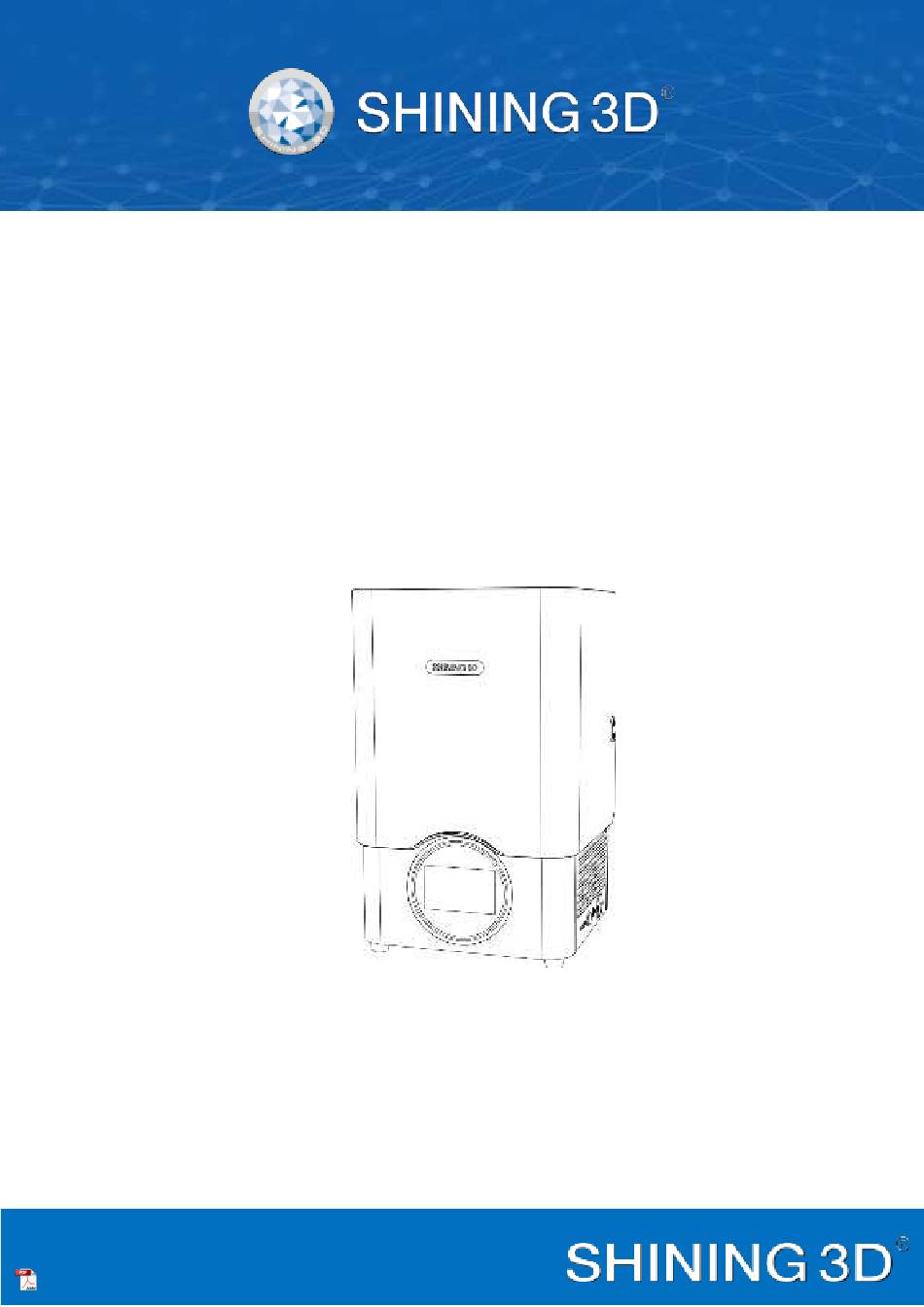

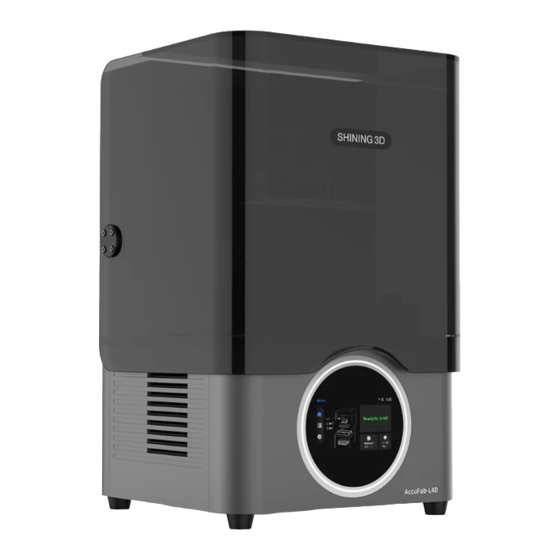

- Page 1 AccuFab-L4D & L4K User Manual V3.2.20...
- Page 2 Increase the separation between the equipment and receiver. ⚫ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ⚫ Consult the dealer or an experienced radio/TV technician for help. RF exposure statement AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
- Page 3 Thank you for choosing SHINING 3D AccuFab 3D printer (hereinafter referred to as the "Printer") and for your support of SHINING 3D brand. We will adhere to the enterprise tenet of "Creating Value for Customers" to bring better service for every user of this product. We declare that the AccuFab 3D printer is independently developed by SHINING 3D TECH CO., LTD.
-
Page 4: Table Of Contents
4.6.3. Function Description ........................13 4.6.4. Use Description ..........................15 4.7..........................27 RINTING HART 4.8..........................28 OCAL RINTING 4.9. USB F ........................28 LASH RIVE RINTING 4.10....................... 29 RINTING TATUS IEW AND ONTROL PROCESS MODEL..........................31 AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... - Page 5 ..............................32 LEAN 5.2.1. Model ............................32 5.2.2. Build Platform ..........................32 5.3............................34 ODEL 5.4..........................36 TRIPING UPPORT PRODUCT CARE AND MAINTENANCE ....................37 FAQS AND TROUBLESHOOTING ......................38 CONTACT US ............................40 AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
-
Page 6: Foreword
The printing material of AccuFab printer is a photo-polymerized resin material independently developed by SHINING 3D. The resin solution is stable, safe, and no substances harmful to the human body were found in the test, but direct contact with skin may cause adverse irritating reactions. During use, operators should strictly follow of the Material Safety Data Sheet (MSDS) instructions for each material. -
Page 7: Instructions For Operation Environment
Ensure that the AccuFab 3D printer only uses the original consumables and accessories. Any change to the printer without the manufacturer's permission will result in device failure, which will invalidate your warranty. ⚫ Ensure that the AccuFab 3D printer works in the recommended printing environment, and the incongruent AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... - Page 8 To guarantee the printing quality of the model, keep the chamber door closed during operation or just finished the operation, and do not touch the model, resin tank, platform, or other parts of the device by hand. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
-
Page 9: Product Introduction
Resin tank Note: Take proper protective measures as the surfaces of the build platform and resin tank is easy to wear. Slight dirt and scratches on the surfaces will not cause printing failure. Side view AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... -
Page 10: Technical Parameters
Print Speed thickness. Print Accuracy ±0.05 mm Layer Thickness 0.025 mm/0.05 mm/0.075 mm/0.1 mm Material Compatibility Shining 3D material; certified 3rd party material Printer Printer Dimensions 360 mm × 360 mm × 530 mm Weight 19 kg 20℃-30 ℃ Operating Temperature... -
Page 11: Preview Of Curing Box Structure
Resin tank 3.3. Preview of Curing Box Structure For more details, refer to Fab Cure Post-Cure Oven_User Manual_V2.0. Components Name Name Shading door Display screen UV lamp Acrylic turntable Knob Power button — — Power port AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... -
Page 12: Installation
Take out accessory box ④ from fixing foam ③ inside the printer. Step 2: 4.2. Install the Printer Insert build platform ⑤ into the guide slot and tighten the screw on the platform. Step 1: AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... -
Page 13: Add Material
Step 3: Connect the power supply as the picture shows, and press the power button on the right side of the printer. 4.3. Add Material Shake well before pouring material into the resin tank. Note that the resin level should be between the indicator lines of minimum and maximum. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... -
Page 14: Network Connection
19 on the back panel of AccuFab, and insert the other end to the Internet. ⚫ Enter the "Settings-Network Settings" interface of the device, and set the Wired Network so that the Status is "On" and the Automatic Acquisition status is "Yes." AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... -
Page 15: Wi-Fi Connection
WIFI signal. Select the same WIFI as the computer where the software is located, enter the WIFI password and click “OK” to confirm. ⚫ After the WIFI connection is successful, return to the "Settings-Network Settings" interface, and the acquired IP address in the wireless network interface is the LAN sending address. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... -
Page 16: Software Update Function
4.6. AccuWare Software The matched slicing software of AccuFab 3D printer is AccuWare model processing software independently developed by SHINING 3D (hereinafter referred to as "software"), which has the Office interface style and is easy to use and operate. AccuFab 3D printer only supports "*.slp4" format model printing files. Before printing, the 3D model file in STL format shall be arranged and sliced with AccuWare software, and the sliced "*.slp4"... -
Page 17: Interface
Step 5: After installation, double-click the desktop software icon (shown in the figure) to open the software. Note: For first-time software start, all machine types are selected by default. 4.6.2. Interface AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... -
Page 18: Function Description
Module Name Open File Insert STL file selected by the user in the current file. File Link to the recently used STL model, and click it to load the Recent File model into the software. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... - Page 19 View the model selection area from "top." Bottom View View the model selection area from "bottom." Contains some file contents and tools in the software. Click this Settings Settings button in the upper right corner to view for operation. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
-
Page 20: Use Description
Open AccuWare software to display the printing setting interface, which can select the machine type, machine name, material and layer thickness of the printer to be printed, and set the rotation angle, scaling offset and contour offset of the imported model. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... - Page 21 After the model is successfully imported into AccuWare software, users can use the mouse to rotate the platform to view the model status from different angles, or use the software panel "Perspective Selection Button" to AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
- Page 22 The following shows the preview effect of the sample model from different perspectives. Note: When in 6 positive views, only circles rotated along the normal axis in the view are displayed. Default direction Front Back Left Right AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
- Page 23 XYZ coordinate values (0, 0, 0) when the model is in the center of the platform. Enter other values in the box of XYZ axis coordinate values, and hit the “Enter” key to move the ➢ model position accordingly. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
- Page 24 Input other angle values on the XYZ axis coordinate value box, and press the “ENTER” key to change ➢ the model angle accordingly. ⚫ : It can reset the selected model's rotation operation after triggering and AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
- Page 25 XYZ dimension to the initial value. Automatic Layout ⚫ Automatic layout: Intelligently arranges the imported model on XY plane. ⚫ Spacing: The shortest distance difference of models. The graph shows the display of normal layout and automatic layout. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
- Page 26 ⚫ Function trigger: Support interface or button. ⚫ Support type: Inner support, reinforced support. ⚫ Base type: No base, bounding box, orthographic projection, outer contour. ⚫ : The selected model can be restored to the initial position. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
- Page 27 Reinforced support: If checked, tree-shaped reinforced support will be generated intelligently. ➢ Base only: Only generate the base at the bottom without support. ➢ Auto support: Supports are automatically generated with set size and shape. ➢ Clear support: Abandon the current editing of supports. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
- Page 28 "Slice" button to generate "*.slp4" printing files. Step 1 Click the slice icon to pop up the slice preview interface. Note: ⚫ AccuWare supports GPU accelerate for the slicing function. With a graphic card of GTX 750 or AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
- Page 29 Step 3 It is also possible to click “cancel” after generating slices, and re-slice by clicking the slice button on the interface’s left. The exported model file can be saved locally or directly to USB devices. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
- Page 30 Users are recommended to check "Settings - System Settings - Software Update -Auto Update". After checking, the setting module will be marked with a red dot when a new version of the software is available and the network is in normal condition. Remote Assistance AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
- Page 31 Click Print Calibration Model, and the platform displays the calibration model for slicing. Check the option “Calibration Model Print Finished” to highlight the button of “Next Step”, and click “Next Step” to enter the measurement interface. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
-
Page 32: Printing Flow Chart
Enter the measurement value in the measurement interface, and the “Next Step” button will be highlighted, then it will forward to the results page. Click the “Apply” button on the results page, apply the “scale offset” and “contour offset” value to the current material. 4.7. Printing Flow Chart AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... -
Page 33: Local Disk Printing
4.9. USB Flash Drive Printing USB flash drive printing prints the "*.slp4" model file loaded into the USB flash drive. Step 1: Copy the slice file of slp4 format generated by AccuWare software to the USB flash drive. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... -
Page 34: Printing Status View And Control
4.10. Printing Status View and Control After the device starts printing, users can view and control the printing status in the operation panel. ⚫ Print: Start the printing process. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... - Page 35 Print progress bar: Display the printing progress and printing status of the current layer. ⚫ Detail Info: View the information of the model slice parameter. ⚫ Print preview area: Display the cross-sectional view of the current layer. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
-
Page 36: Process Model
5.1. Take Out Model Note: For appearance, AccuFab-L4D and AccuFab-L4K differ only in sunshield colors. This chapter takes AccuFab-L4K as an example. Step 1 After the model printing finishes, lift and suspend the build platform for 5 minutes. Thus, the residual resin material attached to the model’s surface drops back to the resin tank. -
Page 37: Clean
Take out the printed model from the cleaning box, dry the resin and alcohol on the surface, and standing to dry the model. 5.2.2. Build Platform Step 1 Use a putty knife to clean up the model residue on the build platform. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... - Page 38 Wear disposable gloves and judge whether the residue is clean Step 2 Use the soft glue brush with wet alcohol to clean up the residual resin on the surface of the build platform. Clean the front of the build platform AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
-
Page 39: Cure Model
Step 1 Place the model into the curing box. Wear disposable gloves, open the shading door of the curing box, uniformly place the cleaned model on the center of the acrylic turntable of the curing box, close the shading door after placing. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... - Page 40 After curing, the buzzer of the curing box will ring to prompt. Then the shading door can be opened to take out the model. Note: Clean the foreign matter on the acrylic turntable and curing box after curing. Keep the curing box clean for future use. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
-
Page 41: Striping Support
The exposure time parameters of different printing materials are different. ⚫ Adhere the utility knife to the build platform to avoid the deformation of the model when taking off the model, and clean the platform with paper towels after cutting. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... -
Page 42: Product Care And Maintenance
Confirm whether it — LCD panel Once/per week works normally. Build platform Confirm the Once/every 30 — leveling leveling state. days Guide rail and Once/every 3 Maintain lubrication with lubricating Keep lubricant. screw rod months oil. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... -
Page 43: Faqs And Troubleshooting
Failure of slicing because of STL slice failed. too many holes on the model Slice after recovery. surface. No device or No device or materials selected Select device or materials before material. before operation. performing other operations. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021... - Page 44 Please use repair model surface. function! Repair failed. Open Failure of repair for too many the model interface, holes on the surface of the Multiple recoveries after saving. and the model still model. displays red. AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021...
-
Page 45: Contact Us
All Rights Reserved Shining 3D Tech. Co., Ltd reserves the right to own. The publication may not be reproduced, transmitted, transcribed, or translated into any other language for any purpose without the consent of the company.
