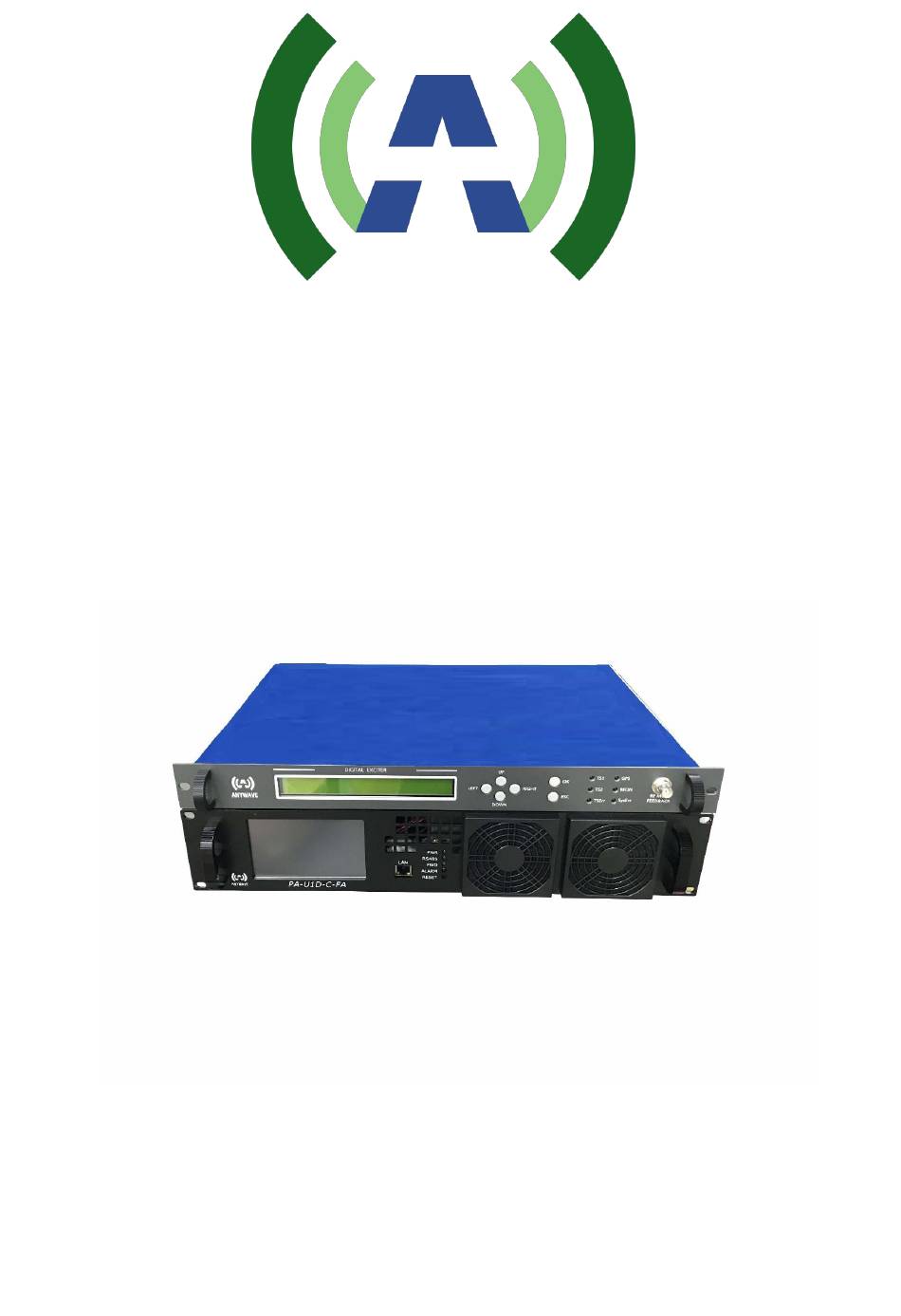

- Page 1 ANYWAVE TRN-U1D DTV Transmitter Quick Start Guide Version 2.2 – September 25, 2019...
- Page 2 TRN-U1D-C-FA Quick Start Guide Copyright Notice Copyright © Anywave Communication Technologies, Inc. 2018, All rights reserved. No part of this publication may be reproduced, translated, transcribed, stored in a retrieval system, or transmitted into any form or by any means, without the express written permission of Anywave Communication Technologies, Inc.
- Page 3 Returns and Exchanges Written approval and a Return Authorization Number (RAN) are required from Anywave for all equipment returns. Please direct all return inquiries to the Anywave Service Department at support_us@anywavecom.com, providing the Sales Order number and Serial Number(s) of the equipment.
- Page 4 The installation, operation, maintenance, and service of this equipment involves risks both to personnel and equipment, and must ONLY be performed by qualified personnel exercising due care. Anywave Communication Technologies, Inc. shall not be responsible for injury or damage resulting from improper handling or from the use of improperly trained or inexperienced personnel performing such tasks.
-
Page 5: Table Of Contents
TRN-U1D-C-FA Quick Start Guide Contents 1 Introduction ......................6 2 Organization of Manual ..................6 3 TX System Overview ..................7 4 TX System Interconnect ..................8 5 Initial Turn On ..................... 9 ACT-PA-U1D-QSG-DOC-V2.2, 09/25/2019 Page 5 of 16... -
Page 6: Introduction
1 Introduction This Quick Start Guide contains instructions to safely set up and turn on the Anywave TRN U1D DTV Transmitter. Please note that trained and qualified personnel are required to install, maintain, and service this transmission equipment. 2 Organization of Manual This Manual is broken up into several sections. -
Page 7: Tx System Overview
TRN-U1D-C-FA Quick Start Guide 3 TX System Overview Final assembly and test of each transmitter are performed at the Anywave factory. The Exciter is set up on the desired channel frequency and the TX is tested with the complete RF system (if purchased) at full power into a load. All TX operating parameters are optimized and the Transmitter Forward and Reflected power meters are properly calibrated. -
Page 8: Tx System Interconnect
TRN-U1D-C-FA Quick Start Guide 4 TX System Interconnect The Anywave TRN U1D DTV Transmitter consists of an Exciter, a PA-U1D-C-FA PA, and a BPF (optional) with two additional single port couplers for Exciter feedback samples (optional). The diagram below shows the overall system interconnect between the system components. -
Page 9: Initial Turn On
TRN-U1D-C-FA Quick Start Guide 5 Initial Turn On Please locate and have handy for reference a copy of your ACT TRN-U1D-C-FA Factory Test Report as well as the ACT TRN-U1D-C-FA Quick Start Guide, and PA-U1D-C-FA PA and Exciter User Manuals. - Page 10 TRN-U1D-C-FA Quick Start Guide and REFL-POW. Visit the PA’s touchscreen, or its Web interface and verify that the current (Cur1) are showing real values and not all 0s. 6. You are now ready to bring the TX up to power. To accomplish this, slowly...
- Page 11 TRN-U1D-C-FA Quick Start Guide Monitor FWD SYS POWER 7. Continue to slowly raise the FWD power until you reach the rated power (200W before BPF in ATSC), or your desired TPO. Be careful to make small increases in the value of POWER as you approach the desired output level.
- Page 12 TRN-U1D-C-FA Quick Start Guide If you are operating at a TPO less than rated power and wish to rerun corrections, please proceed with the following steps, otherwise please skip ahead to step 12. 9. (Optional Step - Rerunning Corrections) If you are operating at reduced power and wish to rerun corrections to achieve better performance, you may now perform Linear and Non-Linear corrections.
- Page 13 TRN-U1D-C-FA Quick Start Guide automatically saving the coefficients into non-volatile memory upon completion. The correction process typically takes from 8-10 minutes to complete while real-time performance metrics of SNR and Shoulder performance are displayed on the LCD. 12. Check RF Performance metrics (SNR, LIMD, UIMD) on the front panel screen of the exciter, as well as on the PA’s touchscreen.
- Page 14 TRN-U1D-C-FA Quick Start Guide 15. For Remote TX Monitoring and Control, you may network to the PA LAN RJ- 45 rear panel connection at 192.168.1.210 – you can change the PA IP address by navigating to the Config submenu on the PA’s touchscreen, then press Network button, and change the value of IP, or you can change it via the PA’s...
- Page 15 TRN-U1D-C-FA Quick Start Guide 16. If using the Exciter Built-in remote web interface for remote control, please be sure to set the Exciter to REMOTE mode (set CTL to RMT) before leaving the transmitter site. The Remote/Local setting is located under the SYSTEM submenu.
- Page 16 TRN-U1D-C-FA Quick Start Guide Anywave Communication Technologies Inc. 300 Knightsbridge Parkway, Suite 150, Lincolnshire, IL 60069 Tel: (847) 415-2258 Fax: (847) 415-2112 Email: sales_us@anywavecom.com http://www.anywavecom.com/en/ ACT-PA-U1D-QSG-DOC-V2.2, 09/25/2019 Page 16 of 16...
