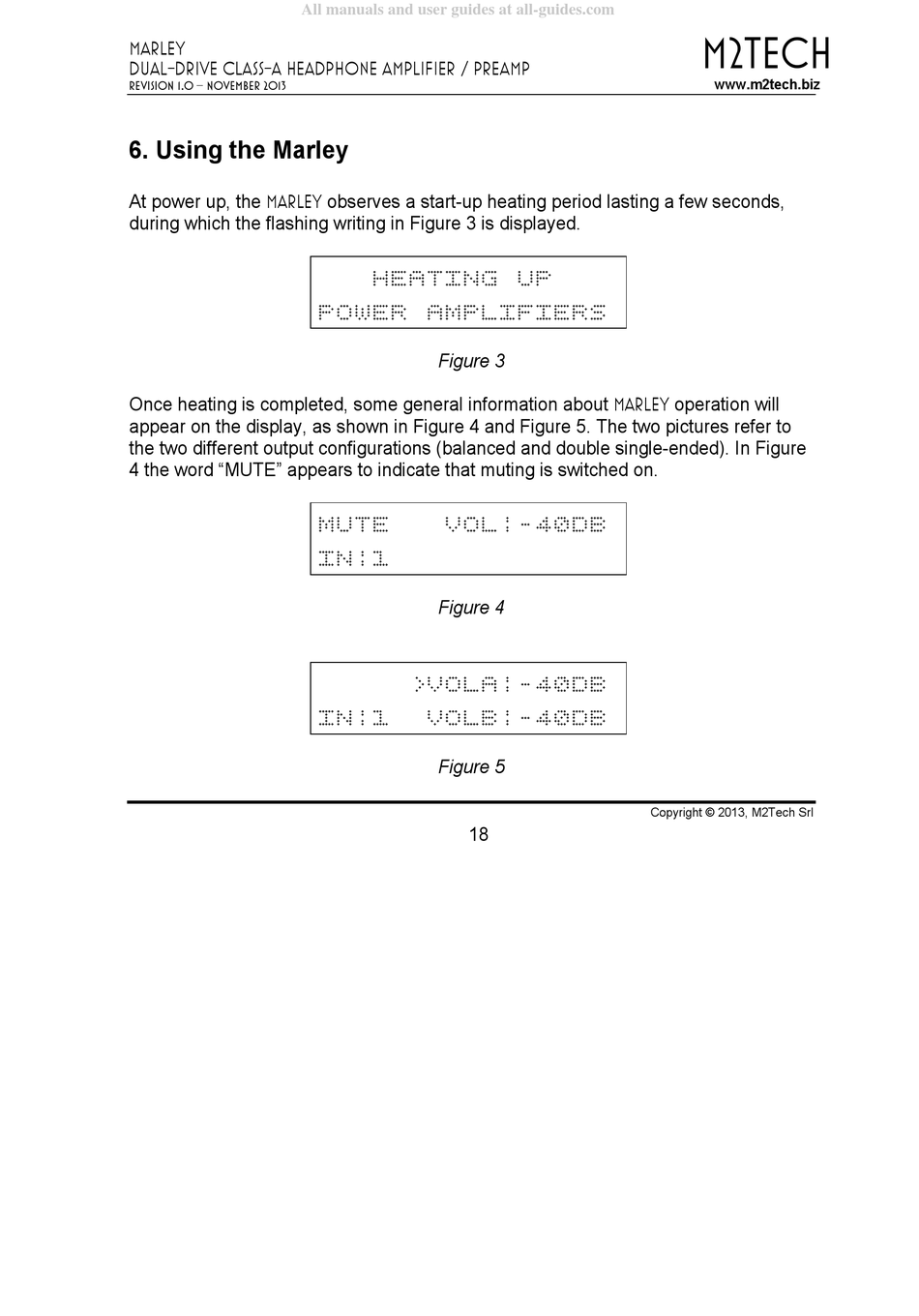

6. Using the Marley

At power up, the MARLEY observes a start-up heating period lasting a few seconds,
during which the flashing writing in Figure 3 is displayed.
Once heating is completed, some general information about MARLEY operation will
appear on the display, as shown in Figure 4 and Figure 5. The two pictures refer to
the two different output configurations (balanced and double single-ended). In Figure
4 the word "MUTE" appears to indicate that muting is switched on.
HEATING UP
POWER AMPLIFIERS
Figure 3
MUTE VOL:-40DB
IN:1
Figure 4
>VOLA:-40DB
IN:1 VOLB:-40DB
Figure 5
