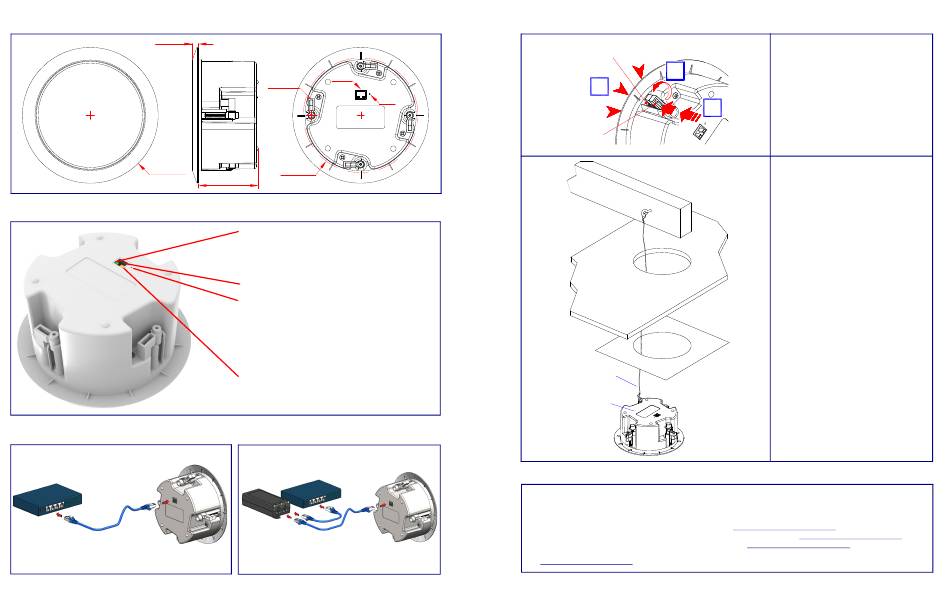

CyberData 011511 Installation Quick Reference page 2

Dimensions
0.35 [8.9]
Ø7.93 [Ø201.5]
Features
Connecting Power
802.3af Compliant PoE Switch
© 2022, CyberData Corporation, ALL RIGHTS RESERVED
Dimensions are in Inches [Millimeter]
Ethernet
4 x Flagnut
Ø6.70 [Ø170]
Ceiling Cutout
3.52 [89.4]
Speaker Network Link/Activity (Green)
The green Network Link/Activity LED comes on
immediately to show that there is a good network
connection, and then blinks to show network activity.
Ethernet Port
RTFM Switch
To broadcast a device's current IP address, use a paper
clip or a similar instrument to press and release the
RTFM switch within a five second window.
To restore a device's factory default settings, press and
hold the RTFM switch for more than five seconds.
Network 100 Mb (Yellow)
The yellow 100 Mb LED is illuminated when the network
100 Mb link to the speaker is established.
Non PoE Switch
PoE Injector
(Part #011124)
931901A
Mounting
RTFM
Contacting CyberData
Corporate Headquarters
CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA
Phone: 831-373-2601
Fax: 831-373-4193
https://www.cyberdata.net/
Quick Reference Quick Reference
Channel
1
2
3
Flag Nut
Joist
Eyebolt
Ceiling Tile
Template
Steel Wire
Seismic
Tether Bracket
(Pre-Installed)
Speaker
Assembly
Sales: 831-373-2601 ext. 334
Support: 831-373-2601 ext. 333
Support Website: https://support.cyberdata.net/
RMA Department Contact and Status:
Warranty Information:
931901A
Remove the Speaker Grill out of the Speaker
Housing:
1. Turn and line up at least two of the flag nuts
with their channel.
2. Grasp the speaker grill with your index,
middle, and ring fingers.
3. Place your thumb over the flag nut. At the
same time, slowly push out the speaker
grill.
Tools Required for Installation:
• (1) Sheetrock Saw or Drywall Cutter
• (1) #2 Phillips Screw Driver or Powered
Screw Driver with #2 Phillips Hex Bit
To mount the speaker:
1. Loosen the Four (4) flag nuts with a #2
Phillip Screw Driver or Powered Screw
Driver.
2. Use the TEMPLATE on the back of this
document to cut a hole in the wall* or
ceiling.
*Skip the seismic tether mounting when
mounting it to the wall.
3. Tighten the Four (4) flag nuts with a #2
Phillip Screw Driver or Powered Screw
Driver.
4. Replace the speaker grill to the speaker
housing.
