单口机冠字号和点币明细发送到 PC 端操作说明
The serial numbers and counted list to PC

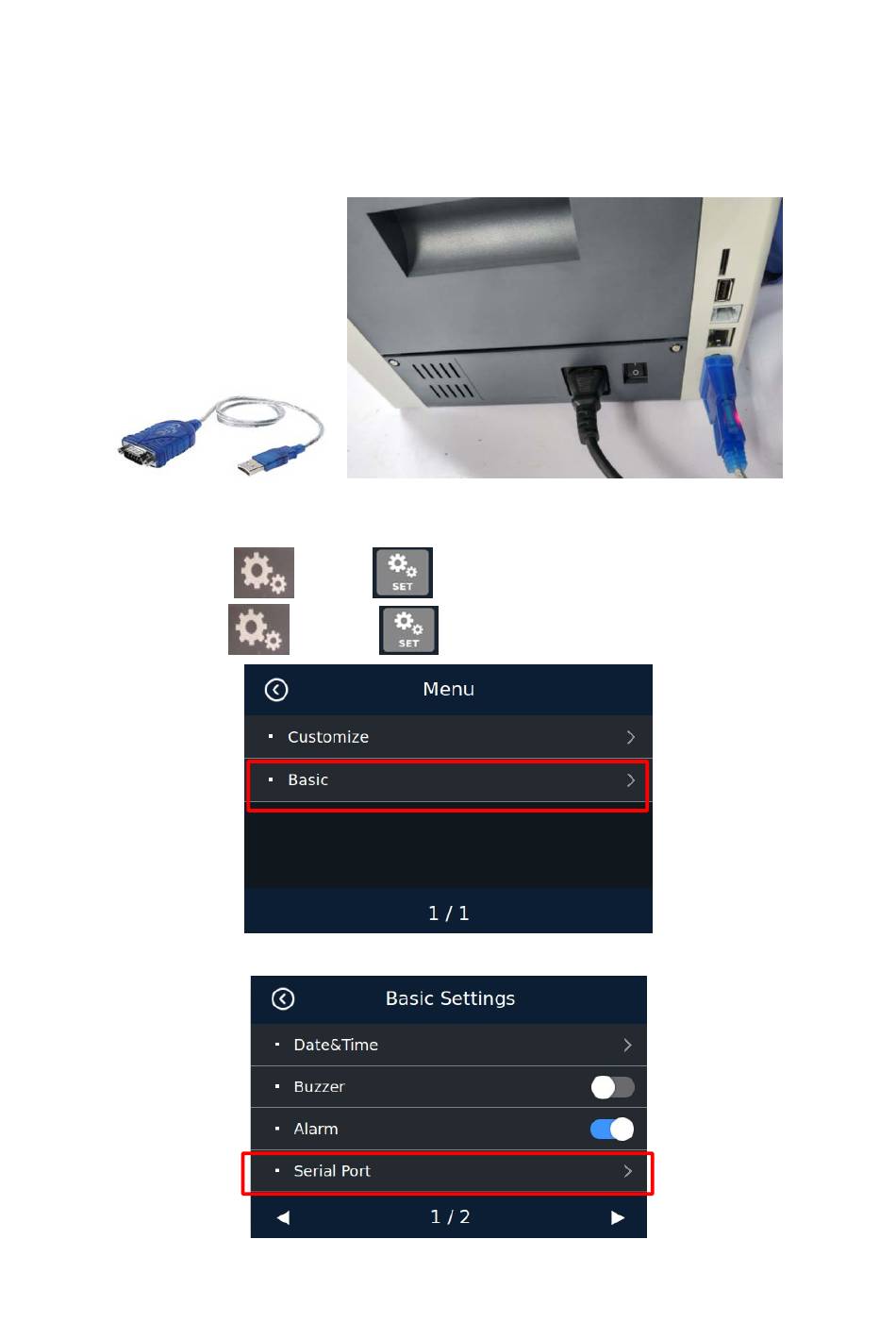

1. 串口线束插接 Cable of USB to RS-232 Male (9-pin)
Connect the machine & computer with the cable as below:
2.机器设置 setting on machine
打开电源开关，按
键或轻触
键进入用户设置主界面：
Power on, press
or touch
icon on screen to Menu interface:
选择 choose"Basic"——"Serial Port"
Advertisement
Table of Contents
Related Manuals for Ribao BC-55
Summary of Contents for Ribao BC-55
- Page 1 单口机冠字号和点币明细发送到 PC 端操作说明 The serial numbers and counted list to PC 1. 串口线束插接 Cable of USB to RS-232 Male (9-pin) Connect the machine & computer with the cable as below: 2.机器设置 setting on machine 打开电源开关，按 键或轻触 键进入用户设置主界面： Power on, press or touch icon on screen to Menu interface: 选择...
- Page 2 在选择“Baud Rate”界面，根据外接设备的实际情况，轻触 9600 或 115200 选定对应 波特率。 再点击右上角按键 进行保存。出厂设置为 115200bps。 Choose “Baud Rate” 9600 or 115200 per external devices’s requirement, factory default is 115200 bps, then confirm by touching on right top corner. 选择“Device Choice”界面，在 PC 后面打上 ，再点击右上角按键 进行保存。 Device Choice to select “PC” and confirm by touching on right top corner.
- Page 3 2. 采集列表信息 information collection on PC 打开上位机软件 选择串口及波特率，波特率须与机器上面选择的波特率一致。 Open the “Uppermonitor” software, select the correct port ”COM#”(connected COM# on your computer), “Baud Rate” (keep same as chosen on machine) 再按下 Open 键，串口和波特率字体变暗，OPEN 变为 CLOSE，然后进行点币即可查 看到点币信息 Press “Open” (Open button to be Close status), then count the bills on the machine, counted details will be uploaded &...
- Page 4 冠字号 SN# Select file format .xls or pdf 同时在上位机存放的文件夹会自动生成一个 Data 文件夹 ，打开文件夹 即可 找到相应的列表信息 On the same time, in the folder of Uppermoniter, there is a new folder DATA created, all counted lists are stored in a sub-folder with date-named folder like this 文件夹中出现两个相连的...
