Summary of Contents for Ribao BC-35

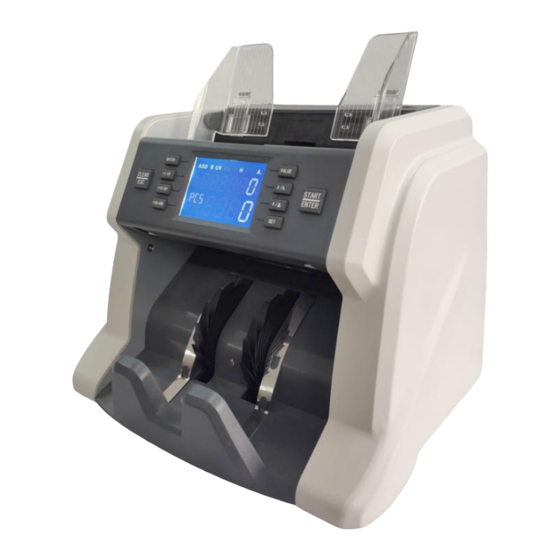

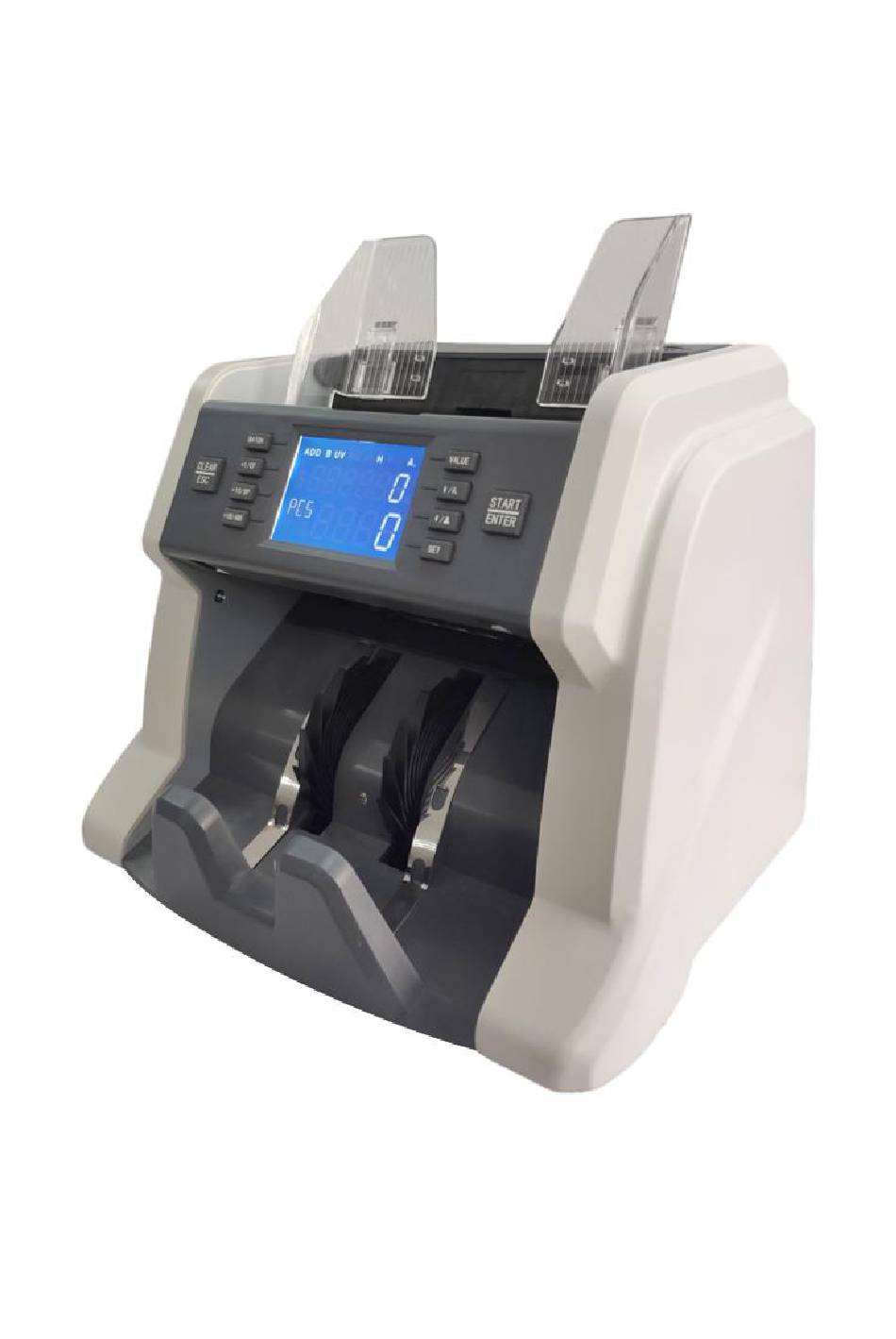

- Page 1 BC-35 Currency Counter User Manual...
-
Page 2: Table Of Contents
BC-35 User Manual V1.4 Contents Contents............................1 1.Introduction..........................2 1.1 Preface..........................2 1.2 Notice..........................2 2. Installation Notice........................3 2.1. Installation Notice.......................3 2.2. Installation place notice................... 3 3. Diagram............................4 3.1 Front Diagram........................4 3.2 Back Appearance......................5 3.3 Top Appearance......................6 4. Specification..........................7 5. -
Page 3: Introduction
BC-35 User Manual V1.4 1.Introduction 1.1 Preface Thanks for buying our product. The user manual includes the operation steps and matters need attention. In order to use the machine correctly, please read this manual carefully. If you meet any difficulty please contact your local distributor immediately. -
Page 4: Installation Notice
BC-35 User Manual V1.4 2. Installation Notice 2.1. Installation Notice 1) If you need to install this product, please contact the nearest distributor or our authorized distributor. 2) The machine is only suitable for indoor use, please do not install it and use it outdoor. -
Page 5: Diagram
BC-35 User Manual V1.4 3. Diagram 3.1 Front Diagram Hopper Extender Hopper Key Button Display Stacker... -
Page 6: Back Appearance
BC-35 User Manual V1.4 3.2 Back Appearance RJ12 Power Socket RS-232 port Power Switch... -
Page 7: Top Appearance
BC-35 User Manual V1.4 3.3 Top Appearance Feed gap adjusting screw Back Cover Open button... -
Page 8: Specification
BC-35 User Manual V1.4 4. Specification Dimension(W×L×H) 300mm×247mm×287mm Net Weight abt 7KG Currency Support Single Power Supply DC 15V 4.5A Counting Mode Piece counting with preset value Counting Speed 900/1200/1500 pcs/min Counterfeit Detection UV, MG Width Detection, Double Detection, Half Notes... -
Page 9: Display And Operation Interface
BC-35 User Manual V1.4 5. Display and Operation interface 5.1 Display Interface Key Button Key Button Display 5.2 Key Function Explanation ：Clear the data; Escape to upper interface ：Batch set ：+1; Counterfeit detection set ：+10; Speed set ：+100; Accumulative counting set ：Value set... -
Page 10: Software Interface Explanation
BC-35 User Manual V1.4 5.3 Software Interface Explanation Batch number UV detection MG detection Medium speed Automatic start Amount Quantity number of symbols... -
Page 11: Operation Instruction
BC-35 User Manual V1.4 6. Operation Instruction 6.1 Operation Connect the machine with power supply and turn on the machine, the machine will enter loading interface, showing the firmware version as below picture, 202510 is the firmware version as an example. -
Page 12: Counterfeit Detection Set
BC-35 User Manual V1.4 6.3 Counterfeit Detection Set Press key one time, it will activate both UV & MG detection, see as below picture. Press key two times, it will only activate MG detection, see as below picture. - Page 13 BC-35 User Manual V1.4 Press key three times, it will only activate UV detection, see as below picture. Press key four times, it will turn off both UV & MG detection, see as below picture,...
-
Page 14: Speed Set
BC-35 User Manual V1.4 6.4 Speed Set There are totally three levels, highest speed at 1500pcs/min(H), medium speed at 1200pcs/min(M), lowest speed at 900pcs/min(L). Press to switch the speed from the lowest to highest. There will be also the sign of H,M,L on the upper right corner after successful set, see as below picture. -
Page 15: Value Set
BC-35 User Manual V1.4 B) During counting if any error detects, the machine will stop with error code for reminder, then you need to remove the suspected banknote and then press key to continue counting. 6.6 Value Set *Mark: this model is only suitable for single currency counting, it does not suitable for other currencies. - Page 16 BC-35 User Manual V1.4 2） Press SET key to enter into user setting mode, press SET key continuously until it shows dd as below picture, the “2”means the DD level is level 2 3） please press key， at this moment the“dd”will blink.Press key，you can change the default detection level of DD from level 2...
-
Page 17: Manual/Automatic Counting Set
BC-35 User Manual V1.4 4）Press key to exit main interface, press key to turn off the batch function, press again to turn off MG detection, and you can also turn off the UV detection 5）After above setting you can count mixed demomination of banknotes “26”... -
Page 18: Firmware Version Check
BC-35 User Manual V1.4 Auto Mode Manual Mode 6.9 Firmware Version Check Press key to check the current firmware version. 202510 is the current firmware version. -
Page 19: User Setting
BC-35 User Manual V1.4 6.10 User Setting Press key to enter into user setting interface as below picture, press SET key continuously, the detection symbol on left corner will switch according to bAT-UV-MG-dd-db-SET-CC-bUZ in circle. 6.10.1 Batch setting If the default Batch number does not satisfy you, you can also set manually, the setting range is 0-200. -
Page 20: Uv Detection Level Setting
BC-35 User Manual V1.4 5) Press key to return to main interface, and press key several times until it shows 155 and then release，after one second the 155 will disappear. Then the machine will stop automatically when it reaches 155. -
Page 21: Dd(Size Detection)Detection Level Setting
BC-35 User Manual V1.4 If you want to adjust the detection level, please press key，at this moment the“MG”will blink. Press key to adjust the detection level. After adjustment, press key again to save, and the “MG”will stop blinking. 6.10.4 DD(size detection)detection level setting The “dd”... -
Page 22: Historical Record Check
BC-35 User Manual V1.4 If you want to adjust the detection level, please press key，at this moment the“db”will blink. Press key to adjust the detection level. After adjustment, press key again to save, and the “db”will stop blinking. 6.10.6 Historical record check Press key to enter into setting interface until the left corner shows“CC”：... -
Page 23: Activate/Deactivate Currency Symbol
BC-35 User Manual V1.4 Under this interface, 0 means the buzzer is turned on, 1 means the buzzer is turned off, the default setting is 0 If you want to turn off the buzzer, please press key, at this moment“bUZ”will blink. Press to adjust it to be 0 or 1. - Page 24 BC-35 User Manual V1.4 Press key to enter into debug interface, dd db MG interface are all availableto make this change Press at the same tiem, it will show “$”and“PCS”on display Press key to exit to main interface, it will show “$”on display 6.10.8.2 Deactivate“$”...
-
Page 25: Restore To Factory Setting
BC-35 User Manual V1.4 Press key at the same time, “$”will disappear and only show“PCS”on display Press key to exit to main interface, it will not display“$”symbol anymore. 6.11 Restore to factory setting Keep pressing key and turn on the machine, until the left corner... -
Page 26: Trouble Shooting
BC-35 User Manual V1.4 At this moment press key to switch, the left corner simbol will switch according to bAT-UV-MG-dd-db-SET-CC- dE-BUZ in circle, until it shows “dE”. Press key，“1”changes into“0”，it means the restore is successful and please restart the machine. - Page 27 BC-35 User Manual V1.4 Self-test error Code Error Cause Trouble shooting indication position Left side MG left side MG check if notes stay in passage sensor quantity >1 Right side right side MG check if notes stay in passage MG sensor quantity >1...
-
Page 28: Firmware Upgrade
BC-35 User Manual V1.4 Size error detected 8. Firmware Upgrade The firmware upgrading is realized by serial port, before upgrading, please copy the mainboard firmware(.hex, for example, yancj.hex）into a special loader, (please do not change the file name or format). Please refer to the upgrading SOP. -
Page 29: Clean The Hopper Sensor
BC-35 User Manual V1.4 9.1 Clean the Hopper Sensor Please use nylon brush or clean cloth to clean the hopper sensor. Hopper sensor 9.2 Clean the Feed Roller Shaft and Friction Roller Shaft Shown as below picture, please use nylon brush or clean cloth to clean the... -
Page 30: Clean The Stacker Sensor
BC-35 User Manual V1.4 9.3 Clean the Stacker Sensor Shown as below picture, please use nylon brush or clean cloth to clean the stacker sensor. Stacker Sensor 9.4 Clean the Inside Sensors 1) As shown by the picture, pull the back cover and open the whole passage. - Page 31 BC-35 User Manual V1.4 IR Receiving Board Lower UV sensor 3) Please use nylon brush to clean the lower UV sensor and 3 IR tube on IR emission board Upper UV sensor IR Emission Board...
-
Page 32: Accessories
BC-35 User Manual V1.4 10. Accessories 1. Power cord 2. Nylon brush 3. User manual 4. External display(option） 1unit 5. External printer(option） 1unit 6. Power adapter 1unit *** In the interests of our policy of continual product improvement, specifications are subject to change without notice ***...
