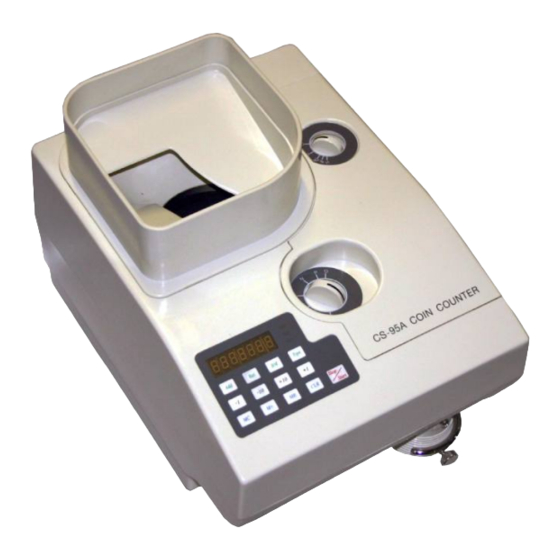

High speed coin counter
Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

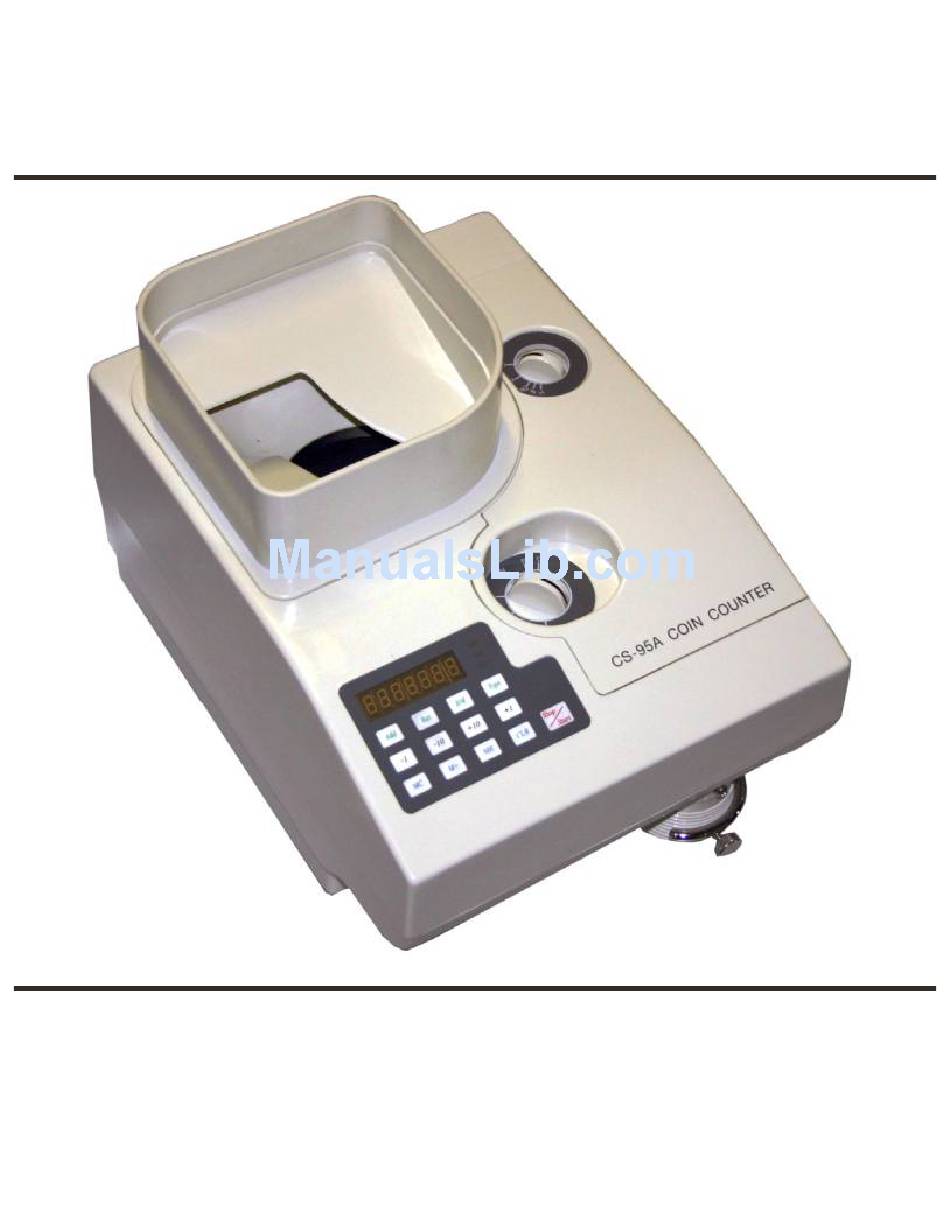

High Speed Coin Counter
Operation Manual
(CS-95A)
Contents
Copyright © 2005,2006 Scales and More. All rights reserved.
7. Operation Panel

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-95A and is the answer not in the manual?

Questions and answers

Related Manuals for Ribao CS-95A

Summary of Contents for Ribao CS-95A

  • Page 1 High Speed Coin Counter Operation Manual (CS-95A) Contents 1. Introduction 6. Function Setting 2. General Information 7. Operation Panel 3. Technical Specification 8. Troubleshooting 4. Precautions 9. Daily Maintenance 5. Operation Panel 10. Other Maintenance Copyright © 2005,2006 Scales and More. All rights reserved.

  • Page 2: Technical Specification

    1. Introduction 2. Technical Specification The High Speed Coin Counting Machine is a Counting Speed: 2300 Coins/Min (Max.) compact, multi-function, fast coin counter. Hopper Capacity: 5000 pcs. (Max.) Countable Coin Size Before operating the machine, please read Thickness: 0.7 - 3.9mm this manual carefully.
  • Page 3 For Selecting the accumulation 5. Operation Panel mode For selecting the batch num or continuous counting mode. Transfer the batch into memory Type Coin type selector Decrease the batch by one Decrease the batch by ten Increase the batch by ten Increase the batch by one Clear count number in memory Add count number to memory...
  • Page 4 7. Operation Procedures Step 1: Turn on the power switch, the display will show 0 and the ADD indicator on the right side of the display will be on. The machine is in accumulation counting mode and ready to start counting.

  • Page 5: Troubleshooting

    8. Troubleshooting Coin Runway Jamming: When coin are jammed in the coin runway of the machine, rotate the diameter knob counter-clockwise to release the left guide plate. The jammed coin will fall into the rejected coin box and then you can re-adjust the diameter knob again. Centrifugal Disc Jamming: If foreign objects are mixed with coin in the hopper, jamming may occur between the centrifugal disc and the coin guide...
  • Page 6 10. Other Maintenance STEP 1. As right diagram 1, open the upper cover, pull the Front Feed Pulley Arm upward, then remove the V-Belt 322 and V-belt 564 from the machine, then, put on a new V-Belt on the Pulleys. Diagram 1 STEP 2.
