Ribao BC-55 User Manual

Currency counter
Hide thumbs Also See for BC-55:
Table of Contents

Advertisement

Quick Links

Download this manual
Currency Counter
BC-55
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC-55 and is the answer not in the manual?

Questions and answers

Related Manuals for Ribao BC-55

Summary of Contents for Ribao BC-55

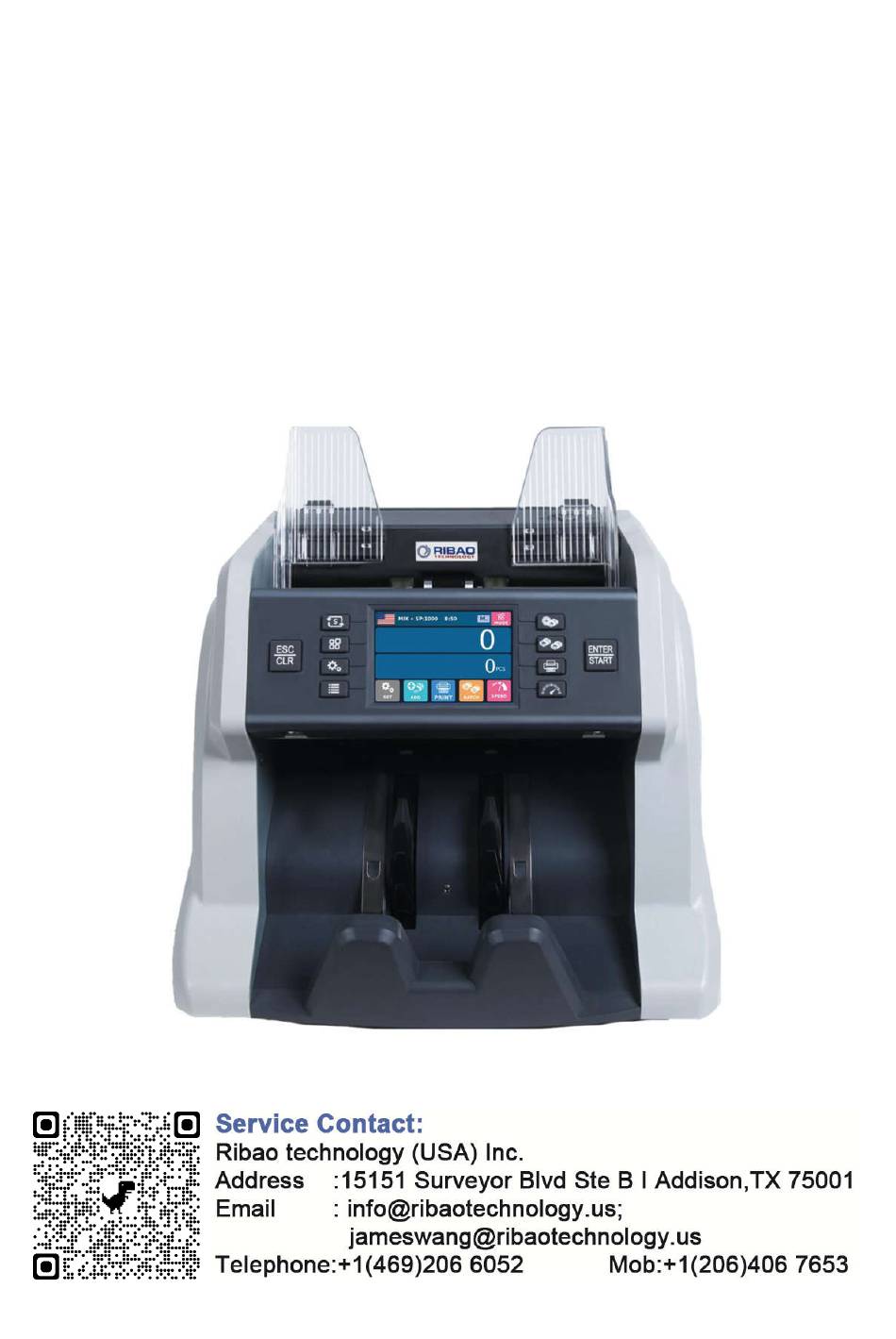

  • Page 1 Currency Counter BC-55 User Manual...

  • Page 2: Table Of Contents

    2.1.15 Restore Factory Setting ....................31 2.1.16 Counting History Information ..................33 2.2 Printer Introduction ........................34 2.2.1 Connect RIBAO printer ..................... 34 2.2.2 Connect other brand printer ....................36 2.3 Introduction of uploading the counting data ................38 2.3.1 Serial cable connection ....................38 2.3.2 Machine Setup ........................
  • Page 3 BC-55 User Manual V1.7 3.2.2 Clean the banknote feeding axle and the banknote twisting axle ........45 3.2.3 Clean the banknote stacker sensor .................. 45 3.2.4 Clean the channel internal sensors .................. 46 3.3 Common Faults and Corresponding Descriptions ..............47...

  • Page 4: Machine Overview

    BC-55 User Manual V1.7 1. Machine Overview 1.1 Safety Instruction This product is used for counting banknotes. Our company does not assume any responsibility for any loss arising from the application of this product for any purpose other than the above without our company's permission, and for any loss caused by any modification of this product not by our company or by any agents not authorized by our company.If you need to install or transport this product, please...

  • Page 5: Installation Instruction

    BC-55 User Manual V1.7  Do not use this product in an excessively humid environment.  Please avoid strong light and strong magnetic field interference.  When the machine is not in use, please turn off the machine switch. Prevent curtains and various entangled materials from getting caught in the machine.

  • Page 6: Machine & Accessories

    BC-55 User Manual V1.7 1.3 Machine & Accessories Machine Note guider(left) Right guider(right) Dust cover User manual Simple manual Warranty card Manual for printer cable DB9 cable DB9 adaptor Power cable Clean brush...

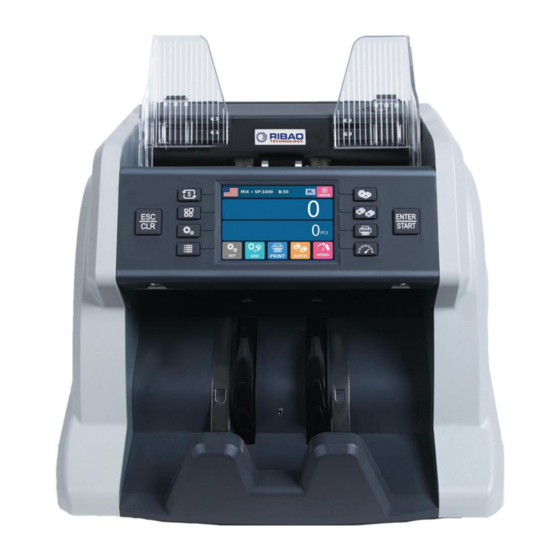

  • Page 7: Appearance

    BC-55 User Manual V1.7 1.4 Appearance 1.4.1 Front Appearance Note Guider Hopper Display Stacker 1.4.2 Back Appearance Feed gap knob SD card slot Handle:Use when transporting the machine, and place USB slot it behind the RJ12:Connect machine when external display counting money.

  • Page 8: Technical Parameters

    BC-55 User Manual V1.7 1.5 Technical Parameters Overall dimensions 300mm×247mm×287mm (length×width×height) Weight About 7KG Capacity of banknote inlet Capacity of banknote receiving port Display 3.5 inch TFT touch screen Interface RS-232/LAN/RJ12/SD/USB the standard software includes 5 currencies, if you need more Currency support capacity currencies, please call us or contact us by email.

  • Page 9: Start-Up

    BC-55 User Manual V1.7 1.6 Start-up Reminder: To ensure smooth counting please install the left and right Note Guider in the box. Please check below Figure 2. Figure 2 1) Take out the left Note Guider, install the click into the rail of the Note Guider, and press the Note Guider until you hear a clicking sound, it means the Note Guider is installed in position, as shown in the Figure 3.

  • Page 10: Notes Placement

    BC-55 User Manual V1.7 3) Connect the machine to the power supply and turn on the power switch. First, the machine enters the loading interface. After loading, the machine enters the self-check interface, as shown in Figure 5 below. The machine will enter the main interface after self-checking succeeds, as shown in Figure 6 below:...

  • Page 11: Counting Error Code

    BC-55 User Manual V1.7 1.8 Counting error code Error reporting code Reason for error White light image, image denomination not recognized Infrared images, each code represents a counterfeit detection point with 151-159 inconsistent characteristics Ultraviolet emission abnormal Ultraviolet projection abnormal...

  • Page 12: Function Introduction

    BC-55 User Manual V1.7 2. Function Introduction 2.1 Function Introduction 2.1.1 Display Interface and Touch Screen Description 1. Currently selected currency and currency selection key 2. Counting mode 3. Accumulation 4. Counting speed 5. Preset quantity 6. Automatic/manual mode 7. Counting mode switch 8.

  • Page 13: Manual/Automatic Setting

    BC-55 User Manual V1.7 2.1.3 Manual/Automatic Setting The “ ” key in the upper right corner of the display is the manual/automatic switch key. Touch it and the mode will be changed. Automatic mode: the word “ ” will appear in the upper right corner. The machine will count the banknotes automatically when they are put into the banknote hopper, as shown in Figure 9.
  • Page 14 BC-55 User Manual V1.7 Take US dollors as an example. After the touch of “ ” key, the display returns to the main interface, and the top left corner displays the “ ” flag graphic, indicating that the machine is in the mode of counting US dollors.
  • Page 15 BC-55 User Manual V1.7 detection function and no other counterfeit detection function. In this mode, the machine has four counting speed (800/1000/1200/1500 sheets/minute) options. Figure 14 Figure 15 Note: In MIX Counting Mode and SDC Single Counting Mode, the machine has the functions of image acquisition, magnetic detection, ultraviolet detection and double note detection.
  • Page 16 BC-55 User Manual V1.7 2.1.4.2 Automatic Recognition Mode Automatic recognition: Refers to the automatic recognition of banknote counting mode. In the process of counting banknotes, the machine uses the first banknote passing through the sensor as the judgment rule to recognize banknotes of all denominations of the same country. When banknotes from other countries are recognized, the machine will alarm and stop.
  • Page 17 BC-55 User Manual V1.7 Figure 21 2) Example: Put a handful of US dollars into the machine to count. The interface of the machine displays as follows at the end of counting: The flag in the upper left corner is identified as US dollars. as shown in the following Figure 22.
  • Page 18 BC-55 User Manual V1.7 Figure 24 2.1.4.2.2 Accumulation Function On 1) Press the key “ ” or click on the button “ ” at bottom of the screen, and a symbol “+” will appear at the top of the display. as shown in the following Figure 25.
  • Page 19 BC-55 User Manual V1.7 3) Take out the US dollors in the stacker, then put the euro into the machine to count. The machine interface displays as follows at the end of counting: The flag in the upper left corner is identified as euro.

  • Page 20: Counting Speed Setting And Function Description

    BC-55 User Manual V1.7 2.1.4.3 Multi-currency Mix Counting Mode Multi-currency Mix Counting: Banknotes from multiple countries are mixed together and put into a machine to count. The machine can recognize all the currencies displayed on display. 1) Press the key “...

  • Page 21: Check Counting Details On Machine

    BC-55 User Manual V1.7 counting mode. As shown in the figure 32 below, the counting speed is set to 1000 in Mix Counting Mode. Figure 32 Function description at each counting speed: Counting mode Speed mode Applicable working mode 800 pcs/minute...

  • Page 22: Batch Setting

    BC-55 User Manual V1.7 Figure 33 Figure 34 This interface is used to check the number of banknotes of various denominations and the total amount of this denomination, as well as the total amount of all amounts. At the same time, banknotes can also be counted by directly placing them under this interface.
  • Page 23 BC-55 User Manual V1.7 2.1.7.2 Modify Default Batch 1) Press the “ ” key to enter the main interface of USER MENU, as shown in Figure 37 below， Press “Customize” to enter into Customize Settings，as figure 38. Figure 37 Figure 38 2) Press “Batch Qty”...
  • Page 24 BC-55 User Manual V1.7 2) Click “155” in turn as figure 41 shows, and then click “ ” to save , the interface will display as figure 42, the original “20” will be changed to “155”. Figure 41 Figure 42 3) Please press the “...

  • Page 25: Accumulation Function On

    BC-55 User Manual V1.7 2) Touch click “0” to enter into Batch setting interface and input your desired value(for example 155), as figure 45shows, and click “ ” to save, as figure 46 shows. Figure 45 Figure 46 3) Under interface figure 46, click “...

  • Page 26: Counterfeit Detection Setting

    BC-55 User Manual V1.7 Figure 48 Figure 49 a) After a handful of banknotes is counted and not taken away from the stacker, the machine will display the total quantity and total amount of banknotes counted this time; If the banknotes are removed from the stacker, the machine will display the total quantity and total amount of the current and previously counted banknotes;...

  • Page 27: Date And Time Setting

    BC-55 User Manual V1.7 Figure 50 3) Take USD as an example, touch “USD” to enter the interface of Japanese yen counterfeit detection setting, as shown in the following figure 51 and figure 52: Figure 51 Figure 52 4) There are three levels optional under this setting interface: High, medium and low. The higher the level is, the higher the counterfeit detection sensitivity will be.
  • Page 28 BC-55 User Manual V1.7 Figure 37 Figure 53 2) Touch the “Data&Time” option in the basic setting interface to enter the time setting interface, as shown in the following figure 54: Figure 54 The first “Data&Time” is used to set time as figure 55. Touch click numbers the display will show number input interface, input the correct values and click “...

  • Page 29: Buzzer Setting

    BC-55 User Manual V1.7 Figure 57 2.1.11 Buzzer Setting 1) Press the “ ” key to enter the main interface of USER MENU, as shown in Figure 37 below， Press “Basic” to enter into Basic Settings，as figure 53. Figure 37 Figure 53 2) In the interface of Figure 53, tap the switch button at the back of “Buzzer”...

  • Page 30: Alarm Setting

    BC-55 User Manual V1.7 2.1.12 Alarm Setting 1) Press the “ ” key to enter the main interface of USER MENU, as shown in Figure 37 below， Press “Basic” to enter into Basic Settings，as figure 53. Figure 37 Figure 53 2) In the interface of Figure 53, tap the switch button at the back of “Alarm”...

  • Page 31: Language Setting

    BC-55 User Manual V1.7 Figure 37 Figure 53 2) In the interface shown in Figure 53, touch the “ ” key to enter the second page interface, as shown in Figure 62. Touch the “Version Info” button again to enter the software version interface, as shown in...

  • Page 32: Restore Factory Setting

    BC-55 User Manual V1.7 2) In the interface shown in Figure 53, touch the “ ” key in the lower right corner to enter the second page interface, as shown in Figure 64. Touch the “Language” button again to enter the language setting...
  • Page 33 BC-55 User Manual V1.7 Figure 66 Figure 67 3) “Restore CF Detection Level”：Restore the factory settings of the counterfeit detection gear. If the customer has a special request to adjust the counterfeit check position of a certain country's currency for banknote counting, and wants to restore the original counterfeit check unit after counting the currency, this function can be used.

  • Page 34: Counting History Information

    BC-55 User Manual V1.7 2.1.16 Counting History Information 1) Press the “ ” key once to enter the MENU main interface, as shown in Figure 37 below. Press the “ ” key twice again to enter the Debug Menu interface, as shown in Figure 70 below:...

  • Page 35: Printer Introduction

    2.2 Printer Introduction 2.2.1 Connect RIBAO printer If you buy a printer from Ribao, it is compatible with our machine, so you can directly connect the printer to our money counter using the printer cable. The specific steps are as follows: 1) Press the “...
  • Page 36 ” key in the upper right corner to save. The factory default baud rate of the machine is 115200, and the baud rate of the Ribao printer is also 115200, so this operation can be skipped. After changing the baud rate, the machine will prompt to restart, so please restart the machine as required.

  • Page 37: Connect Other Brand Printer

    BC-55 User Manual V1.7 Figure 76 7) Now that the printer is connected to the machine, please count the banknotes. After the count is completed, press the “ ” key to enter the coin count list interface, press the “...
  • Page 38 BC-55 User Manual V1.7 Figure 78 If the baud rate is set correctly, but still cannot print, please use the printer cable in the machine box provided by us to connect with the RS232 cable of the printer you purchased, and then connect to our printer to print the data, as shown in Figure 79.

  • Page 39: Introduction Of Uploading The Counting Data

    BC-55 User Manual V1.7 2.3 Introduction of uploading the counting data If the customer wants to upload the machine’s point currency detail data to the PC, the customer needs to do the following: 2.3.1 Serial cable connection Take a USB to 232 serial cable, connect the USB end to the PC, and insert the 232 serial end into...

  • Page 40: Instruction Of Data Collection Pc Software

    BC-55 User Manual V1.7 Figure 82 Figure 83 3) In the interface of Figure 83, download the first item “PC” and click “ ”, and then touch the “ ” key in the upper right corner to save, as shown in Figure 84 below. After the save is successful, it will be automatically transferred to the interface 82 above.
  • Page 41 BC-55 User Manual V1.7 Figure 85 2) Select serial port and baud rate, and the baud rate must be consistent with the baud rate selected on the machine, as shown in Figure 86 below。 Figure 86 3) Press the Open key again, the font of serial port and baud rate will be dimmed, OPEN will be changed to CLOSE, and then counting can be performed and the counting information can be checked, as shown in Figure 87 and Figure 88 below.

  • Page 42: Instruction Of External Display

    Figure 89 2.4 Instruction of External display This machine is suitable for external displays with RJ12 connectors. Take Ribao's external display as an example, the specific operations are as follows: 1) Please insert the RJ12 connector of the external display into the RJ12 interface on the back of the...
  • Page 43 BC-55 User Manual V1.7 Figure 90 2) After turn on the machine and select the currency of the corresponding country, the code of the corresponding country will also be displayed on the external display. Example: The machine selects the US Dollors mixed point mode, as shown in Figure 91,at this time the word "USD"...

  • Page 44: Maintenance Instruction

    BC-55 User Manual V1.7 3. Maintenance Instruction 3.1 Software Upgrade 3.1.1 U-disk Preparation U-disk upgrade method is adopted for the software upgrade of this product. Please copy the upgrade file provided to you by our company (the suffix name of the master control software is ".ZPK", such as BC55_1_20180413.DF61723E.ZPK) to the root directory of the U disk...

  • Page 45: Daily Clean Instruction

    BC-55 User Manual V1.7 3) The machine continues to upgrade, and the interface shown in Figure 97 appears below. After the upgrade of the standby device is completed, the interface shown in Figure 98 will appear. At this time, please unplug the U disk and restart the interface.

  • Page 46: Clean The Banknote Feeding Axle And The Banknote Twisting Axle

    BC-55 User Manual V1.7 3.2.2 Clean the banknote feeding axle and the banknote twisting axle As shown in the following figure 100, clean the drum roller shaft and feed roller shaft with nylon brush or cleaning cloth. Figure 100 3.2.3 Clean the banknote stacker sensor As shown in the following figure 101, clean the sensor with nylon brush or cleaning cloth.

  • Page 47: Clean The Channel Internal Sensors

    BC-55 User Manual V1.7 3.2.4 Clean the channel internal sensors 1) Pull the back cover in the direction shown in the figure to open the back cover. Figure 102 2) Clean the lower UV sensor and lower CIS with nylon brush respectively as shown in the following figure 103.

  • Page 48: Common Faults And Corresponding Descriptions

    BC-55 User Manual V1.7 Common Faults and Corresponding Descriptions In the process of using the machine, the machine may show abnormal state, resulting in abnormal operation, and the machine will display corresponding fault information. The following provides the phenomenon when the machine malfunctions. Please refer to the maintenance manual for specific handling methods.
