© Copyright 2009
EVERTZ MICROSYSTEMS LTD.
5288 John Lucas Drive,
Burlington, Ontario,
Canada L7L 5Z9
Phone:
905-335-3700
Sales:
sales@evertz.com
Tech Support: service@evertz.com
Web Page:
http://www.evertz.com
Version 1.1 October 2009
The material contained in this manual consists of information that is the property of Evertz Microsystems and is
intended solely for the use of purchasers of the 2408RGBT/DVIT. Evertz Microsystems expressly prohibits the
use of this manual for any purpose other than the operation of the 2408RGBT/DVIT.
All rights reserved. No part of this publication may be reproduced without the express written permission of
Evertz Microsystems Ltd.
Microsystems.

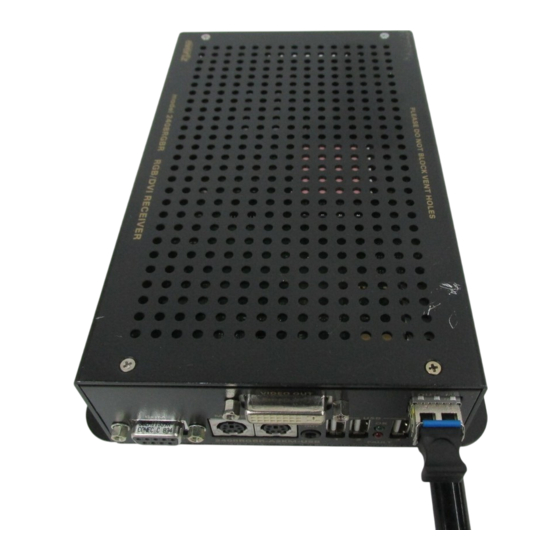

2408RGBT/DVIT
DVI and RGB Video/Audio
Portable SFP Fiber Transmitter
Instruction Manual
Fax: 905-335-3573
Fax: 905-335-7571
Copies of this manual can be ordered from your Evertz dealer or from Evertz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2408RGBT/DVIT and is the answer not in the manual?

Questions and answers

Related Manuals for evertz 2408RGBT/DVIT

Summary of Contents for evertz 2408RGBT/DVIT

  • Page 1 Version 1.1 October 2009 The material contained in this manual consists of information that is the property of Evertz Microsystems and is intended solely for the use of purchasers of the 2408RGBT/DVIT. Evertz Microsystems expressly prohibits the use of this manual for any purpose other than the operation of the 2408RGBT/DVIT.
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “Dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (Servicing) instructions in the literature accompanying the product.
  • Page 4 WARNING Changes or Modifications not expressly approved by Evertz Microsystems Ltd. could void the user’s authority to operate the equipment. Use of unshielded plugs or cables may cause radiation interference. Properly shielded interface cables...

  • Page 5: Table Of Contents

    2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter TABLE OF CONTENTS OVERVIEW............................1 1.1. SETTING UP THE DDC VALUE ....................3 INSTALLATION........................... 4 2.1. OPTICAL CONNECTIONS......................5 2.2. SIGNAL CONNECTIONS ......................5 2.3. INTERFACING WITH 3G OPTICAL ROUTER................5 2.4. CARE AND HANDLING OF OPTICAL FIBER................7 2.4.1.
  • Page 6 2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter 4.4.6. Selecting the Display Data Channel Mode (2408RGBT Models Only) ......17 4.4.7. Setting the Analog Audio Detection Threshold (A2 Version)......... 18 4.4.8. Setting the Analog Audio Detection Duration (A2 Version) ........... 18 4.4.9. Selecting Identity Mode ....................18 4.4.10.
  • Page 7 2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter Figures Figure 1-1: 2408RGBT Block Diagram .........................2 Figure 1-2: 2408DVIT Block Diagram ........................2 Figure 2-1: 2408RGBT I/O CONNECTIONS ......................5 Figure 2-2: Setup Using an Optical Router ......................6 Figure 2-3: Reproduction of Laser Certification and Identification Label ..............7 Figure 4-1: Identifying Top Screws........................11...
  • Page 8 2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter WARNING Never look directly into an optical fiber. Irreversible eye damage can occur in a matter of milliseconds. Revision 1.1...
  • Page 9 Oct 09 Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning performance of Evertz products are for informational use only and are not warranties of future performance, either expressed or implied.
  • Page 10 2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter This page left intentionally blank Revision 1.1...

  • Page 11: Overview

    Monitoring and control of the card status and parameters are provided locally at the card-edge, or remotely via VistaLINK capability. ® The 2408RGBT/DVIT uses Evertz SFP modules to interface to the fiber optic domain. SFP transmitters are available in 1310nm, 1550nm, and CWDM wavelengths. Features: •...

  • Page 12: Figure 1-1: 2408Rgbt Block Diagram

    2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter Transmit Side Receive Side Fiber Optical/Link Description Type Budget Ordering Product Info Ordering Product Info Power Sensitivity Multi-Mode < 500m 2408RGBT-A2+13 -1dBm 2408RGBR-A2 -20dBm 1310nm on Tx and Rx fibers Single- 12dB/34km 2408RGBT-A2+13 -1dBm...

  • Page 13: Setting Up The Ddc Value

    2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter 1.1. SETTING UP THE DDC VALUE DDC (Display Data Channel) is a series of protocols that enables plug and play communication between a graphics adapter and a computer monitor. It allows the display to communicate its supported display modes and display parameters to the graphics adapter.

  • Page 14: Installation

    An industry-standard DB-15 connector adapter may be used for RGB. Figure 2-1 shows all rear plate options for the 2408RGBT/DVIT. When installing the Evertz SFP module into the rear plate SFP housing, align the transmit and receive arrow indicators UPWARDS with the 2408RGBT/DVIT module upright.

  • Page 15: Optical Connections

    DB-15 to DVI-I adapter such as the Belkin F2E4162, or appropriately terminated cable assembly such as the Amp 16539332-1. Note: When making digital DVI connections, Evertz recommends using only high quality DVI cables, no longer than 6 feet (1.8m). AUDIO INPUTS (A2 Version): The 2408RGBT/DVIT-A2 module provides a terminal block for input connections compatible with either balanced or unbalanced analog audio.

  • Page 16: Figure 2-2: Setup Using An Optical Router

    2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter 2408RGBTxx 2408RGBR XENON 3Gb/s Routing Core Analog Analog 7708RGBT- 2408RGBR- Audio Audio A2KM-USB A2KM-USB PS2 USB PS2 USB Figure 2-2: Setup Using an Optical Router Page - 6 Revision 1.1...

  • Page 17: Care And Handling Of Optical Fiber

    Triangular band: black Symbol: black 2.4.2. Assembly Assembly or repair of the laser sub-module is performed only at the Evertz facility by qualified Evertz technical personnel. 2.4.3. Labeling Certification and Identification labels are combined into one label. As there is not enough room on the product to place the label, it is reproduced here in the manuals.

  • Page 18: Handling And Connecting Fibers

    The transmission characteristics of the fiber are dependent on the shape of the optical core and therefore care must be taken to prevent fiber damage caused by heavy objects or abrupt fiber bending. Evertz recommends that you maintain a minimum bending radius of 5 cm to avoid fiber-bending loss that will decrease the maximum attainable distance of the fiber cable.

  • Page 19: Specifications

    2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter SPECIFICATIONS Video and audio performance specifications are measured at the output of a companion 2408RGBR/DVIR Receiver. 3.1. ANALOG VIDEO INPUTS Number of Signals: Signal Type: Sync Type: H and V, or Sync on Green...

  • Page 20: Optical Output

    2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter 3.5. OPTICAL OUTPUT Connector: LC/PC (female) Single Fiber versions: 9 µm core / single mode Fiber Size and Type: Output Wavelengths: Standard: 1310nm, 1550nm (nominal) CWDM: 1270nm to 1610nm (ITU-T G.694.2 compliant) Output Power: 1310nm FP (Standard): -1 dBm ±1dBm...

  • Page 21: Card-Edge Monitoring And Control

    2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter CARD-EDGE MONITORING AND CONTROL 4.1. ACCESSING THE TOGGLE SWITCH AND PUSH BUTTON To expose the card edge controls you must remove the side panel. To do so, follow the instructions listed below: 1. Locate the two screws on the top (near the front) of the 2408 unit, as shown in Figure 4-1.

  • Page 22: Card Edge Operation

    4.2. CARD EDGE OPERATION The 2408RGBT/DVIT has six LED status indicators and a four-digit dot-matrix display on the front card- edge to show the card’s operational status at a glance. The card-edge pushbutton and toggle switch are used to select various control and status indicators on the dot-matrix display. Figure 4-4 shows the locations of the indicators and controls.

  • Page 23: Figure 4-4: Location Of Status Indicators And Jumpers

    2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter Figure 4-4: Location of Status Indicators and Jumpers Page - 13 Revision 1.1...

  • Page 24: Status Indicator Leds

    2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter 4.3. STATUS INDICATOR LEDS LOCAL FAULT: This red LED indicates poor module health. Several conditions could cause this fault indication to be active: o Laser fault o Input video not present o A card power fault exists (i.e. a blown fuse) This LOCAL FAULT indication can also be reported to the frame by setting the FRAME STATUS jumper.

  • Page 25: Card-Edge Display Warning Indications

    Figure 4-5: 2408RGBT Card Edge Menu 4.4.1. Card-Edge Display Warning Indications There are flashing warning indicators that may appear on the display of the 2408RGBT/DVIT. These warning indicators can overwrite other displayed text. Pressing the pushbutton will clear a warning indicator from the display and allow access to other menu items.

  • Page 26: Selecting The Output Laser Control Mode

    0-31: 4.4.4. Selecting Link Rate In applications with 3G routing, the Link Rate of the 2408RGBT/DVIT must be 2970Mb/s to be compatible with 3G routers. Two user selectable Link Rates may be chosen, 2970Mb/s for routing purposes and 3125Mb/s for normal operation.

  • Page 27: Setting Input Rgb Gain (2408Rgbt Models Only)

    2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter 4.4.5. Setting Input RGB Gain (2408RGBT Models Only) When RGB video is applied, the Input ADC Gain level can be adjusted to affect the brightness of the RGB video seen out of the 2408RGBR. The affect of this menu item is seen when 2 sets of 2408RGBTs and 2408RGBRs are connected in sequence.

  • Page 28: Setting The Analog Audio Detection Threshold (A2 Version)

    2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter 4.4.7. Setting the Analog Audio Detection Threshold (A2 Version) Two card-edge LEDs indicate signal presence of the two respective analog audio channels. A Detection Threshold is used to indicate audio signal presence. The Audio Detection Threshold adjustment is implemented in the digital domain, and applies to both channels.

  • Page 29: Setting The Id Tag

    Press the pushbutton to apply the displayed selection and return to the first menu level. The following selections are available for this menu item: Each 2408RGBT/DVIT card must have a unique ID 00000 to 7FFFE: tag.

  • Page 30: Displaying The Rgb Output Video Sharpness (2408Rgbt Models Only)

    4.4.16. Displaying the Selected Link Rate The 2408RGBT/DVIT can display the Active Link Rate. To indicate the Link Rate, select the STAT menu item in menu level 1. Use the toggle switch to select the LINK menu item and press the pushbutton.

  • Page 31: Displaying The Selected Id Tag

    4.4.17. Displaying the Selected ID Tag The 2408RGBT/DVIT can display the current ID Tag. To indicate the current ID Tag, select the STAT menu item in menu level 1. Use the toggle switch to select the ID menu item and press the pushbutton.

  • Page 32: Jumper Controls

    2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter JUMPER CONTROLS Several jumpers (located at the front of the module) are used to preset various operating modes. Figure 4-4 shows the locations of the jumpers. 5.1. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES RUN/UPGRADE: The RUN/UPGRADE jumper is used when firmware upgrades are being done to the module.

  • Page 33: Vistalink ® Remote Monitoring/Control

    (GUI), third party or custom manager software may be used to monitor and control Evertz VistaLINK enabled fiber optic products. ® 2. Managed devices (such as 2408RGBT/DVIT cards), each with a unique address (OID), communicate with the NMS through an SNMP Agent. Evertz VistaLINK enabled 7700 series modules reside in the ®...

  • Page 34: Vistalink Controlled Parameters

    2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter 6.3. VISTALINK CONTROLLED PARAMETERS ® The following parameters can be remotely controlled through the VistaLINK interface. ® Parameter Name Notes Description 7708RGBT only when RGB Controls output video Sharpness video at input sharpness at 7708RGBR...

  • Page 35: Vista Link ® Traps

    2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter 6.4. LINK TRAPS ISTA ® The following traps can be VistaLINK enabled and monitored. ® Trap Description Triggers when valid DVI input is lost DVI Input Triggers when valid RGB input is lost RGB Input...
  • Page 36 2408RGBT/DVIT RGBHV/DVI Portable SFP Fiber Transmitter This page left intentionally blank Page - 26 Revision 1.1...
