1.
OVERVIEW.......................................................................................................................................... 1
2.
INSTALLATION................................................................................................................................... 3
2.1. CARE AND HANDLING OF OPTICAL FIBER........................................................................... 4
2.1.1. Safety .............................................................................................................................. 4
2.1.2. Assembly......................................................................................................................... 4
2.1.3. Labeling........................................................................................................................... 5
2.1.4. Handling and Connecting Fibers ..................................................................................... 5
3.
SPECIFICATIONS............................................................................................................................... 6
3.1. ANALOG VIDEO INPUT............................................................................................................. 6
3.2. OPTICAL OUTPUTS .................................................................................................................. 6
3.3. ELECTRICAL ............................................................................................................................. 6
3.4. PHYSICAL (NUMBER OF SLOTS)............................................................................................ 7
3.5. COMPLIANCE ............................................................................................................................ 7
3.6. ORDERING INFORMATION ...................................................................................................... 7
4.
STATUS INDICATORS AND DISPLAYS ........................................................................................... 8
4.1. STATUS INDICATOR LEDS ...................................................................................................... 8
4.2. DOT-MATRIX DISPLAY / CARD STATUS AND CONTROLS .................................................. 9
4.2.1. Display of Warning Status Indications........................................................................... 10
4.2.2. Displaying the Video Standard ...................................................................................... 10
4.2.3. Displaying the Firmware Version................................................................................... 10
4.2.4. Setting the Video Equalization ...................................................................................... 11
4.2.6. Controlling the Behavior of the Laser ............................................................................ 12
4.2.7. Setting the Orientation of the Text on the Card Edge Display....................................... 12
4.2.8. Resetting Factory Defaults ............................................................................................ 12
5.
JUMPERS.......................................................................................................................................... 13
BY THE GLOBAL FRAME STATUS........................................................................................ 13
5.2. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES ............................................. 13
6.
®
7707CVT-8 Eight Analog Video Fiber Transmitter
TABLE OF CONTENTS
Revision 1.0
7700 MultiFrame Manual
Advertisement
Table of Contents
Related Manuals for evertz 7707CVT-8
Summary of Contents for evertz 7707CVT-8
-
Page 1: Table Of Contents
7700 MultiFrame Manual 7707CVT-8 Eight Analog Video Fiber Transmitter TABLE OF CONTENTS OVERVIEW............................1 INSTALLATION........................... 3 2.1. CARE AND HANDLING OF OPTICAL FIBER................4 2.1.1. Safety ..........................4 2.1.2. Assembly......................... 4 2.1.3. Labeling........................... 5 2.1.4. Handling and Connecting Fibers ..................5 SPECIFICATIONS.......................... - Page 2 6.4. VISTALINK TRAPS ........................ 15 ® Figures Figure 1-1: 7707CVT-8 Block Diagram ......................... 2 Figure 2-1: 7707CVT-8 Rear Panel ........................3 Figure 2-2: Reproduction of Laser Certification and Identification Label.............. 5 Figure 4-1: Card Edge Menu Structure ......................... 9 Figure 5-1: Location of Jumpers and Card Edge Controls ................. 13...
- Page 3 Sept 09 Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for the rights of third parties, which may be effected in any way by the use thereof. Any representations in this document concerning performance of Evertz products are for informational use only and are not warranties of future performance, either express or implied.
- Page 4 The 7707CVT-8 series DWDM card produces +7dBm of power, which will damage the receiver if connected directly. Do not hook up the 7707CVT-8 series cards that output more than -7dBm of power (see 7707CVT-8 series specifications for output power of various laser types). The 7707CVT-8 series cards that produce more than -7dBm of power will damage the receiver if connected directly.
-
Page 5: Overview
The 7707CVT-8 occupies two card slots and can be housed in a 1RU frame which will hold up to 3 modules, a 3RU frame which will hold up to 7 modules, a 350FR portable frame which holds up to 3 modules, or a standalone enclosure which will hold 1 module. -
Page 6: Figure 1-1: 7707Cvt-8 Block Diagram
7700 MultiFrame Manual 7707CVT-8 Eight Analog Video Fiber Transmitter Figure 1-1: 7707CVT-8 Block Diagram 7707CVT-8 - 2 Revision 1.0... -
Page 7: Installation

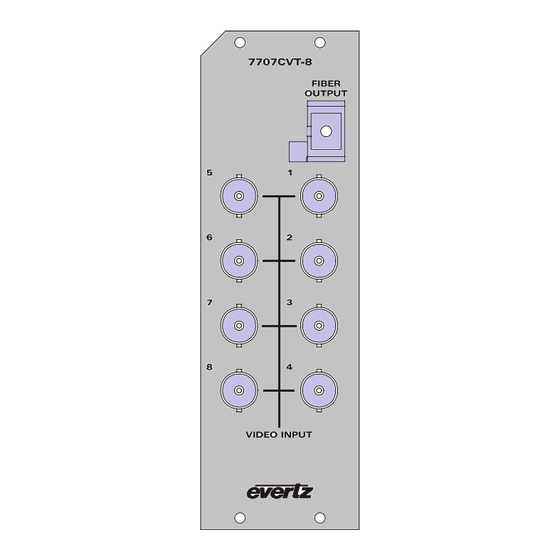

7707CVT-8 Eight Analog Video Fiber Transmitter INSTALLATION The 7707CVT-8 comes with a companion rear plate that has eight BNC connectors and one SC/PC, SC/PC with cover flap, ST/PC or FC/PC optical connector. For information on mounting the rear plate and inserting the module into the frame see section 3 of the frame chapter. -
Page 8: Care And Handling Of Optical Fiber
CLASS 1 LASER PRODUCT Background colour: yellow Triangular band: black Symbol: black 2.1.2. Assembly Assembly or repair of the laser sub-module is done only at Evertz facility and performed only by qualified Evertz technical personnel. 7707CVT-8 - 4 Revision 1.0... -
Page 9: Labeling
The transmission characteristics of the fiber are dependent on the shape of the optical core and therefore care must be taken to prevent fiber damage due to heavy objects or abrupt fiber bending. Evertz recommends that you maintain a minimum bending radius of 5 cm to avoid fiber-bending loss that will decrease the maximum attainable distance of the fiber cable. -
Page 10: Specifications
7700 MultiFrame Manual 7707CVT-8 Eight Analog Video Fiber Transmitter SPECIFICATIONS 3.1. ANALOG VIDEO INPUT Standards: NTSC, SMPTE 170M, PAL, ITU-R 624-4 Number of Inputs: Connector: BNC per IEC 61169-8 Annex A Signal Quantization: 12 bits System Bandwidth: 5.5MHz Input Level:... -
Page 11: Physical (Number Of Slots)
7700 MultiFrame Manual 7707CVT-8 Eight Analog Video Fiber Transmitter 3.4. PHYSICAL (NUMBER OF SLOTS) 350FR: 7700FR-C: 7800FR: 3.5. COMPLIANCE Laser Safety: Class 1 laser product Complies with 24 CFR 1040.10 and 1040.11 IEC 60825-1 EMI/RFI: Complies with FCC Part 15, Class A EU EMC directive 3.6. -
Page 12: Status Indicators And Displays
STATUS INDICATORS AND DISPLAYS The 7707CVT-8 series has 10 LED Status indicators and a 4 digit alphanumeric display on the front card edge to show operational status of the card at a glance. The card edge pushbutton and toggle switch are used to select various displays on the alphanumeric display. -
Page 13: Dot-Matrix Display / Card Status And Controls
7700 MultiFrame Manual 7707CVT-8 Eight Analog Video Fiber Transmitter 4.2. DOT-MATRIX DISPLAY / CARD STATUS AND CONTROLS Additional status monitoring and controls are provided via the 4-digit dot-matrix display located at the card- edge. The card-edge toggle-switch (see Figure 5-1) is used to navigate through the display menus and the pushbutton is used to select options. -
Page 14: Display Of Warning Status Indications
4.2.2. Displaying the Video Standard The 7707CVT-8 detects the video standard of the signals present at its inputs. To display the video standard, select the STAT menu item in menu level 1, select VID from menu level 2, then use the toggle switch to display the desired video channel (from INP1 to INP8) and press the pushbutton to select it. -
Page 15: Setting The Video Equalization
0 to 100 4.2.5. Setting the Password for Channel Blocking and Selecting Channels to be Blocked The 7707CVT-8 allows selective blocking of video channels 1 to 8 with a password. The default password is 7154. To view the menu for channel blocking, use the toggle switch and pushbutton to select the CTRL menu item in menu level 1, then use the pushbutton to select the PSWD from menu level 2. -
Page 16: Controlling The Behavior Of The Laser
4.2.6. Controlling the Behavior of the Laser On the 7707CVT-8 the LASR option allows the user to set the behavior of the laser transmitter when there is no video signal applied to the video inputs. To set the laser behavior, select the CTRL menu item in menu level 1, then use the toggle switch to display the LASR menu selection and press the pushbutton to select it. -
Page 17: Jumpers
7700 MultiFrame Manual 7707CVT-8 Eight Analog Video Fiber Transmitter JUMPERS TOGGLE SWITCH LOCAL FAULT FRAME STATUS ON/OFF MODULE OK VIDEO 1 PRESENT VIDEO 2 PRESENT VIDEO 3 PRESENT VIDEO 4 PRESENT VIDEO 5 PRESENT VIDEO 6 PRESENT VIDEO 7 PRESENT... -
Page 18: Vistalink ® Remote Monitoring/Control
1. An SNMP manager, also known as a Network Management System (NMS), is a computer running special software that communicates with the devices in the network. Evertz VistaLINK Pro Manager graphical ® user interface (GUI), third party or custom manager software may be used to monitor and control Evertz VistaLINK enabled fiber optic products. ®... -
Page 19: Vistalink
7700 MultiFrame Manual 7707CVT-8 Eight Analog Video Fiber Transmitter 6.3. VISTALINK CONTROLLED PARAMETERS ® The following parameters can be remotely controlled through the VistaLINK interface. ® Parameter Description A range of values describing equalization being applied at Video input 1 to 8... - Page 20 7700 MultiFrame Manual 7707CVT-8 Eight Analog Video Fiber Transmitter This page left intentionally blank 7707CVT-8 - 16 Revision 1.0...
