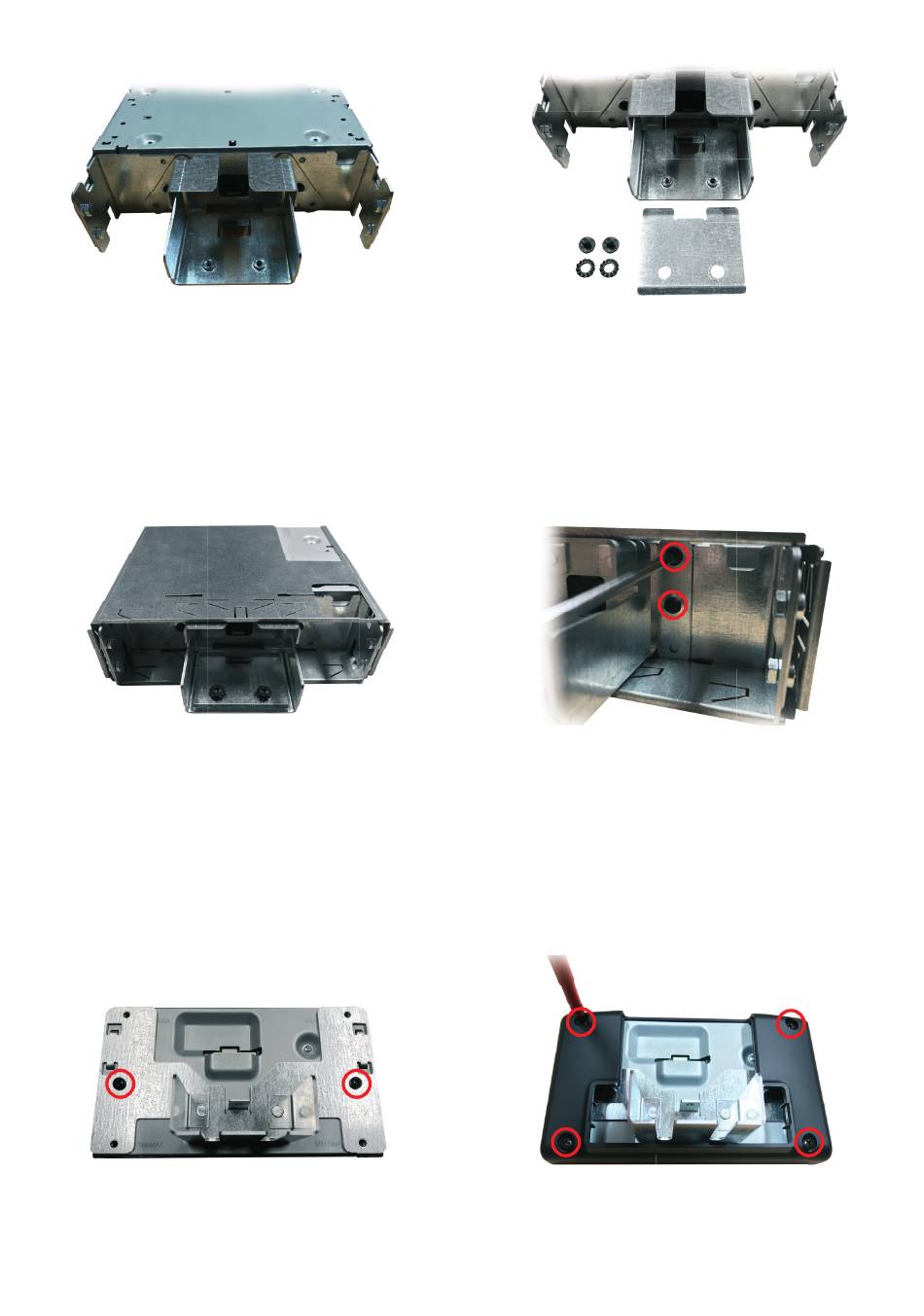

Completed installation of unit
with unit support
Slide the complete mechanism into the metal cage
Mount screen support to the screen using
the two center screws on each side
(included with SPH-EVO62DAB & SPH-EVO64DAB)
5
5
7 7
9 9
Installation manual CA-HM-UNI-EVO.009 | Version 1.0
Install sliding mecha using the shown hardware
(included with the installation kit)
Lock the unit support into the metal cage by opening the two
metal tabs and tighten the indicated screws (on both sides)
Mount screen cover onto the screen support
using the remaining four screws as indicated
(included with SPH-EVO62DAB & SPH-EVO64DAB)
6 6
8 8
10
10
