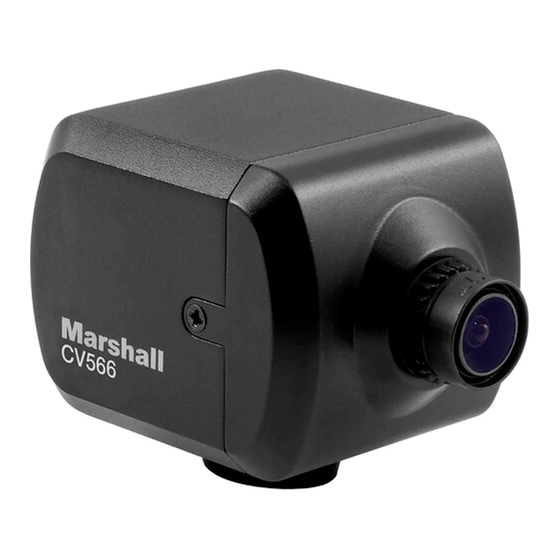

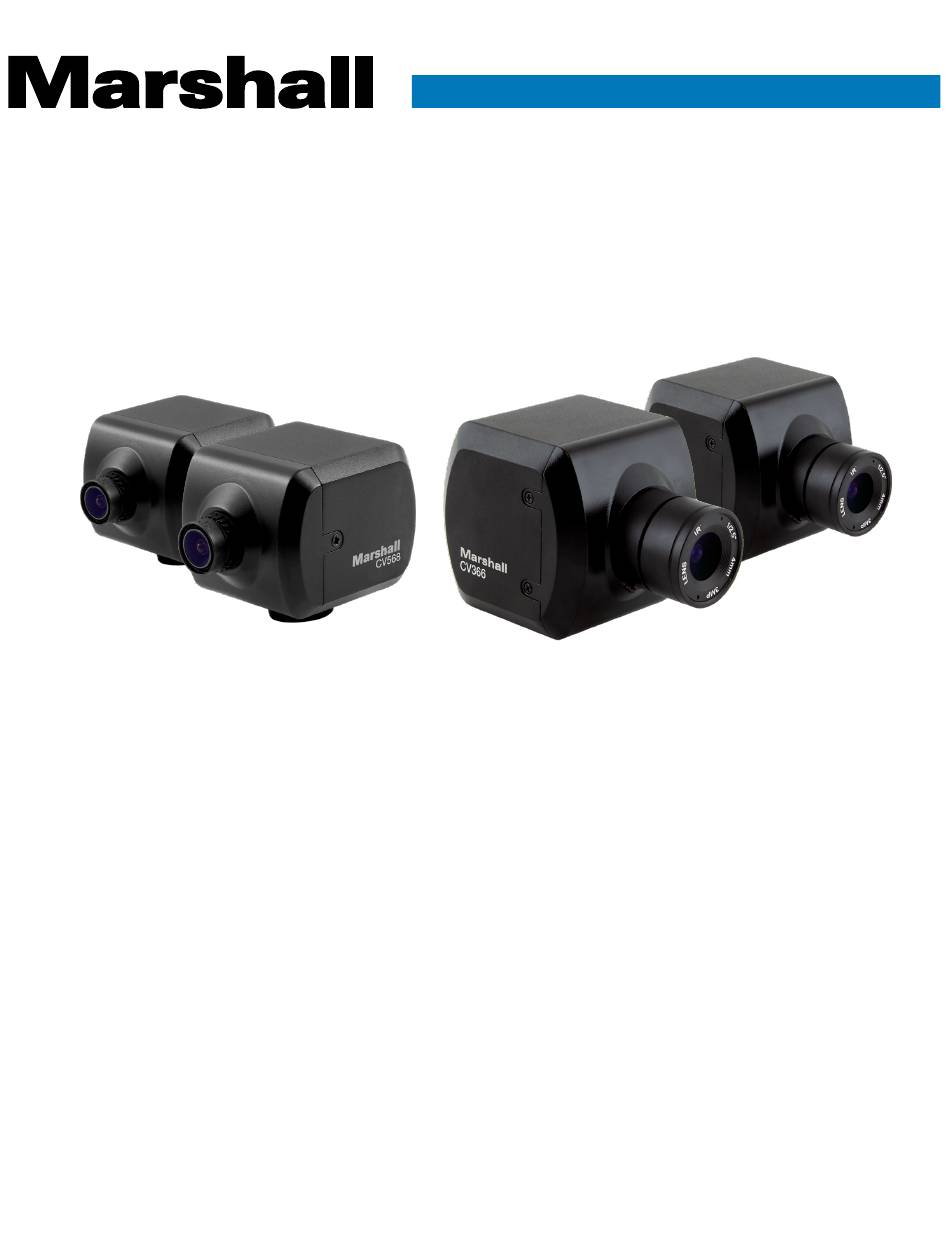

- Page 1 B r o a d c a s t A / V D i v i s i o n CV566, CV568, CV366, CV368 Compact & Miniature Full-HD Genlock Cameras User Manual...
-
Page 2: Table Of Contents
• 12V Power Supply 8. Genlock The CV566 ships with a 3.6mm lens installed and is interchangeable to any number of Marshall M12 lenses. The CV568 ships with a 4.4mm lens installed and is interchangeable to 1/1.8” M12 lenses. 9. Image Control Each camera comes set to default at 1920x1080p @ 30fps out of the box;... -
Page 3: Menu Structure
CV566/CV568/CV366/CV368 Manual 2. Menu Structure SETUP SUB MENU SUB MENU LENS SHADING SETUP SUB MENU SUB MENU CONTRAST BLUE OFFSET BRIGHTNESS RED OFFSET SATURATION ONE PUSH WB CONTROL INDOOR EDGE ENHANCE OUTDOOR IMAGE CONTROL AUTO SATURATE BLUE AUTO EDGE MANUAL... -
Page 4: Osd Joystick And Button
• ATW: Continuously adjusts camera color balance in accordance with any change in color temperature. Compensates for color temperature changes within the range of 1,900°K to 11,000°K. I/O Cable (included in box) for CV566, 568, 366, 368. • BLUE OFFEST: Adjust the Blue tone within the ATW mode. 1. SET Used to access the menu and confrim selection. -
Page 5: Ae Control
• NIGHT: When set to NIGHT mode, camera stays in B&W (and IR cut filter is removed for • AGC FIX: Provides more detailed gain option. All other controls are tuned for the selected gain. CV366 & CV566). • MANUAL: Adjusts the exposure level manually 1. -
Page 6: Audio
CV566/CV568/CV366/CV368 Manual 7. AUDIO 8. GENLOCK Select AUDIO using the UP or DOWN button and enter ON using SEL button. You can select one Select GENLOCK using the UP or DOWN button and enter ON using SEL button. You can select one sub-mode using the UP or DOWN buttons. -
Page 7: Image Control
CV566/CV568/CV366/CV368 Manual 9. IMAGE CONTROL 10. SPECIAL Select IMAGE CONTROL using the UP or DOWN button. Select SPECIAL using the UP or DOWN button. You can select LENS SHADING, CONTRAST, HUE, And EDGE ENHANCE using the UP or DOWN You can select DEFOG, MOTION DETECT, BACKLIGHT, DEFECT PIXEL, and FLICKER DETECT using buttons. -
Page 8: Setup
CV566/CV568/CV366/CV368 Manual 11. SETUP 12. RESET CAMERA setup can be adjusted from this menu. Select RESET using the UP or DOWN buttons. You can select CAMERA ID, Communication, System Info, and Output Format using the UP or DOWN buttons. • RESET: Reset the camera settings the factory defaults or user setting value. -
Page 9: Exit
CV566/CV568/CV366/CV368 Manual 13. EXIT 13. TROUBLESHOOTING Select EXIT using the UP or DOWN button. Before sending the camera for repair, please check below to make sure that the camera is installed correctly. If it still does not perform adequately, please consult with your supplier. - Page 10 Warranty Marshall Electronics warranties to the first consumer that this device will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of two years from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty.
