Configuration of Altronix Power Supply and/or Sub-Assembly Boards

1. Fasten spacers onto metal pems configuration (A) or (B) of backplane depending on the board (Fig. 5, pg. 5).
2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 5a, pg. 5).
3. Mount backplane to enclosure with hardware.
Position Chart for the Following Models:
Altronix Power Supply/Charger or Sub-Assembly
eFlow4NB, eFlow6NB, eFlow102NB, eFlow104NB, or ACM8(CB), ACMS8(CB)
ACM4(CB), MOM5, PD4UL(CB), PD8UL(CB), PDS8(CB), PD16W(CB) or VR6

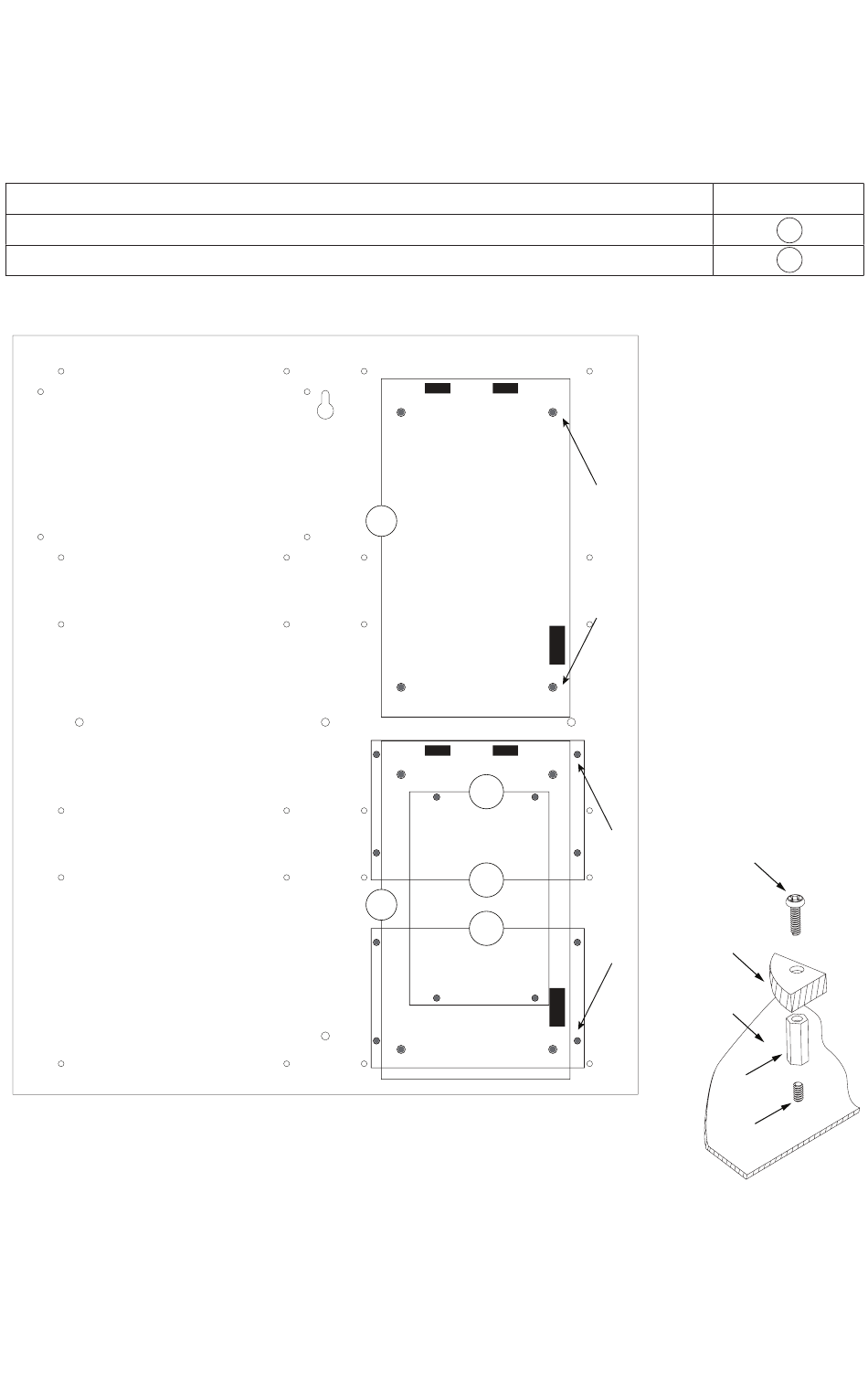

Fig. 5
Trove1V1R Installation Guide
TV1R:
A
B
B
A
B
Pem Mounting
Metal
Spacer
Placement
for Altronix
Power
Supplies
Metal
Pan Head Screw
Spacer
Placement
Power Supply
for Altronix
or
Power
Sub-Assembly
Supplies
Backplane
Spacer
Pem
A
B
Fig. 5a
- 5 -
