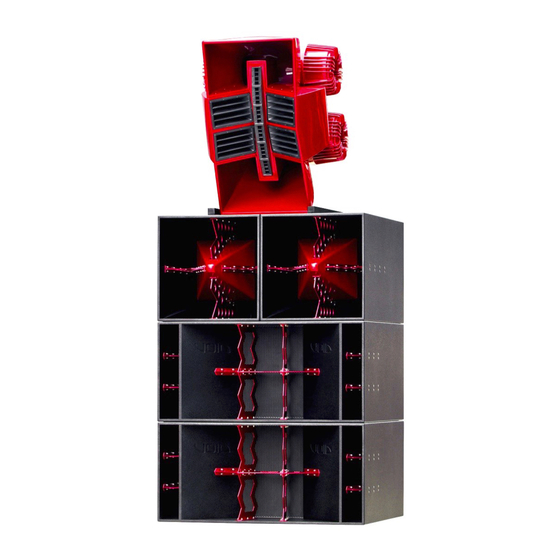

- Page 1 Incubus System Sonically and visually paralysing U S E R G U I D E V 2 . 0...
- Page 2 For the latest online version, visit: www.voidacoustics.com Void Acoustics and the Void logo are registered trademarks of Void Acoustics Research Ltd. in the United Kingdom, USA and other countries; all other Void trademarks are the property of Void Acoustics Research Ltd.
-
Page 3: Table Of Contents
Air Array Layout Air Array Wiring Diagram Air Array LF Bias Q5 speakON™ A wiring Air Array MHF Bias Q5 speakON™ B wiring Hyperfold Wiring Diagram Hyperfold Bias Q5 speakON™ wiring UG10570-2.0 - Incubus System User Guide V2.0 Page 3... -
Page 4: Safety And Regulations
Void Acoustics Research Ltd for such as when the power-supply cord or plug is damaged, liquid reprocessing. -
Page 5: Unpacking And Checking
2 Unpacking and Checking All Void Acoustics products are carefully manufactured and thoroughly tested before being despatched. Your dealer will ensure that your Void products are in pristine condition before being forwarded to you but mistakes and accidents can happen. -
Page 6: About
In buying this product, you are now part of the Void family and we hope using it brings you years of satisfaction. This guide will help you both use this product safely and ensure it performs to its full capability. -
Page 7: Specifications And Dimensions
813 mm (32”) Weight 144.8 kg (319.2 lbs) including stand Enclosure Fibreglass composite Rigging Stack mounted or proprietary flying system Finish Smooth cellulose Measured in half space AES2 - 1984 compliant Calculated UG10570-2.0 - Incubus System User Guide V2.0 Page 7... -
Page 8: Air Array Dimensions
4 Specifications and Dimensions 4.1.3 Air Array dimensions 944 (37.2”) 944 (37.2”) 1012 (39.8”) 944 (37.2”) 944 (37.2”) Figure 4.1: Dimensions UG10570-2.0 - Incubus System User Guide V2.0 Page 8... -
Page 9: Hyperfold
738 mm (29.1”) Depth 1218 mm (47.9”) Weight 150 kg (330.7 lbs) Enclosure 18 mm birch plywood Finish Textured ‘TourCoat’ polyurea, smooth cellulose Measured in half space AES2 - 1984 compliant Calculated UG10570-2.0 - Incubus System User Guide V2.0 Page 9... -
Page 10: Hyperfold Dimensions
4 Specifications and Dimensions 4.2.3 Hyperfold dimensions 738 (29.1”) 738 (29.1”) 1218 (47.9”) 738 (29.1”) 738 (29.1”) Figure 4.2: Dimensions 4.2.4 Hyperfold impedance graph Frequency (Hz) Figure 4.3: Impedance graph UG10570-2.0 - Incubus System User Guide V2.0 Page 10... -
Page 11: Incubus Sub
Width 1479 mm (58.2”) Depth 1218 mm (48”) Weight 214 kg (471.8 lbs) Enclosure 18 mm birch plywood Finish Textured ‘TourCoat’ polyurea Measured in half space AES2 - 1984 compliant Calculated UG10570-2.0 - Incubus System User Guide V2.0 Page 11... -
Page 12: Incubus Sub Dimensions
4 Specifications and Dimensions 4.3.3 Incubus Sub dimensions 1479 (58.2”) 1479 (58.2”) 1218 (48”) 1479 (58.2”) 1225 (48.2”) 1479 (58.2”) Figure 4.4: Dimensions 4.3.4 Incubus Sub impedance graph Frequency (Hz) Figure 4.5: Impedance graph UG10570-2.0 - Incubus System User Guide V2.0 Page 12... -
Page 13: Cable And Wiring
2.50 mm 13 AWG 36 m 18 m 4.00 mm 11 AWG 60 m 30 m 15 m 5.3 Typical amplifier rack array Figure 5.1: Typical amplifier rack layout for Q5 UG10570-2.0 - Incubus System User Guide V2.0 Page 13... -
Page 14: Air Array Layout
A further aid given will be a diagrammatic representation of which drivers would be engaged within the loudspeaker for each section. So, for example, figure 6.3 below shows the section for the low frequency drivers. Figure 5.3: LF drivers UG10570-2.0 - Incubus System User Guide V2.0 Page 14... -
Page 15: Air Array Wiring Diagram
400 W AES 4 Ω +/-2 Top 2 x 3” 400 W AES 5.3 Ω +/-3 Bottom 3 x 1” 160 W AES 5.3 Ω +/-4 Top 3 x 1” 160 W AES UG10570-2.0 - Incubus System User Guide V2.0 Page 15... -
Page 16: Air Array Lf Bias Q5 Speakon™ A Wiring
(NOTE: pins +/-3 and +/-4 are not connected) Bias Q5 for LF (speakON A connection) Channel Channel 1 Channel 2 Output Bottom 2 x 12” LF Top 2 x 12” LF speakON NL8 pins +/-1 +/-2 UG10570-2.0 - Incubus System User Guide V2.0 Page 16... - Page 17 +/-1 +/-2 Bias Q5 for HF (speakON B connection) Output 2 Channel 3 Channel 4 Output Bottom 3 x 1” HF Top 3 x 1” HF speakON NL8 pins +/-3 +/-4 UG10570-2.0 - Incubus System User Guide V2.0 Page 17...
-
Page 18: Hyperfold Wiring Diagram
Figure 5.8: Bias Q5 Bias Q5 Channel 1 Channel 2 Output LF (2 x 15”) LF (2 x 15”) 2 (2 Ω load to amplifier) 2 (2 Ω load to amplifier) Max parallel units UG10570-2.0 - Incubus System User Guide V2.0 Page 18... -
Page 19: Incubus Sub Wiring Diagram
Out/Link 1+ 1- 21” LF (3) Figure 5.9: Wiring diagram speakON pins +/-1 +/-2 +/-3 +/-4 21” LF (1) 21” LF (2) 21” LF (3) LF link LF link LF link UG10570-2.0 - Incubus System User Guide V2.0 Page 19... -
Page 20: Incubus Sub Bias Q5 Speakon
Bias Q5 3 Output Output 1 Output 1 Output 1 speakON NL4 pins 1+/2- 1+/2- 1+/2- Drivers 21” LF (1) 21” LF (2) 21” LF (3) speakON NL8 pins 1+/1- 2+/2- 3+/3- UG10570-2.0 - Incubus System User Guide V2.0 Page 20... -
Page 21: 6 Mounting
• Use only Void-approved mounting equipment and accessories • Secondary safeties should be provided in all instances where cabinets are flying or fixing overhead and should conform to local regulations UG10570-2.0 - Incubus System User Guide V2.0 Page 21... -
Page 22: 6.2 Ground Stack Bracket
Air Array loudspeaker. Figure 6.2: M8 bolt removal Step 3: Attached the backing plate to the Air Array ensuring that all eight M8 bolts are securely fastened. Figure 6.3: Backing plate attachment UG10570-2.0 - Incubus System User Guide V2.0 Page 22... - Page 23 Adjust the vertical angle of the Air Array to the required position. Figure 8.5: Vertical angle positioning Step 6: Fit the M12 through the appropriate slot. Figure 8.6: M12 bolt fixing UG10570-2.0 - Incubus System User Guide V2.0 Page 23...
-
Page 24: 7 Adjustments
Replace the M8 bolts by hand until finger tight before using hand tools. Note: Replacing bolts is of particular importance as without them there can be air leakage and detuning. Figure 7.3: Bolt tightening UG10570-2.0 - Incubus System User Guide V2.0 Page 24... -
Page 25: 7.2 Hyperfold Grille Removal
Figure 7.4: Bolt removal Step 2: Remove grille. Figure 7.5: Grille removal Step 3: Replace the M6 bolts by hand until finger tight before using hand tools. Figure 7.6: Bolt replacement UG10570-2.0 - Incubus System User Guide V2.0 Page 25... -
Page 26: 8 Service
Before returning your faulty product for repair, please remember to get an R.A.N. (Return Authorisation Number) from the Void dealer who supplied the system to you. Your dealer will handle the necessary paperwork and repair. Failure to go through this return authorisation procedure could delay the repair of your product. -
Page 27: 9 Appendix
(H) 1240 mm x (D) 813 mm (37.2” x 48.8” x 32”). Weight shall be 144.8 kg (319.2 lbs) including stand. The loudspeaker shall be the Void Acoustics Air Array. UG10570-2.0 - Incubus System User Guide V2.0 Page 27... - Page 28 (H) 748 mm x (W) 738 mm x (D) 1218 mm (29.4” x 29.1” x 47.9”). Weight shall be 150 kg (330.7 lbs). The loudspeaker shall be the Void Acoustics Hyperfold. UG10570-2.0 - Incubus System User Guide V2.0...
- Page 29 (H) 704 mm x (W) 1479 mm x (D) 1218 mm (27.7” x 58.2” x 48”). Weight shall be 214 kg (471.8 lbs). The loudspeaker shall be the Void Acoustics Incubus Sub. UG10570-2.0 - Incubus System User Guide V2.0...
- Page 30 H E A D O F F I C E Void Acoustics Research Ltd, Unit 15, Dawkins Road Industrial Estate, Poole, Dorset, BH15 4JY United Kingdom Call: +44(0) 1202 666006 Email: info@voidacoustics.com voidacoustics.com Void Acoustics Research Limited is a company registered in England and Wales registration number 07533536...
